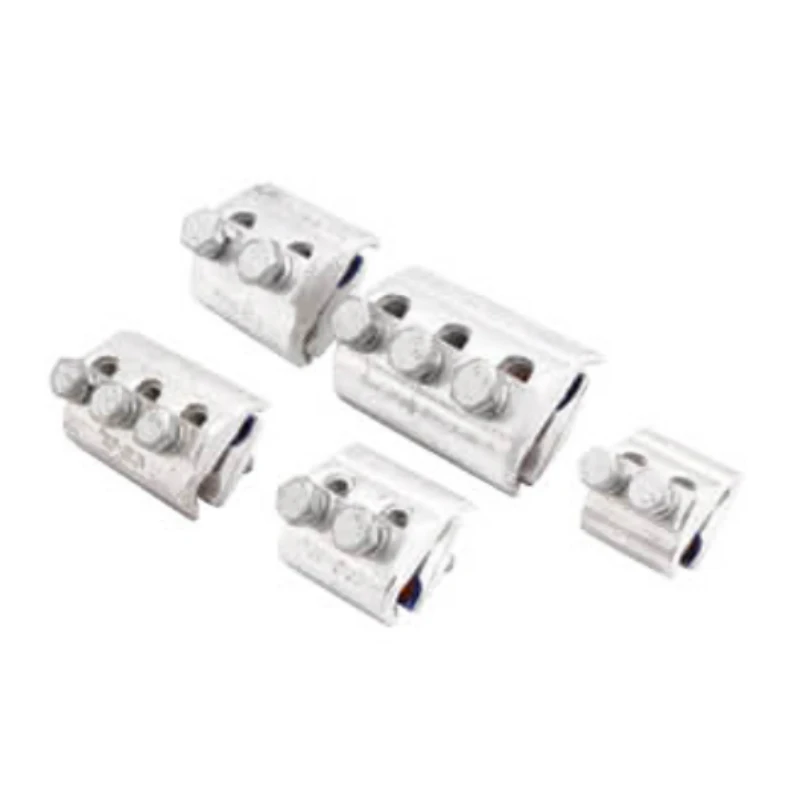

CAPG Series Copper-Aluminum Parallel Groove Clamp
YOCL ELECTRIC CAPG Series Copper-Aluminum Parallel Groove Clamp is for non-tension conductor connections and branching on overhead lines. Ten models cover specified copper and aluminium conductor ranges, with one, two or three bolts depending on model.
- Copper-aluminium construction for the stated conductor pairings.
- Model-specific Cu and Al conductor cross-section ranges from the reference table.
- Complete L, H, B and M dimensions and bolt quantity for all ten models.
Overview
YOCL ELECTRIC CAPG Series Copper-Aluminum Parallel Groove Clamp is designed for non-tension conductor connections and branches on overhead power lines. Its copper-aluminium construction accommodates the copper and aluminium conductor ranges specified for each model. The series contains ten models, CAPG-A1 through CAPG-C4.
Features
- Copper-aluminium construction: intended for the listed copper and aluminium conductor combinations.
- Parallel groove connection: holds conductors alongside one another for a non-tension connection or branch.
- Model-specific bolt count: the listed models use one, two or three bolts.
- Selection data: conductor ranges, L/H/B/M dimensions and bolt quantity are provided for every model.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | CAPG |
| Product type | Copper-aluminium parallel groove clamp |
| Intended connection | Non-tension overhead conductor connection and branching |
| Conductor materials listed | Copper and aluminium |
| Copper conductor range across series | 6–240 mm², depending on model |
| Aluminium conductor range across series | 16–300 mm², depending on model |
| Bolt quantity | 1, 2 or 3, depending on model |
| Listed models | 10 |
Dimension

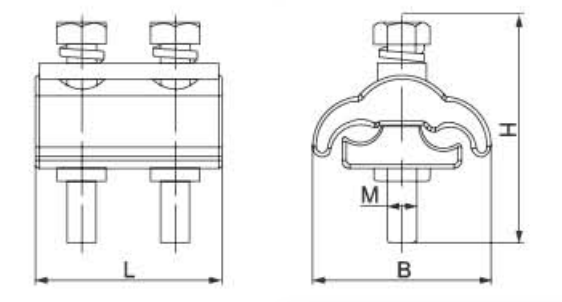

Conductor ranges are in square millimeters. L, H, B and M are the dimensions labeled in the supplied drawing and are listed in millimeters. The model-specific ranges must be used rather than the maximum series range when selecting a clamp.
| Model | Copper wire range (mm²) | Aluminium wire range (mm²) | L (mm) | H (mm) | B (mm) | M (mm) | Bolts |
|---|---|---|---|---|---|---|---|
| CAPG-A1 | 6–50 | 16–70 | 25 | 45 | 42 | 8 | 1 |
| CAPG-A2 | 10–95 | 25–150 | 30 | 50 | 46 | 8 | 1 |
| CAPG-B1 | 6–50 | 16–70 | 40 | 50 | 42 | 8 | 2 |
| CAPG-B2 | 10–95 | 25–150 | 50 | 55 | 46 | 8 | 2 |
| CAPG-B3 | 16–185 | 25–240 | 63 | 65 | 58 | 10 | 2 |
| CAPG-B4 | 35–240 | 35–300 | 105 | 76 | 64 | 10 | 2 |
| CAPG-C1 | 6–50 | 16–70 | 60 | 50 | 42 | 8 | 3 |
| CAPG-C2 | 10–95 | 25–150 | 70 | 55 | 46 | 10 | 3 |
| CAPG-C3 | 25–200 | 25–240 | 90 | 66 | 58 | 10 | 3 |
| CAPG-C4 | 35–240 | 35–300 | 104 | 76 | 64 | 10 | 3 |
Selection Guide
Choose the CAPG model whose copper and aluminium conductor ranges both include the conductors being joined. Compare L, H and B with the available installation space, then check M and the number of bolts against the intended hardware arrangement. Use the clamp only for the non-tension connection described for this series.
Aplicaciones
Non-tension connections and branch conductors on overhead power transmission and distribution lines.
Ordering Information
Specify the CAPG model and quantity when requesting a quotation.
