Cajas Marcadoras de Cables MB
YOCL ELECTRIC MB cable marker boxes use nylon and a closing cover to enclose the identification area. Select one of four models by its complete dimensional combination.
- Models: MB-3010, MB-3020, MB-4010 and MB-4020.
- Flammability class: 94V-2.
- Dimensions: L, W, L1, W1 and B, in millimetres.
- B dimension: 8 mm for all models.
Descripción general
YOCL ELECTRIC MB Cable Marker Boxes hold the identification area within a covered box. The nylon construction includes a closing cover that helps shield the marker, providing a separate box format for wire and cable identification.
The series includes MB-3010, MB-3020, MB-4010 and MB-4020. Each model has its own dimensional combination. Select the complete model using the L, W, L1, W1 and B values in the table.
Características
- Nylon material: the specified polymer for the marker box.
- Closing cover: encloses the identification area.
- Flammability class: 94V-2.
- Four size combinations: dimensions remain paired with the individual model.
- Common B dimension: 8 mm for all four models.
Especificaciones técnicas
| Parámetro | Especificación |
|---|---|
| Marca | YOCL ELÉCTRICO |
| Tipo de producto | Cable marker box |
| Serie | MB |
| Material | Nailon |
| Flammability class | 94V-2 |
| Cover | Closing cover |
| Unidades de dimensión | mm |
| Modelo | L (mm) | An (mm) | L1 (mm) | W1 (mm) | B (mm) |
|---|---|---|---|---|---|
| MB-3010 | 32 | 11 | 30 | 9 | 8 |
| MB-3020 | 31 | 19 | 30 | 18 | 8 |
| MB-4010 | 42 | 10 | 40 | 8.5 | 8 |
| MB-4020 | 44 | 20 | 41 | 17 | 8 |

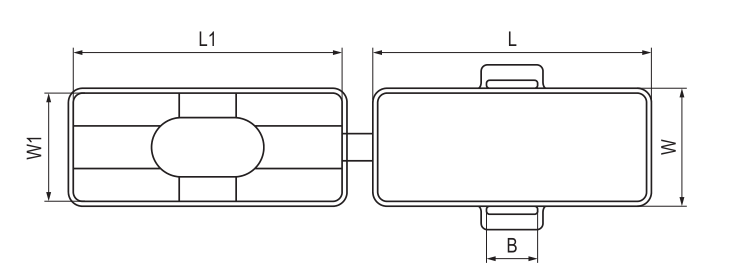

Dimensión
Use the five dimension labels together when comparing models. L, W, L1, W1 and B retain the same notation as the dimensional drawing, with every value in millimetres. Select a complete model row rather than combining dimensions from different boxes.
Guía de selección
Compare the dimensional combination with the available identification space and the intended marker layout. Include all relevant dimensions where a box must match an existing arrangement. Keep the closing-cover format in the specification so the identification area is enclosed.
Información de pedido
Specify YOCL ELECTRIC MB Cable Marker Boxes, model and quantity. Include the intended identification layout and any dimensions that must match an existing arrangement with the enquiry.
