YOCL ELECTRIC MEC Marcadores de cable redondos
YOCL ELÉCTRICO Marcadores de cable redondos MEC en PVC blando con un perfil interior cóncavo flexible.
- Modelos: MEC-0 a MEC-3.
- Rangos de tamaño de conductor y cable específicos del modelo.
- Embalaje estándar: 250 a 450 uds./rollo, según modelo.
- Marcas: 0–9, A–Z, más, menos, barra y barra invertida.
- Select the wire ranges and packaging from the same model row.
Descripción general
YOCL ELÉCTRICO Marcadores de cable redondos MEC provide individual number, letter and symbol identification for wires. Soft PVC construction and a flexible concave inner profile form the round marker sleeve. The series includes MEC-0, MEC-1, MEC-2 and MEC-3.
Each model has its own conductor cross-section range, suitable wire-size range and standard roll quantity. Keep these specifications together when choosing the marker. Available characters include 0–9, A–Z, plus, minus, slash and backslash symbols.
Características
- Soft PVC round cable-marker format.
- Flexible concave inner profile.
- Number, uppercase-letter and symbol options.
- Four model-specific wire ranges and roll quantities.
Especificaciones técnicas
| Parámetro | Especificación |
|---|---|
| Marca | YOCL ELÉCTRICO |
| Serie | MEC |
| Tipo de producto | Round cable markers |
| Material | Blando PVC |
| Perfil interior | Perfil cóncavo flexible |
| Opciones de marcado | 0–9, A–Z, plus (+), minus (-), slash (/) and backslash |
Especificaciones del modelo
| Modelo | Suitable conductor cross-section (mm²) | Suitable wire size (mm) | Embalaje estándar |
|---|---|---|---|
| MEC-0 | 0.75–1.5 | 2.0–3.2 | 450 pcs/roll |
| MEC-1 | 0.75–3.5 | 3.0–4.2 | 400 pcs/roll |
| MEC-2 | 3.5–8.0 | 3.6–7.4 | 300 pcs/roll |
| MEC-3 | 5.2–10.0 | 5.2–10.0 | 250 pcs/roll |

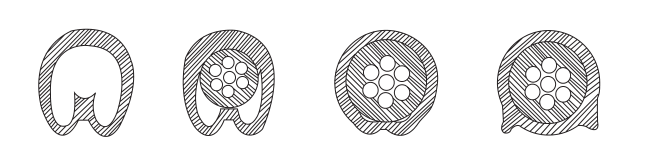

Dimensión
The wire-size ranges in the table refer to the wire selection for each model. They are separate from conductor cross-section, which is expressed in square millimetres.
Guía de selección
Compare both the conductor cross-section and insulated-wire size with the same model row. Then check the packaging quantity for that model. For example, MEC-0 pairs 0.75–1.5 mm² con 2.0–3.2 mm wire size and 450 pcs/roll.
Prepare the required characters and quantities from the wiring identification schedule. Include the insulated-wire outside diameter with the enquiry to identify the intended fit, and keep the selected model in repeat purchase descriptions.
Información de pedido
Especifique el MEC model, required numbers, letters or symbols, roll quantity and wire details. Where several characters are needed, provide the marking allocation for the order. Pieces per roll describe the packaging quantity; include the requested marking allocation.
