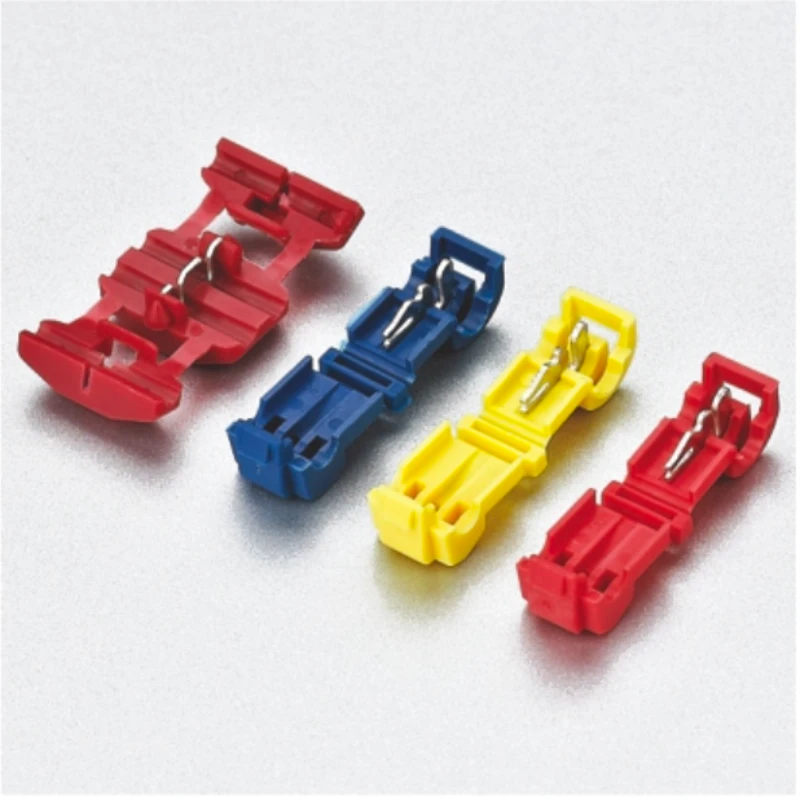

878 Series Fast Splicing Wire Connectors
878 Series Fast Splicing Wire Connectors are catalog fast connectors for wire splices, with Nylon (PA66) housings and model-specific conductor ranges.
- 4 model codes covering catalog cross-sections from 0.5 to 6 mm².
- Red, blue and yellow models identify the listed wire size groups.
- W and L dimensions are provided in millimeters for each model.
- Catalog packing quantity: 200 pieces per pack for every listed model.
Overview
878 Series Fast Splicing Wire Connectors are fast connectors for joining conductors in the catalog wire ranges listed below. The Nylon (PA66) housing models cover three conductor size groups from 0.5 to 6 mm². Confirm the model code, wire cross-section and W × L dimensions when selecting a connector.
Features
- Nylon (PA66) housing specified for every model in this series.
- Red, blue and yellow catalog colors distinguish the listed wire ranges.
- Model-specific W × L dimensions support space and layout checks.
Technical Specifications
| Parameter | Catalog specification |
|---|---|
| Product type | Fast splicing wire connector |
| Housing material | Nylon (PA66) |
| Catalog conductor cross-section range | 0.5–6 mm² |
| Catalog pack quantity | 200 pieces per pack |
Dimension

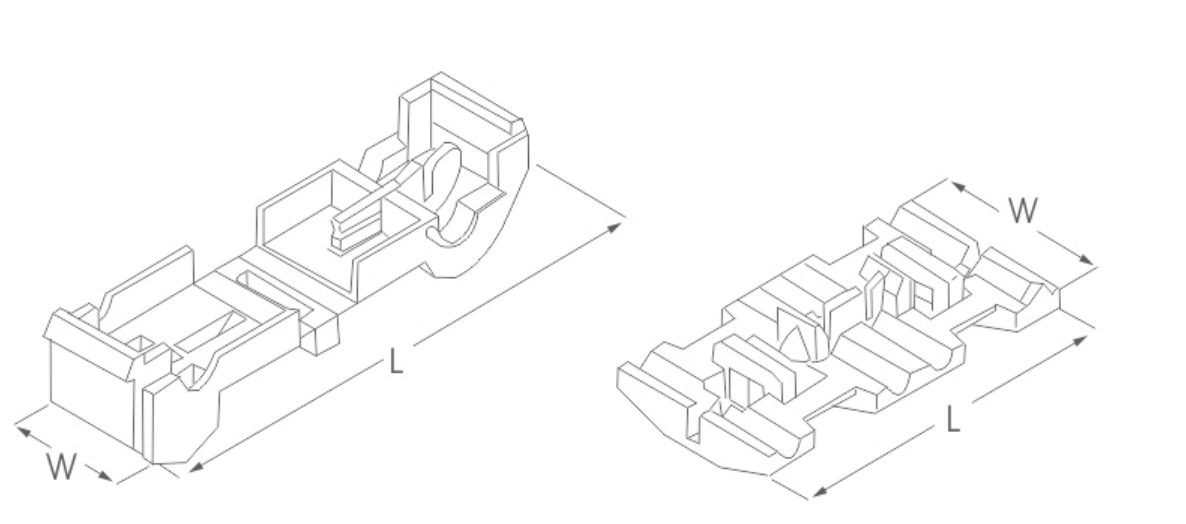

W and L are the dimensions marked on the catalog drawings, in millimeters. The drawing reference identifies which of the two source shapes corresponds to each model.
| Model | Conductor cross-section (mm²) | Catalog AWG | W (mm) | L (mm) | Color | Drawing reference | Pieces/pack |
|---|---|---|---|---|---|---|---|
| 87806 | 0.5–1.0 | 22–18 | 9.8 | 37.0 | Red | Picture 1 | 200 |
| 87816 | 0.75–2.5 | 18–14 | 9.8 | 37.0 | Blue | Picture 1 | 200 |
| 87826 | 4–6 | 12–10 | 9.8 | 37.0 | Yellow | Picture 1 | 200 |
| 87808 | 0.5–1.0 | 22–18 | 35 | 34.0 | Red | Picture 2 | 200 |
Selection Guide
Select by conductor cross-section and catalog model code. Check the W and L dimensions against the available space, and specify the model and quantity when requesting a quote.
Dimension
