CONNECTION GEOMETRY

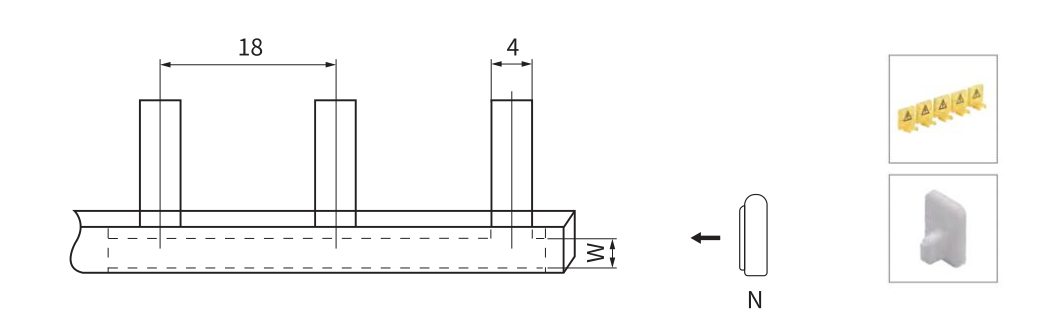

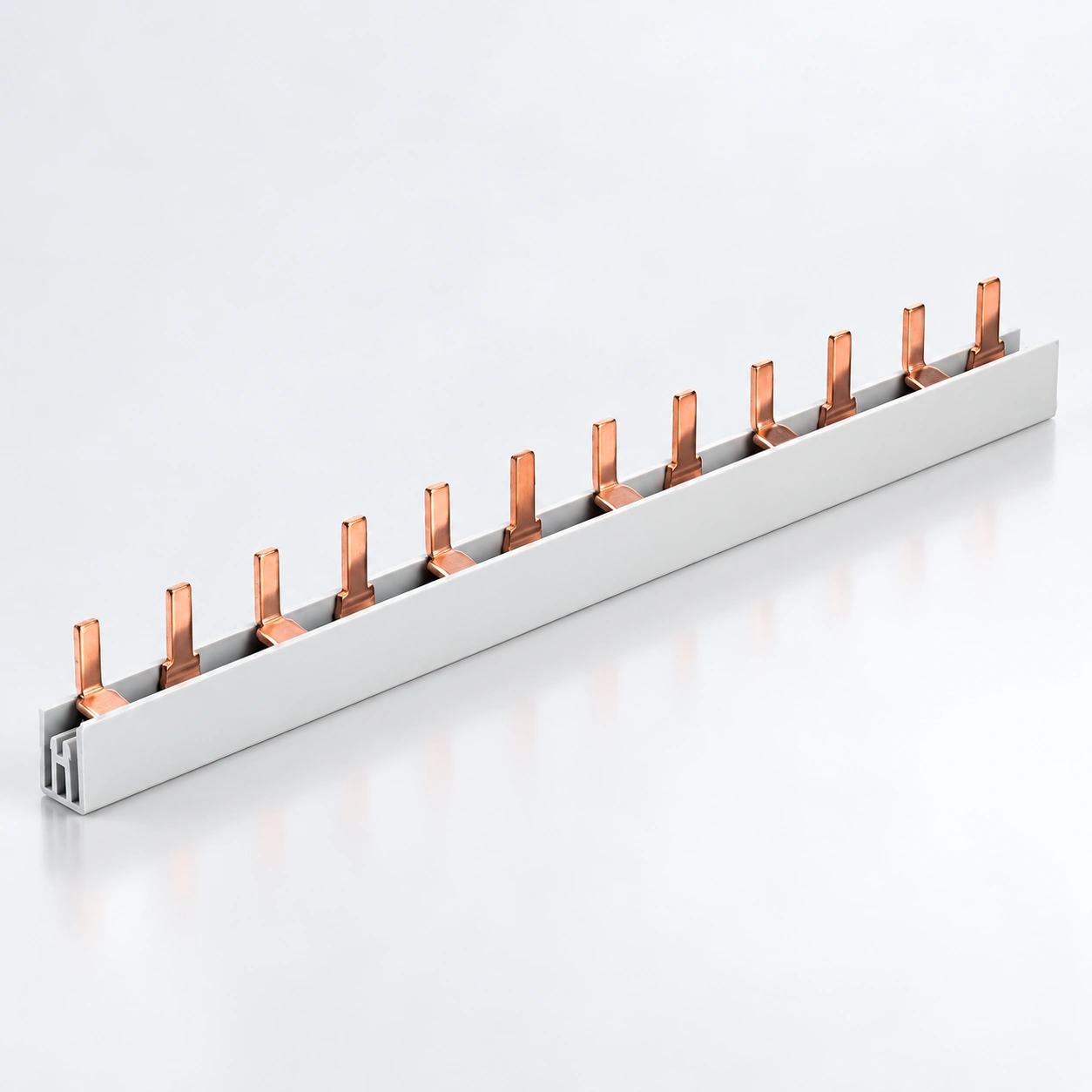

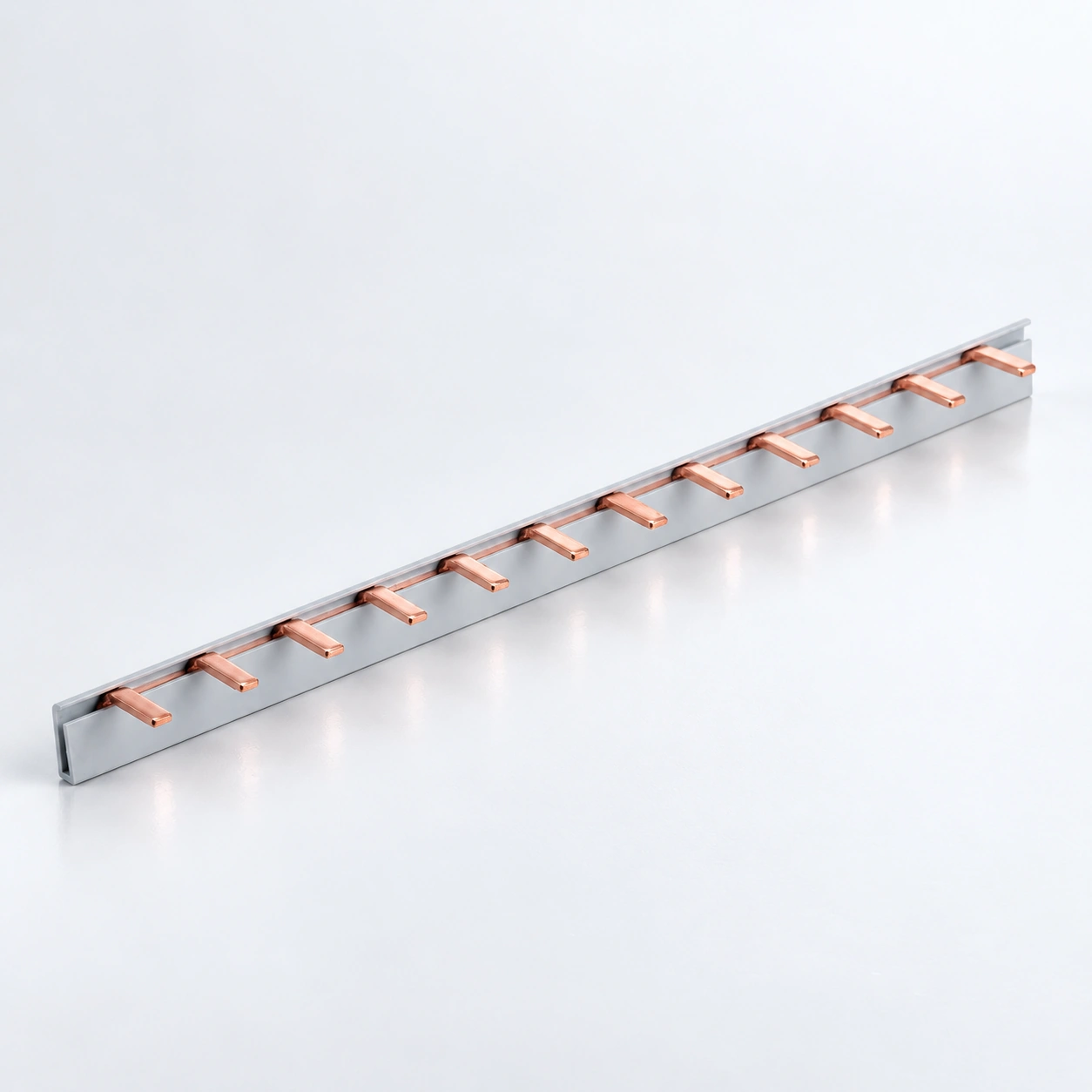

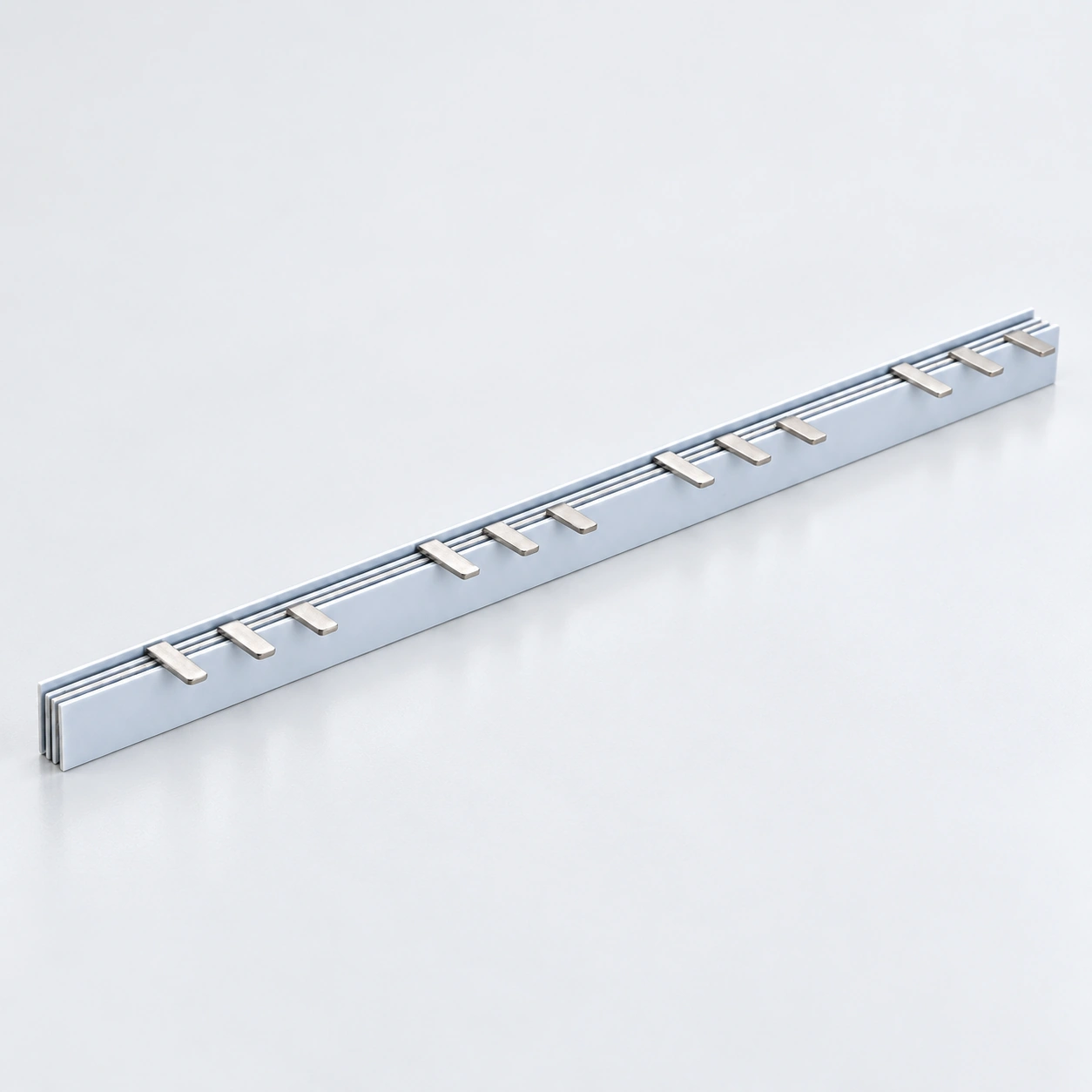

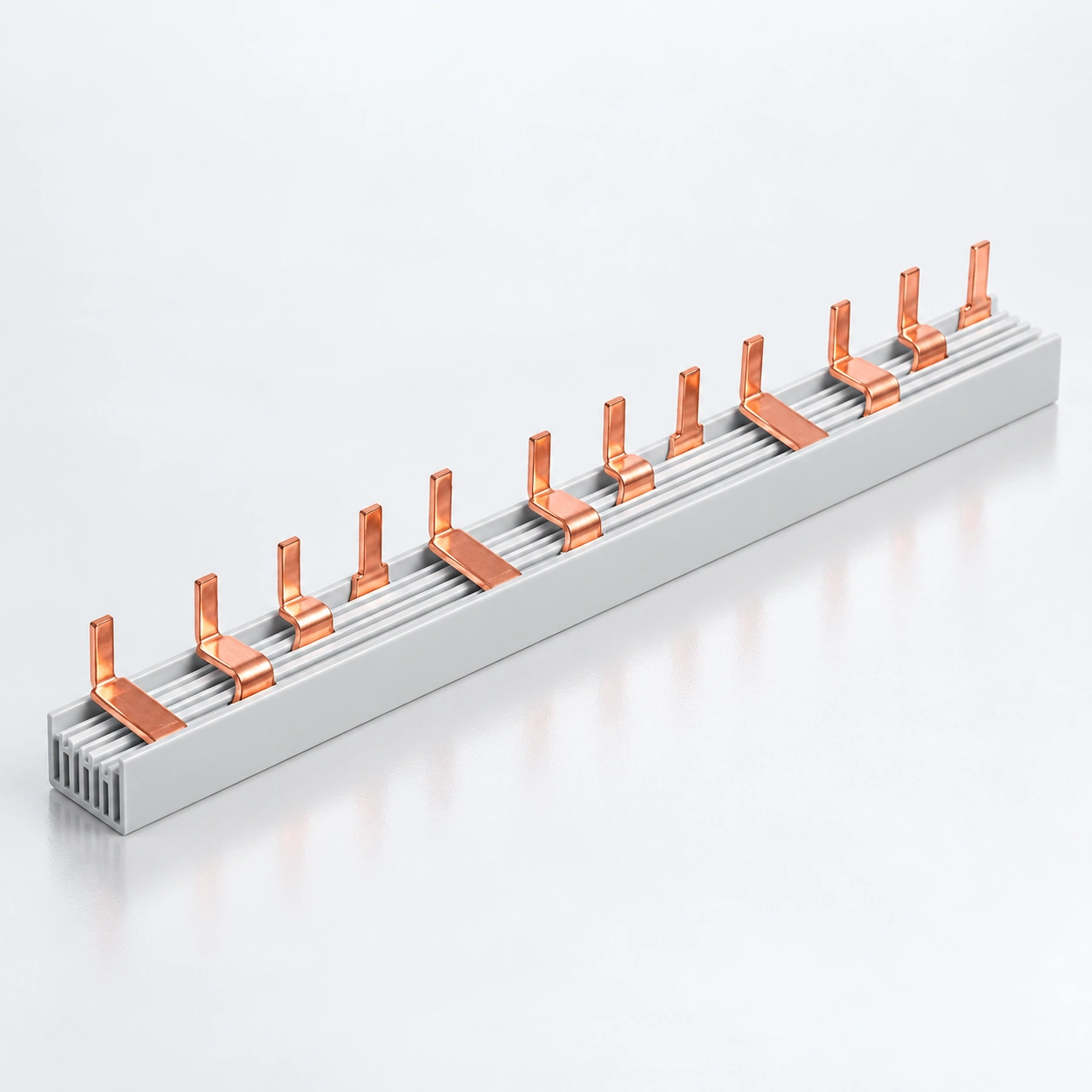

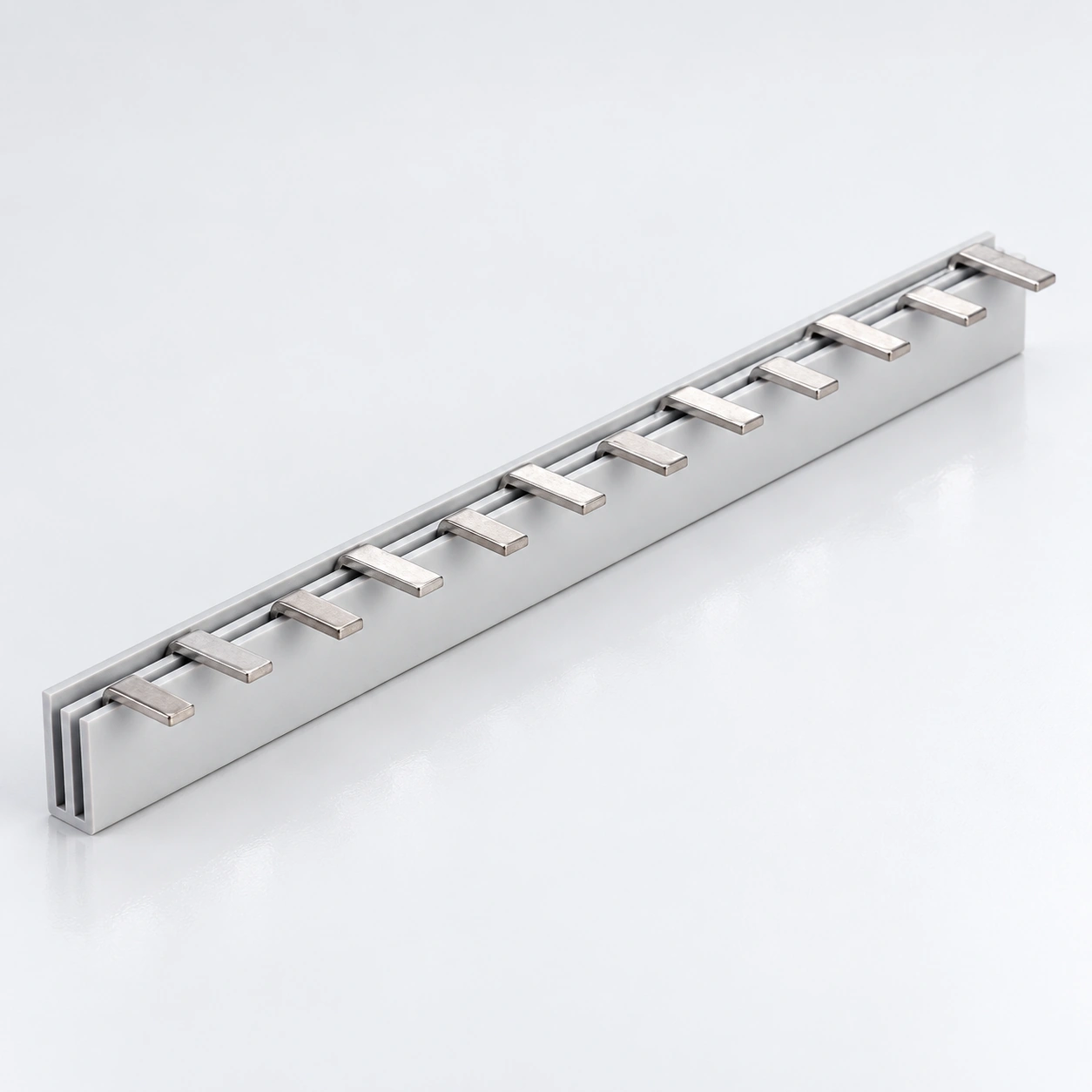

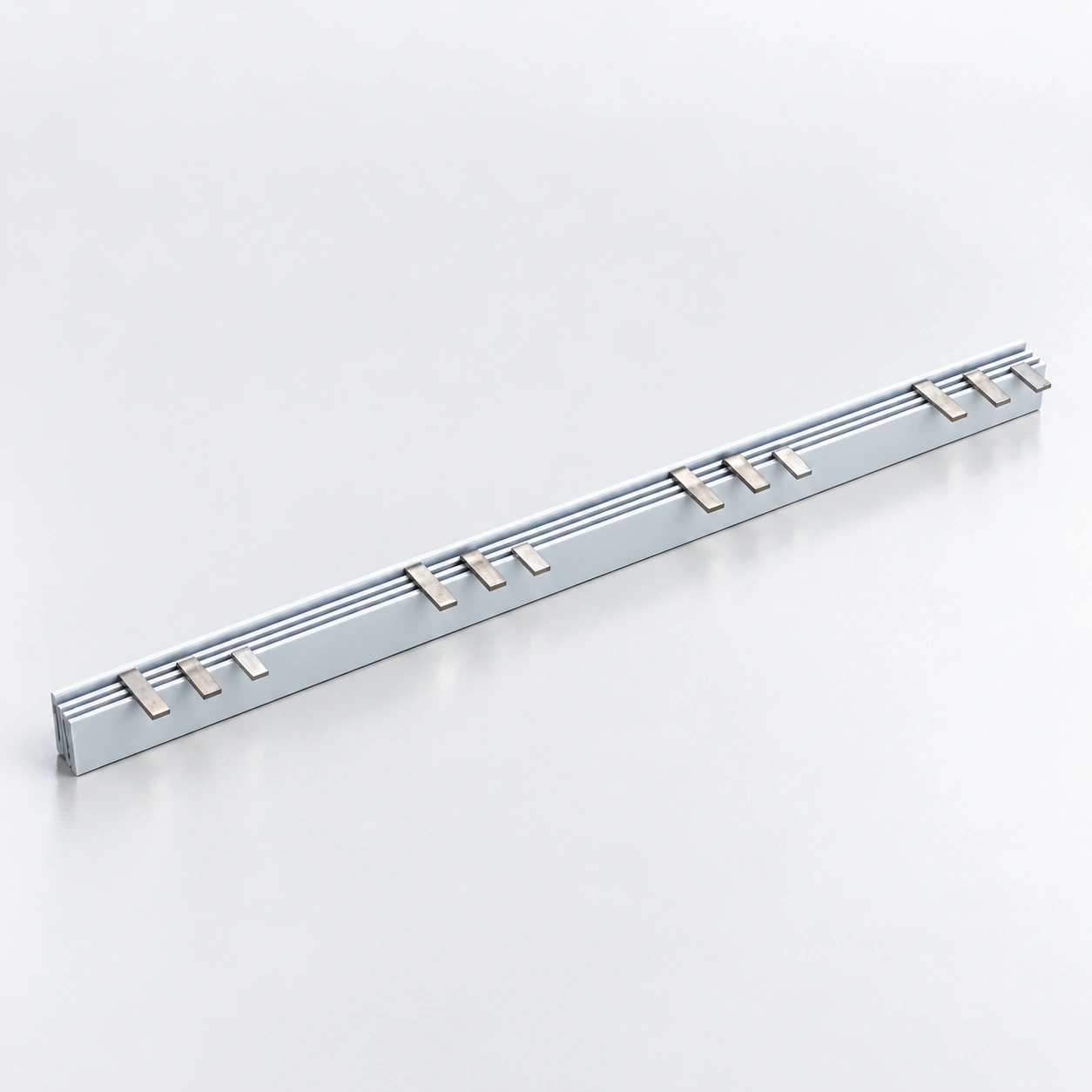

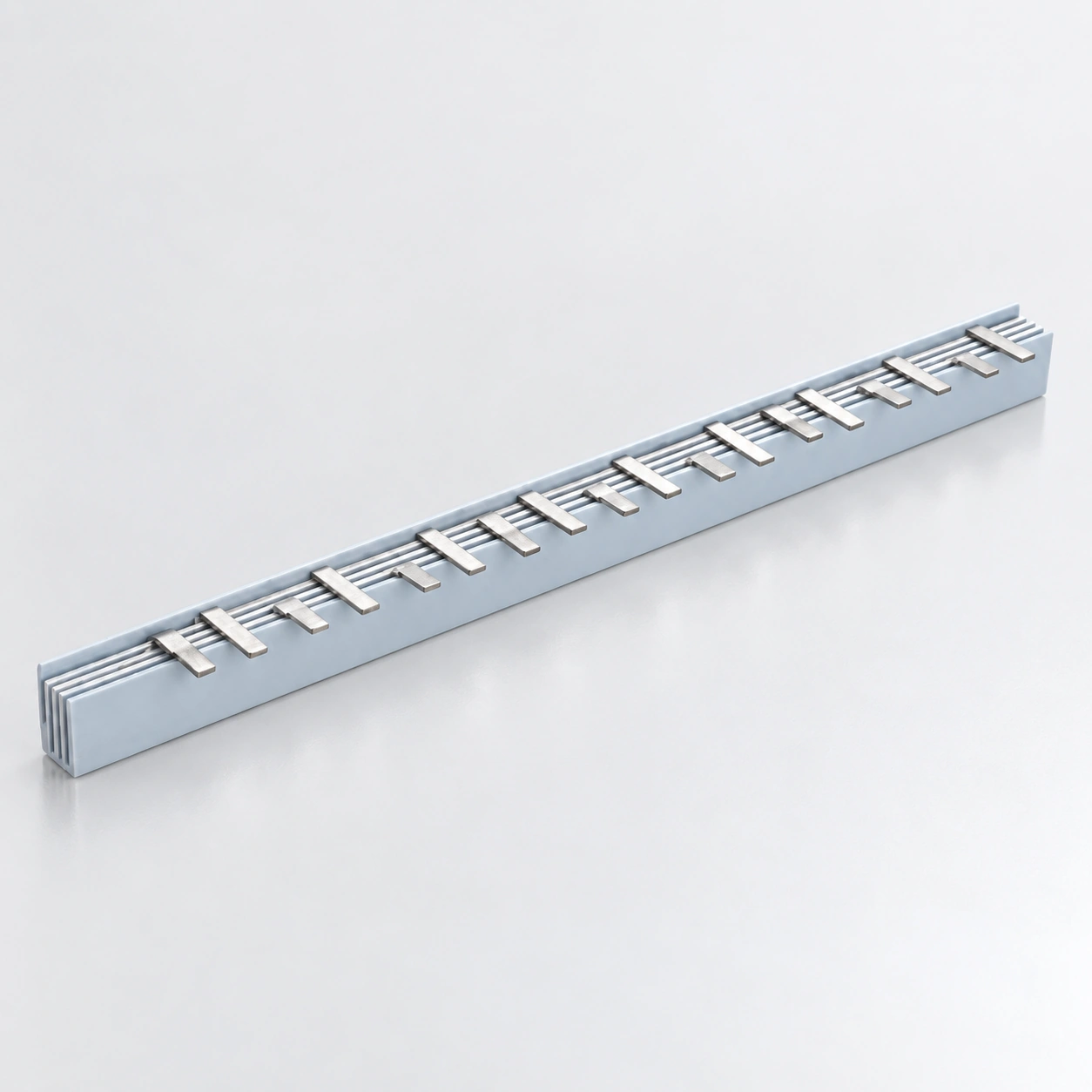

A pin type comb busbar uses projecting contacts to connect a repeated row of compatible device terminals. YOCL BS101, BS102, BS103 and BS104 cover 1P, 2P, 3P and 4P configurations respectively.
Choose the pole arrangement first, then compare pin thickness, width and tooth pitch with the receiving terminal. A matching current value alone does not establish a mechanical fit.
For example, BS101-2 lists 10 mm² copper and 63 A catalog current capacity; BS101-4 lists 16 mm² and 80 A. These are model-specific values, not a rating for every pin busbar.
Compare pin models in the range ↑Two related browsing options. Confirm the precise contact geometry before choosing a replacement.

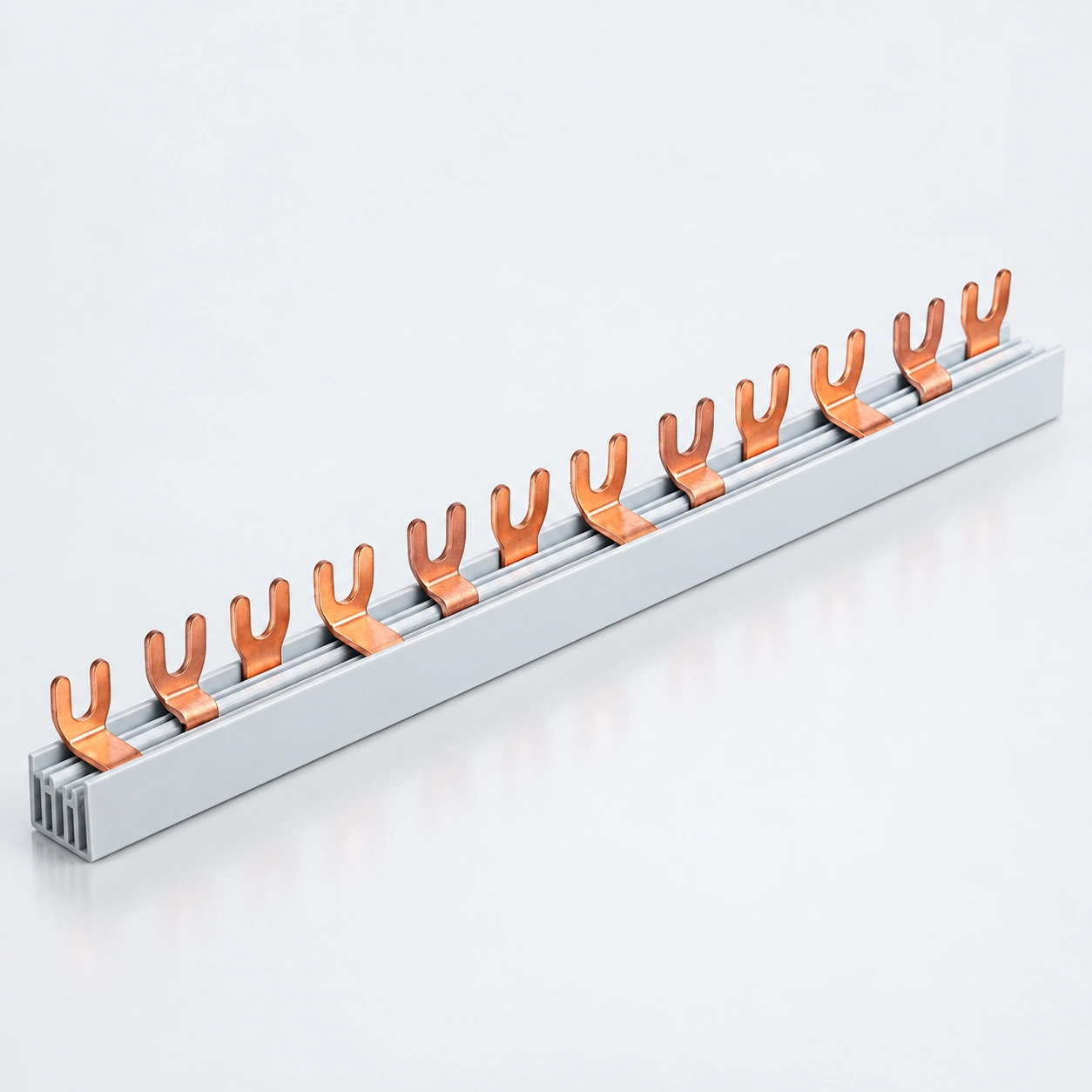

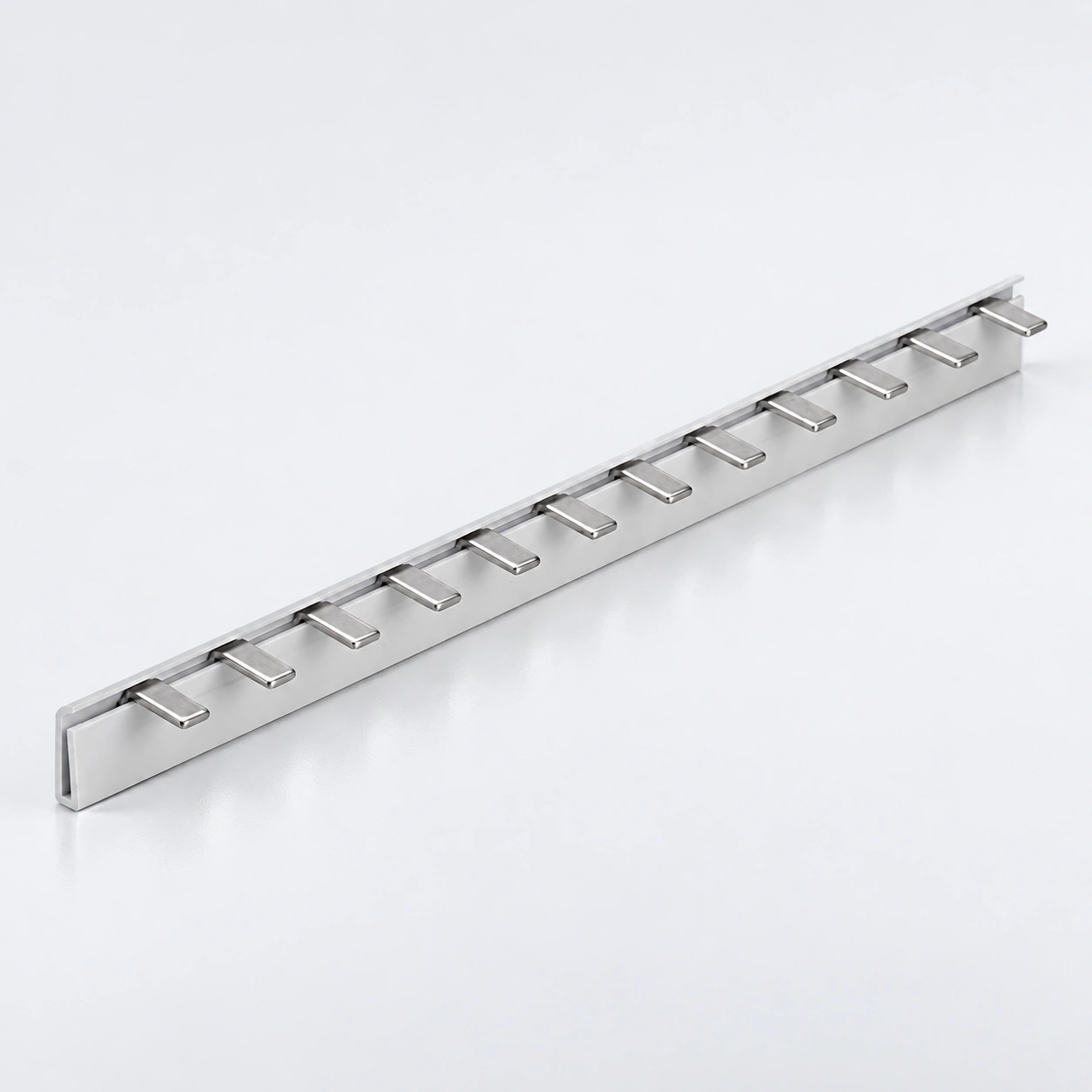

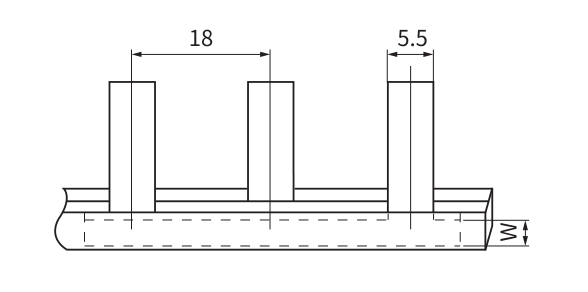

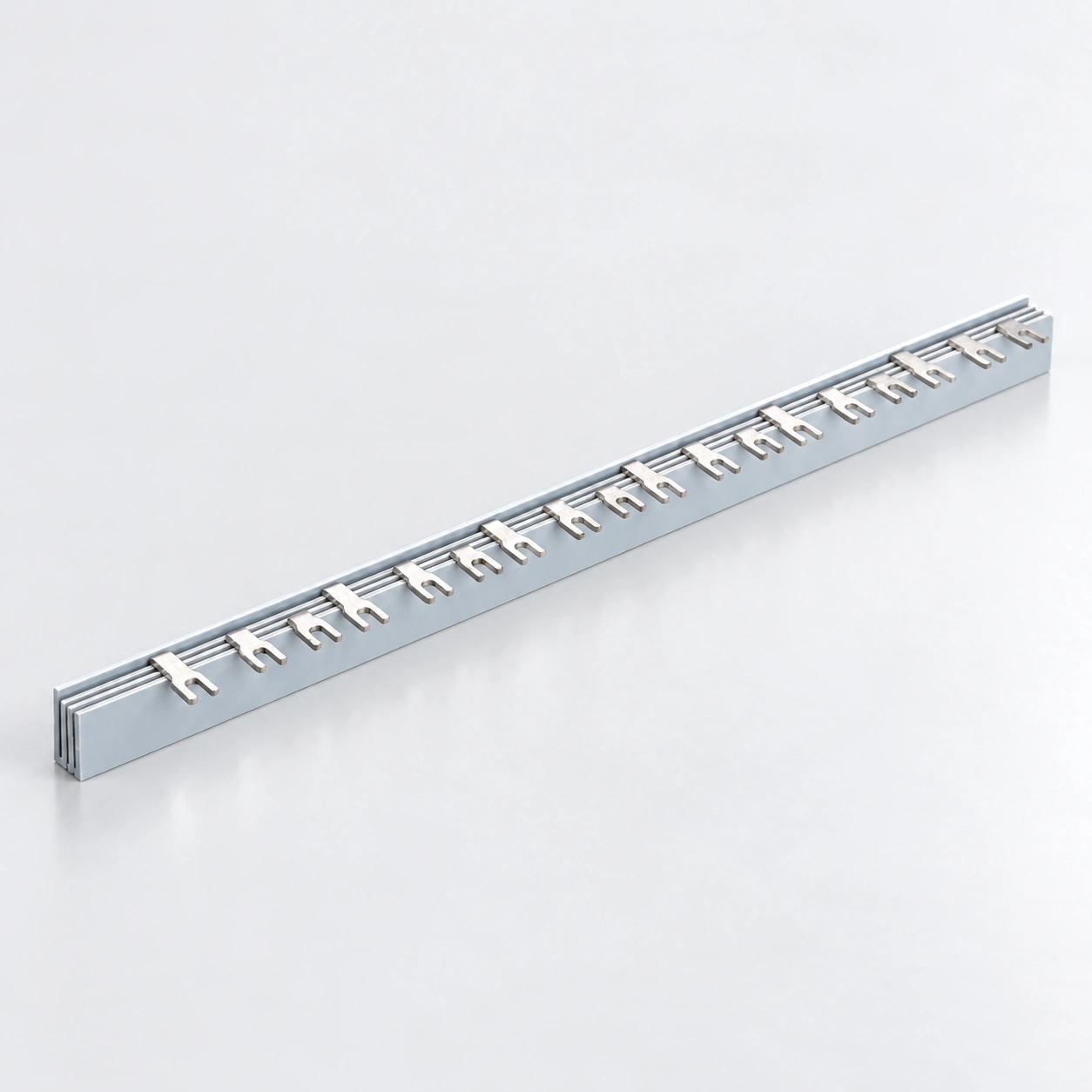

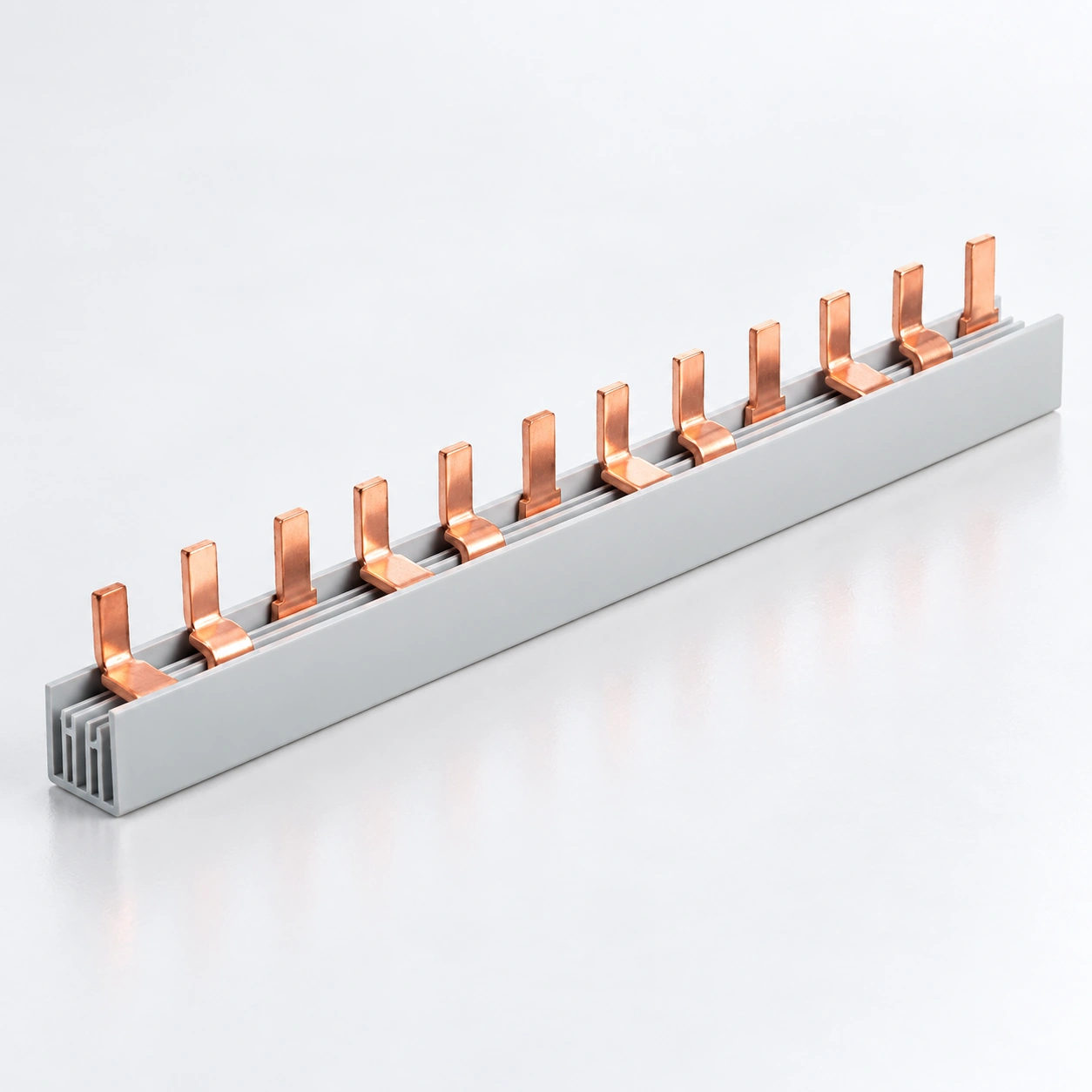

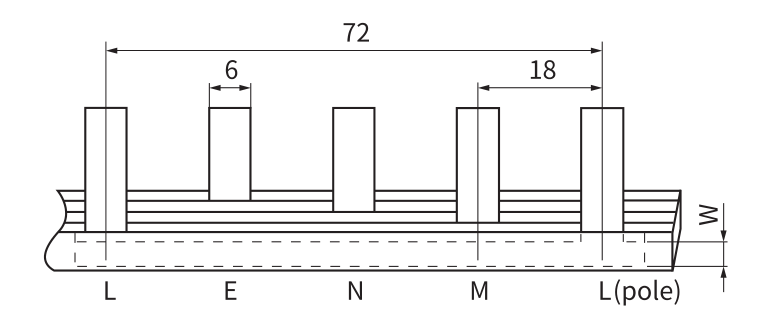

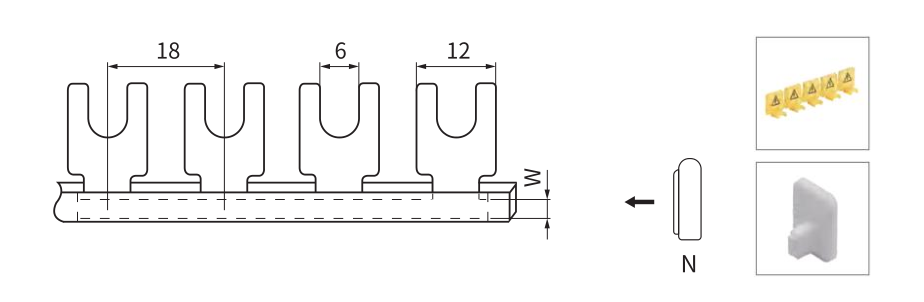

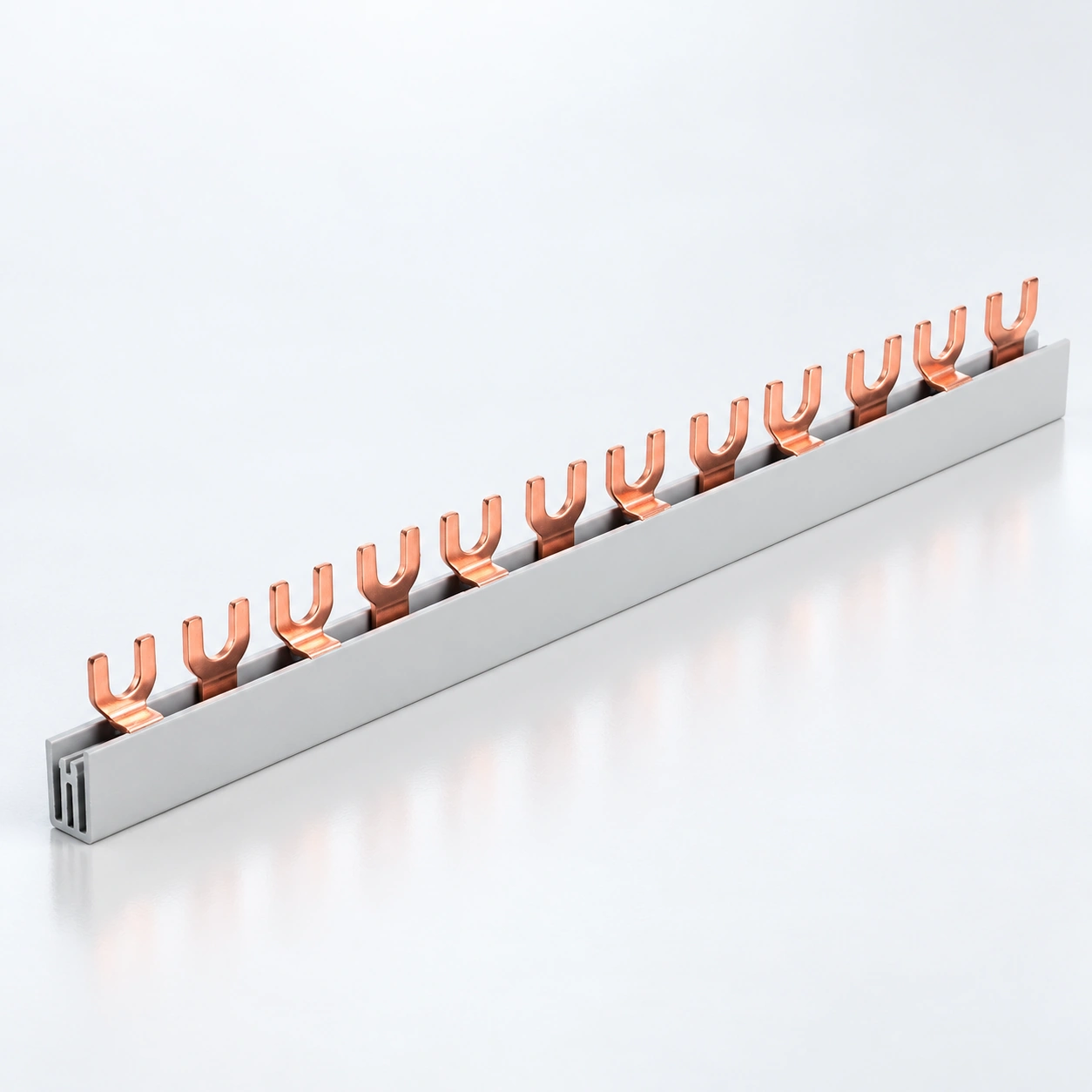

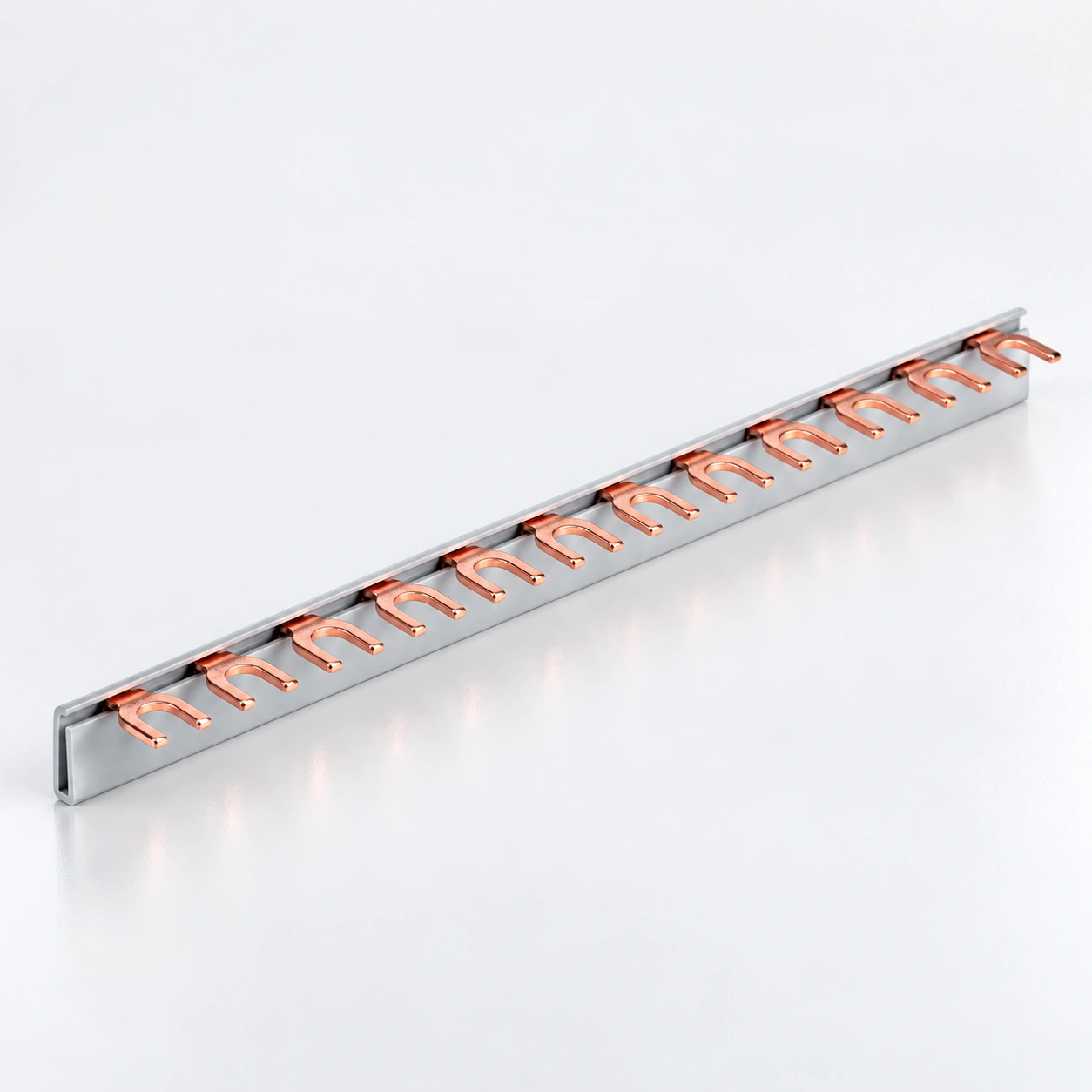

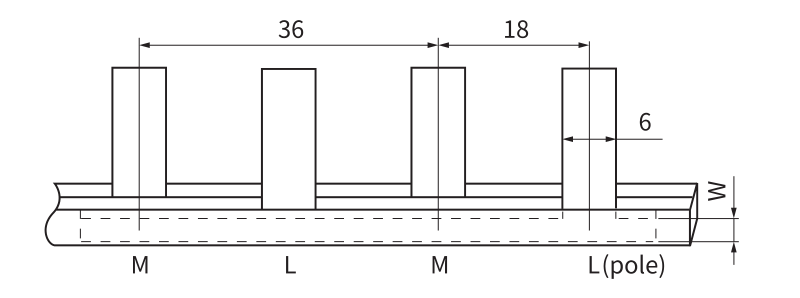

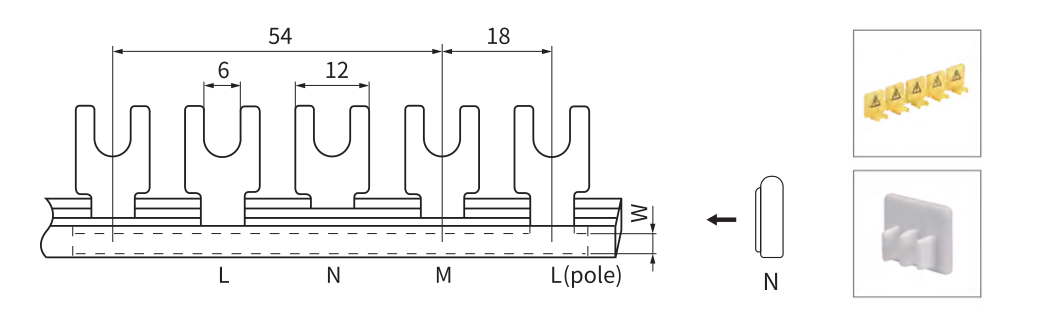

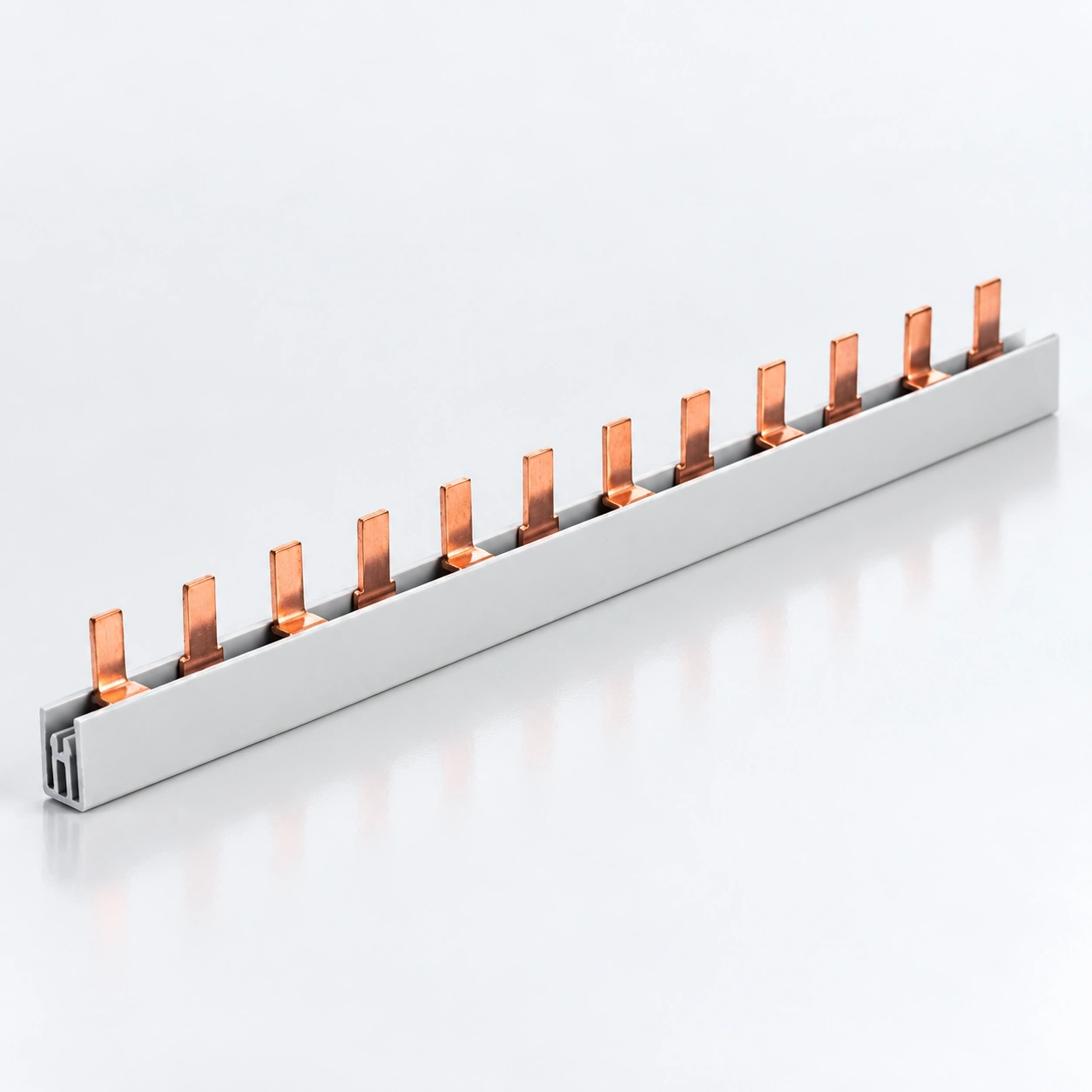

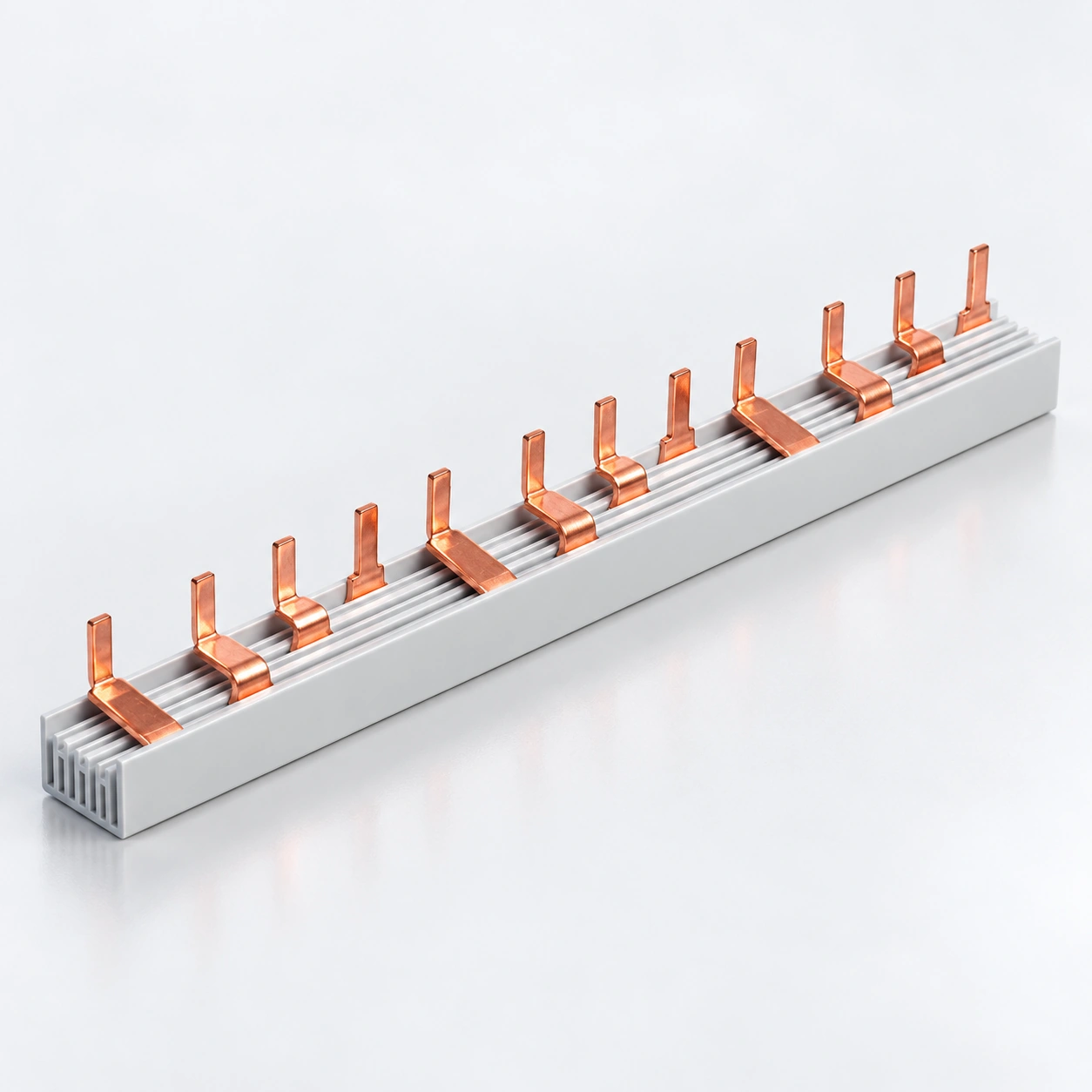

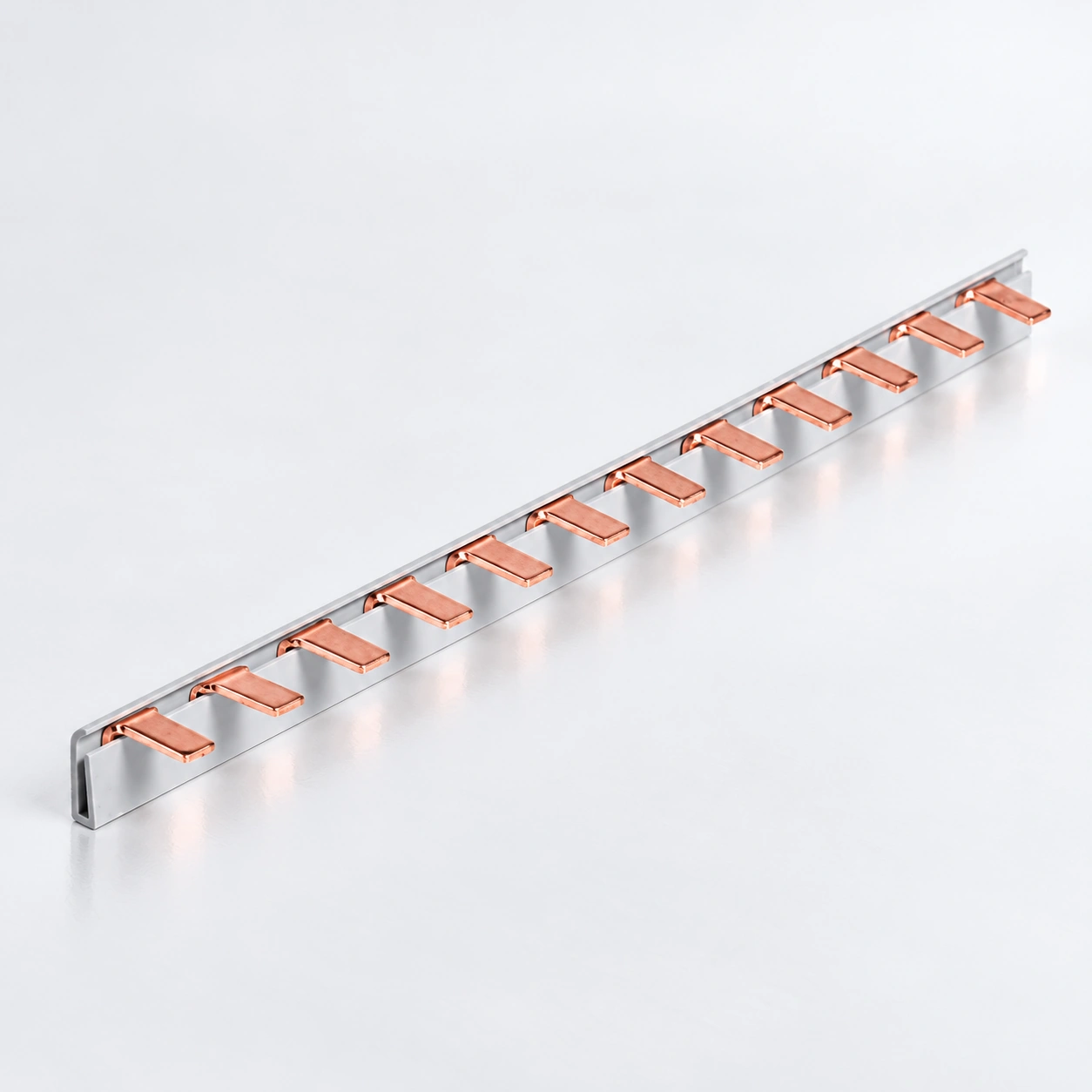

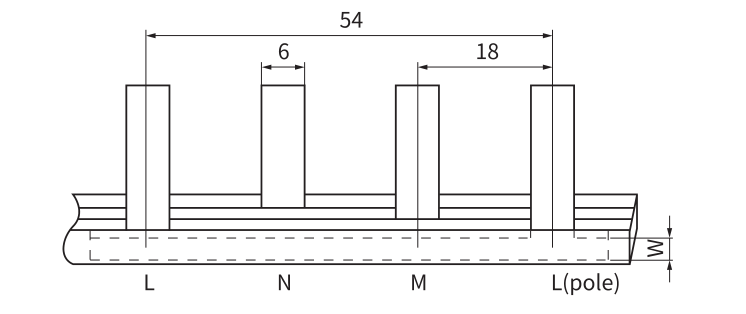

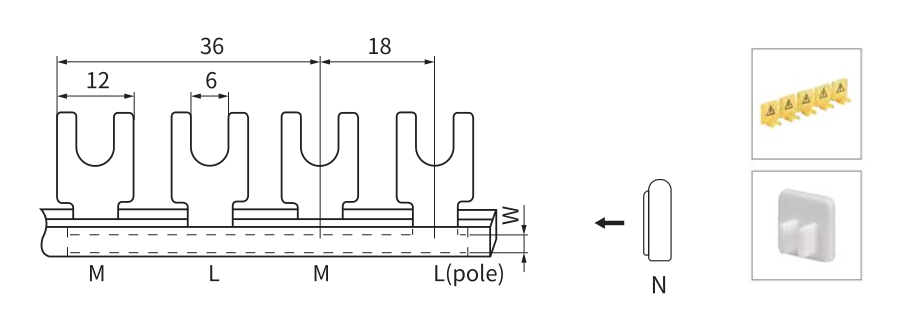

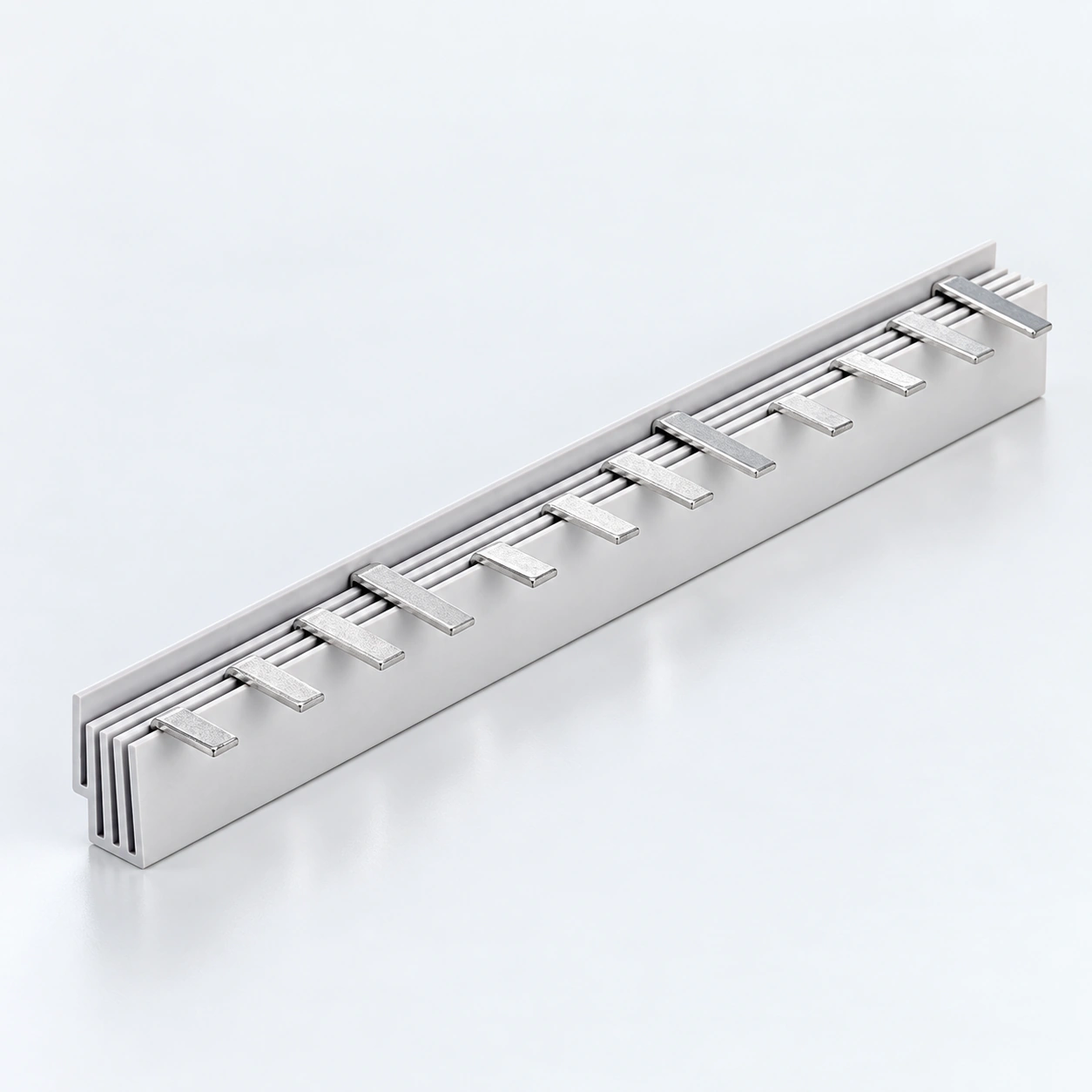

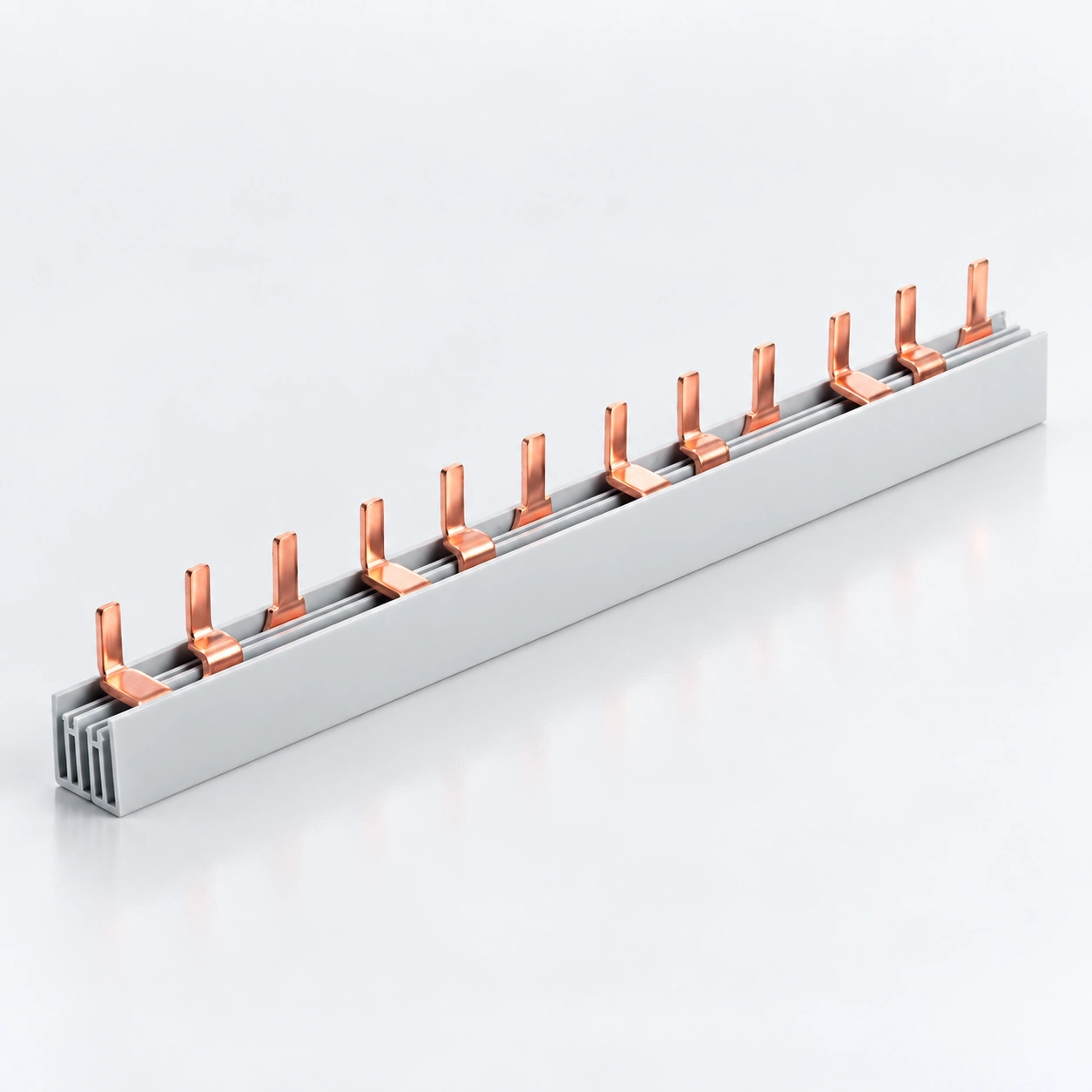

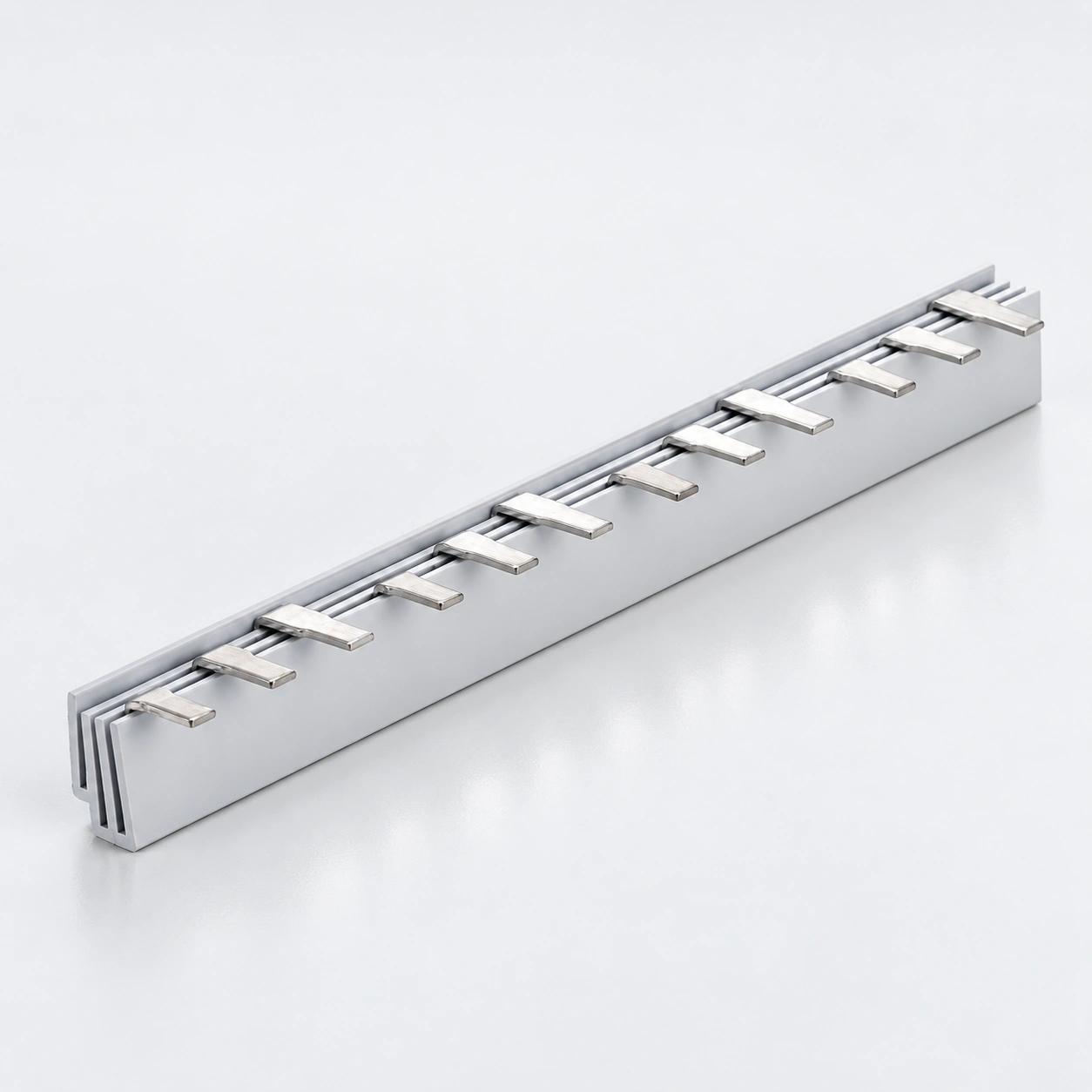

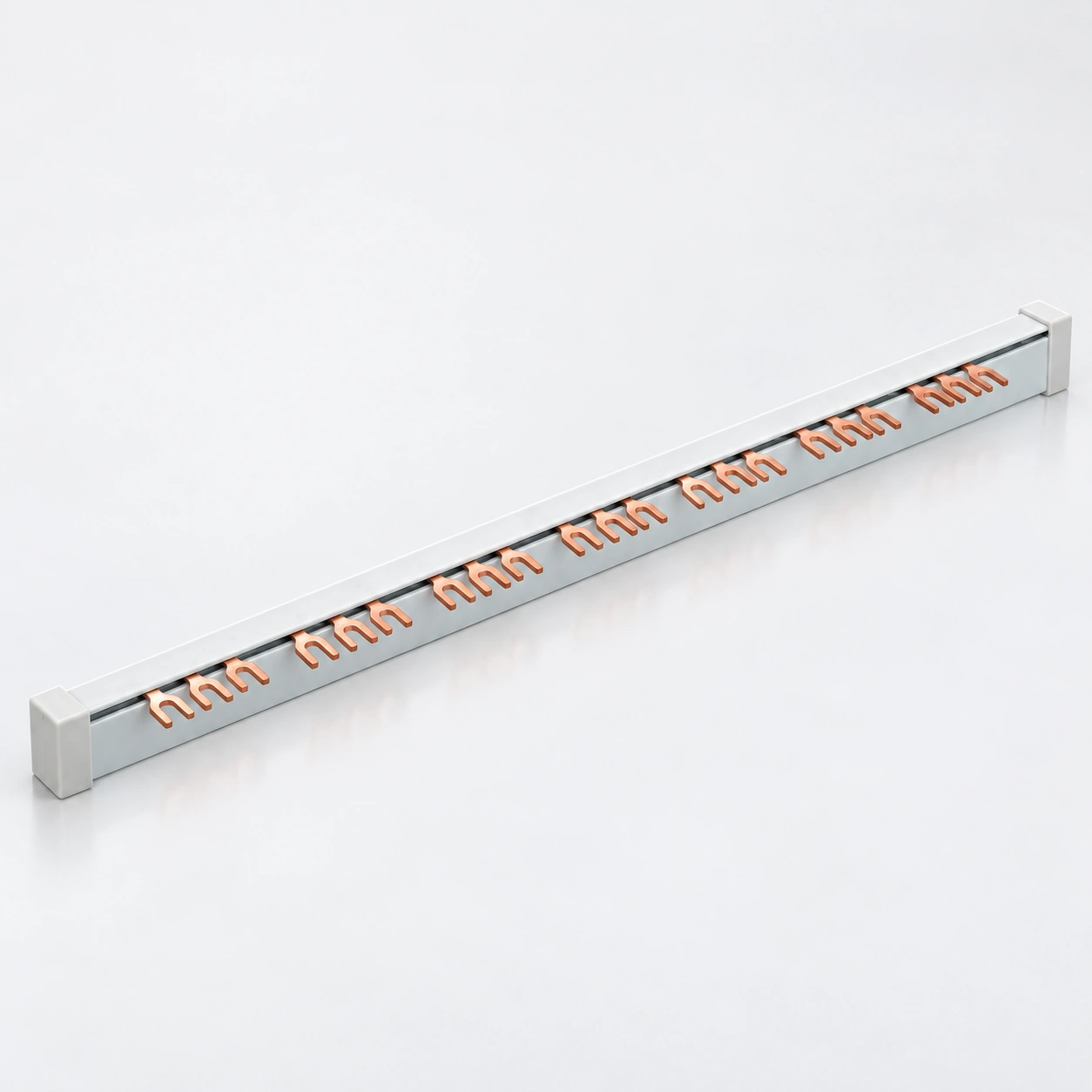

The BS201–BS204 C45 fork range and BS301–BS304 U-type range each include 1P–4P series. They are grouped together for browsing, but their model designations and drawings remain separate.
Compare the contact opening, contact thickness, engagement dimensions and spacing with the device terminal. Do not substitute a fork or U-type busbar for a pin type solely because the number of poles is the same.
Published product data, summarized by series. Open the product table for paired model values and dimensions.
Ranges summarize different models; they do not mean that every copper size has every listed current capacity. The source tables identify nominal and maximum operating voltage separately. Check the exact model, supply arrangement and installation conditions before approval.
Use a device reference and a dimensioned drawing to make compatibility review practical.

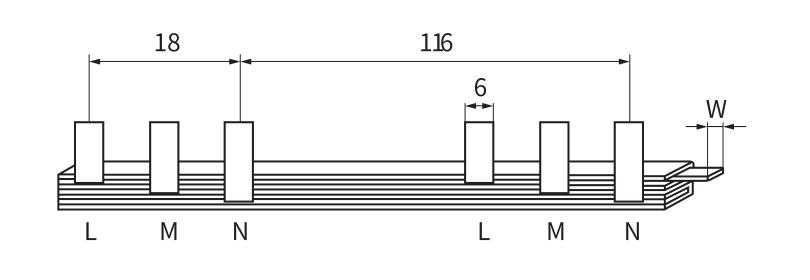

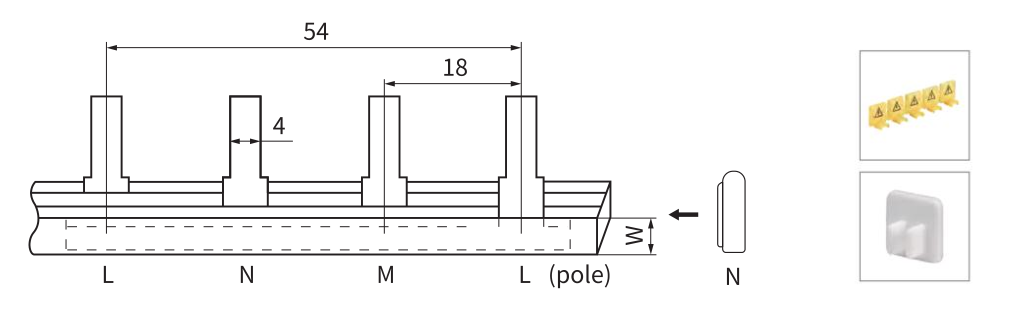

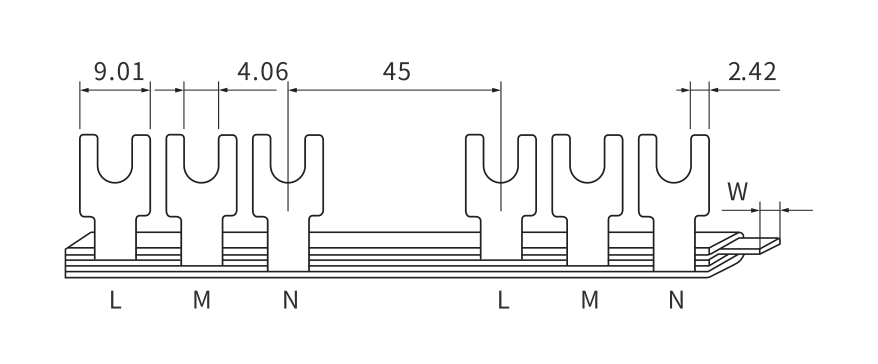

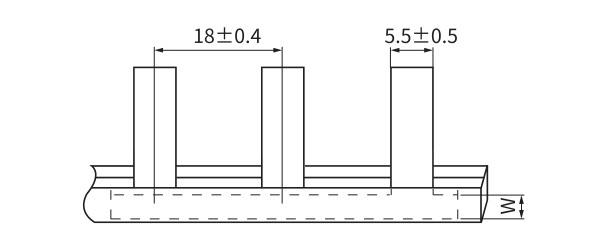

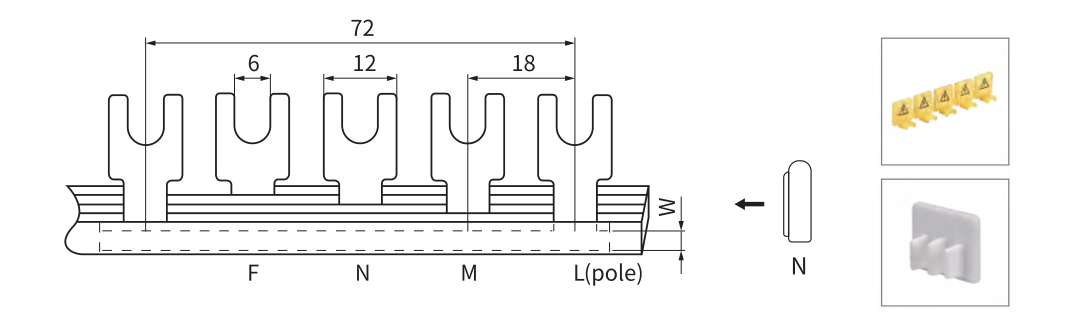

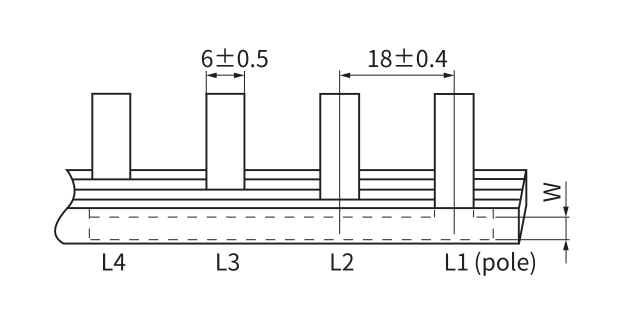

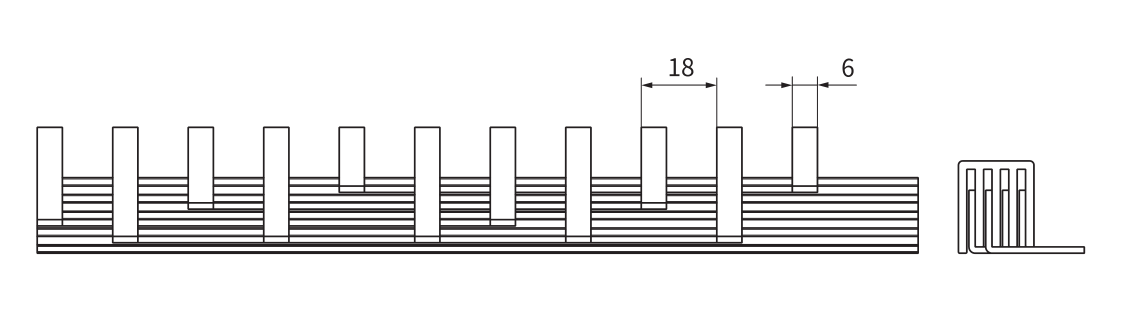

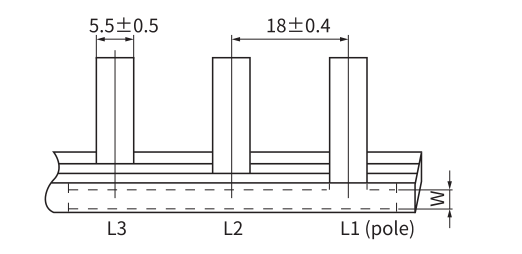

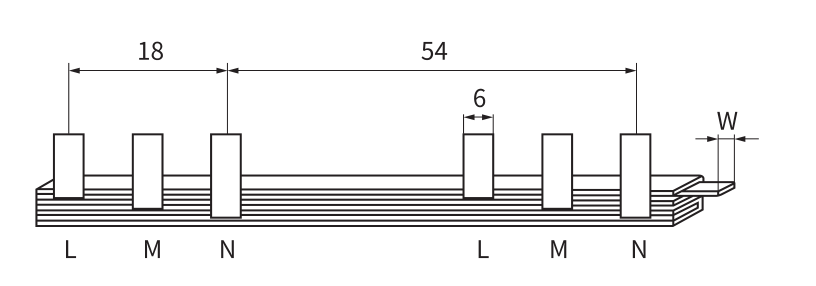

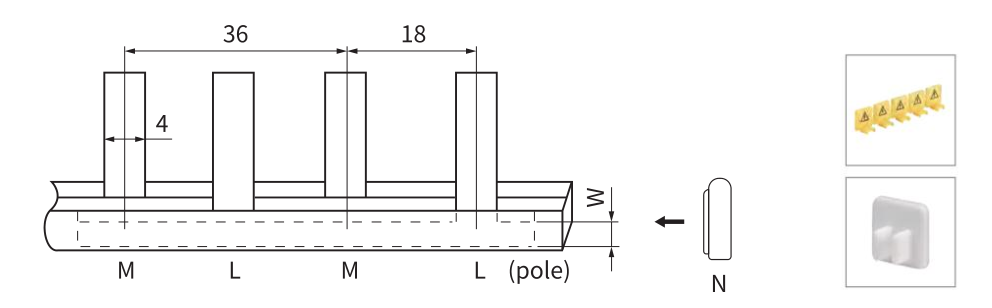

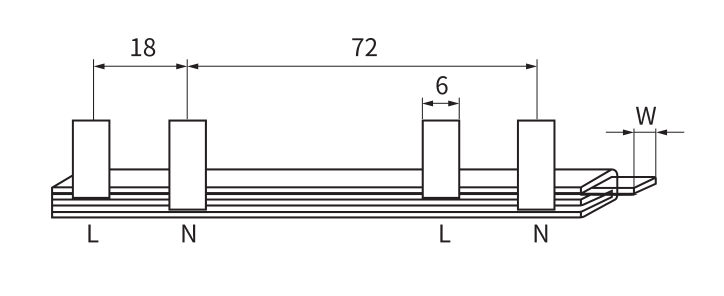

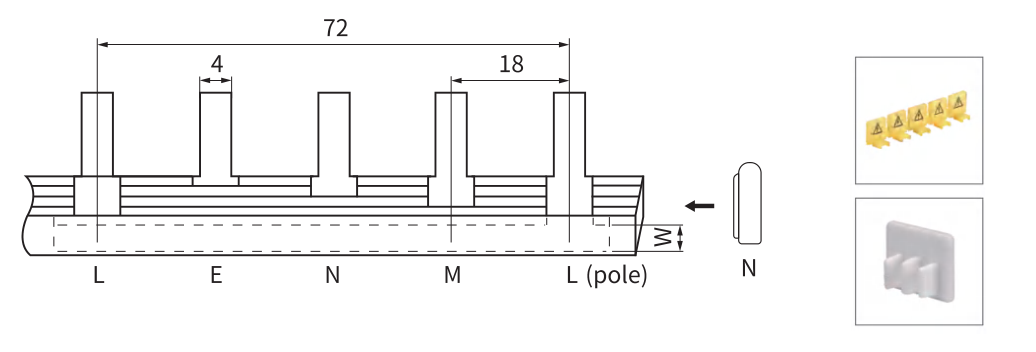

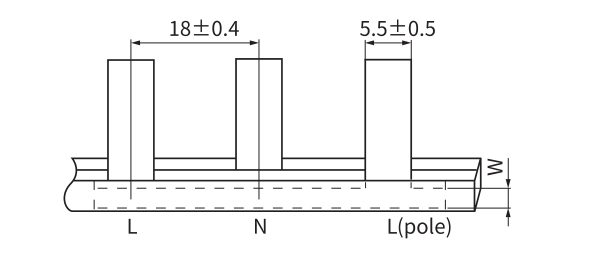

Tooth pitch is the distance between corresponding points on adjacent contacts. Compare it with the actual device-terminal spacing, including any gaps for auxiliary devices. A pole designation does not specify pitch or overall length.
Poles describe the electrical arrangement; teeth describe physical connection points. Module count and connected-device count depend on the layout. Supply a circuit schedule rather than assuming that “3P” means three teeth.
State the incoming feed location, total load and operating conditions. Use the selected manufacturer's assembly instructions; a catalog current value is not a substitute for reviewing the completed distribution assembly.
Confirm insulation dimensions, exposed contacts and the required end caps or tooth covers. Ask whether accessories are included. Cutting permission and finishing requirements must be confirmed for the selected model.

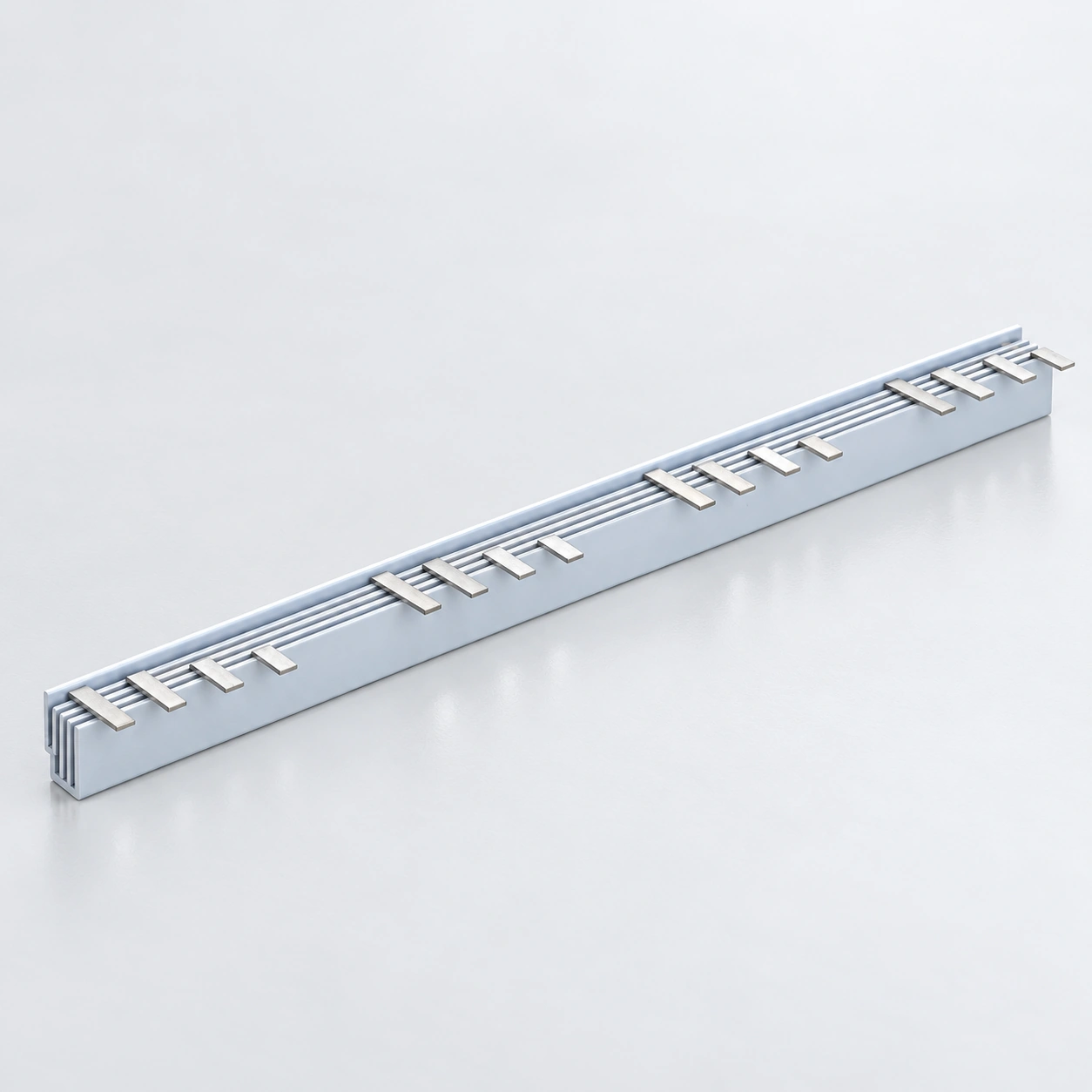

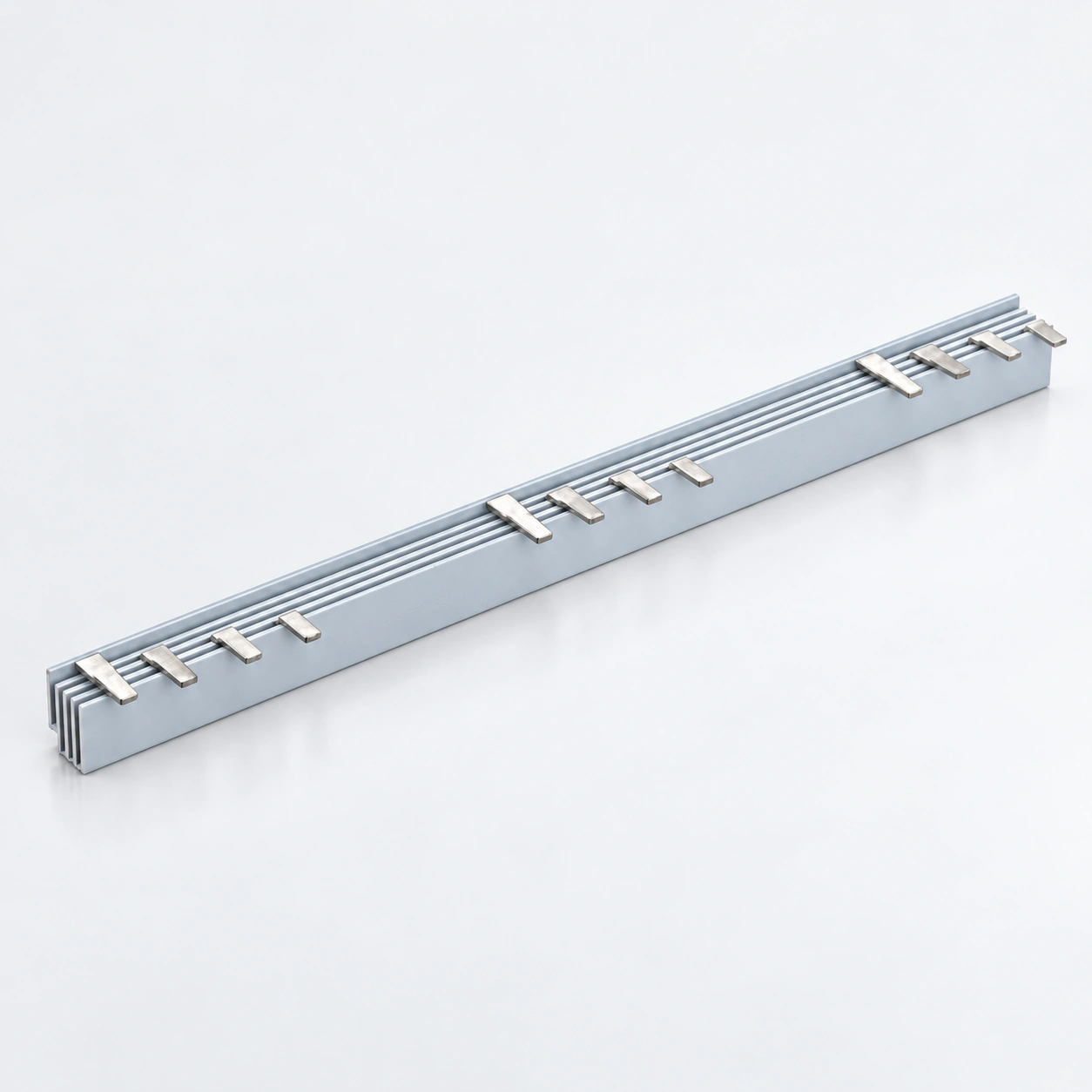

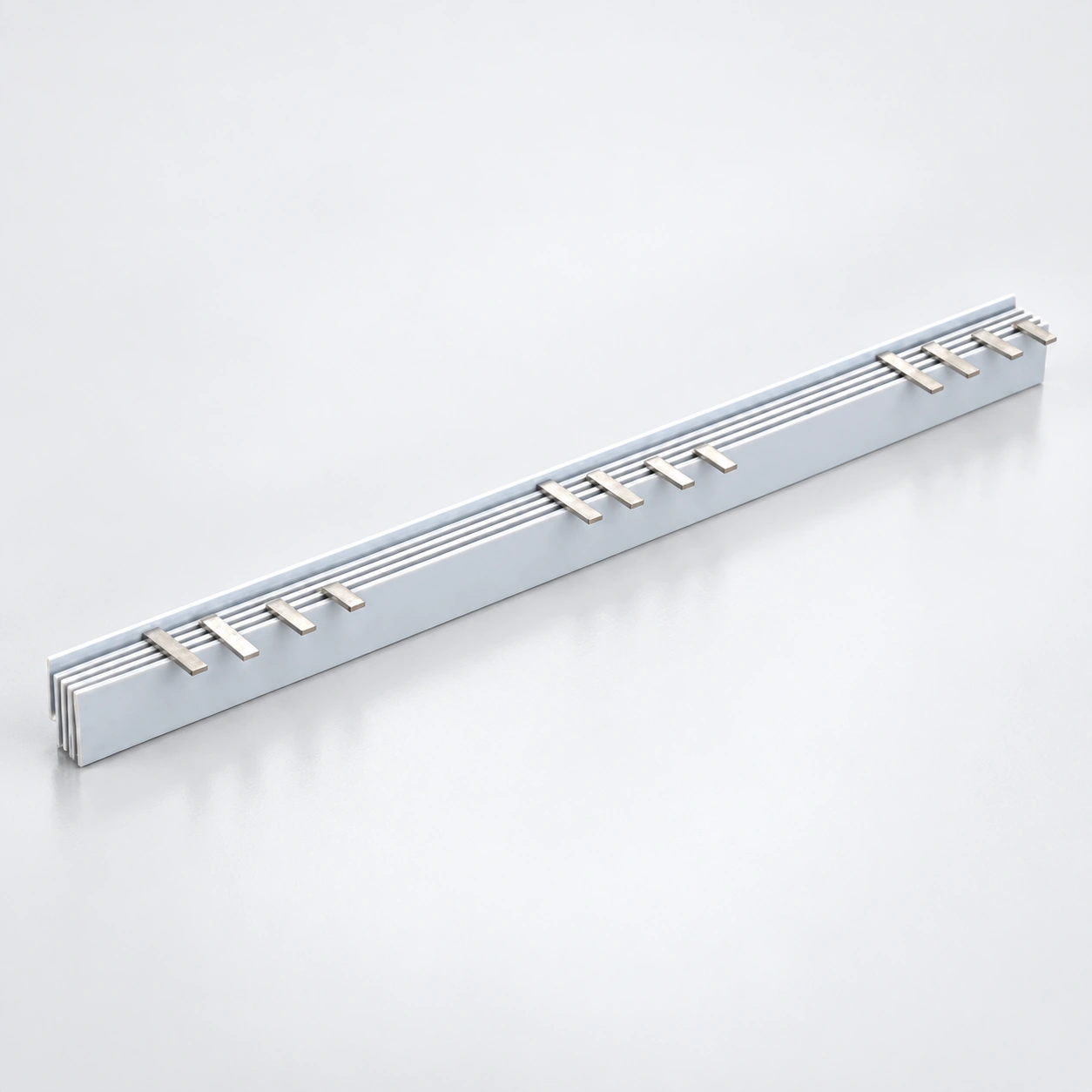

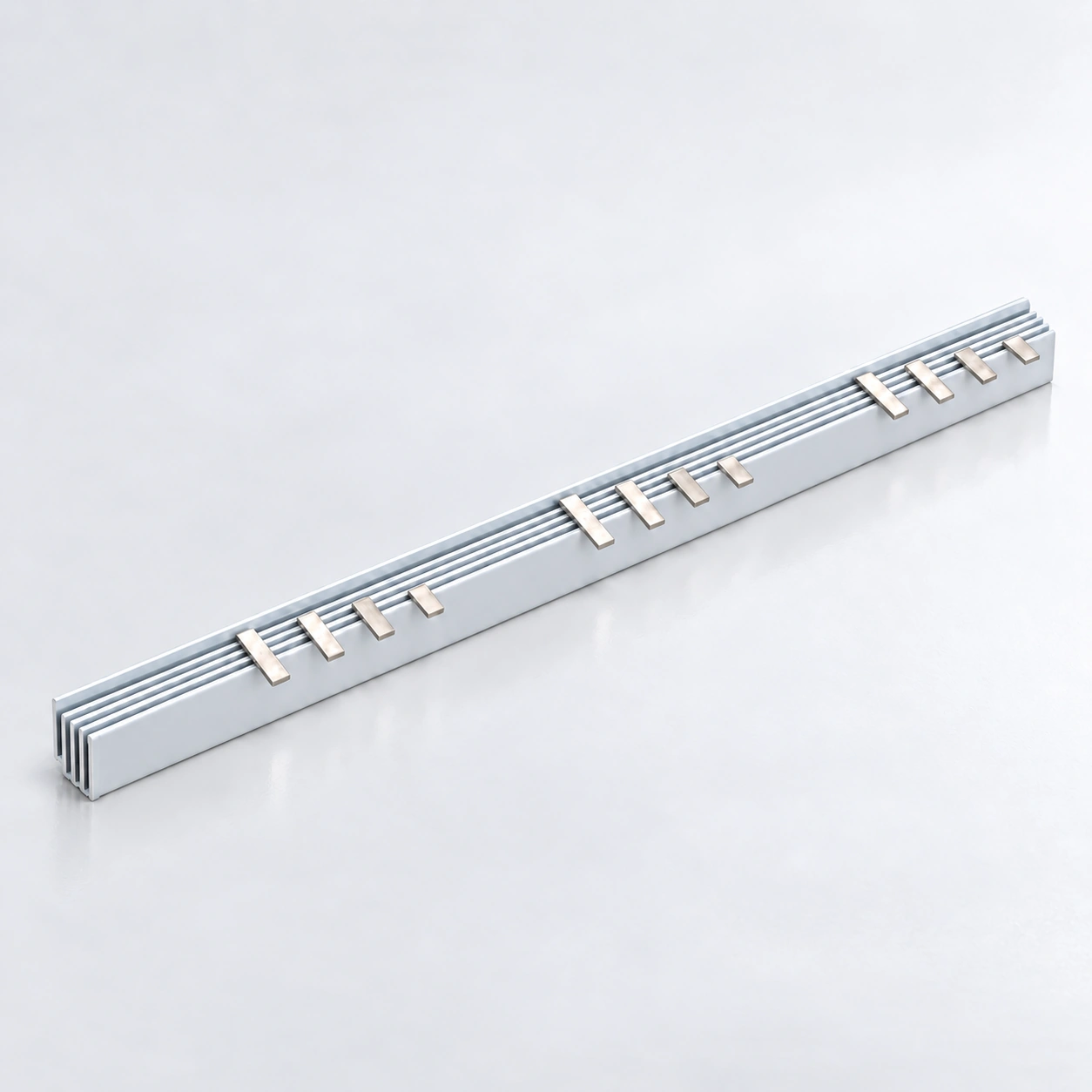

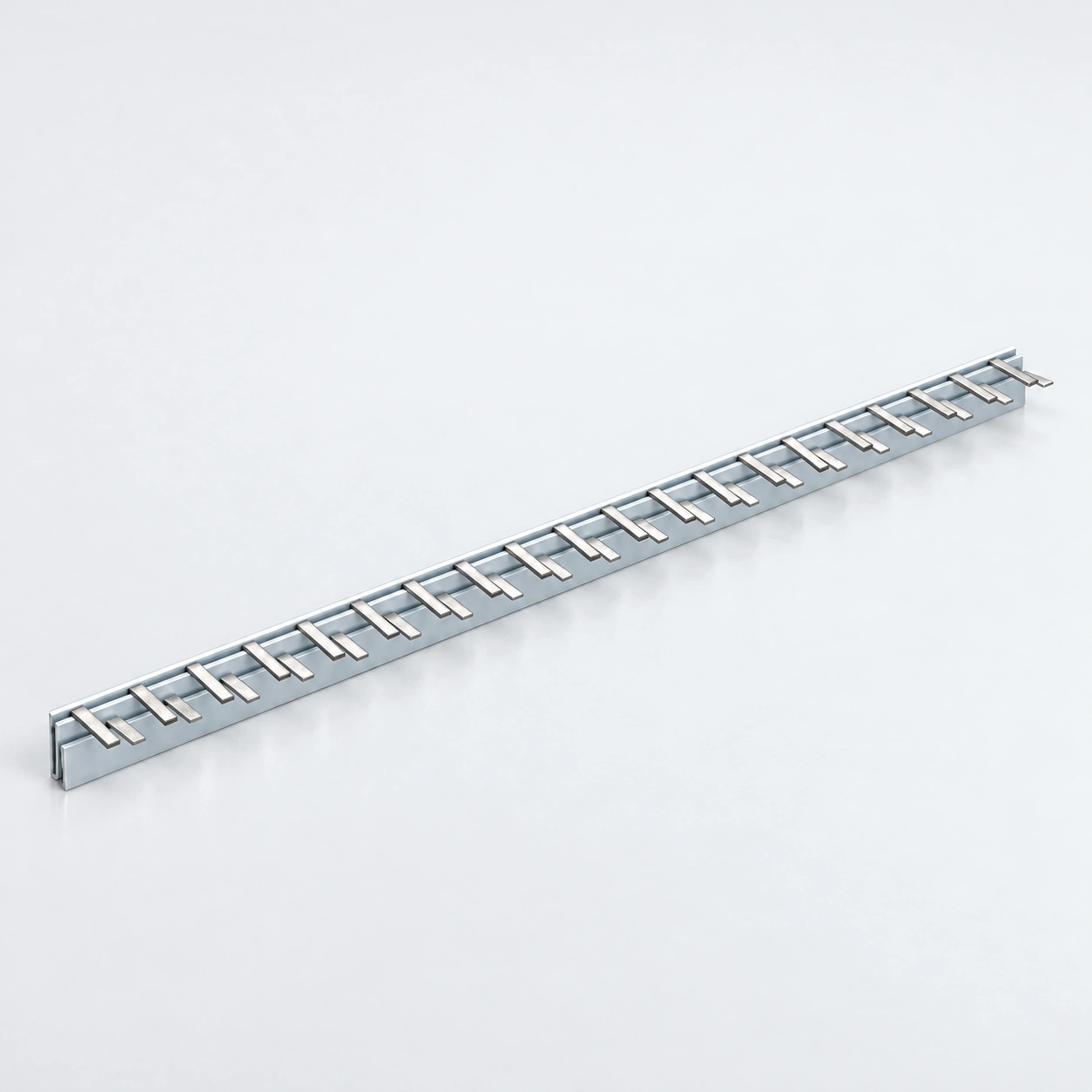

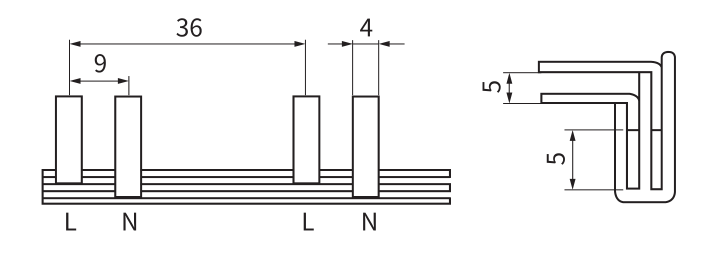

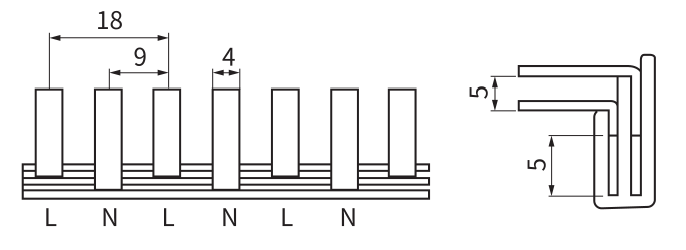

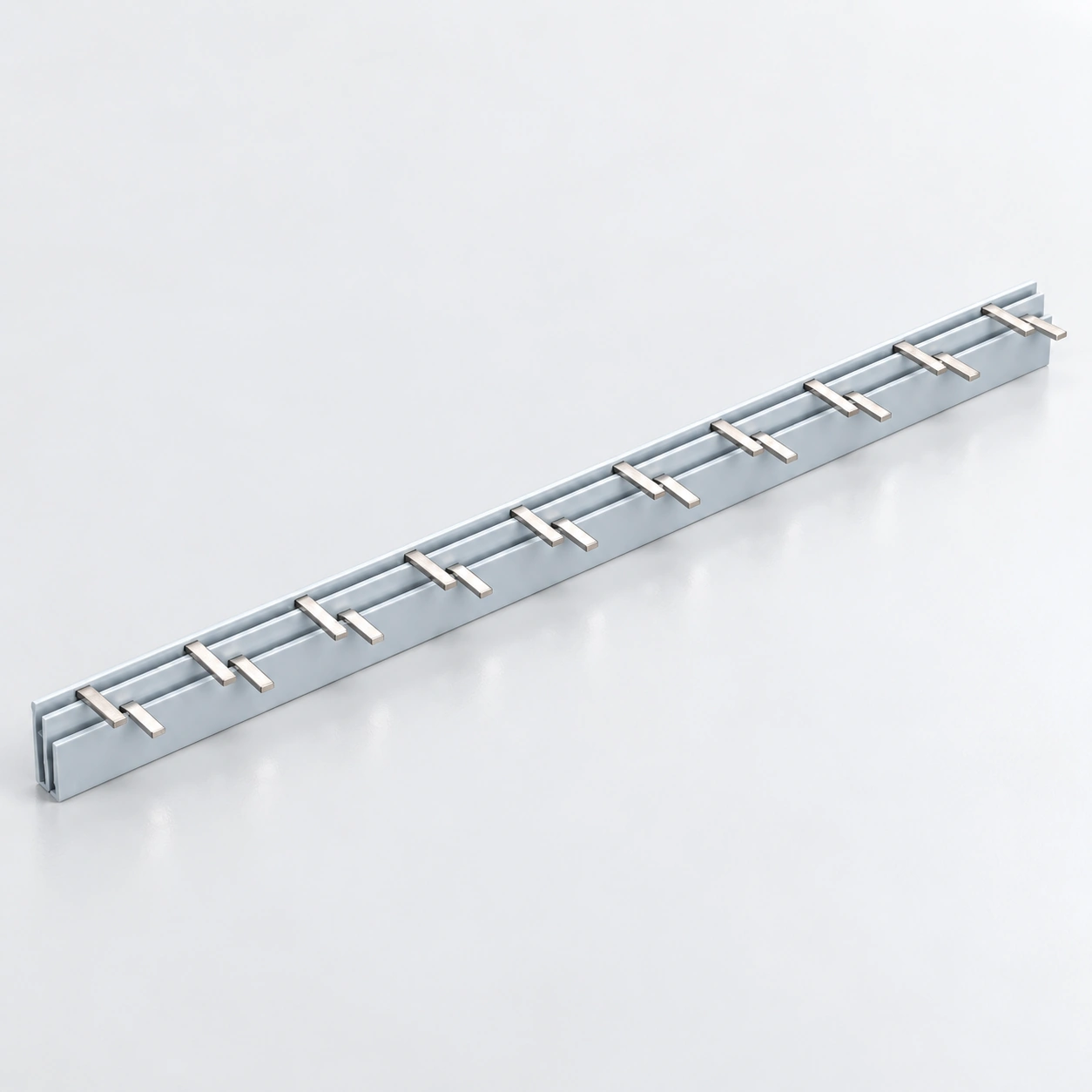

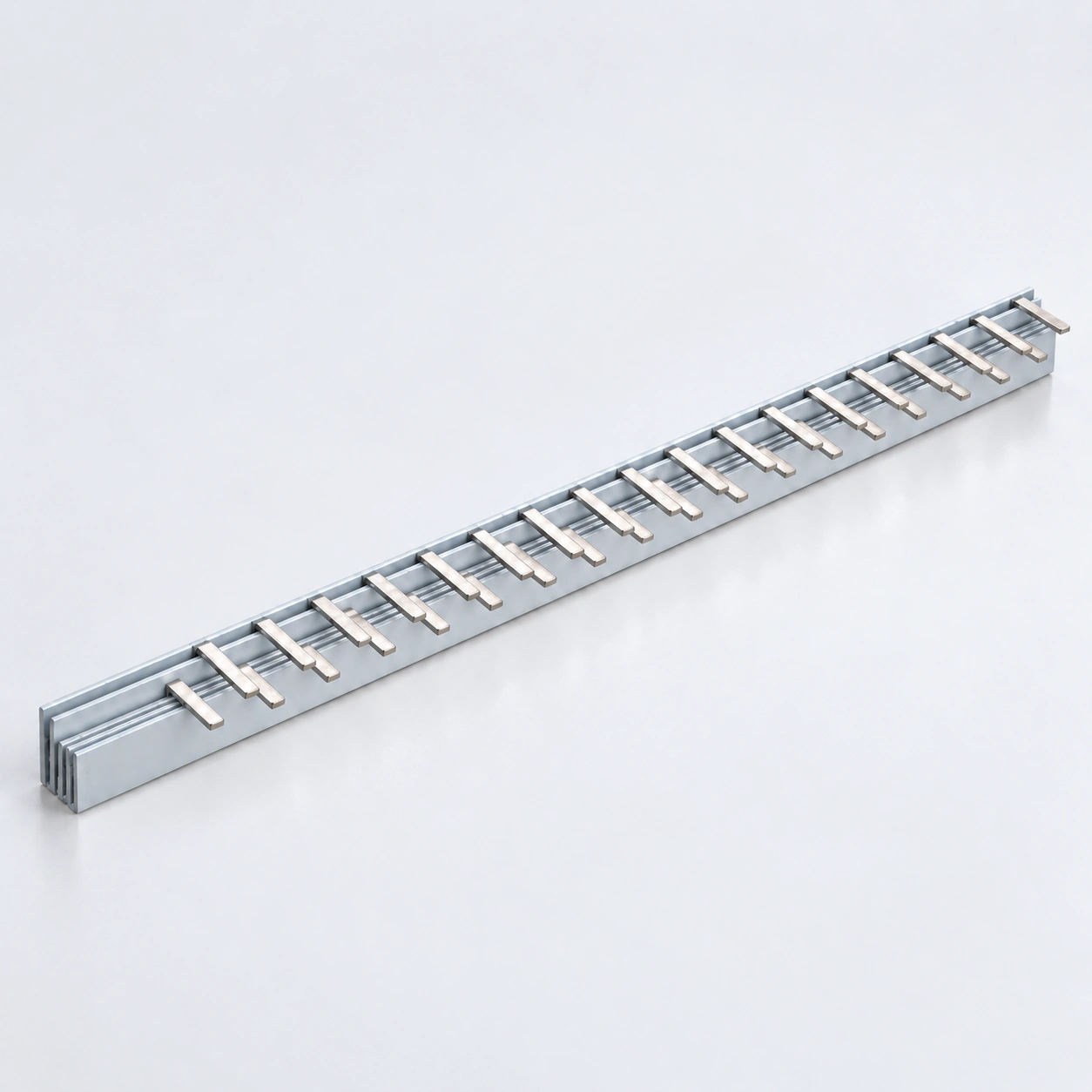

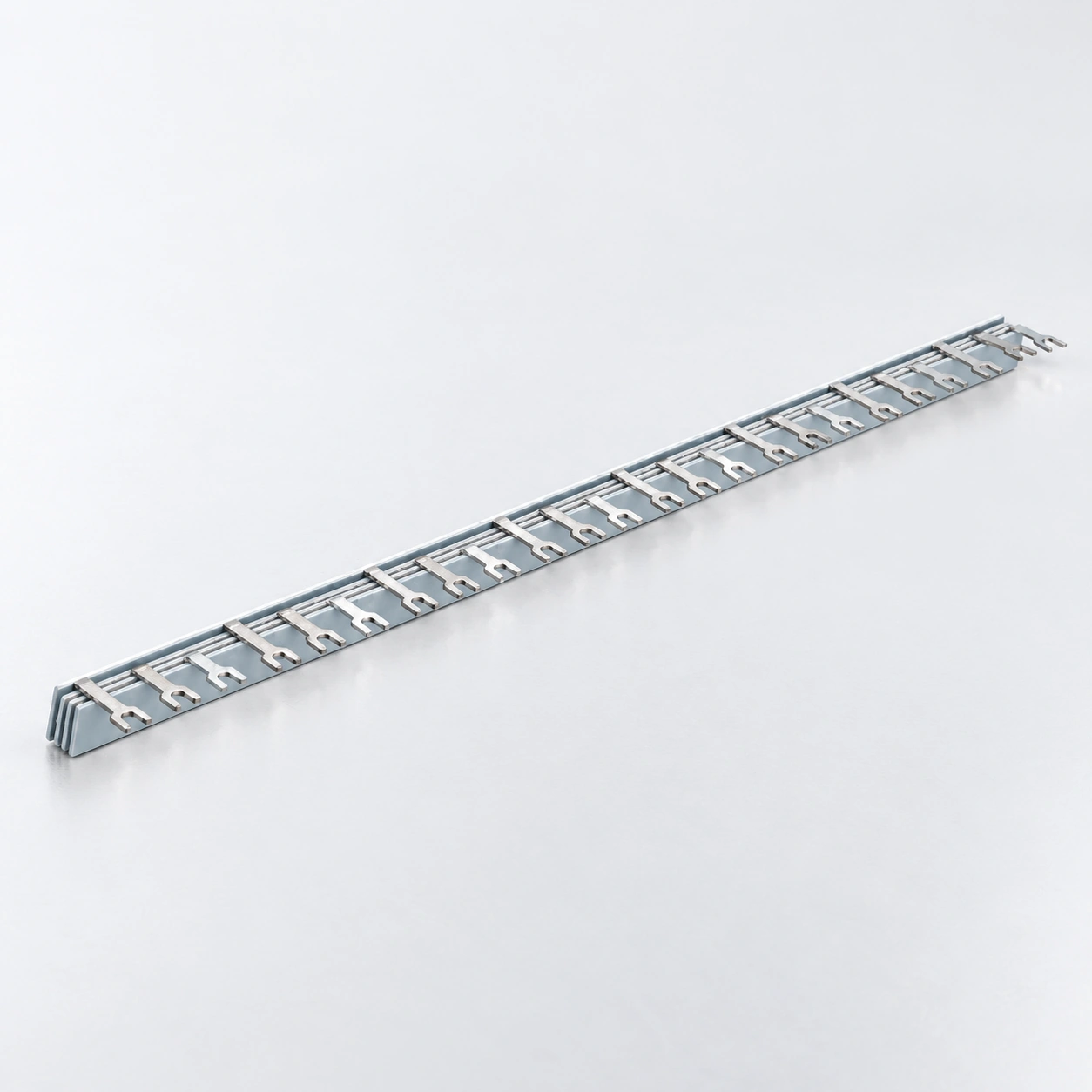

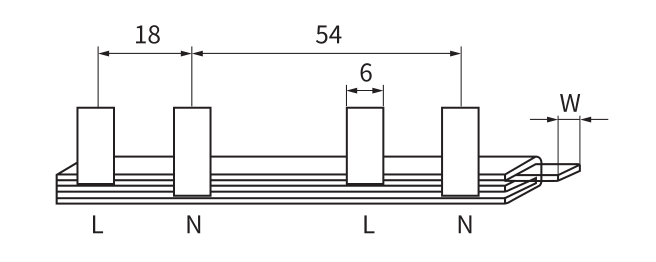

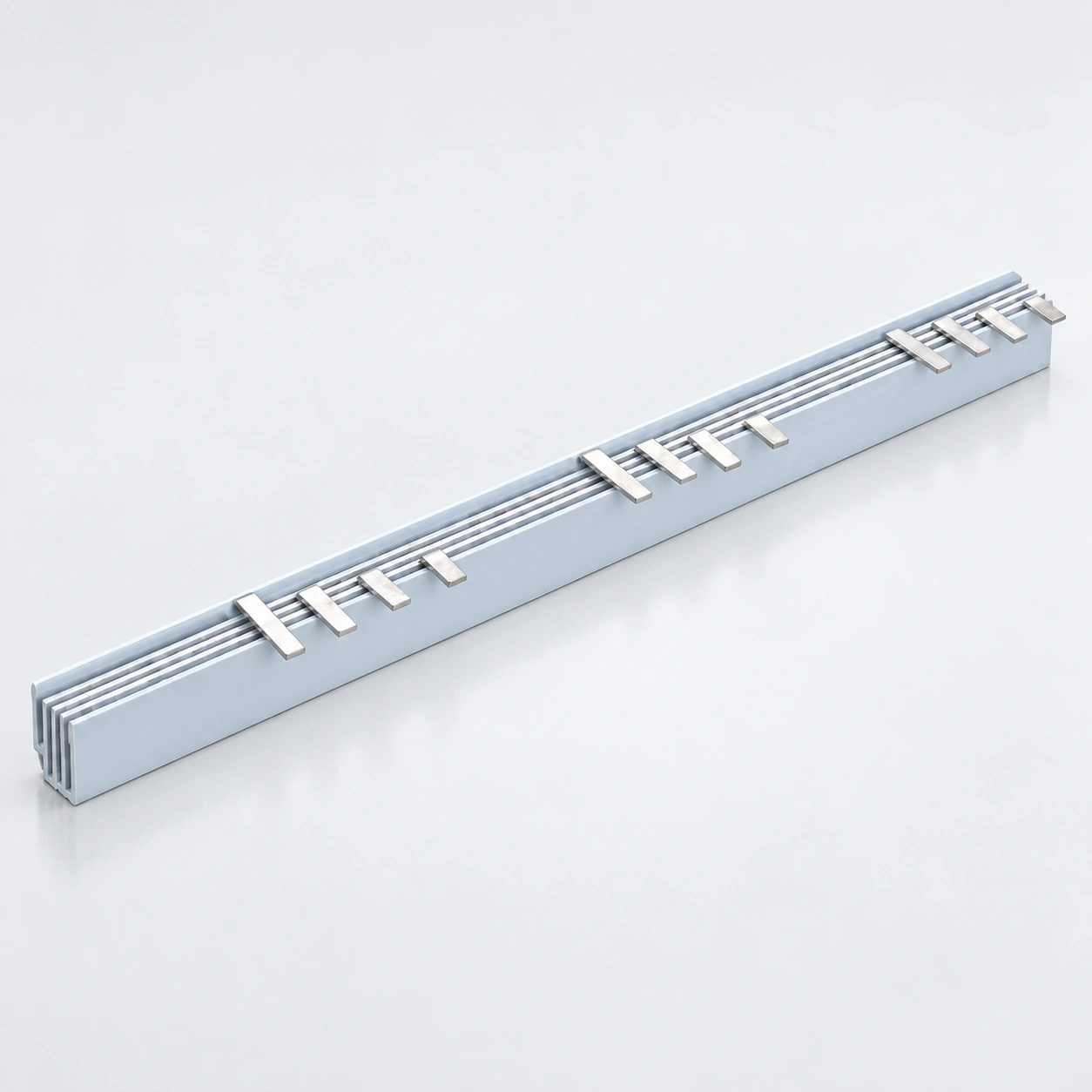

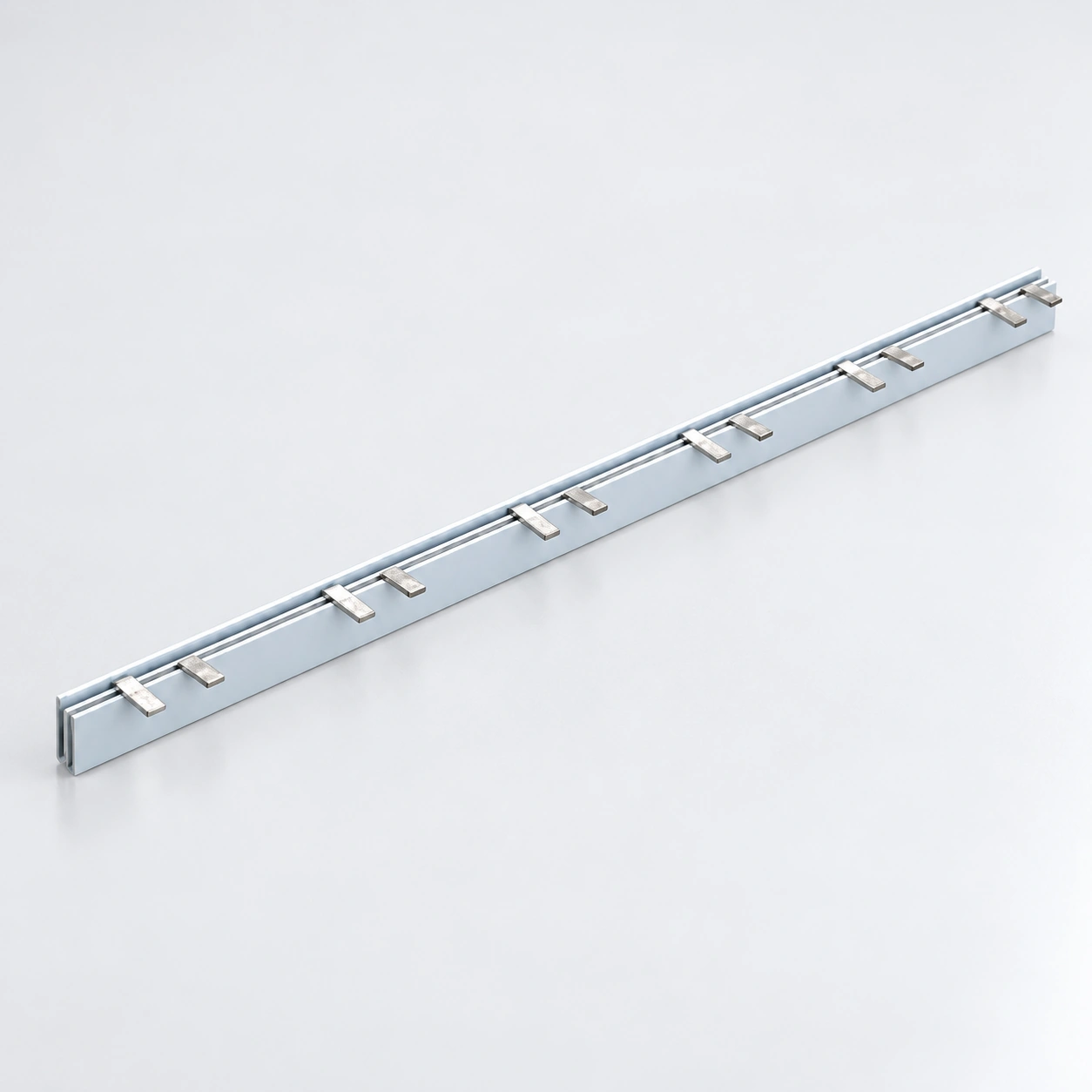

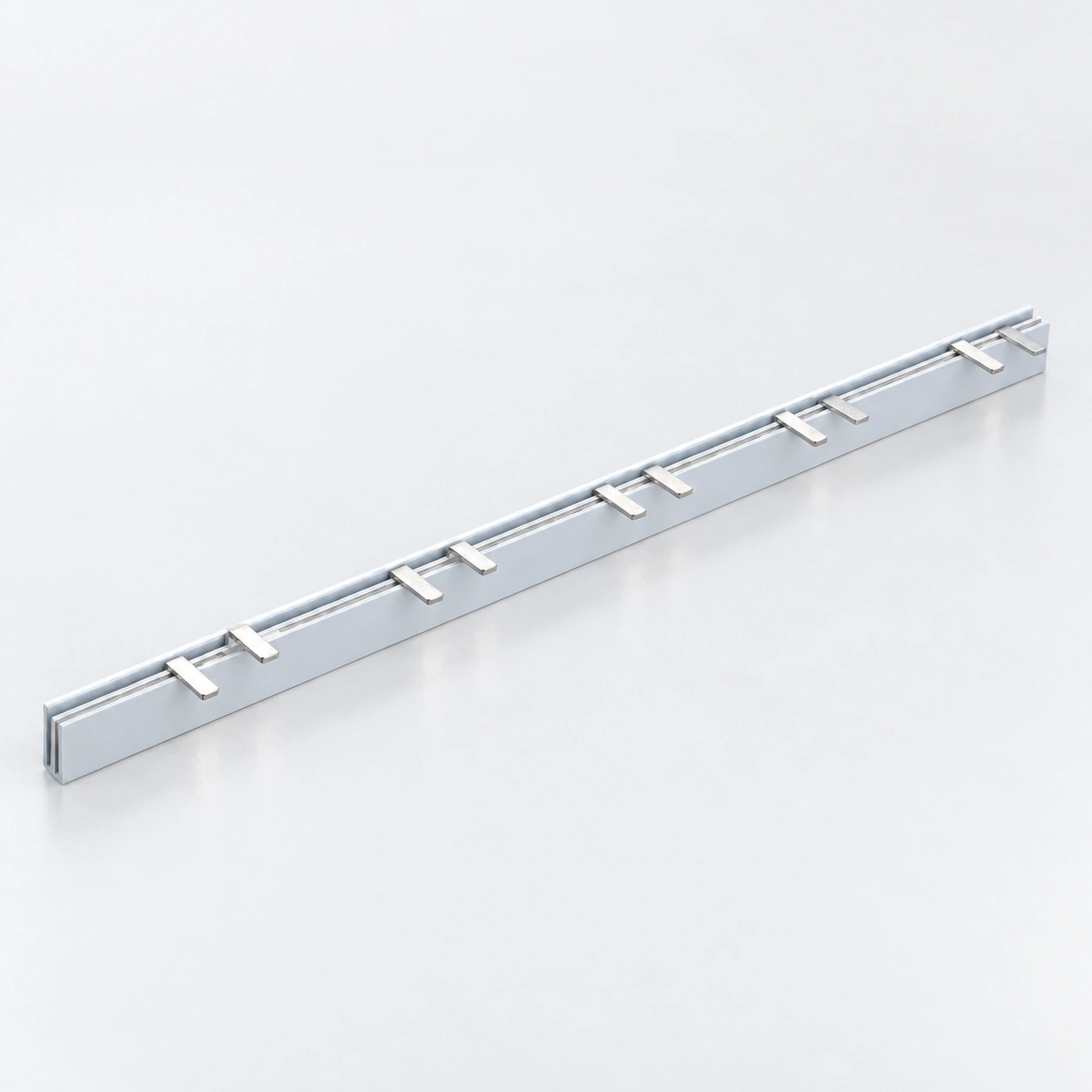

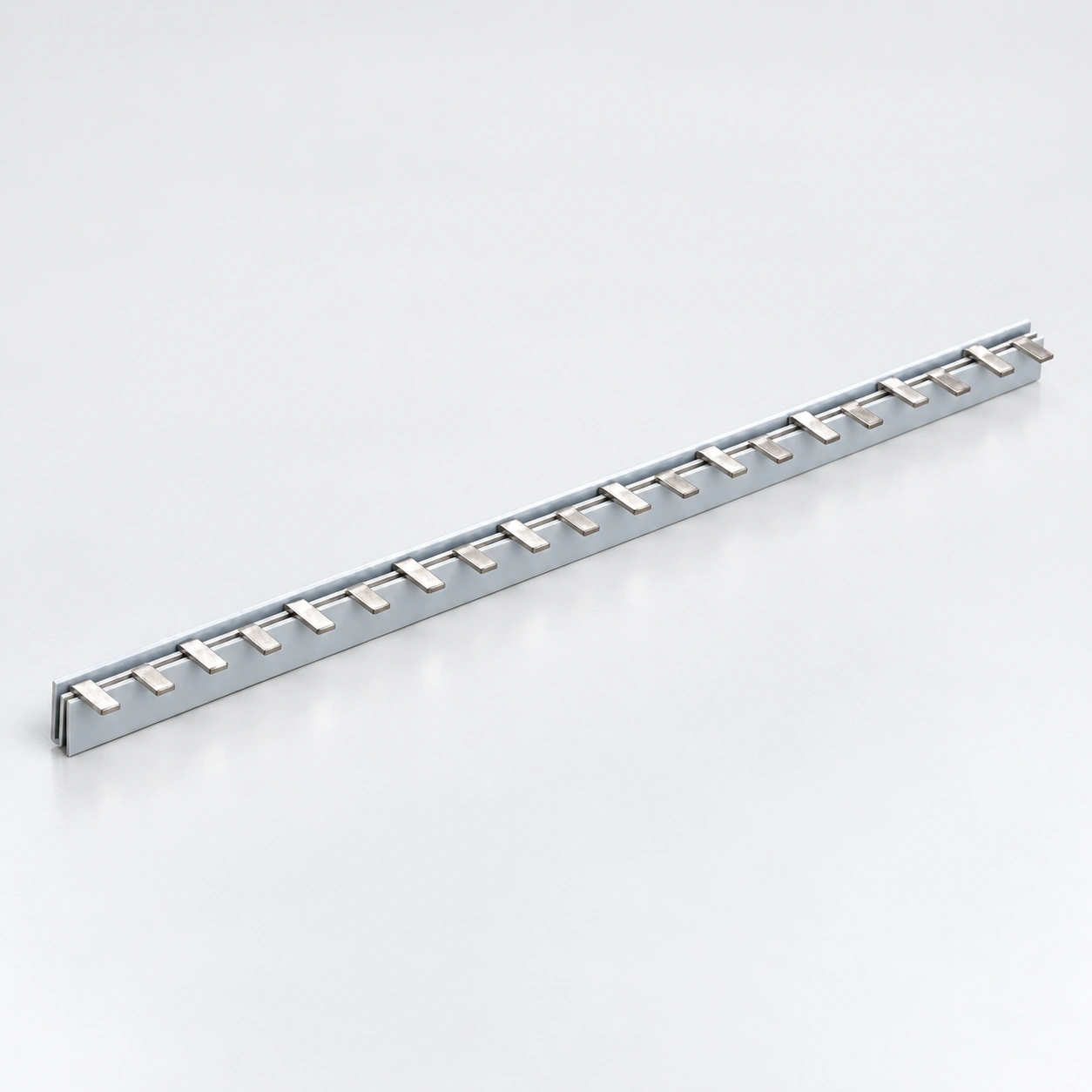

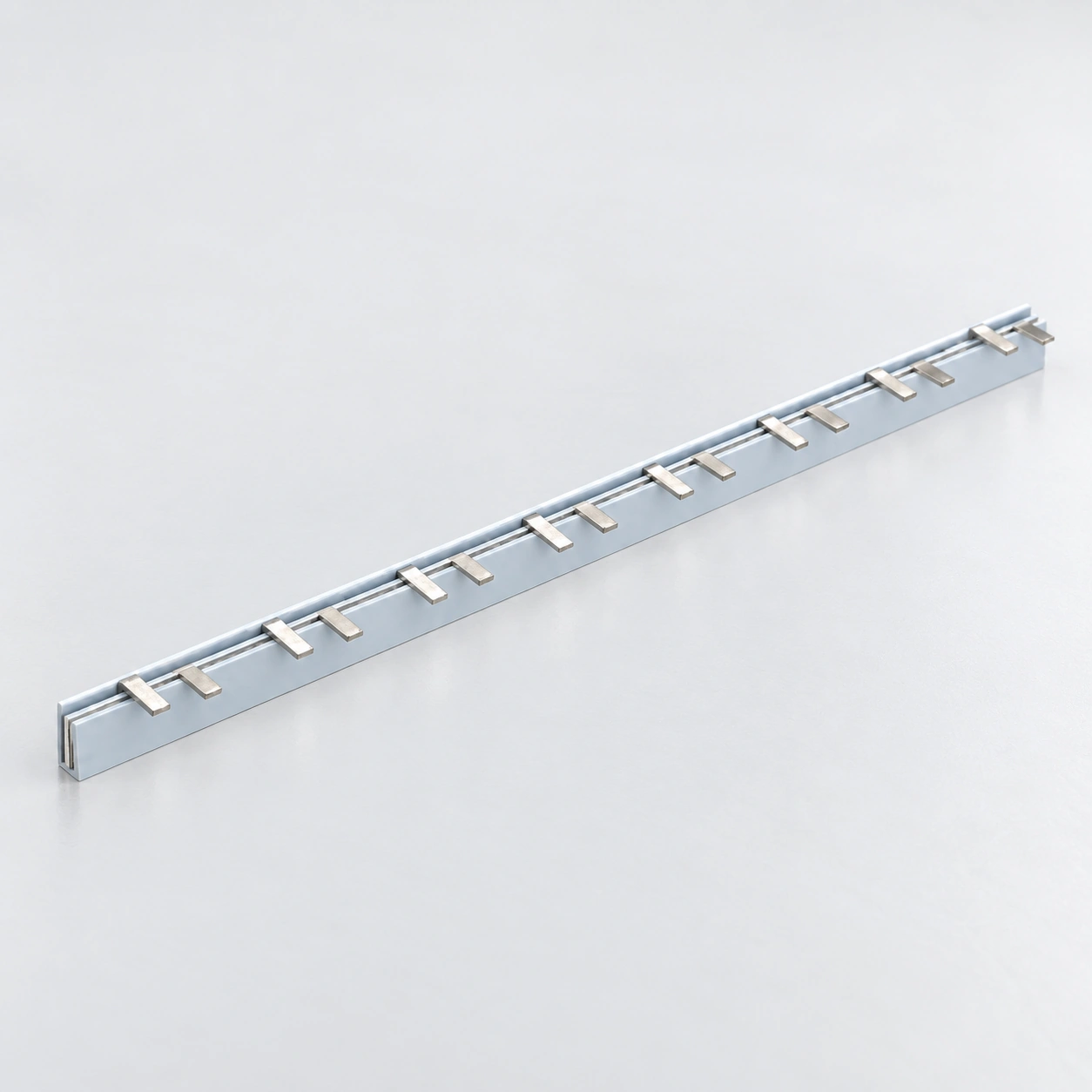

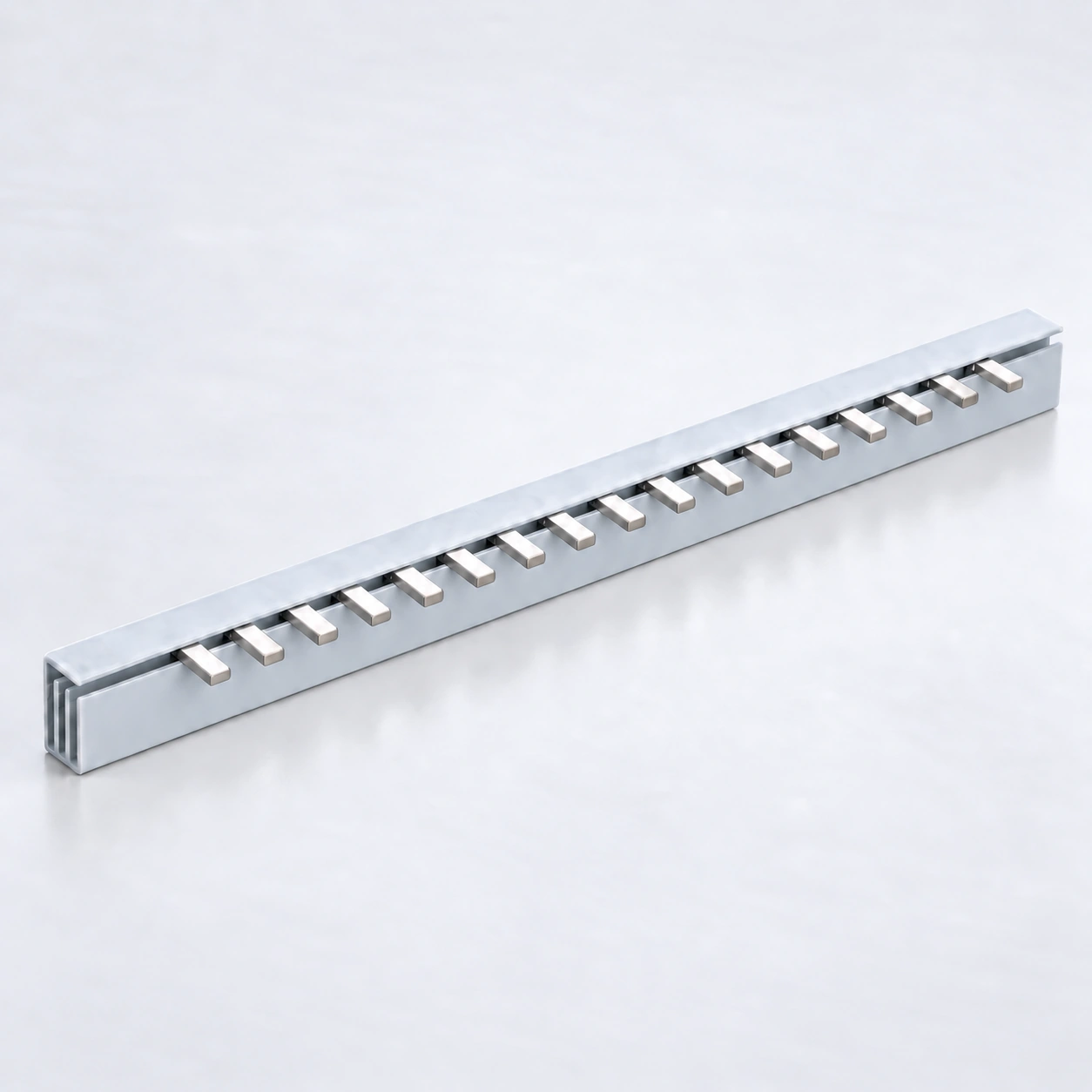

DPN, DPNLE, C45-L, C65-LE, DZ158/NC100 and AC CJX2 are equipment-specific configurations in this range. Their names do not establish compatibility with every device using a similar designation.
Agree the design and acceptance criteria before approving supply.

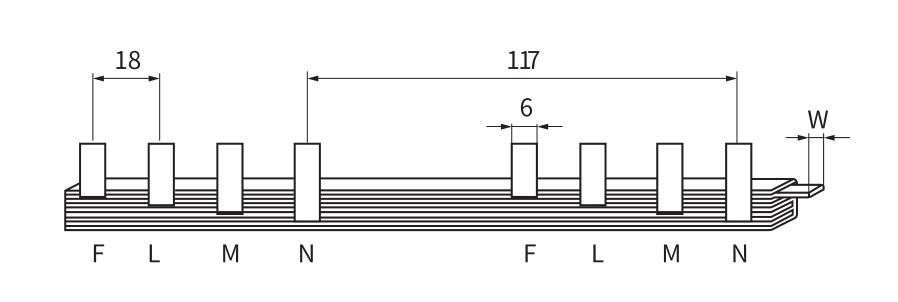

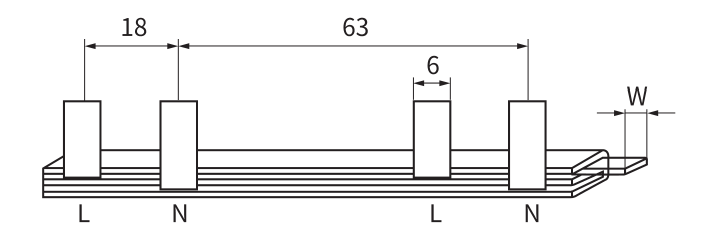

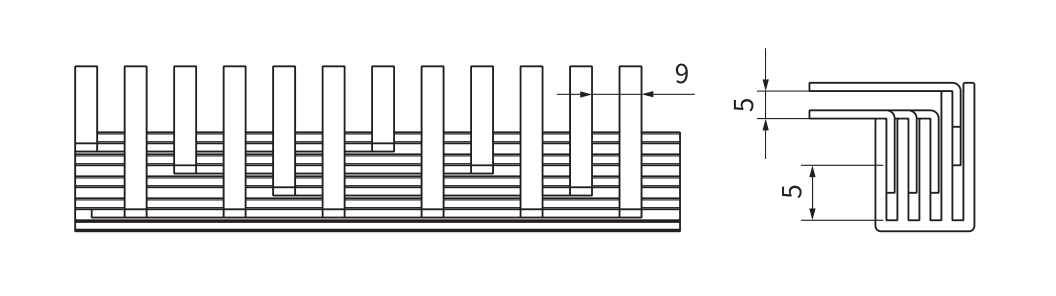

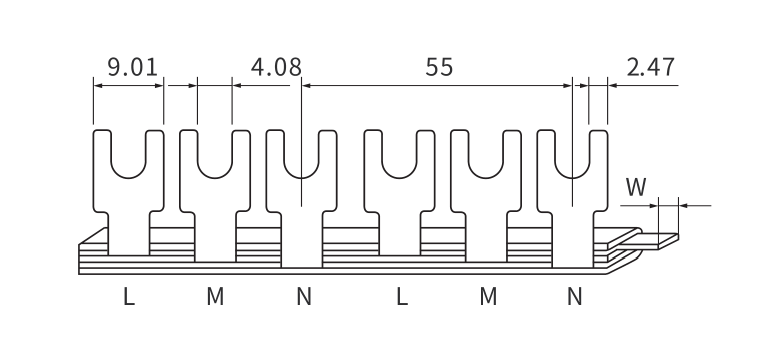

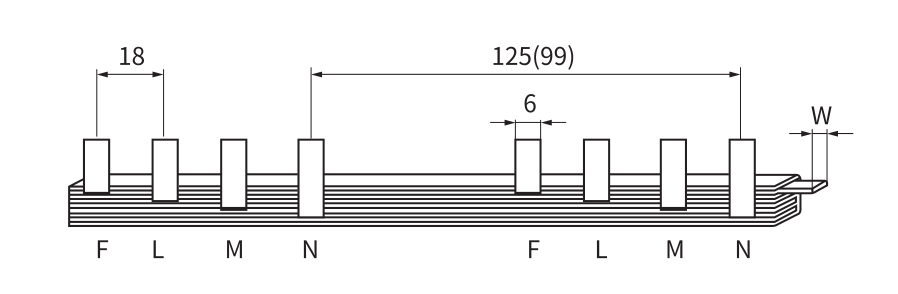

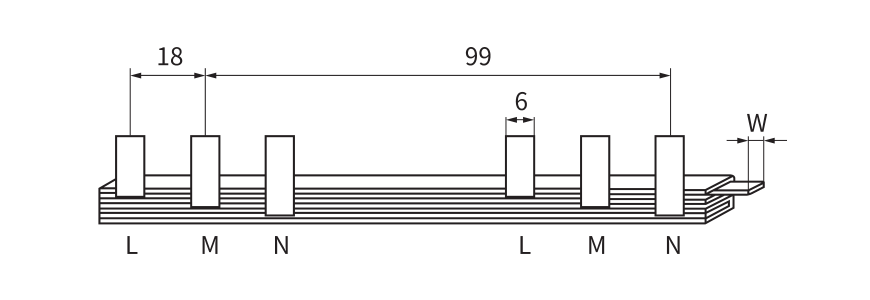

Provide contact shape, copper cross-section, thickness, pitch, overall length, pole sequence and device-terminal details. The linked model drawings provide a starting point for comparison.
Request a sample of the exact proposed model and agree the fit checks needed for your equipment. Confirm any deviations from the published drawing before placing the production order.
Specify the dimensions and tolerances to be checked, conductor-material documentation, surface and insulation requirements, and any required electrical test evidence. Agree availability and acceptance criteria with the quotation.
Send requested lengths, connection layouts, identification, pack quantities and shipment requirements. Custom tooling, samples, minimum quantities and lead times require a feasibility review; they are not assumed available for every model.
Need separate neutral-wire termination? Explore brass neutral bars. For the wider assembly, review power distribution blocks dan electrical enclosures.
Select the interface first, then check the electrical and dimensional requirements for the complete assembly.
Compare pin, fork and U-type profiles. Provide the device model, terminal drawing and tooth spacing; similar appearance does not establish compatibility.
Specify 1P, 2P, 3P, 4P or the exact phase-and-neutral arrangement. Check the terminal sequence, module count and any auxiliary-device spacing.
Use the copper cross-section, thickness, width and catalog current capacity from the same model row. Confirm the feed arrangement and operating conditions.
Specify the required length, number of connections and end protection. Confirm whether cutting is permitted for the selected product and which accessories are required.
Send the busbar model, device reference, pole arrangement, connection drawing and quantities. Include any required length, insulation and packing details.
Siapkan permintaan penawaranSepakati spesifikasi dan bukti yang diperlukan sebelum melakukan pemesanan Anda.
Jelajahi manufakturList complete BS model codes and quantities. Identify the connection type and pole arrangement for each item.
Provide the receiving device model and terminal dimensions, tooth pitch and installation layout. Confirm the fit before approving a production order.
State operating current, voltage, ambient conditions and feed location. Request model-specific installation information and applicable test documentation.
Send length and dimensional requirements, end protection, labels and quantities per pack. Custom options are subject to drawing and feasibility review.
OEM & PENGEMASAN
Build your comb busbar order around the selected models, identification and supply requirements.
List complete BS model codes and quantities. Identify the connection type and pole arrangement for each item.
Sediakan nomor suku cadang, karya seni label, dan informasi batch atau ketertelusuran apa pun yang diperlukan untuk pesanan.
Tentukan kuantitas per model, kemasan individual, karton luar, dan tujuan pengiriman.
Send the device brand and exact model, a terminal drawing or clear photographs, pole arrangement, tooth pitch, contact dimensions, required connection count and operating requirements. Mechanical fit and electrical suitability must both be reviewed.
Not necessarily. 3P identifies the pole arrangement, while the number of teeth and connected devices depends on the product layout and length. Confirm both the pole arrangement and the required connection count.
Confirm the accessory list for the selected model with your quotation. Do not assume that a displayed busbar includes every end cap, feed connector or protective cover required for the completed installation.
Provide a dimensioned drawing, device interface, quantities and any insulation or marking requirements. Feasibility, tooling, samples and commercial terms are reviewed for the requested design.

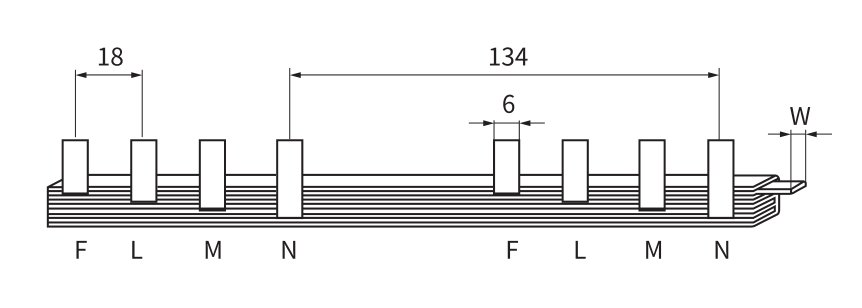

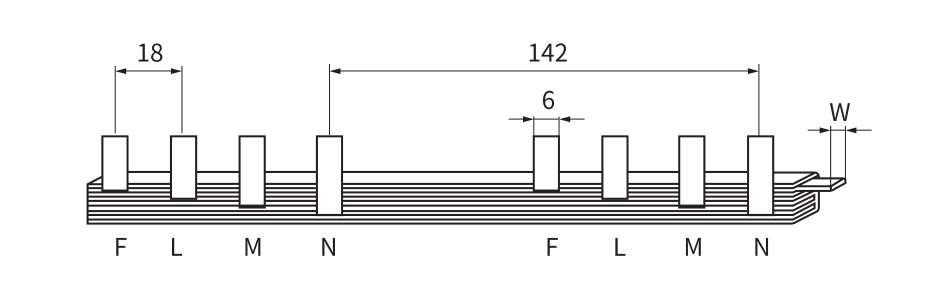

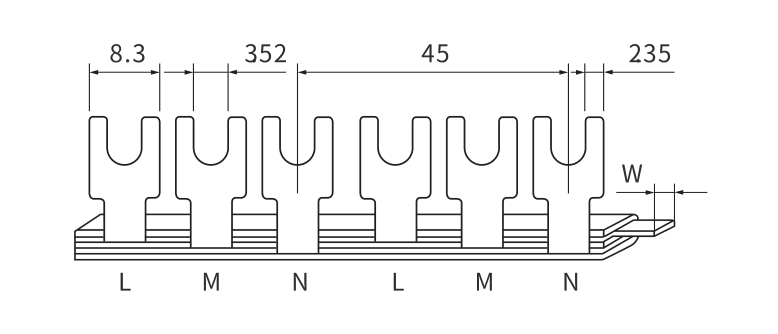

The series comparison table links directly to published dimension drawings. Open the corresponding product page for the model table, and request clarification if pitch, length or another required dimension is not specified.
