120A Conetor de Alimentação de Pólo Duplo
The YOCL Electric 120A Double Pole Power Connector provides a genderless connection for battery, charger and industrial power circuits. Its PC housing and silver-plated copper contacts are specified for two contact positions.
- Rated 120 A and 600 V.
- Double pole, genderless mating design.
- PC carcaça com UL94V-0 inflamabilidade do material.
- Conductor range: 10–25 mm²; select a matching terminal.
- Temperatura de operação: −20°C a +105°C.
Visão Geral
The YOCL Electric 120A Double Pole Power Connector provides two contact positions for battery systems, charging equipment and industrial power connections. A genderless mating design combines both conductors in one PC housing.
The electrical ratings are 120 A and 600 V. Silver-plated copper contacts, a 65Mn internal spring and a 10–25 mm² conductor range are specified, with gray, red and blue housing options.
Características
- 120 A rated current and 600 V rated voltage.
- Two contact positions with a genderless mating design.
- Silver-plated copper contacts with a 65Mn internal spring.
- PC carcaça com UL94V-0 inflamabilidade do material.
- 10–25 mm² conductor range, with terminal selection matched to the cable.
- Operating temperature from −20°C to +105°C.
Especificações Técnicas
| Parâmetro | Especificação |
|---|---|
| Marca | YOCL Elétrico |
| Tipo de produto | Double pole power connector |
| Contact positions | 2 |
| Corrente nominal | 120 A |
| Tensão nominal | 600 V |
| Mating design | Genderless |
| Material de contacto | Silver-plated copper |
| Material da caixa | PC (polycarbonate) |
| Inflamabilidade do material da caixa | UL94V-0 |
| Internal spring material | 65Mn |
| Temperatura de operação | −20°C to +105°C |
| Housing colors | Gray, Red, Blue |
| Gama de condutores | 10–25 mm² |

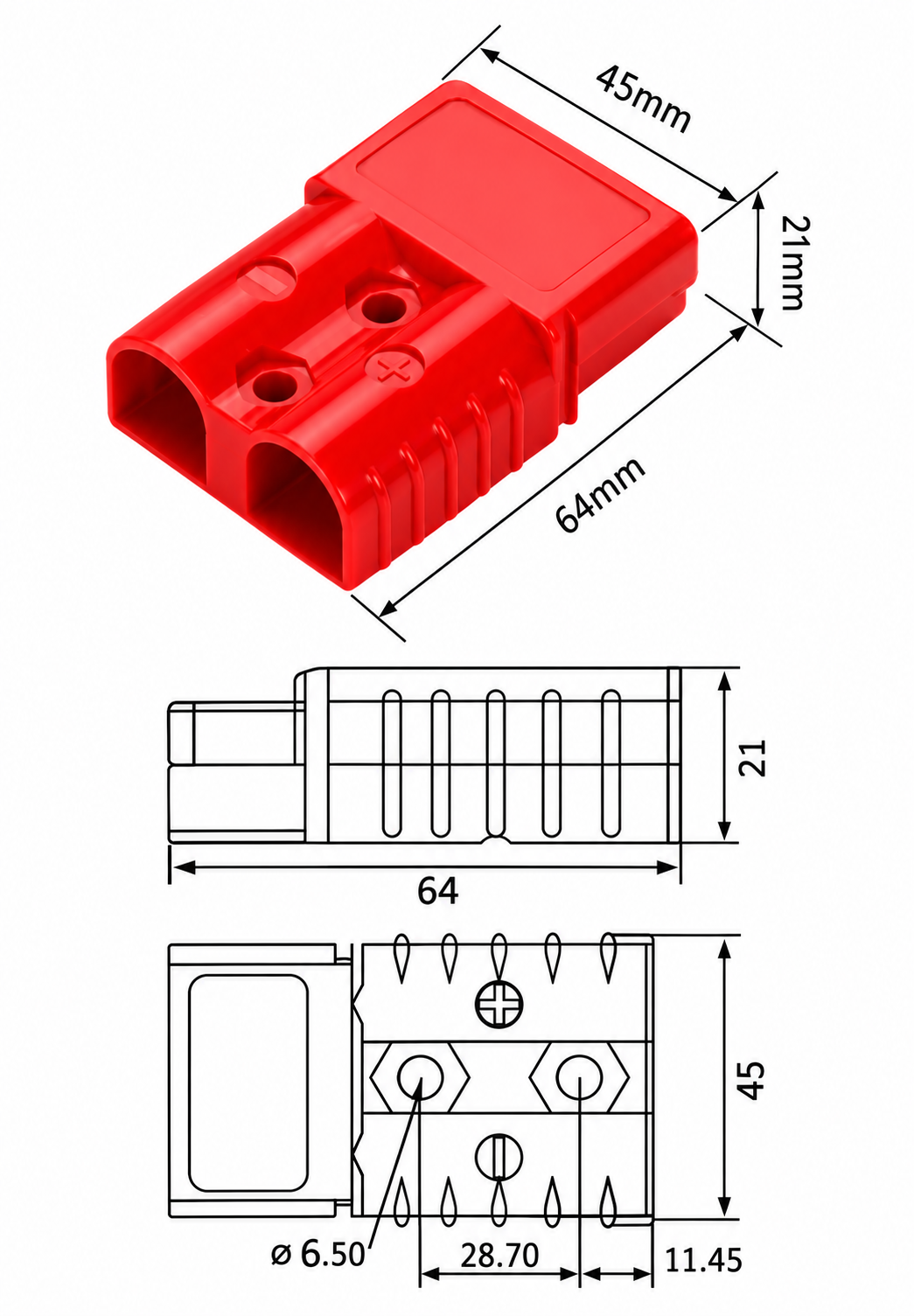

Dimensão
Housing dimensions: 64 × 45 × 21 mm (L × W × H).
Seleção e Encomenda
Specify 120 A, double pole, the housing color, conductor cross-section and required quantity when enquiring. Match the terminal to the conductor and check the mating housing geometry and color together.
The 10–25 mm² range applies to terminal selection; choose the terminal for the actual cable cross-section.
