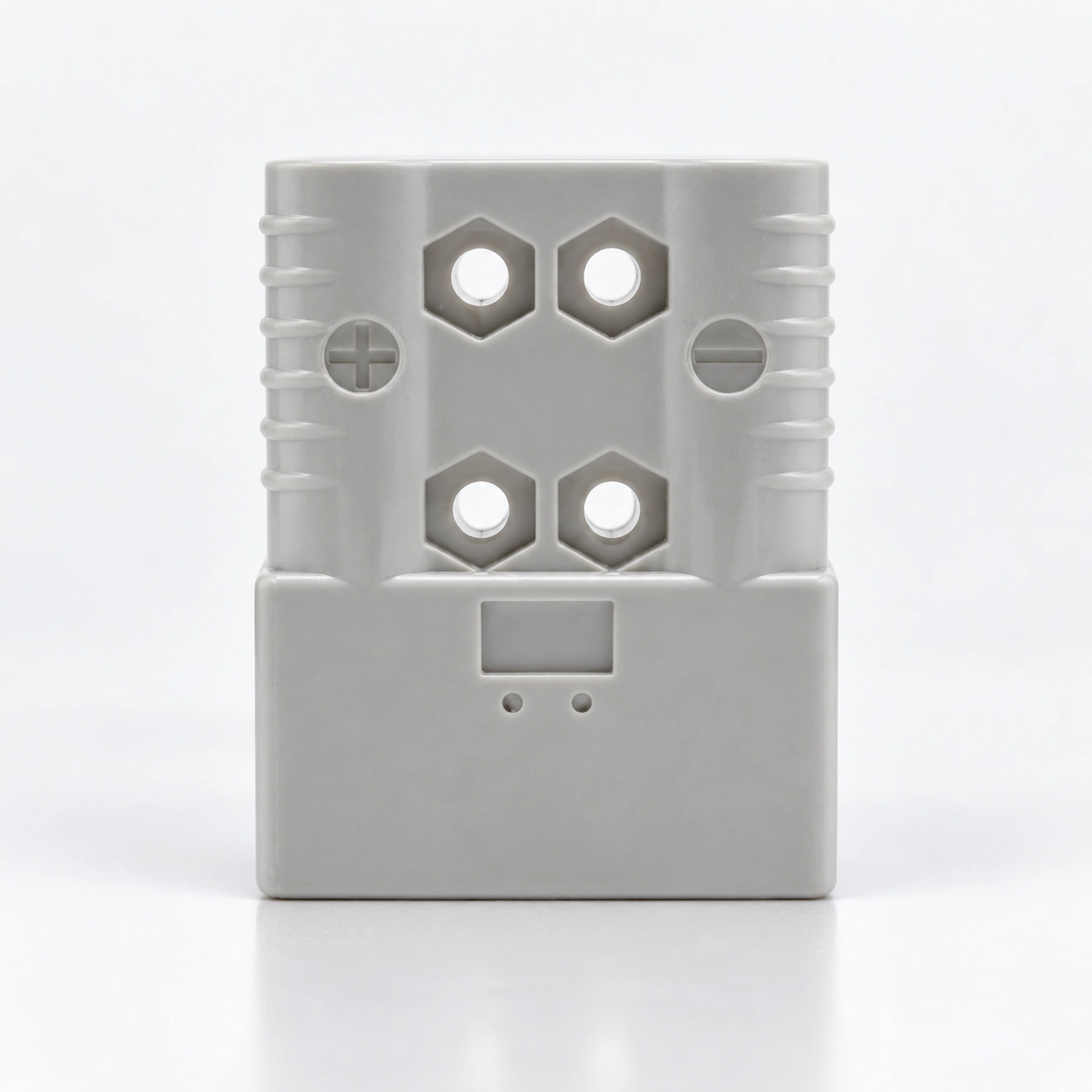

160A Conetor de Alimentação para Empilhador

YOCL Electric 160A forklift power connectors for electric forklift battery connections and other DC equipment.

Rated 160 A and 150 V.
50 mm² contact barrel wire size.
Silver-plated copper contacts and PA housing.
UL94 V-0 housing flammability classification.
Male plug and female socket configurations, with four optional auxiliary contacts.

Consulte este produto

Visão Geral

The YOCL Electric 160A forklift power connector is intended for electric forklift battery connections and other DC equipment. This connector series has a 160 A rated current, a 150 V rated voltage and a 50 mm² contact barrel wire size.

Male plug and female socket configurations use silver-plated copper contacts and a PA housing. Four auxiliary contacts are optional.

Características

160 A rated current and 150 V rated voltage.
50 mm² contact barrel wire size for this connector series.
Silver-plated copper contacts.
PA housing with UL94 V-0 flammability classification.
Male plug and female socket configurations; four optional auxiliary contacts.

Especificações Técnicas

Parâmetro	Especificação
Connector series	160A forklift power connector
Corrente nominal	160 A
Tensão nominal	150 V
Contact barrel wire size	50 mm²
Material de contacto	Silver-plated copper
Material da caixa	PA
Housing flammability classification	UL94 V-0
Connector configurations	Male plug; female socket
Auxiliary contacts	4 optional contacts

Informações de Encomenda

Specify the 160A connector series, male plug or female socket, quantity and whether auxiliary contacts are required. Match the 50 mm² contact barrel wire size to the intended cable connection and provide mating connector details when checking fit.
