50A Conetor de Alimentação de Duplo Polo
The YOCL Electric 50A Double Pole Power Connector provides a genderless connection for battery, charger and industrial power circuits. Its PC housing and silver-plated copper contacts are specified for two contact positions.
- Rated 50 A and 600 V.
- Double pole, genderless mating design.
- PC housing with UL94V-0 material flammability.
- Housing colors: Gray, Red, Black, Yellow, Blue.
- Operating temperature: −20°C to +105°C.
Visão Geral

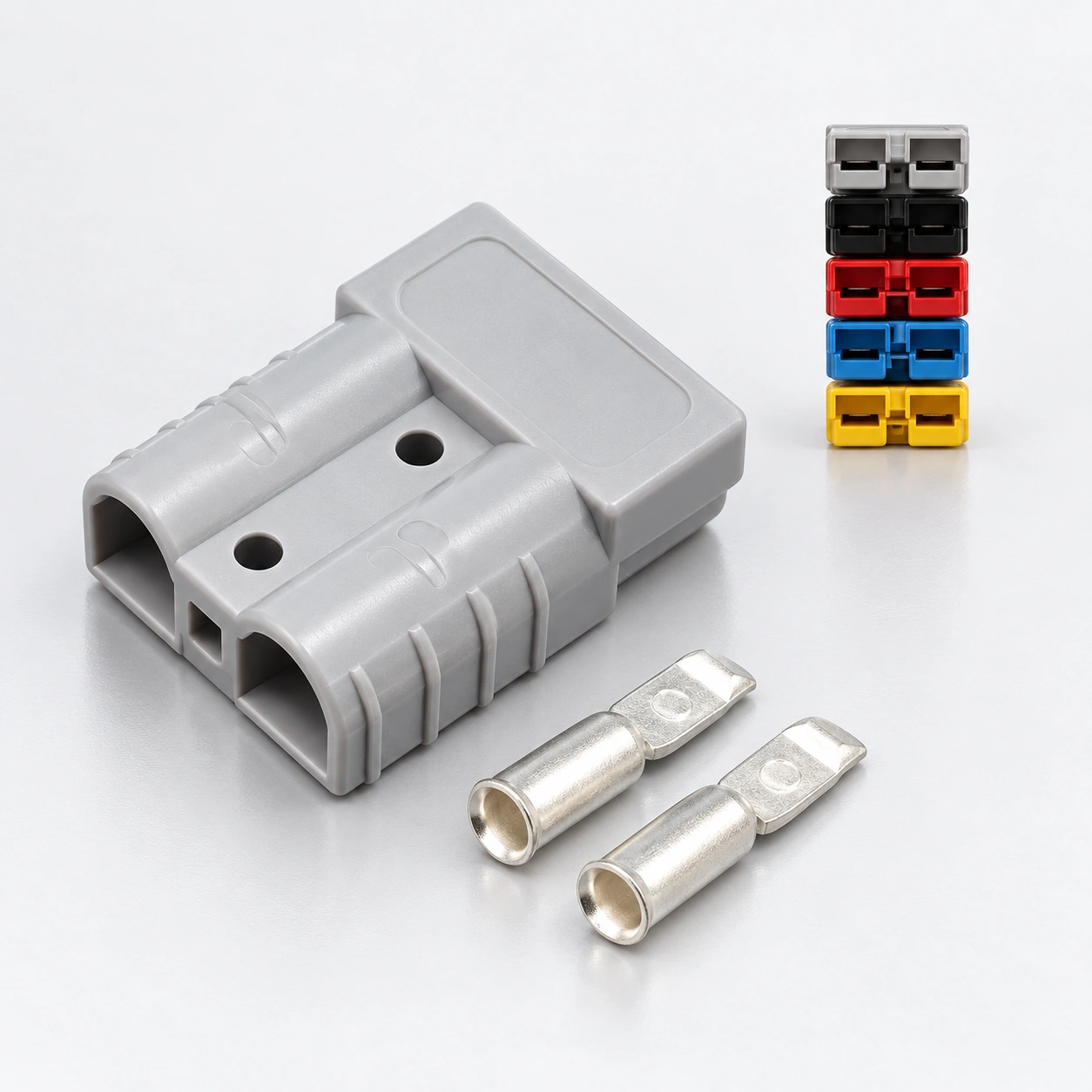

The YOCL Electric 50A Double Pole Power Connector is a genderless two-contact connector for battery, charging and UPS power connections. Both contact positions are contained in one PC housing.
Rated 50 A and 600 V, the connector uses silver-plated copper contacts and a 65Mn internal spring. Gray, red, black, yellow and blue housings allow the required connection configuration to be specified when ordering.
Características
- 50 A rated current and 600 V rated voltage.
- Two contact positions with a genderless mating design.
- Silver-plated copper contacts with a 65Mn internal spring.
- PC housing with UL94V-0 material flammability.
- Housing options: Gray, Red, Black, Yellow, Blue.
- Operating temperature from −20°C to +105°C.
Especificações Técnicas
| Parâmetro | Especificação |
|---|---|
| Marca | YOCL Elétrico |
| Tipo de produto | Double pole power connector |
| Contact positions | 2 |
| Corrente nominal | 50 A |
| Tensão nominal | 600 V |
| Mating design | Genderless |
| Material de contacto | Silver-plated copper |
| Material da caixa | PC (polycarbonate) |
| Inflamabilidade do material da caixa | UL94V-0 |
| Internal spring material | 65Mn |
| Temperatura de operação | −20°C to +105°C |
| Housing colors | Gray, Red, Black, Yellow, Blue |

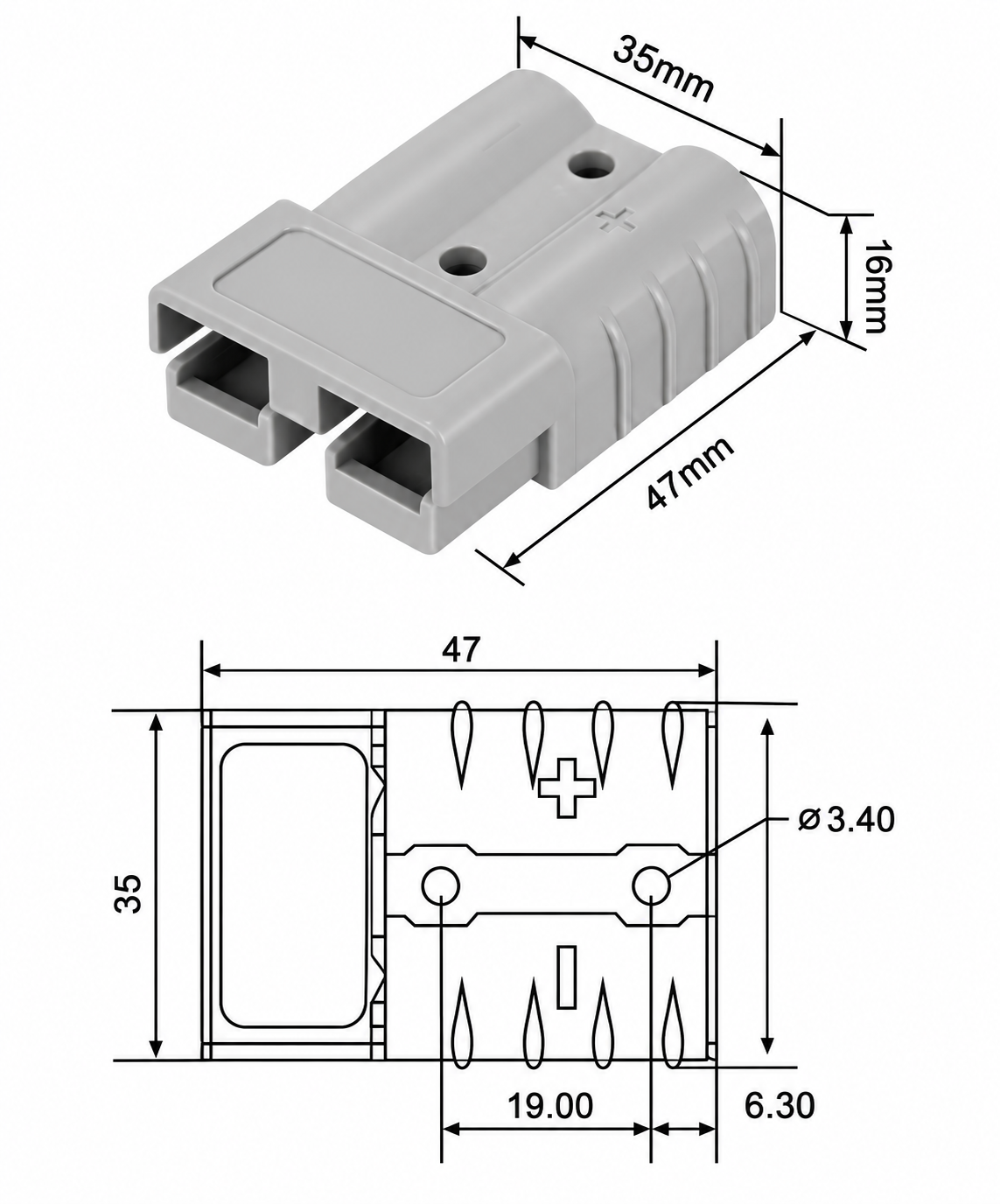

Dimensão
Housing dimensions: 47 × 35 × 16 mm (L × W × H).
Selection and Ordering
Specify 50 A, double pole, the housing color, conductor cross-section and required quantity when enquiring. Match the terminal to the conductor and check the mating housing geometry and color together.
