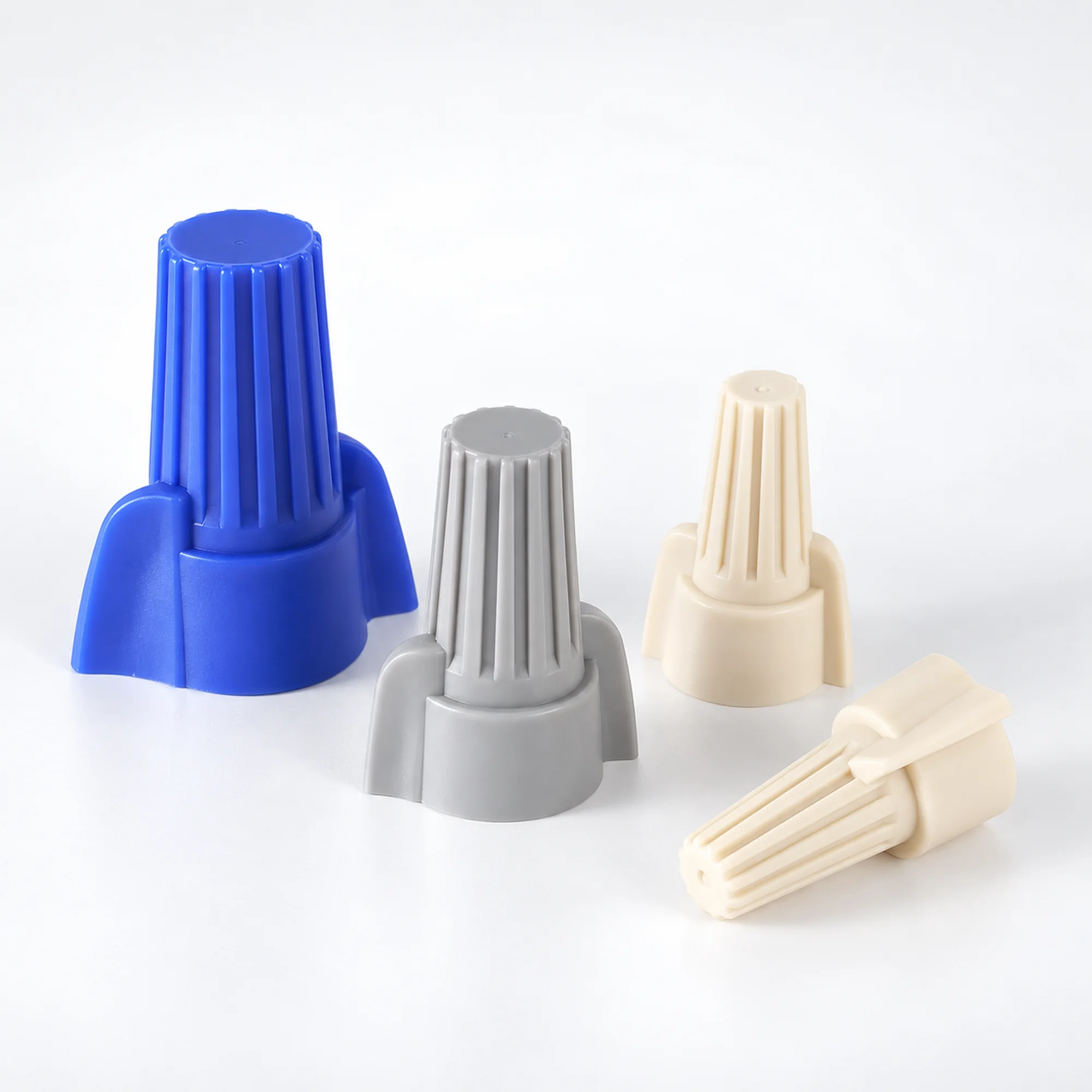

HP Series Double-Wing Screw-On Wire Connectors

YOCL ELECTRIC HP double-wing screw-on wire connectors join two or more conductors using a hand-installed twist-on connection.

Nylon 66 insulated housing with an internal spring-steel element.
Galvanized surface treatment on the internal spring.
Double wings provide an enlarged gripping surface.
Five color-coded models: HP11, HP12, HP13, HP15 and HP17.
Application wire range: 22–6 AWG, depending on model.
Operating temperature: -20°C to +100°C.
No crimping tool required.

Inquire about this product

Overview

YOCL ELECTRIC HP double-wing screw-on wire connectors join two or more electrical conductors with a twist-on connection. Each connector combines a Nylon 66 insulated housing with an internal spring-steel element that grips the prepared wires as the connector is rotated into position.

The molded double wings provide an enlarged gripping surface for hand installation without a crimping tool. Five models—HP11, HP12, HP13, HP15 and HP17—cover application wire ranges from 22 AWG to 6 AWG, depending on the selected connector.

Features

Double-wing grip: The molded wings provide a larger surface for holding and rotating the connector.
Twist-on connection: The internal spring grips the conductors as the housing is turned into position.
Nylon 66 insulation: The molded housing encloses the internal connection element.
Galvanized spring steel: The internal spring component has a galvanized surface treatment.
Five color-coded models: Yellow, Tan, Red, Gray and Blue identify the listed connector models.
Hand installation: The screw-on design requires no crimping tool.

Technical Specifications

Parameter	Specification
Brand	YOCL ELECTRIC
Series	HP
Product type	Double-wing screw-on wire connector
Housing material	Nylon 66
Internal element	Spring steel
Internal spring surface treatment	Galvanized
Connection method	Screw-on / Twist-on
Housing design	Double wing
Conductor connection	Two or more conductors
Application wire range	22–6 AWG, depending on model
Operating temperature	-20°C to +100°C
Models	HP11 / HP12 / HP13 / HP15 / HP17
Installation	Tool-free twist-on

Dimension

Model	ØB	ØC	Length (L)	Application Wire	Color
HP11	18.6 mm	10.2 mm	24.7 mm	18–10 AWG	Yellow
HP12	19.0 mm	11.0 mm	27.8 mm	22–8 AWG	Tan
HP13	23.8 mm	12.5 mm	30.5 mm	18–8 AWG	Red
HP15	25.8 mm	14.8 mm	32.5 mm	18–8 AWG	Gray
HP17	32.3 mm	17.4 mm	39.3 mm	14–6 AWG	Blue

ØB, ØC and L retain the dimension labels supplied for this series. Wire ranges and colors are model-specific.

Selection Guide

Select the connector by its application wire range and intended conductor configuration, then check the model dimensions against the space available. Use the color as a visual model identifier alongside the listed specifications.

Model	Selection reference
HP11	Yellow; 18–10 AWG; length 24.7 mm
HP12	Tan; 22–8 AWG; length 27.8 mm
HP13	Red; 18–8 AWG; length 30.5 mm
HP15	Gray; 18–8 AWG; length 32.5 mm
HP17	Blue; 14–6 AWG; length 39.3 mm

HP13 and HP15 share the specified 18–8 AWG range but have different housing dimensions. HP17 covers the largest conductor size listed in the series, 6 AWG.

Uygulamalar

Electrical wire splicing and building wiring.
Lighting circuits and junction boxes.
Residential and commercial electrical installations.
Industrial equipment and control wiring.
Multi-conductor electrical connections.

Ordering Information

Specify HP11, HP12, HP13, HP15 or HP17 and the required quantity when requesting a quotation from YOCL ELECTRIC. Include the conductor sizes and intended connection configuration to support model selection. Colors follow the model assignments shown in the table.
