75A موصل طاقة مزدوج القطب مع نقاط تلامس مساعدة

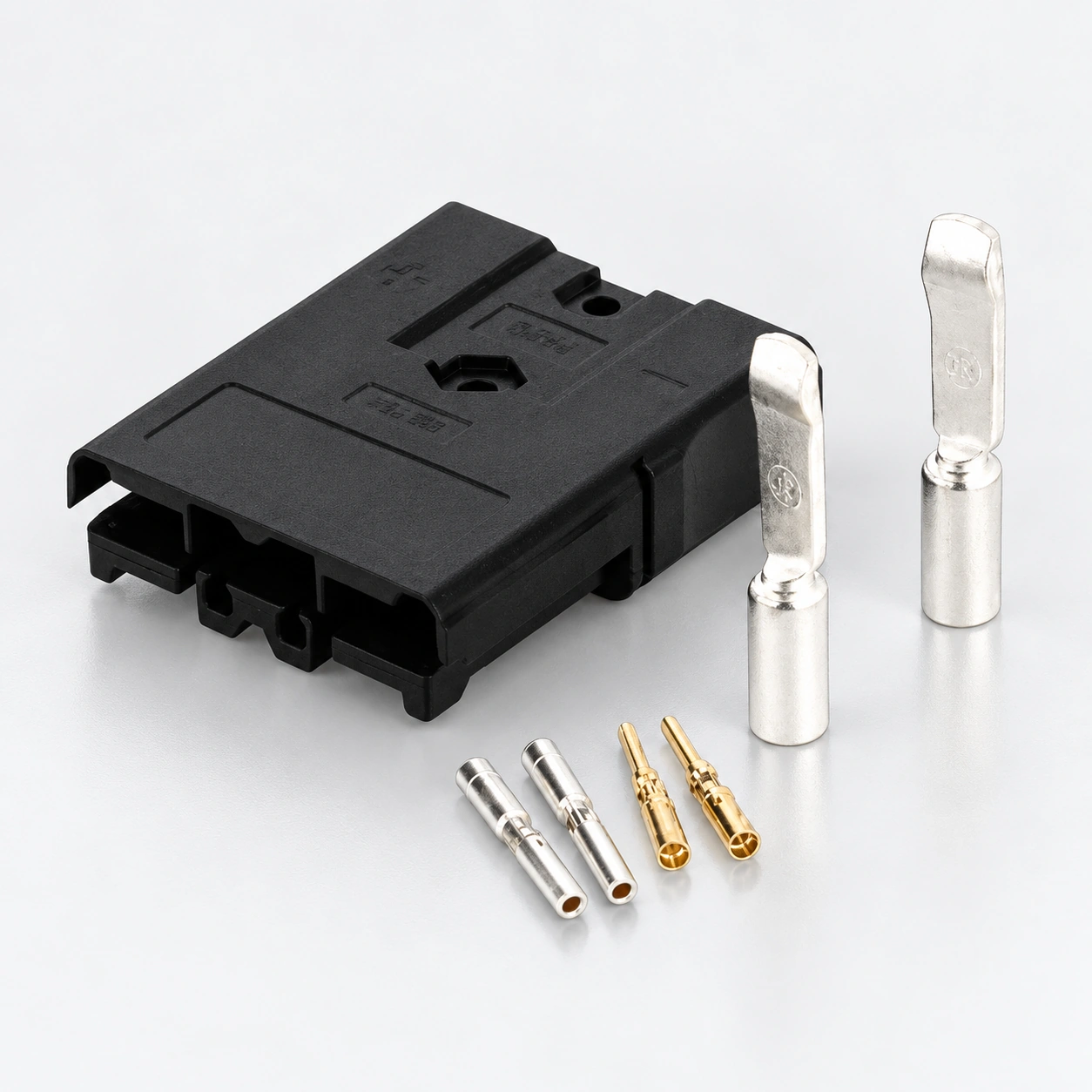

The YOCL Electric 75A double-pole power connector with auxiliary contacts combines two main power poles with additional auxiliary contacts. The connector has a 75 A current rating and a 600 V voltage rating, with silver-plated copper contacts and a PC housing. Housing material flammability is UL 94 V-0, and six housing colours are available.

75 A current rating and 600 V voltage rating
Two main power poles with auxiliary contacts
Silver-plated copper contacts
Grey, black, red, yellow, green and blue housings

استفسر عن هذا المنتج

نظرة عامة

The PC housing material has a UL 94 V-0 flammability classification. Housing colours are grey, black, red, yellow, green and blue.

الميزات

75 A rated current
600 V rated voltage
Two main power poles with auxiliary contacts
Silver-plated copper contacts
PC housing with UL 94 V-0 material flammability
Six housing colour options

المواصفات الفنية

المعلمة	المواصفات
العلامة التجارية	YOCL كهربائي
نوع المنتج	Double-pole power connector with auxiliary contacts
التيار المقنن	75 A
الجهد المقنن	600 V
Main power poles	2
Auxiliary contacts	Included in the connector design
مادة التلامس	Silver-plated copper
مادة الهيكل	PC
قابلية مادة الغلاف للاشتعال	UL 94 V-0
Housing colours	Grey / Black / Red / Yellow / Green / Blue

معلومات الطلب

For an enquiry, specify 75 A and the double-pole design with auxiliary contacts, the required housing colour, quantity and wire size for terminal selection. Include the auxiliary circuit requirements so that the appropriate contacts can be selected.
