35 × 15 mm Calha em Aço com Ranhuras DIN
YOCL ELECTRIC 35 × 15 mm slotted steel DIN rail for electrical panels using devices specified for this TS35 top hat profile.
- Steel section, 35 mm wide and 15 mm deep.
- Nominal thickness: 1.5 mm.
- Elongated mounting slots: 6.2 × 15 mm.
- Standard lengths: 1 m or 2 m.
- Match the full profile, fixing requirements and available enclosure space.
Visão Geral
The YOCL ELECTRIC 35 × 15 mm slotted steel DIN rail is a TS35 top hat rail with a 35 mm mounting width and a 15 mm profile depth. It provides a steel mounting section for electrical panels and enclosures using devices that require this cross-section.
The specified configuration combines 1.5 mm nominal thickness, elongated 6.2 × 15 mm mounting slots and standard lengths of 1 m or 2 m. Select the full profile and fixing specification when matching the rail to the equipment and panel layout.
Características
- 35 × 15 mm top hat profile: a defined mounting width and depth for checking the equipment requirement.
- Steel construction: specified with 1.5 mm nominal thickness.
- Slotted fixing openings: each elongated slot is 6.2 mm wide and 15 mm long.
- Two standard rail lengths: 1 m and 2 m choices for the required panel rail runs.
- Clear profile identification: the 15 mm depth distinguishes this section during procurement.
Especificações Técnicas
| Parâmetro | Especificação |
|---|---|
| Marca | YOCL ELÉTRICO |
| Tipo de produto | Slotted steel DIN rail |
| Profile terminology | TS35 top hat rail |
| Material | Steel |
| Profile width | 35 mm |
| Profile depth | 15 mm |
| Nominal thickness | 1.5 mm |
| Mounting hole shape | Elongated slot |
| Slot width × length | 6.2 × 15 mm |
| Standard rail lengths | 1 m / 2 m |

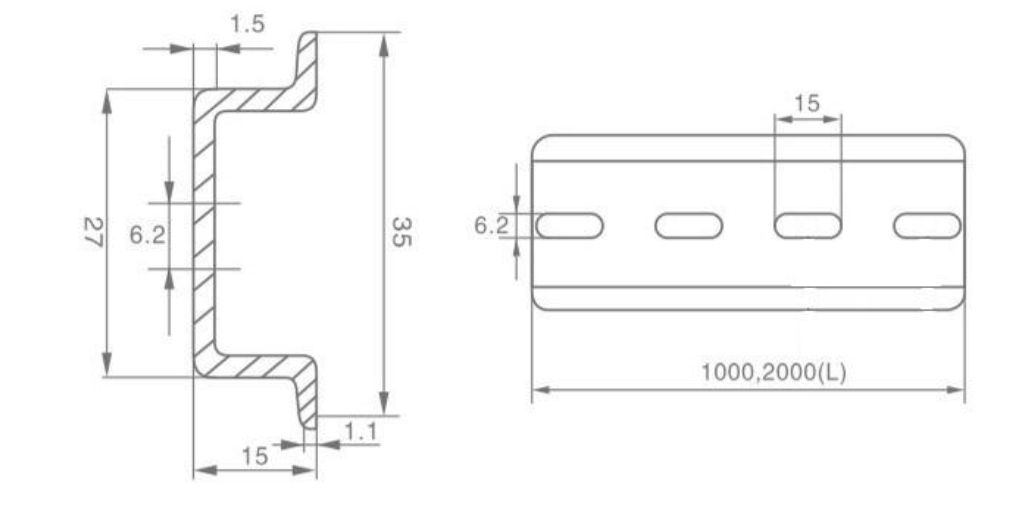

Dimensão
Check the 35 mm mounting width and 15 mm profile depth together. These dimensions define the rail section; the 6.2 × 15 mm figures describe the fixing openings. Standard rail lengths are 1,000 mm and 2,000 mm.
Guia de Seleção
Select this rail when the equipment mounting specification calls for a 35 × 15 mm top hat profile. Review the rail depth alongside the device dimensions and available enclosure space, particularly when the panel design already fixes the mounting position.
Keep the nominal thickness and slot dimensions in the purchase description. Match the fixing openings to the specified panel arrangement, and supply a mounting drawing where hole locations must align with an existing layout. The slot size alone does not establish the complete hole-spacing pattern.
Choose a 1 m or 2 m standard length according to the required rail run. Use the complete section dimensions when comparing alternative rails, including other products described as 35 mm DIN rail.
Informações de Encomenda
Specify YOCL ELECTRIC 35 × 15 mm slotted steel DIN rail, 1.5 mm nominal thickness, 6.2 × 15 mm slots, selected length and quantity. Include the device mounting reference and the relevant panel fixing layout with the enquiry.
FAQ
Does a 35 mm rail width establish equipment compatibility?
Check the full mounting profile. This rail has a 15 mm depth; equipment selection must also account for that dimension and the device manufacturer’s mounting requirements.
