IP44 Steker Industri
YOCL ELECTRIC IP44 colokan industri untuk koneksi ujung kabel, dengan desain housing yang berbeda dan tabel pilihan model NM yang lengkap.
- Arus terukur: 16 A dan 32 A.
- Susunan kontak: 2P+E, 3P+E dan 3P+N+E.
- Tata letak kontak bumi 4 jam, 6 jam, dan 9 jam pilihan, tergantung model.
- Colokan kabel jantan dengan masuk kabel belakang.
- Pilih tegangan, kapasitas konduktor, dan dimensi berdasarkan kode model lengkap.
Tinjauan
Colokan industri YOCL ELECTRIC IP44 adalah colokan kabel pria untuk koneksi kabel industri. Keluarga ini menyatukan model 16 A dan 32 A aktual yang tercantum di bawah ini, dengan susunan kontak 2P+E, 3P+E, dan 3P+N+E. Setiap model memiliki voltase, posisi jam kontak bumi, dan desain housing sendiri.
Bagian depan memiliki kontak jantan yang menonjol dan bagian belakang menerima kabel. Versi H-design, K-design, dan body belakang putih menyediakan housing yang berbeda dalam satu keluarga produk. Versi 9h khusus terdaftar terpisah dari model 4h dan 6h biasa.
Fitur
- Peringkat perlindungan IP44 untuk model yang tercantum.
- Kontak jantan dengan pemasangan kabel daripada pemasangan panel.
- Pilihan arus terukur: 16 A dan 32 A; kombinasi aktual ditentukan oleh tabel model.
- Versi 2P+E, 3P+E dan 3P+N+E diidentifikasi secara individual.
- Tata letak kontak pentanahan: 4h, 6h dan 9h pilihan, sesuai dengan model yang disebutkan.
- Grup housing terpisah mempertahankan kapasitas konduktor dan data dimensi setiap model.
Spesifikasi Teknis
| Parameter | Spesifikasi |
|---|---|
| Merek | YOCL ELEKTRIK |
| Jenis produk | Steker kabel jantan |
| Pemasangan | Terpasang pada kabel |
| Rating proteksi | IP44 |
| Arus terukur | 16 A dan 32 A |
| Susunan kontak | 2P+E (3 kontak); 3P+E (4 kontak); 3P+N+E (5 kontak) |
| Posisi kontak pentanahan | 4h, 6h, dan 9h pilihan |
| Konfigurasi tegangan | Lihat baris model individual; peringkat lima kontak berpasangan dipertahankan seperti yang tercantum. |
| Kapasitas konduktor | Model-specific values in mmยฒ; see the selection tables. |
| Housing designs | See the separate model groups below. |
Desain housing H โ 16 / 32 A
| Model | Printed reference | Arus (A) | Kontak | Tegangan (V) | Clock | Conductor capacity (mmยฒ) | Body color |
|---|---|---|---|---|---|---|---|
| NM-013H-4 | 248 | 16 | 2P+E | 110โ130 | 4h | 1โ2.5 | Kuning |
| NM-023H-4 | 260 | 32 | 2P+E | 110โ130 | 4h | 2.5โ6 | Kuning |
| NM-013H | 248 | 16 | 2P+E | 220โ240 | 6 jam | 1โ2.5 | Biru |
| NM-023H | 260 | 32 | 2P+E | 220โ240 | 6 jam | 2.5โ6 | Biru |
| NM-014H | 252 | 16 | 3P+E | 380โ415 | 6 jam | 1โ2.5 | Merah |
| NM-024H | 264 | 32 | 3P+E | 380โ415 | 6 jam | 2.5โ6 | Merah |
| NM-015H | NM3 | 16 | 3P+N+E | 220โ380 / 240โ415 | 6 jam | 1โ2.5 | Merah |
| NM-025H | NM4 | 32 | 3P+N+E | 220โ380 / 240โ415 | 6 jam | 2.5โ6 | Merah |
Desain housing K โ 16 / 32 A
| Model | Arus (A) | Kontak | Tegangan (V) | Clock | Conductor capacity (mmยฒ) | Body color |
|---|---|---|---|---|---|---|
| NM-013K-4 | 16 | 2P+E | 110โ130 | 4h | 1โ2.5 | Kuning |
| NM-023K-4 | 32 | 2P+E | 110โ130 | 4h | 2.5โ6 | Kuning |
| NM-013K | 16 | 2P+E | 220โ240 | 6 jam | 1โ2.5 | Biru |
| NM-023K | 32 | 2P+E | 220โ240 | 6 jam | 2.5โ6 | Biru |
| NM-014K | 16 | 3P+E | 380โ415 | 6 jam | 1โ2.5 | Merah |
| NM-024K | 32 | 3P+E | 380โ415 | 6 jam | 2.5โ6 | Merah |
| NM-015K | 16 | 3P+N+E | 220โ380 / 240โ415 | 6 jam | 1โ2.5 | Merah |
| NM-025K | 32 | 3P+N+E | 220โ380 / 240โ415 | 6 jam | 2.5โ6 | Merah |
Desain badan belakang putih โ 16 / 32 A
| Model | Arus (A) | Kontak | Tegangan (V) | Clock | Conductor capacity (mmยฒ) | Body color |
|---|---|---|---|---|---|---|
| NM-013-4 | 16 | 2P+E | 110โ130 | 4h | 1โ2.5 | Kuning |
| NM-023-4 | 32 | 2P+E | 110โ130 | 4h | 2.5โ6 | Kuning |
| NM-013L | 16 | 2P+E | 220โ240 | 6 jam | 1โ2.5 | Biru |
| NM-023L | 32 | 2P+E | 220โ240 | 6 jam | 2.5โ6 | Biru |
| NM-013 | 16 | 2P+E | 220โ240 | 6 jam | 1โ2.5 | Biru |
| NM-023 | 32 | 2P+E | 220โ240 | 6 jam | 2.5โ6 | Biru |
| NM-014 | 16 | 3P+E | 380โ415 | 6 jam | 1โ2.5 | Merah |
| NM-024 | 32 | 3P+E | 380โ415 | 6 jam | 2.5โ6 | Merah |
| NM-015 | 16 | 3P+N+E | 220โ380 / 240โ415 | 6 jam | 1โ2.5 | Merah |
| NM-025 | 32 | 3P+N+E | 220โ380 / 240โ415 | 6 jam | 2.5โ6 | Merah |
Tata letak kontak bumi khusus 9 jam โ 16 / 32 A
These 9h models use the particular voltage and contact layouts shown below. Their conductor capacities and dimensions are not extended from the ordinary models.
| Model | Arus (A) | Kontak | Tegangan (V) | Clock | Conductor capacity (mmยฒ) | Body color |
|---|---|---|---|---|---|---|
| NM-013L-9 | 16 | 2P+E | 380โ415 | 9h | โ | Merah |
| NM-023L-9 | 32 | 2P+E | 380โ415 | 9h | โ | Merah |
| NM-115L-9 | 16 | 3P+N+E | 220โ240 | 9h | โ | Biru |
| NM-025L-9 | 32 | 3P+N+E | 220โ240 | 9h | โ | Biru |
| NM-014L-9 | 16 | 3P+E | 220โ240 | 9h | โ | Biru |
| NM-024L-9 | 32 | 3P+E | 220โ240 | 9h | โ | Biru |
Dimensi
The symbols below reproduce each housing groupโs dimensional table in millimetres. Letter meanings differ between drawings; a repeated symbol does not define one common dimension across all groups. Match the full model code and housing group before using a drawing.

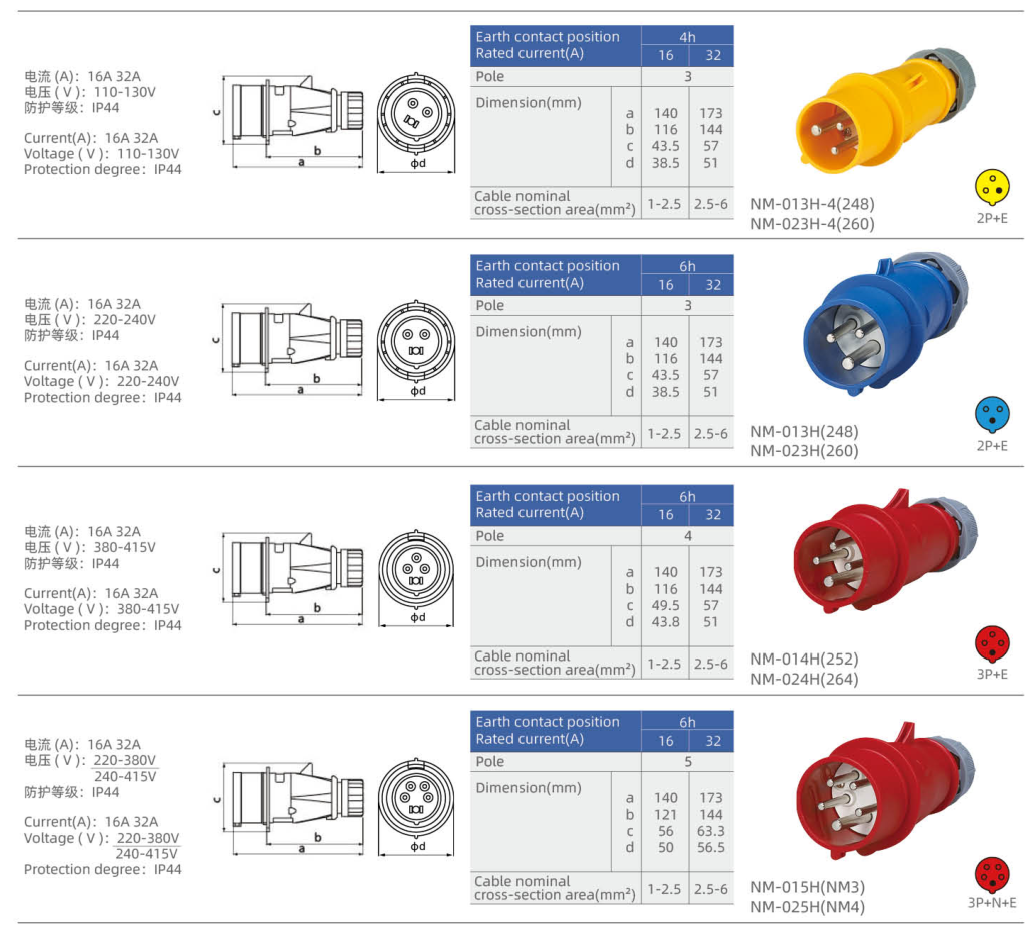

Desain housing H โ 16 / 32 A
| Model | Drawing/table dimensions (mm) |
|---|---|
| NM-013H-4 | a = 140; b = 116; c = 43.5; d = 38.5 |
| NM-023H-4 | a = 173; b = 144; c = 57; d = 51 |
| NM-013H | a = 140; b = 116; c = 43.5; d = 38.5 |
| NM-023H | a = 173; b = 144; c = 57; d = 51 |
| NM-014H | a = 140; b = 116; c = 49.5; d = 43.8 |
| NM-024H | a = 173; b = 144; c = 57; d = 51 |
| NM-015H | a = 140; b = 121; c = 56; d = 50 |
| NM-025H | a = 173; b = 144; c = 63.3; d = 56.5 |

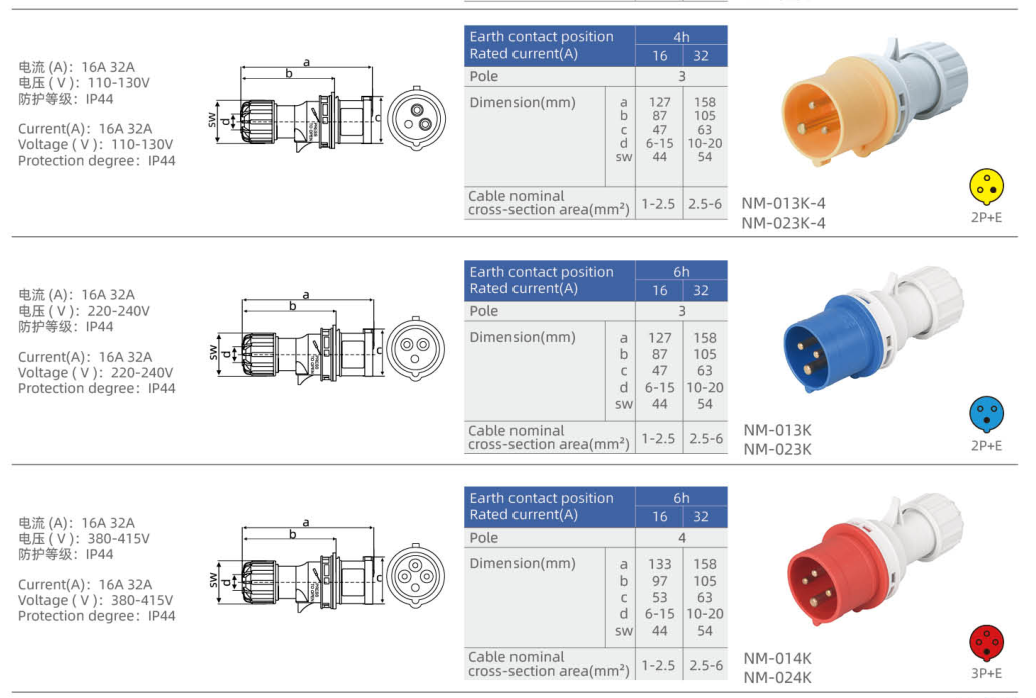

Desain housing K โ 16 / 32 A
| Model | Drawing/table dimensions (mm) |
|---|---|
| NM-013K-4 | a = 127; b = 87; c = 47; d = 6โ15; SW = 44 |
| NM-023K-4 | a = 158; b = 105; c = 63; d = 10โ20; SW = 54 |
| NM-013K | a = 127; b = 87; c = 47; d = 6โ15; SW = 44 |
| NM-023K | a = 158; b = 105; c = 63; d = 10โ20; SW = 54 |
| NM-014K | a = 133; b = 97; c = 53; d = 6โ15; SW = 44 |
| NM-024K | a = 158; b = 105; c = 63; d = 10โ20; SW = 54 |

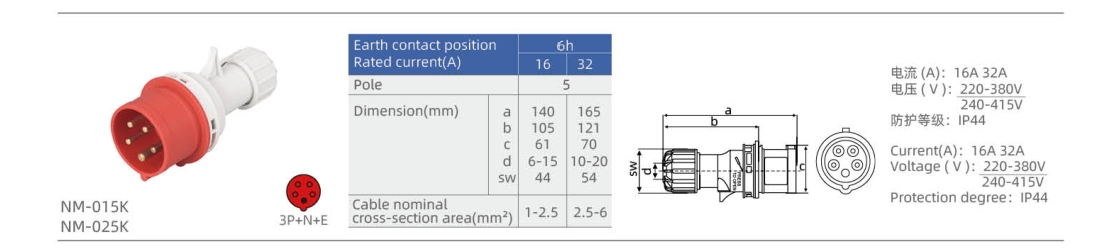

| NM-015K | a = 140; b = 105; c = 61; d = 6โ15; SW = 44 |
| NM-025K | a = 165; b = 121; c = 70; d = 10โ20; SW = 54 |

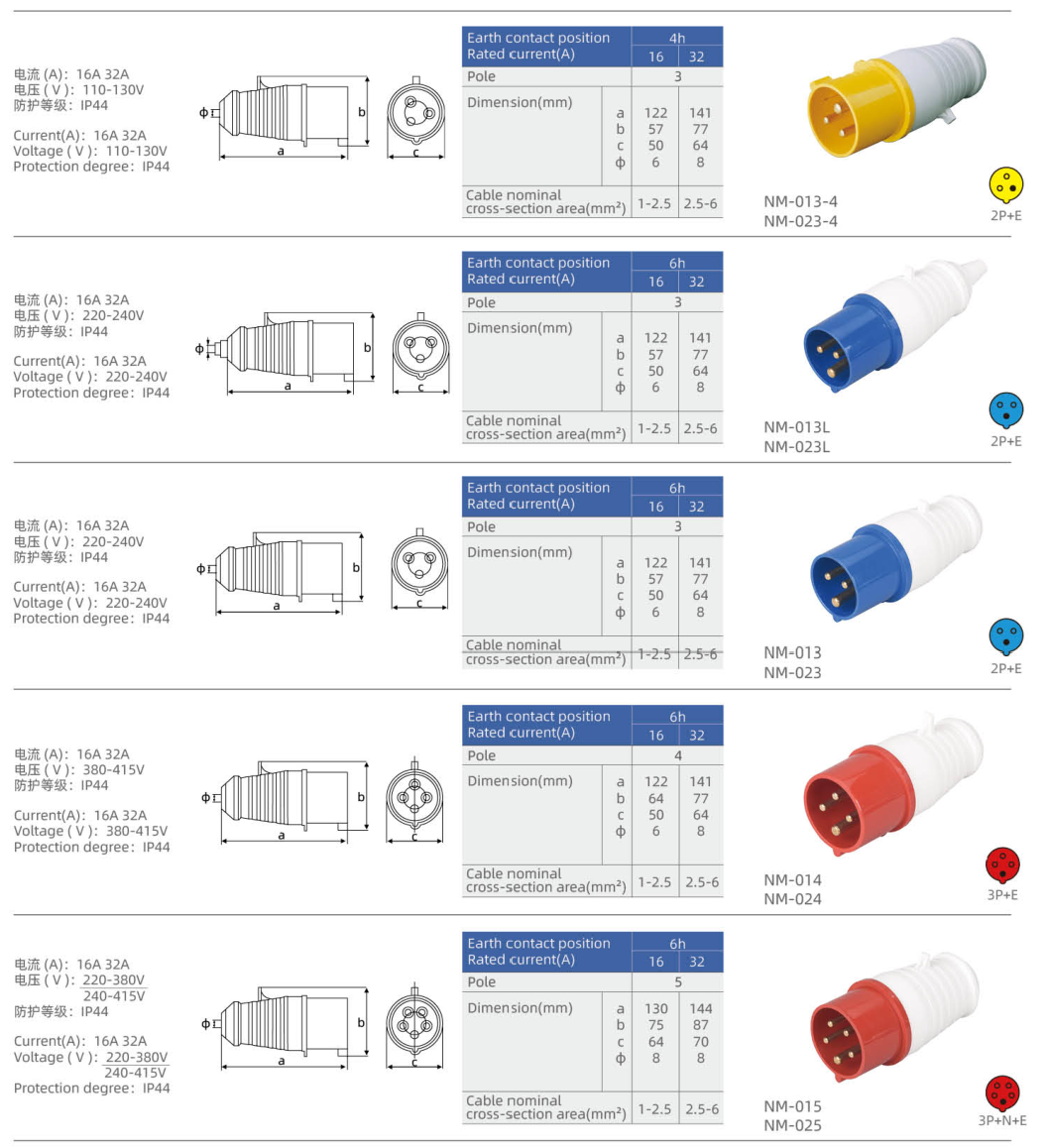

Desain badan belakang putih โ 16 / 32 A
| Model | Drawing/table dimensions (mm) |
|---|---|
| NM-013-4 | a = 122; b = 57; c = 50; ฯ = 6 |
| NM-023-4 | a = 141; b = 77; c = 64; ฯ = 8 |
| NM-013L | a = 122; b = 57; c = 50; ฯ = 6 |
| NM-023L | a = 141; b = 77; c = 64; ฯ = 8 |
| NM-013 | a = 122; b = 57; c = 50; ฯ = 6 |
| NM-023 | a = 141; b = 77; c = 64; ฯ = 8 |
| NM-014 | a = 122; b = 64; c = 50; ฯ = 6 |
| NM-024 | a = 141; b = 77; c = 64; ฯ = 8 |
| NM-015 | a = 130; b = 75; c = 64; ฯ = 8 |
| NM-025 | a = 144; b = 87; c = 70; ฯ = 8 |
Panduan Pemilihan
Choose a male cable plug for a cable-end connection. A panel-mounted or surface-mounted appliance inlet uses a fixed mounting arrangement and belongs to a different product family.
Select the current rating, contact arrangement, rated voltage, earth-contact clock position and IP rating together from one actual model row. Body color alone is insufficient: the special clock-position groups include different voltage/contact combinations from the ordinary groups.
Keep the complete suffix when selecting the housing version. Models that share an electrical rating may have different lengths, cable-entry dimensions or body shapes. Conductor capacity is a cross-sectional range in mmยฒ and must not be confused with a cable-entry dimension in mm.
For five-contact models, the table preserves the paired 220โ380 / 240โ415 V notation. It does not create an additional arbitrary voltage combination. A dash in the capacity column means that the particular row supplies no confirmed value.
Informasi Pemesanan
When enquiring about YOCL ELECTRIC IP44 industrial plugs, provide the full model code, quantity, current rating, contact arrangement, rated voltage, clock position and the required housing design. Include the conductor cross-section and cable outside diameter so that the cable entry and terminal range can be checked for that specific model.
Printed secondary references identify the catalogue entries where shown; they do not create extra model options or replace the full NM model code.
