YC012 Unipolar Terminal Şeritleri
YC012 Unipolar Terminal Strips from YOCL ELECTRIC. Unipolar screw strips in 8×1 and 10×1 configurations, with 450 V model ratings.
- Electrical ratings: 450 V; see the selected model.
- Pirinç iletken ekler.
- Çalışma sıcaklığı: −30°C ila +110°C.
- Pole configurations: 8 / 10.
Genel Bakış

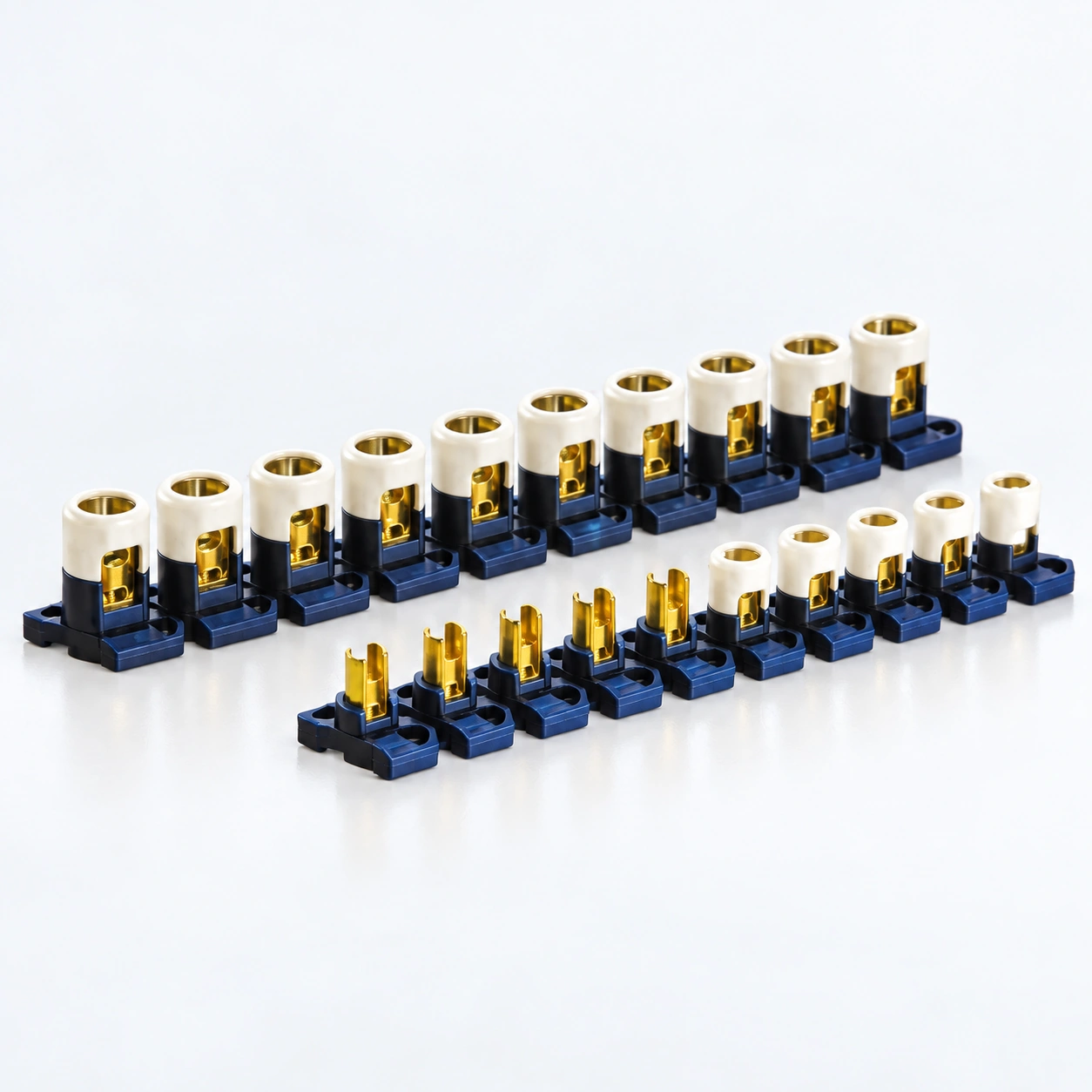

YOCL ELECTRIC YC012 Unipolar Terminal Strips provide electrical wire connections. Unipolar screw strips in 8×1 and 10×1 configurations, with 450 V model ratings.
Özellikler
- YC012 Unipolar Terminal Strips construction with PA housing.
- Pirinç iletken ekler.
- Çalışma sıcaklığı: −30°C ila +110°C.
- Pole configurations: 8 / 10.
Teknik Özellikler
| Parametre | Teknik Özellikler |
|---|---|
| Marka | YOCL ELEKTRİK |
| Ürün ailesi | YC012 Unipolar Terminal Şeritleri |
| Gövde malzemesi | PA |
| İletken ek | Pirinç |
| Vida malzemesi | Pirinç |
| Çalışma sıcaklığı | −30°C ila +110°C |
| Kutup konfigürasyonları | 8 / 10 |
| Listelenen renkler | 8-pole: grey / white; 10-pole: white / blue |
| Anma gerilimi | 450 V |
| Model derecelendirmeleri ve paketleme | Model tablosuna bakın; her satır yalnızca o modele uygulanır. |
Model Değerlendirmeleri ve Paketleme
| Model | Wire range (mm²) | Anma gerilimi (V) | Kutuplar | Vida boyutu | Pieces per bag | Pieces per carton |
|---|---|---|---|---|---|---|
| YC012-01 | 16 | 450 | 8 | M8.0 | 1 | 200 |
| YC012-02 | 25 | 450 | 8 | M9.0 | 1 | 100 |
| YC012-03 | 35 | 450 | 8 | M12.0 | 1 | 80 |
| YC012-04 | 50 | 450 | 8 | M14.0 | 1 | 50 |
| YC012-05 | 70 | 450 | 8 | M14.0 | 1 | 50 |
| YC012-20 | 6 | 450 | 10 | M5.0 | 10 | 400 |
| YC012-21 | 10 | 450 | 10 | M8.0 | 10 | 160 |
| YC012-22 | 16 | 450 | 10 | M9.0 | 10 | 140 |
| YC012-23 | 25 | 450 | 10 | M10.0 | 10 | 120 |
| YC012-24 | 35 | 450 | 10 | M12.0 | 10 | 80 |
Boyut

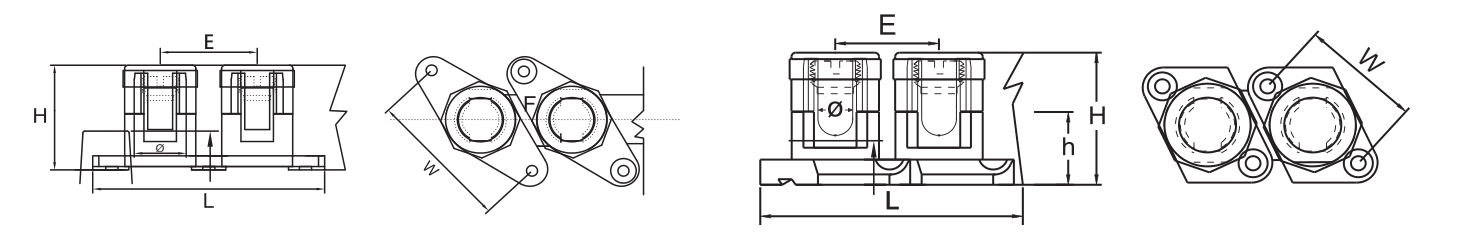

All dimension values are in mm. Letter and diameter symbols identify the corresponding dimensions.
| Model | L (mm) | G (mm) | H (mm) | E (mm) | Ø (mm) |
|---|---|---|---|---|---|
| YC012-01 | 173.0 | 26.4 | 24.0 | 21.0 | 5 |
| YC012-02 | 206.0 | 31.0 | 27.5 | 25.0 | 6 |
| YC012-03 | 250.0 | 41.5 | 33.0 | 30.0 | 8 |
| YC012-04 | 260.0 | 41.5 | 35.5 | 31.5 | 8.5 |
| YC012-05 | 272.0 | 42.0 | 38.0 | 33.0 | 9 |
| YC012-20 | 162.0 | 20.3 | 21.0 | 15.5 | 3 |
| YC012-21 | 198.5 | 22.0 | 23.7 | 19.5 | 4 |
| YC012-22 | 211.0 | 23.5 | 26.0 | 20.5 | 5 |
| YC012-23 | 222.0 | 25.0 | 29.2 | 21.3 | 7 |
| YC012-24 | 260.0 | 28.5 | 33.5 | 25.0 | 8 |
Seçim Kılavuzu
Select the exact model by conductor cross-section and the electrical rating in its row. Check the required pole configuration and the dimensions together; ratings from different models are not interchangeable.
Sipariş Bilgileri
Specify the model, conductor cross-section, required configuration and quantity. State the packing unit when ordering.
