Single-pole connections
30 A, 75 A, 120 A and 180 A models provide one contact position with genderless mating. The listed PC-housing models are rated 600 V.
Battery & Power Connectors
Manufacturer
Explore single-, double- and three-pole power connectors, forklift battery connectors and dedicated vehicle connections. Listed current ratings span 30–350 A across different models, with 150 V and 600 V series. Match the housing, contact and cable as one connection.
Battery & Power Connectors series
Open full catalogue
120A Double Pole Power Connector
120A Single Pole Power Connector
160A Forklift Power Connector
175A Double Pole Power Connector
175A Three-Pole Power Connector
180A Single Pole Power Connector
30A Single Pole Power Connector
320A Forklift Power Connector

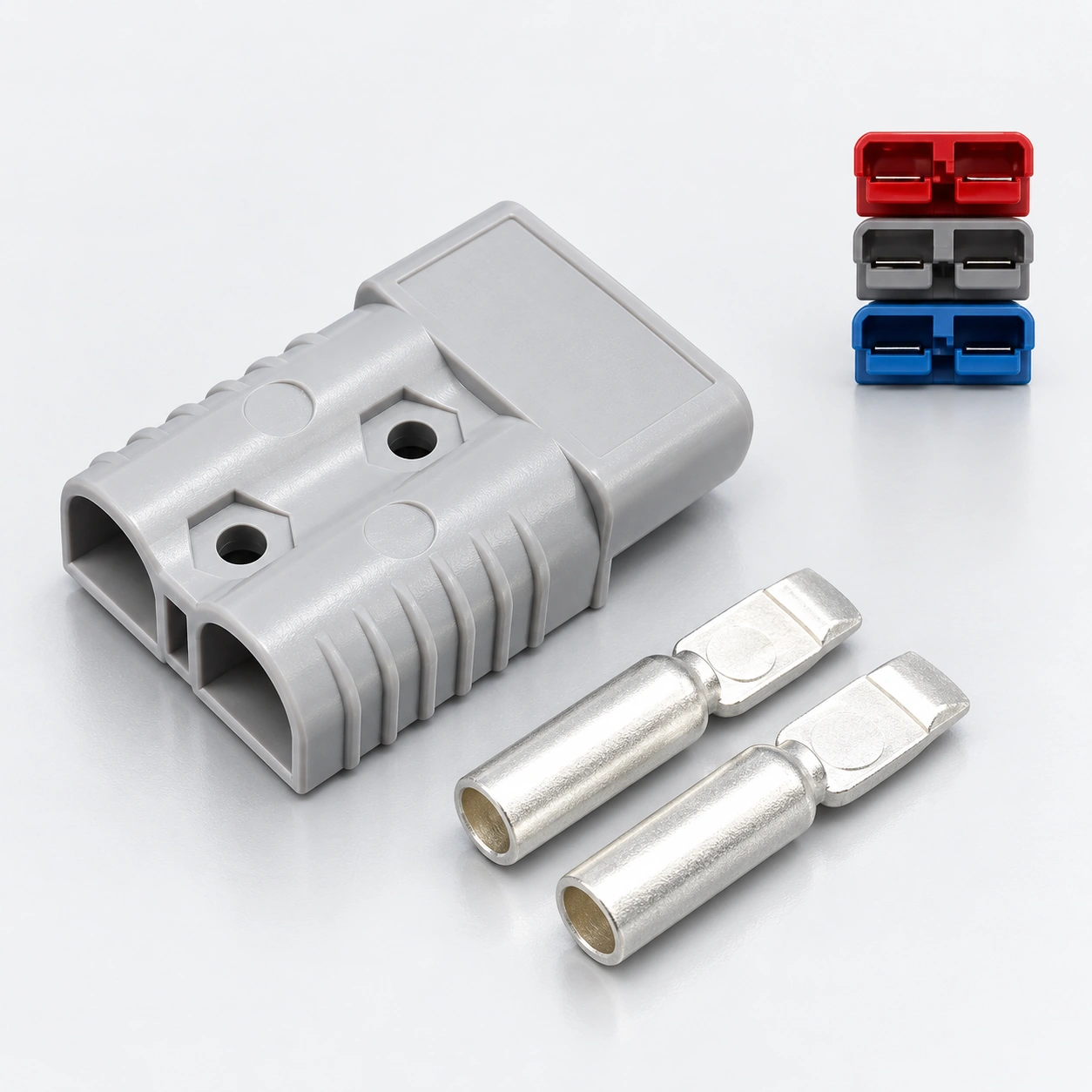

350A Double Pole Power Connector
40A Double Pole Power Connector
50A Double Pole Power Connector
50A Three-Pole Power Connector
50A Waterproof Parking Air Conditioner Connector
75A Double-Pole Power Connector with Auxiliary Contacts

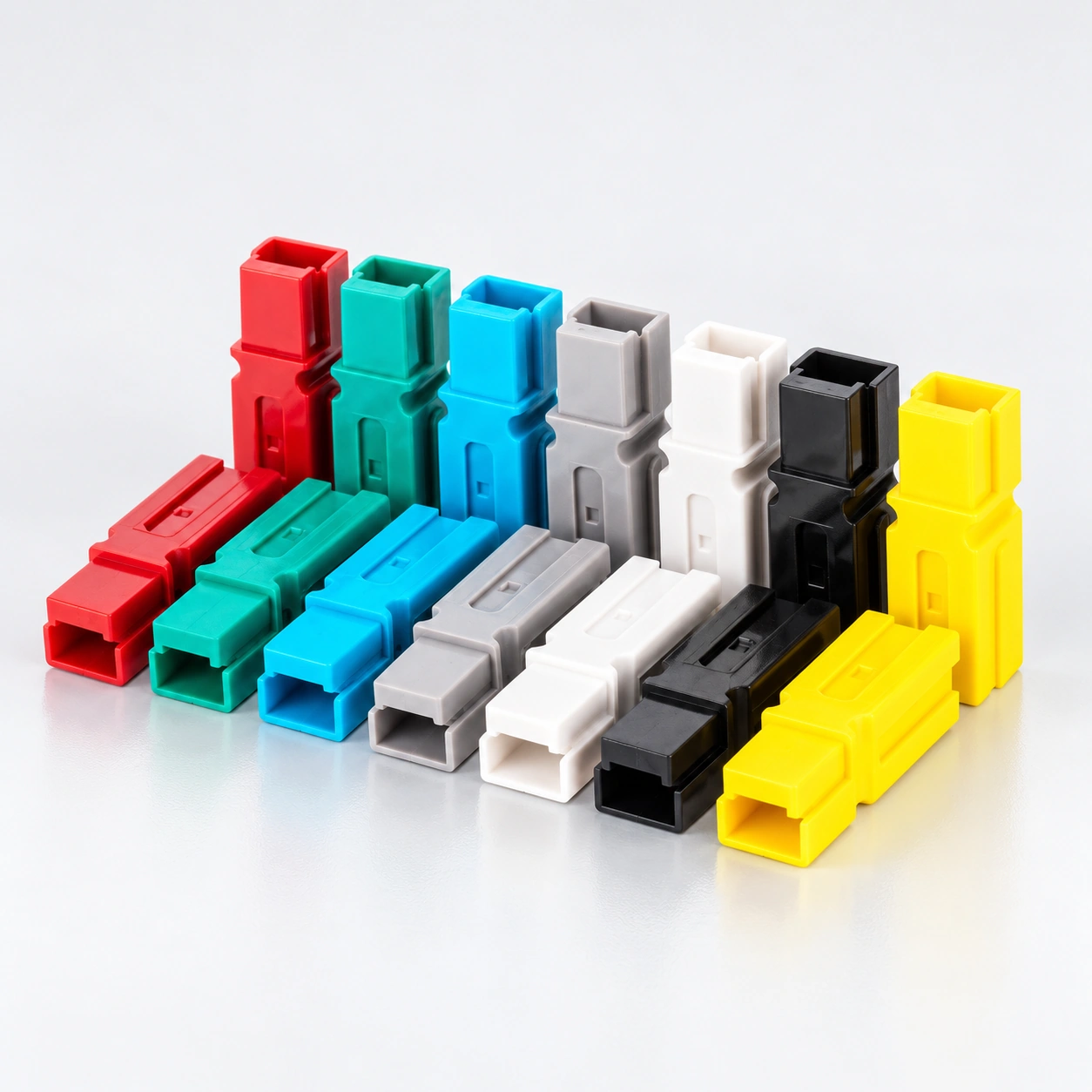

75A Single Pole Power Connector

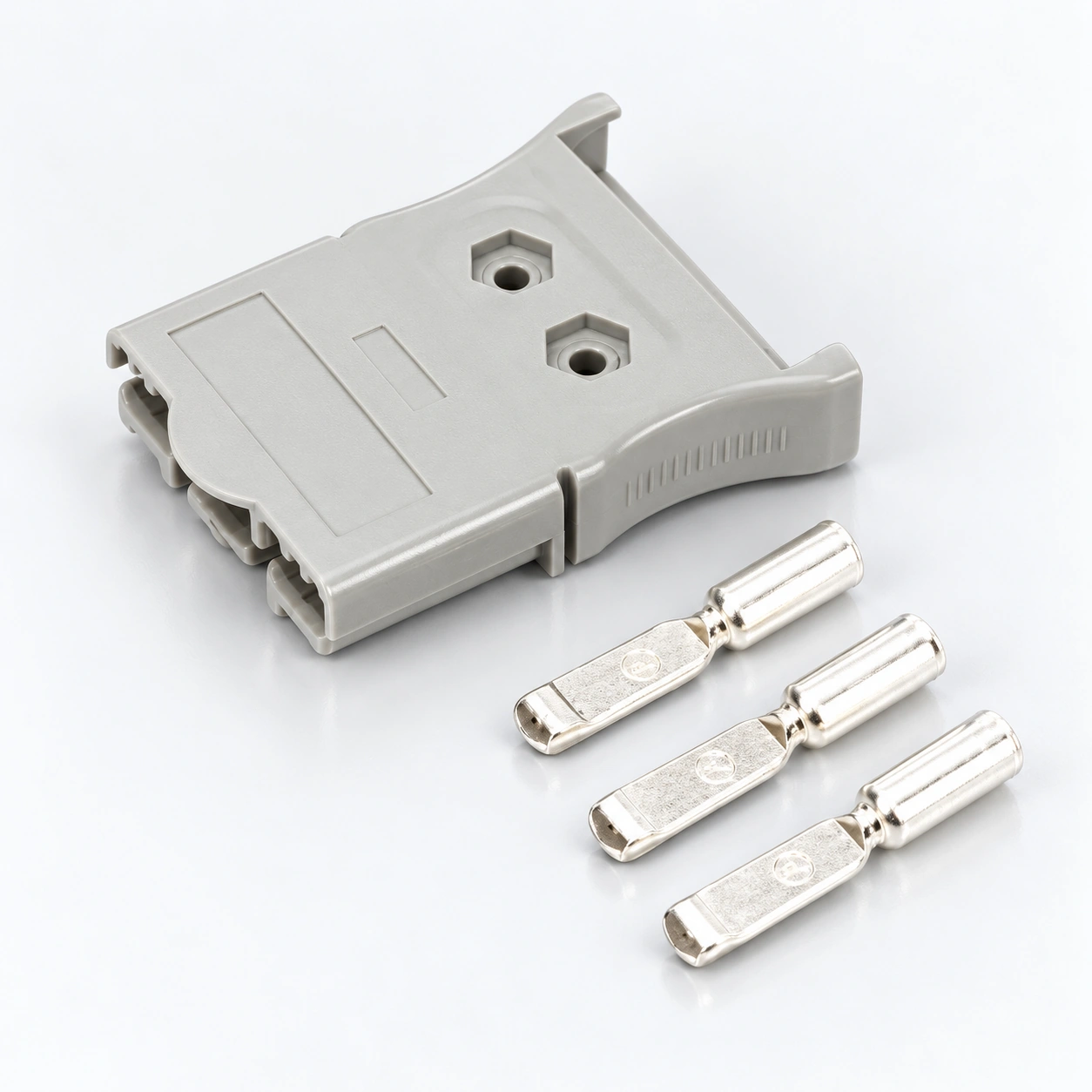

75A Three-Pole Power Connector

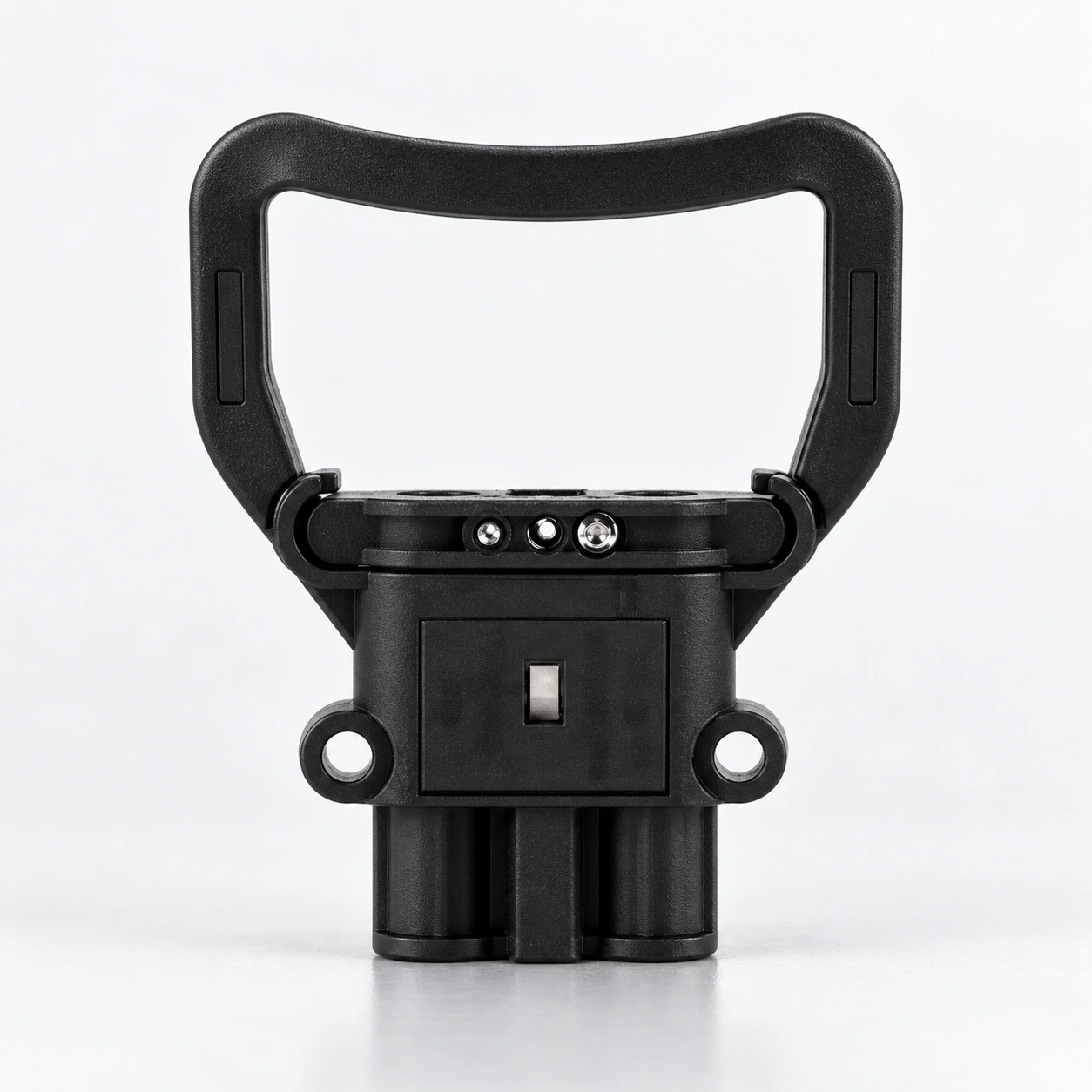

80A Forklift Power Connector

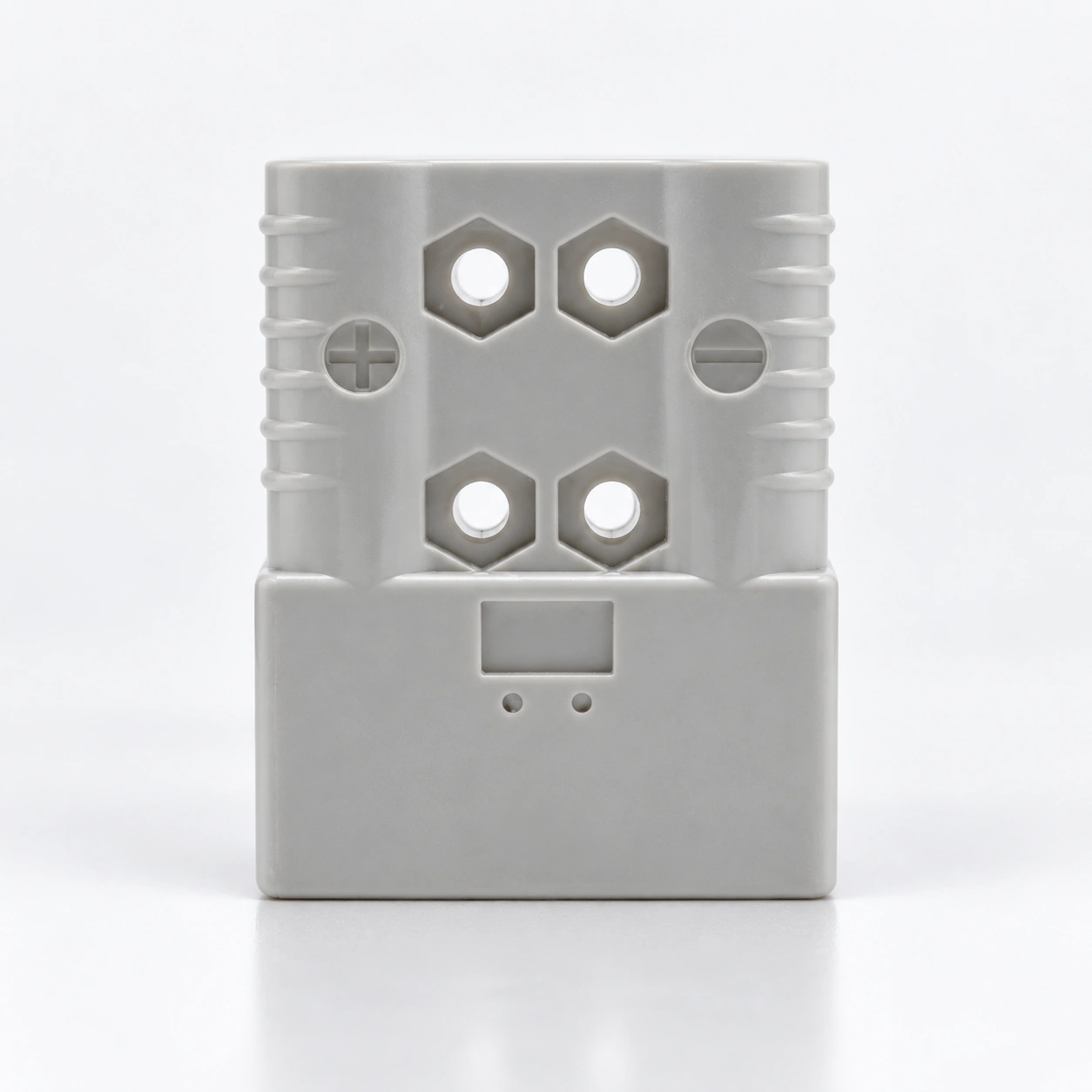

STE160A Forklift Power Connector
Compare battery & power connectors
Model-specific ratings and conductor sizes from the current product specifications.
| Model / series | Current | Voltage | Housing | Conductor / barrel size |
|---|---|---|---|---|
| 30A Single Pole Power Connector | 30 A | 600 V | PC (polycarbonate) | Specify cable size |
| 40A Double Pole Power Connector | 40 A | 600 V | PC (polycarbonate) | 4–6 mm² |
| 50A Double Pole Power Connector | 50 A | 600 V | PC (polycarbonate) | Specify cable size |
| 50A Three-Pole Power Connector | 50 A | 600 V | PC | Specify cable size |
| 50A Waterproof Parking Air Conditioner Connector | 50 A | Confirm with enquiry | PC | Specify cable size |
| 75A Double-Pole Power Connector with Auxiliary Contacts | 75 A | 600 V | PC | Specify cable size |
| 75A Single Pole Power Connector | 75 A | 600 V | PC (polycarbonate) | 4–16 mm² |
| 75A Three-Pole Power Connector | 75 A | 600 V | PC | Specify cable size |
| 80A Forklift Power Connector | 80 A | 150 V | PA | 25 mm² |
| 120A Double Pole Power Connector | 120 A | 600 V | PC (polycarbonate) | 10–25 mm² |
| 120A Single Pole Power Connector | 120 A | 600 V | PC (polycarbonate) | 10–25 mm² |
| 160A Forklift Power Connector | 160 A | 150 V | PA | 50 mm² |
| 175A Double Pole Power Connector | 175 A | 600 V | PC (polycarbonate) | 10–50 mm² |
| 175A Three-Pole Power Connector | 175 A | 600 V | PC | Specify cable size |
| 180A Single Pole Power Connector | 180 A | 600 V | PC (polycarbonate) | 10–50 mm² |
| 320A Forklift Power Connector | 320 A | 150 V | PA | 70 mm² |
| 350A Double Pole Power Connector | 350 A | 600 V | PC (polycarbonate) | Specify cable size |
| STE160A Forklift Power Connector | 160 A | 600 V | PC | Specify cable size |
Conductor ranges describe terminal options, not one terminal that accepts every cable size. Confirm the selected contact, housing and mating configuration together.
Find the right connection format
Double-pole connections
40 A, 50 A, 120 A, 175 A and 350 A genderless models combine two contacts. A separate 75 A version includes auxiliary contacts.
Three-pole connections
50 A, 75 A and 175 A models offer three poles with PC housings and silver-plated copper contacts. Match terminal sizes to your cable schedule.
Forklift & vehicle connections
80 A, 160 A and 320 A PA forklift models use male and female configurations with optional auxiliary contacts. STE160A and the 50 A parking air conditioner connector are separate designs.
Specify the complete power connection
Review the housing, contacts and cable as one assembly.
Mating interface
Provide the series or a drawing of both mating halves, contact count, keying and polarity arrangement.
Cable & contacts
Specify conductor cross-section, contact termination method and cable preparation requirements.
Electrical duty
State operating current, voltage, duty cycle and ambient temperature. Ratings must be confirmed for the selected model and cable.
Installation environment
Describe mounting space, vibration, moisture exposure and mating frequency. Identify any required test documents.
Send your battery & power connectors
requirements.
Send your connector drawing or model reference, cable specification and quantities.
Prepare an enquiryBuild your connector order
Agree the specification and required evidence before placing your order.
Explore manufacturingHousing & mating pair
Specify the complete model, pole count, housing colour and both mating components. For forklift models, identify male or female parts and auxiliary contacts.
Contacts & cable
List conductor cross-sections and the matching terminal barrel. Include cable length and pin assignments when requesting assembly options.
Electrical requirements
State current, voltage, duty cycle and ambient temperature. The 150 V PA forklift range and 600 V PC range require separate model selection.
Quantity & identification
Provide quantities per model and colour, packing units, label artwork and the required destination and documents.
OEM & PACKING
Your specification.
Your packing plan.
Build your battery & power connectors order around the selected models, identification and supply requirements.
Model schedule
Specify the complete model, pole count, housing colour and both mating components. For forklift models, identify male or female parts and auxiliary contacts.
Labels & identification
Provide part numbers, label artwork and any batch or traceability information required for the order.
Pack quantities
Specify quantities per model, individual packs, outer cartons and delivery destination.
Battery & Power Connectors
buying questions.
Can I match an existing battery connector?
Send the exact model or dimensional drawings of both mating halves. Similar appearance alone does not establish compatibility.
Does a housing colour identify its electrical rating?
Do not select by colour alone. Check the model-specific interface, keying, contacts, cable range and electrical ratings.
Can I order cable assemblies?
Provide the connector configuration, cable specification, lengths, pin assignments and quantities for a feasibility review.
Are all forklift connectors rated 600 V?
No. The listed 80 A, 160 A and 320 A PA forklift connectors are rated 150 V. STE160A is a separate PC-housing model rated 160 A and 600 V.
Are these connectors waterproof?
Do not assume a waterproof rating for the whole range. The 50 A parking air conditioner connector lists rubber sealing sleeves, but its product data does not state a numerical IP rating.
Does UL 94 V-0 mean the complete connector is UL certified?
No. UL 94 V-0 is a material flammability classification in these listings. It does not establish certification of the complete connector.
Can a connector be unplugged under load?
A current rating alone does not establish load-breaking capability. Confirm the permitted operating and disconnecting conditions for the exact connector before use.
