Source connection and support accessories around your conductor, busbar and equipment interface requirements.
Discuss your application
Separate cable-end terminations from in-line joints, then specify the conductor material and connection geometry for each item.
State conductor material and cross-section, stud size, palm dimensions and the intended equipment connection. Request the model-specific installation and tooling requirements.
Select supports against the assembly designer’s electrical and mechanical requirements. Dimensions alone do not establish suitability.
Provide support height, mounting thread and busbar arrangement. The assembly designer must verify clearances, creepage, thermal conditions and short-circuit withstand.
Match splice and distribution components to the number, material and size of the incoming and outgoing conductors.
Include the intended connection arrangement and the project’s electrical requirements. Ratings and conductor compatibility must be checked for the specific model.
A clear specification helps us discuss the right models with you.
These guides support component sourcing, not system design or installation. Suitability, ratings and compliance must be verified for the selected models and the completed assembly.
Share your application, part references and quantities with YOCL.
Start an enquiry

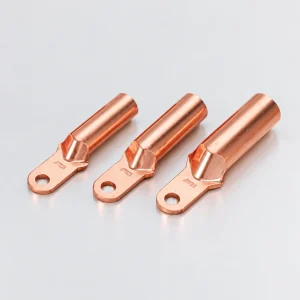

Copper Cable Lugs

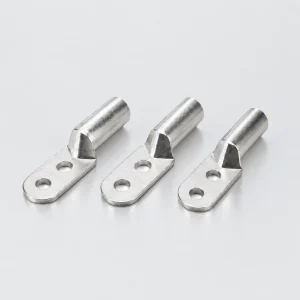

Aluminium Cable Lugs

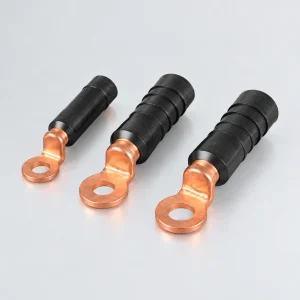

Bimetallic Cable Lugs

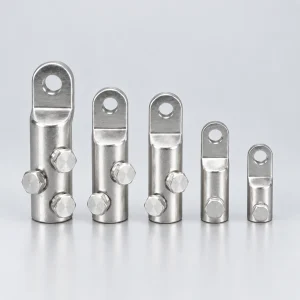

Mechanical Cable Lugs

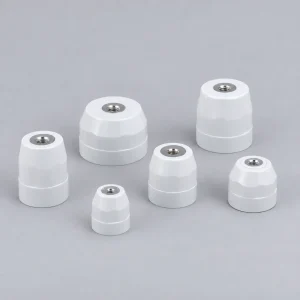

Busbar Supports & Insulators

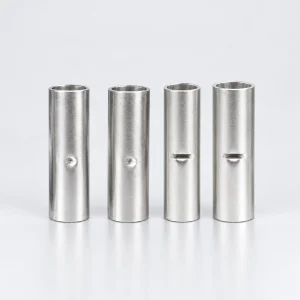

Copper Connecting Sleeves

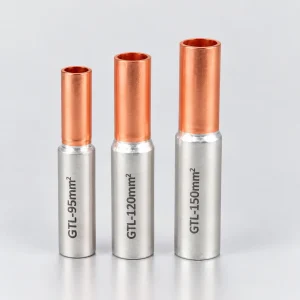

Bimetallic Connecting Sleeves

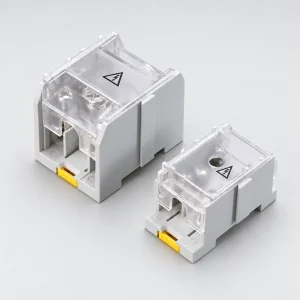

Power Distribution Blocks
