Power Distribution Blocks
Manufacturer

Power distribution blocks, covered brass-bar assemblies and main-to-branch connectors for panel and pole wiring. Compare UKK, K, UTJ5, VC, SV, YC037, FJ6 and branching families by conductor material, input/output arrangement and installation requirements.

Power Distribution Blocks

Compare distribution and branching structures

ConstructionSelection focusSeries reference

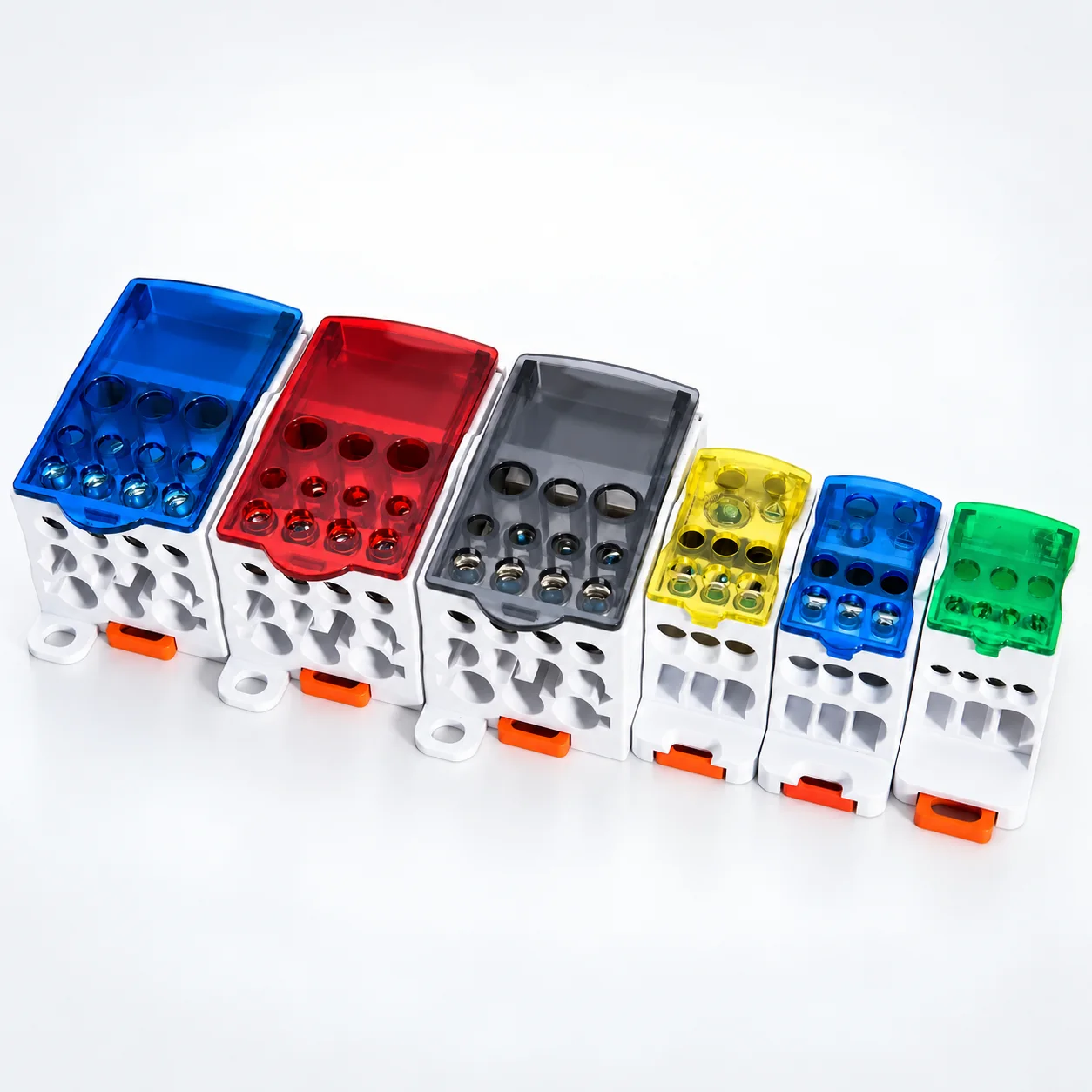

UKK single-pole distributionSix models with listed ratings of 80–500 A at 690 V. Compare 1-in/6-out and 1-in/11-out arrangements and the capacity of each connection position.UKK-80A · 125A · 160A · 250A · 400A · 500A

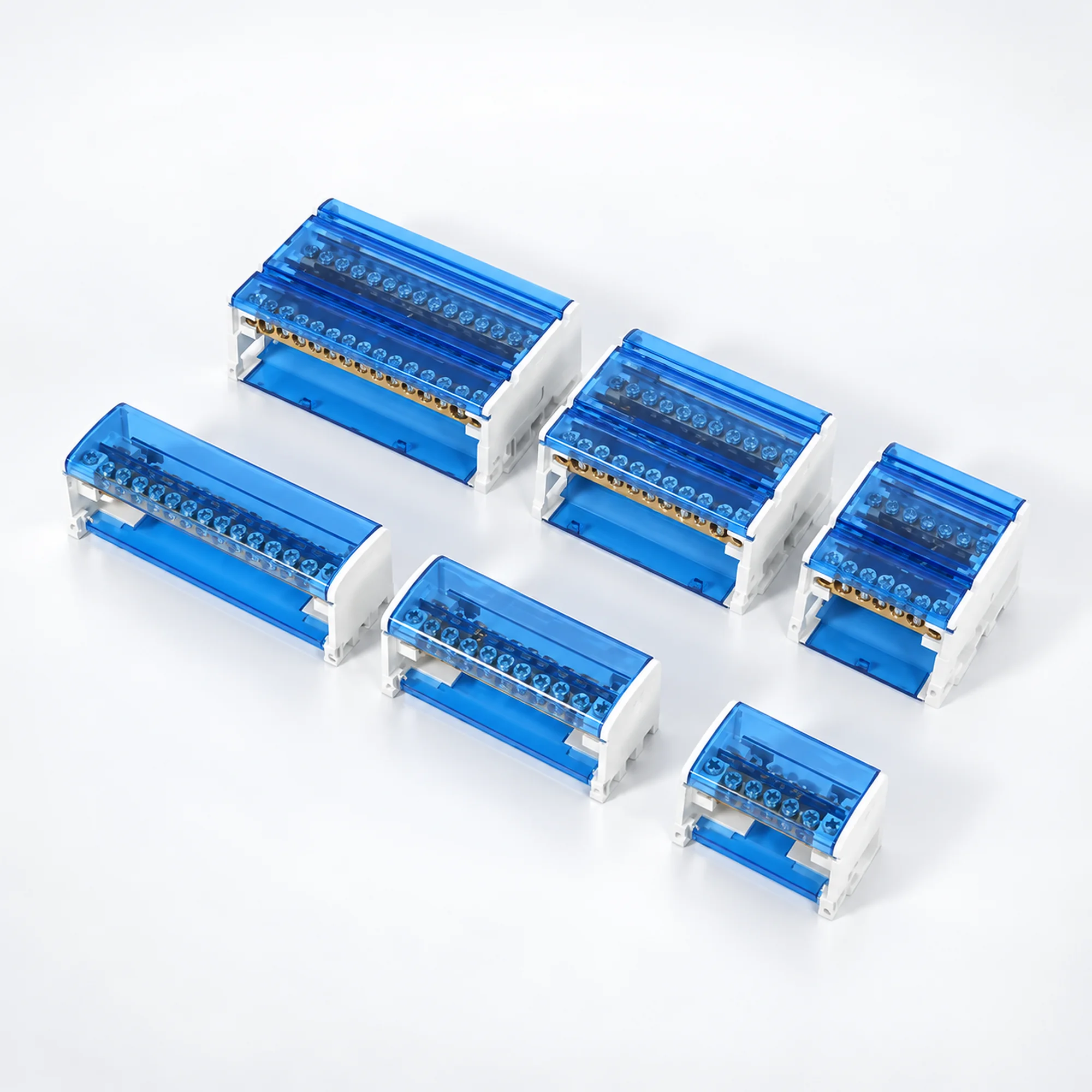

K multi-way assembliesSix 2-way or 4-way models with brass conductive parts and PC/PA insulation. Compare connection-hole arrangements and 46 mm or 86 mm housing widths.K207 · K211 · K215 · K407 · K411 · K415

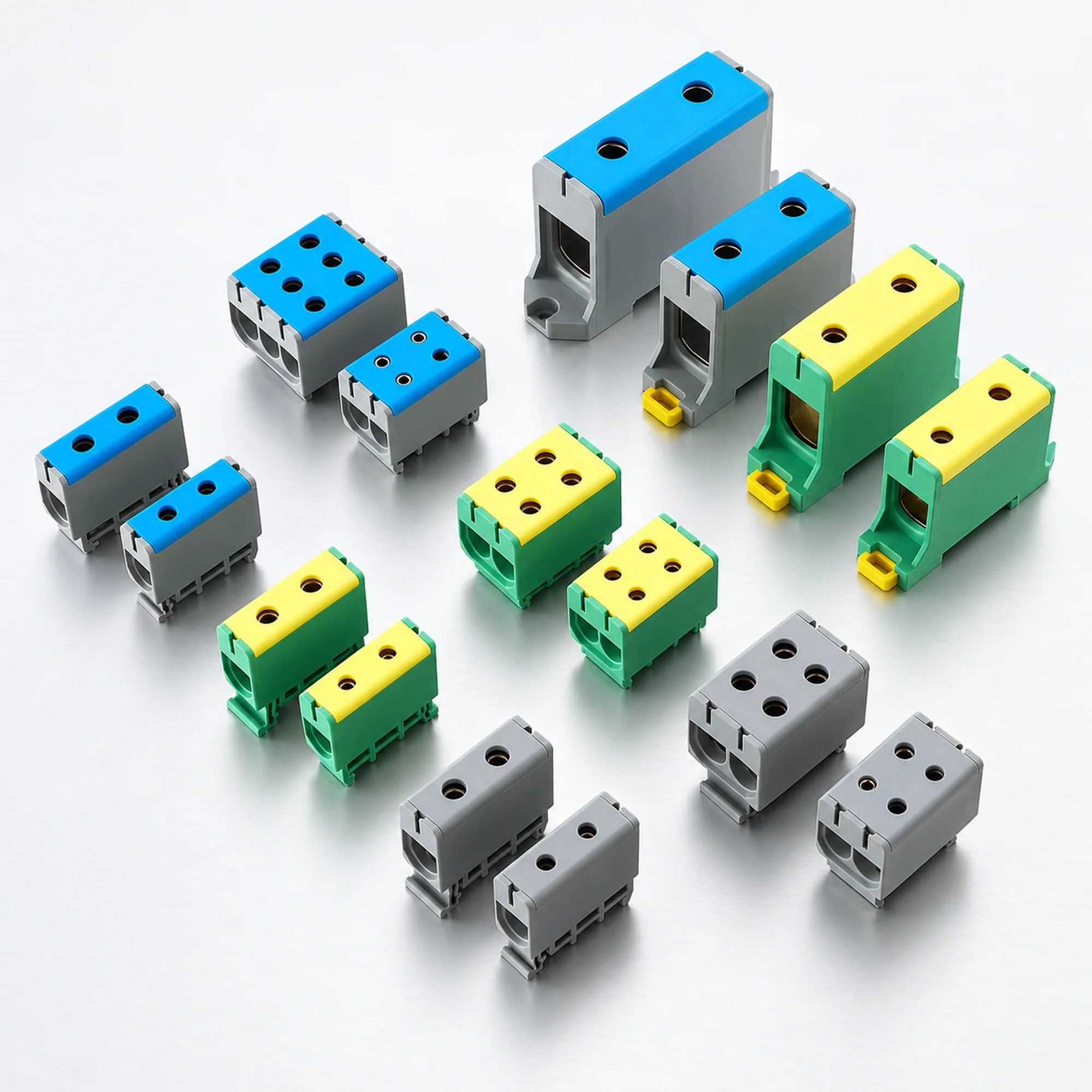

UTJ5 direct & branch connectionsTen models with individual ratings of 63–380 A at 800 V. Select 1-in/1-out, 1-in/3-out or 1-in/5-out arrangements with internal hex socket screw connections.UTJ5-16 through UTJ5-240; multi-output variants available

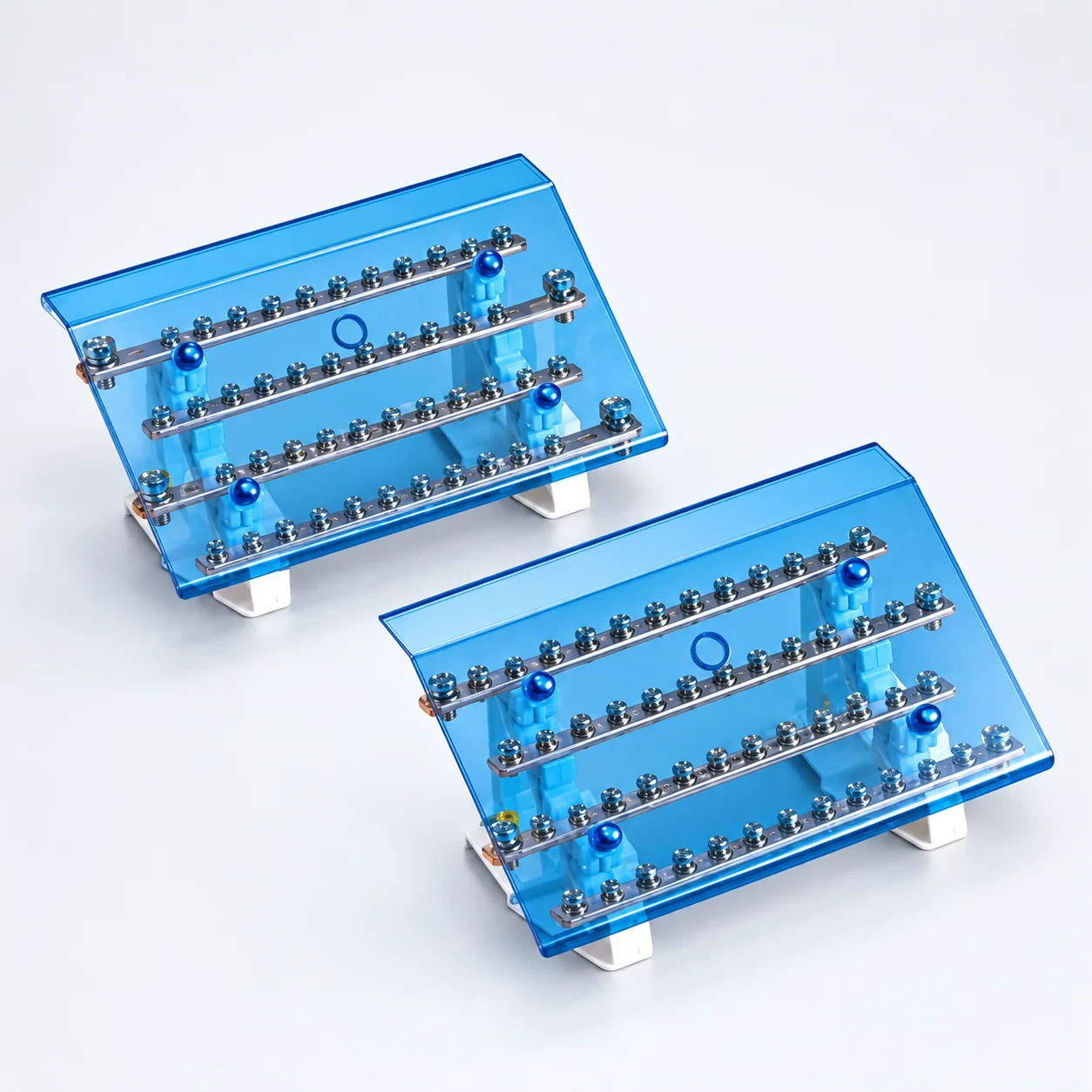

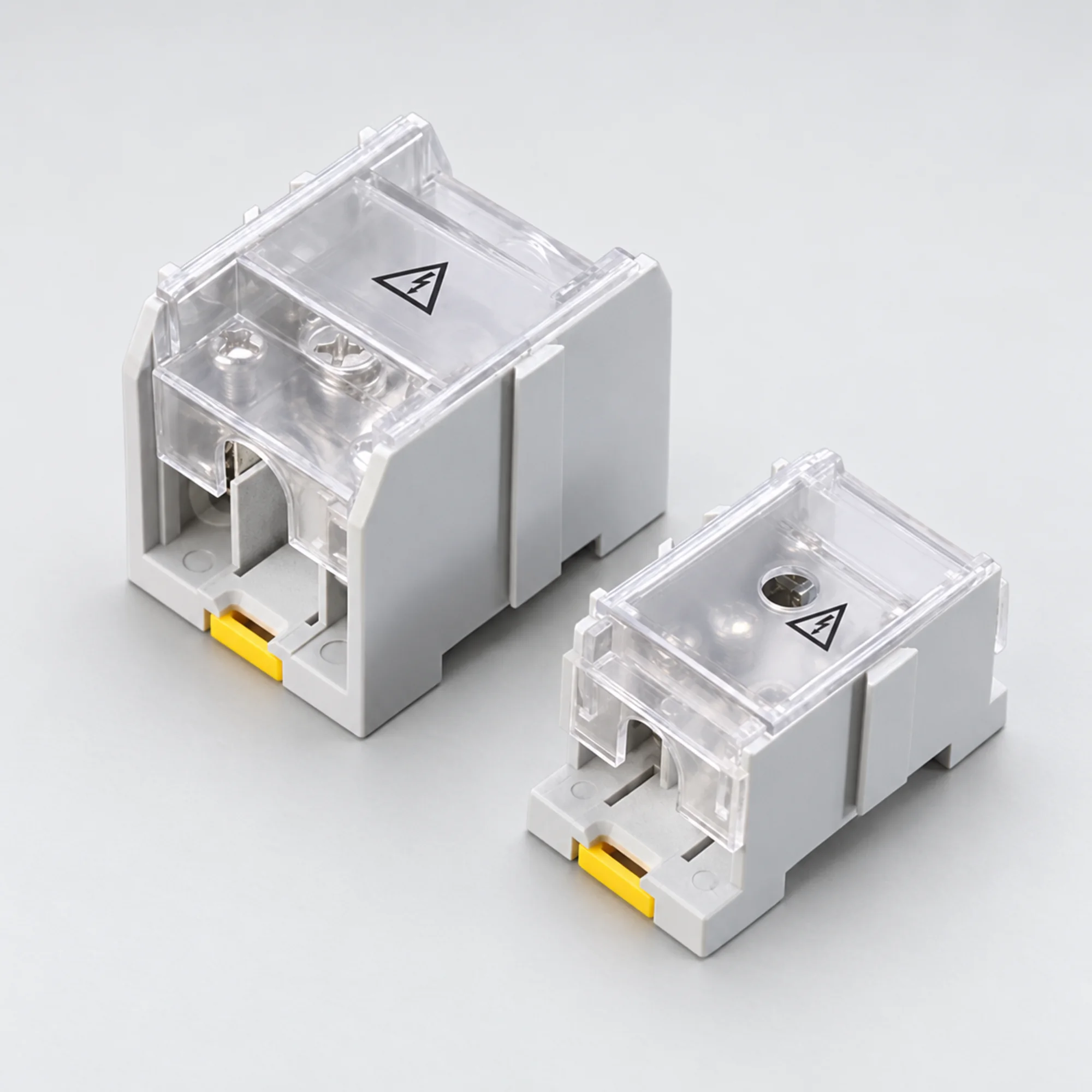

Covered bar & panel assembliesVC modular assemblies, SV unipolar blocks and YC037 brass-bar boxes use different connection layouts. Compare separate bar or pole arrangements and model dimensions.VC · SV · YC037
Pole branching connectors & setsKE10 and YCC02 connectors have separate Al/Cu conductor specifications. SV and CV02 sets include model-specific components; covers and sealing kits are ordered against the exact assembly.KE10 · SV sets · YCC02 · CV02
Main-to-branch distributionFJ6G MCCB boxes and FJ6/JTS2 blocks provide model-specific input/output arrangements. TTB2 and TCC2 list main and branch conductor ranges separately.FJ6G · FJ6/JTS2 · TTB2 · TCC2

Start with your input and output schedule

A matching current rating alone is not enough. Check every conductor position and the installation space.

Incoming & outgoing conductors

List conductor material, cross-section and preparation for every input and output. Confirm the acceptance range of each position on the chosen model.

Connection arrangement

Specify the required number of inputs and outputs. Distinguish UKK branching, K multi-way assemblies and UTJ5 direct or multi-output connections.

Circuit ratings

Provide operating current and voltage. Use the rating of the exact model; the highest rating in a series does not apply to every model.

Panel space & installation

Check rail mounting, block dimensions, conductor access and cover clearance. Confirm tightening and conductor preparation requirements for the selected model.

Send your power distribution blocks
requirements.

Send the distribution or branching model, input/output conductor schedule, mounting details and quantities for a quotation.

Prepare an enquiry

One conductor schedule. A clearer quotation.

Agree the specification and required evidence before placing your order.

Explore manufacturing

Model & quantity

List exact block or branching-set references, quantities and required colours. Separate complete sets from accessory-only items.

Input/output schedule

Send conductor material and cross-section for each position, together with the required branch arrangement.

Circuit & panel drawing

Provide current, voltage, rail layout and available width, height and depth.

Packing & documentation

Specify labels, pack quantities, delivery destination and required model-specific documents.

Power Distribution Blocks for model and packing review

OEM & PACKING

Your specification.
Your packing plan.

Build your power distribution blocks order around the selected models, identification and supply requirements.

Model schedule

List exact block or branching-set references, quantities and required colours. Separate complete sets from accessory-only items.

Labels & identification

Provide part numbers, label artwork and any batch or traceability information required for the order.

Pack quantities

Specify quantities per model, individual packs, outer cartons and delivery destination.

Explore OEM & ODM

Power Distribution Blocks
buying questions.

How do UKK, K and UTJ5 differ?

UKK is a single-pole branching range. K provides 2-way or 4-way assemblies with model-specific connection-hole arrangements. UTJ5 includes direct and multi-output connections using an aluminum conductive body. Compare the exact connection arrangement, conductor capacity, rating and dimensions rather than substituting by series name.

Does every model support the maximum series current?

No. UKK has individual model ratings from 80 A to 500 A, while UTJ5 has individual ratings from 63 A to 380 A. These maxima apply only to their corresponding models. Do not infer a K model current rating from a UKK or UTJ5 rating.

Can connection-hole diameter be used as conductor capacity?

No. K connection-hole diameters are mechanical dimensions, not conductor cross-section ratings. Confirm the permitted conductor sizes for the selected model and connection position.

Are all UTJ5 models branching blocks?

No. Six listed models have one input and one output. UTJ5-35-2, UTJ5-50-2 and UTJ5-95-2 have one input and three outputs; UTJ5-50-3 has one input and five outputs.

Are all products DIN rail mounted?

No. The range includes rail blocks, panel assemblies and pole branching connectors. Check the selected mounting arrangement and dimensions rather than assuming a common rail interface.

Can all blocks connect both aluminium and copper wires?

No range-wide Al/Cu compatibility is claimed. KE10 and YCC02 products list separate conductor specifications. Check conductor material approval for every selected model.

Are protective covers and sealing kits included?

Supply scope depends on the connector or set. Check the listed components and use Terminal Block Accessories for separate PC covers and the EPDM kit. Protection ratings concern the specified assembled system.

What should I include in a quotation request?

Send the distribution or branching model, input/output conductor schedule, mounting details and quantities for a quotation. Include the exact model quantities, delivery destination and required documentation.

Can you review custom labels and packaging?

Send your part numbers, label artwork, pack quantities and shipment requirements. Feasibility, sample requirements, minimum quantities and lead time are confirmed for the requested models.
