350A Double Pole Power Connector
The YOCL Electric 350A Double Pole Power Connector provides a genderless connection for battery, charger and industrial power circuits. Its PC housing and silver-plated copper contacts are specified for two contact positions.
- Rated 350 A and 600 V.
- Double pole, genderless mating design.
- PC housing with UL94V-0 material flammability.
- Housing colors: Gray, Red, Blue.
- Operating temperature: −20°C to +105°C.
Overview
The YOCL Electric 350A Double Pole Power Connector provides a genderless two-contact connection for forklift batteries, charging equipment and industrial power systems. Both contacts are held within a PC housing.
The connector is specified at 350 A and 600 V, with silver-plated copper contacts and a 65Mn internal spring. Gray, red and blue housing options are retained for selecting the required mating configuration.
Features
- 350 A rated current and 600 V rated voltage.
- Two contact positions with a genderless mating design.
- Silver-plated copper contacts with a 65Mn internal spring.
- PC housing with UL94V-0 material flammability.
- Housing options: Gray, Red, Blue.
- Operating temperature from −20°C to +105°C.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | YOCL Electric |
| Product type | Double pole power connector |
| Contact positions | 2 |
| Rated current | 350 A |
| Rated voltage | 600 V |
| Mating design | Genderless |
| Contact material | Silver-plated copper |
| Housing material | PC (polycarbonate) |
| Housing material flammability | UL94V-0 |
| Internal spring material | 65Mn |
| Operating temperature | −20°C to +105°C |
| Housing colors | Gray, Red, Blue |

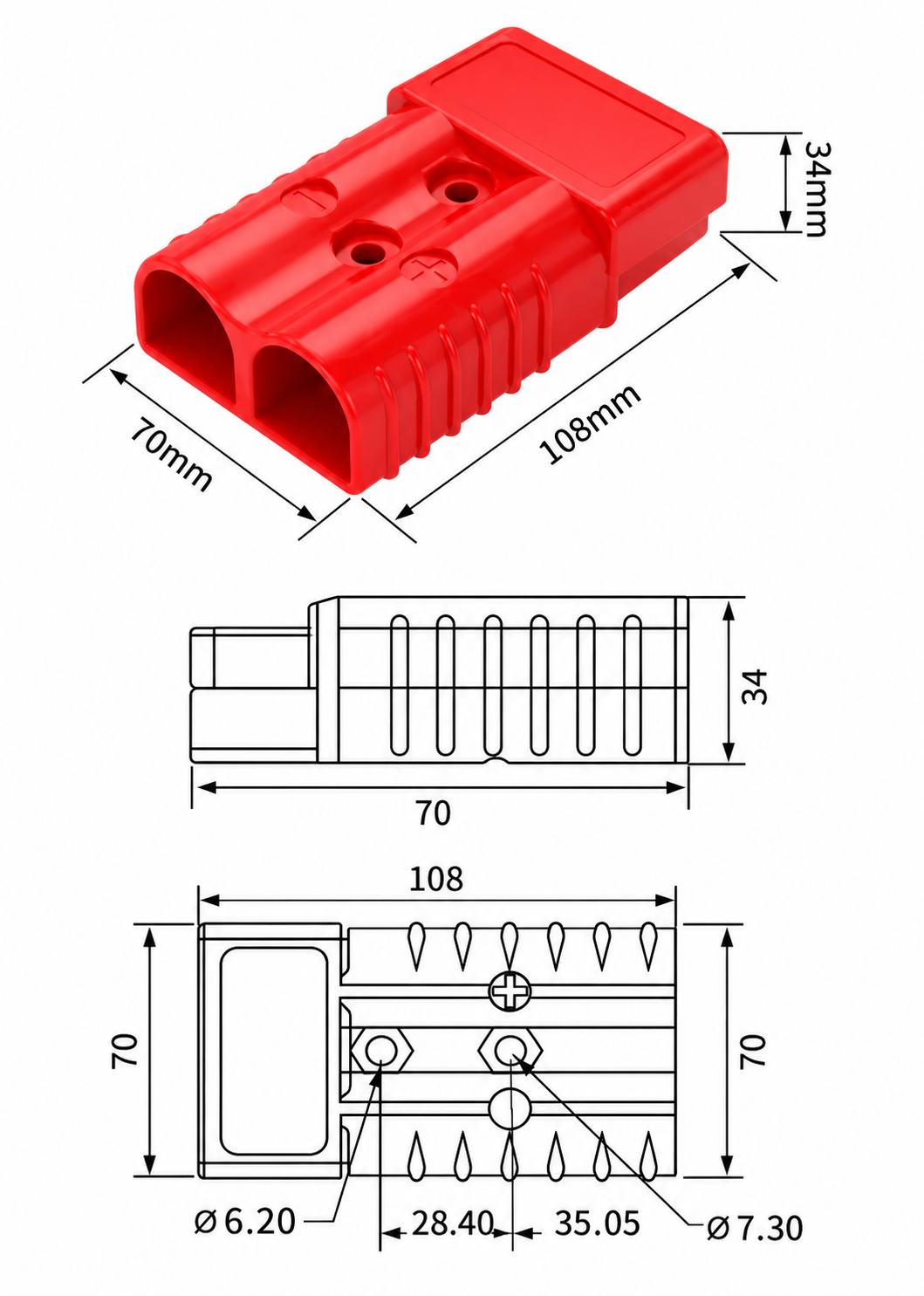

Dimension
Selection and Ordering
Specify 350 A, double pole, the housing color, conductor cross-section and required quantity when enquiring. Match the terminal to the conductor and check the mating housing geometry and color together.
