Conductor cross-section
Specify wire size in mm² or AWG, conductor type and the quantity for each model.
Heat Shrink Terminals & Splices
Manufacturer
Compare heat-shrink ring, fork, pin and blade terminals, detachable contacts and butt connectors. HXT solder-seal splices are listed separately from crimp connections because their assembly method differs.
Heat Shrink Terminals & Splices series
Open full catalogueChoose the connection type
| Construction | Selection focus | Series reference |
|---|---|---|

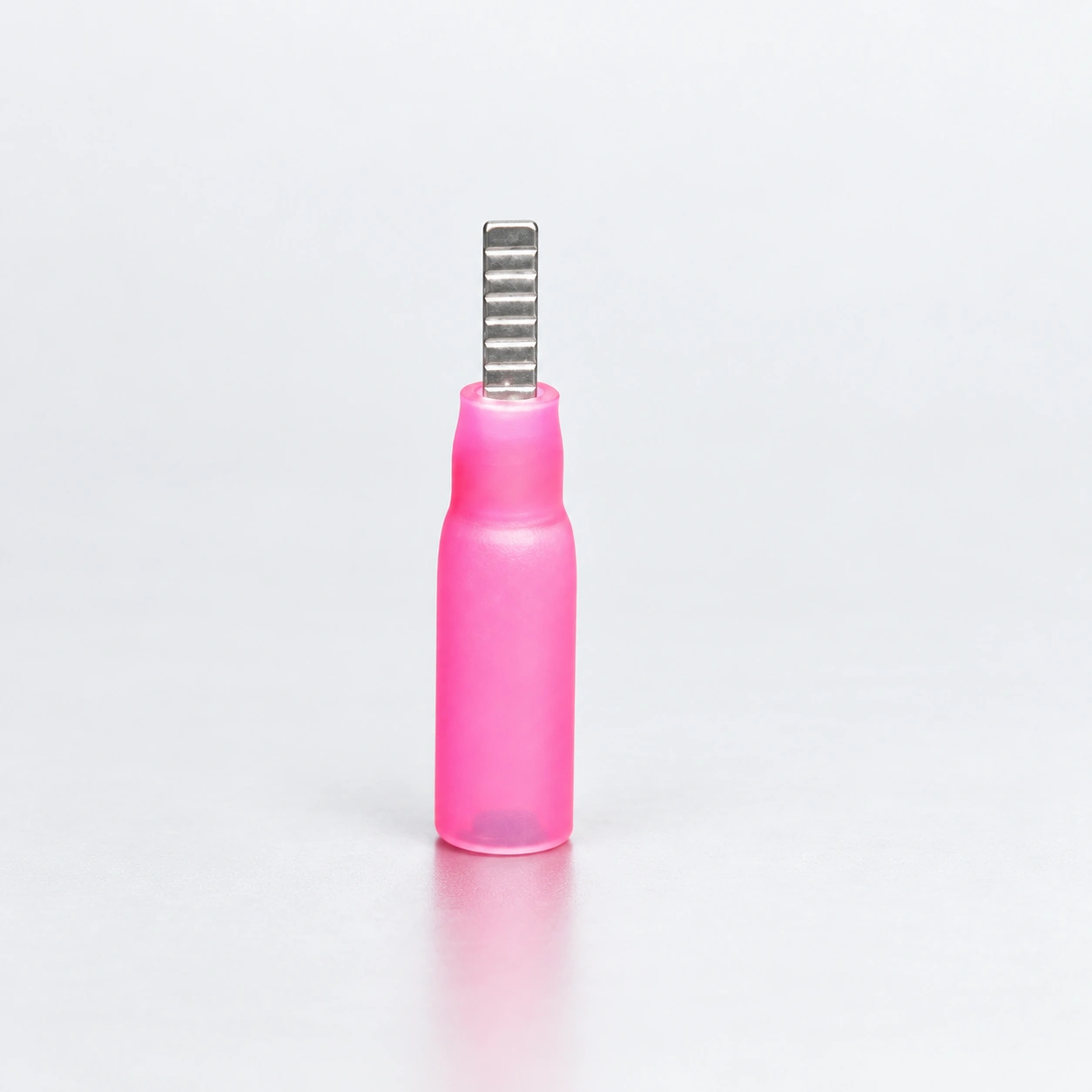

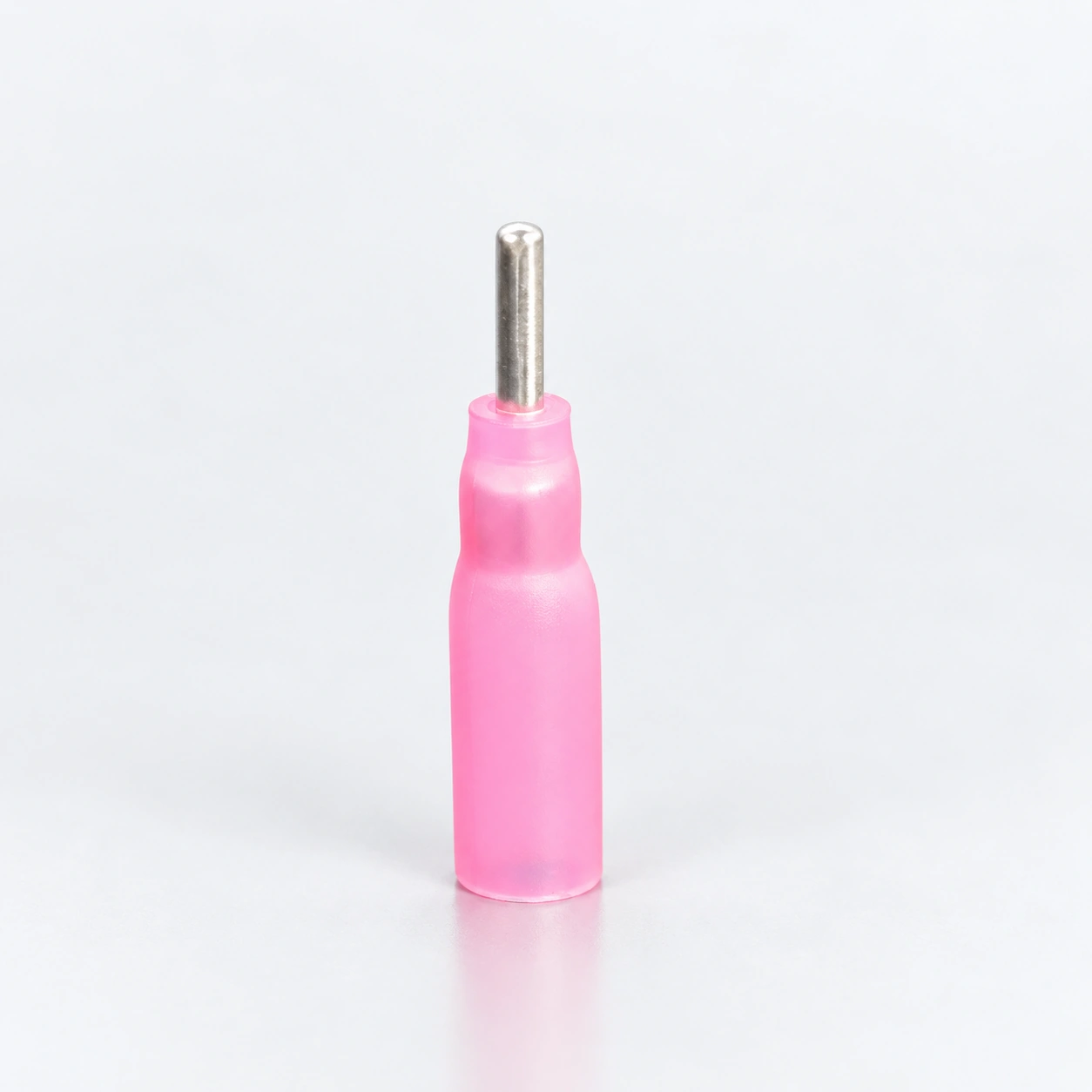

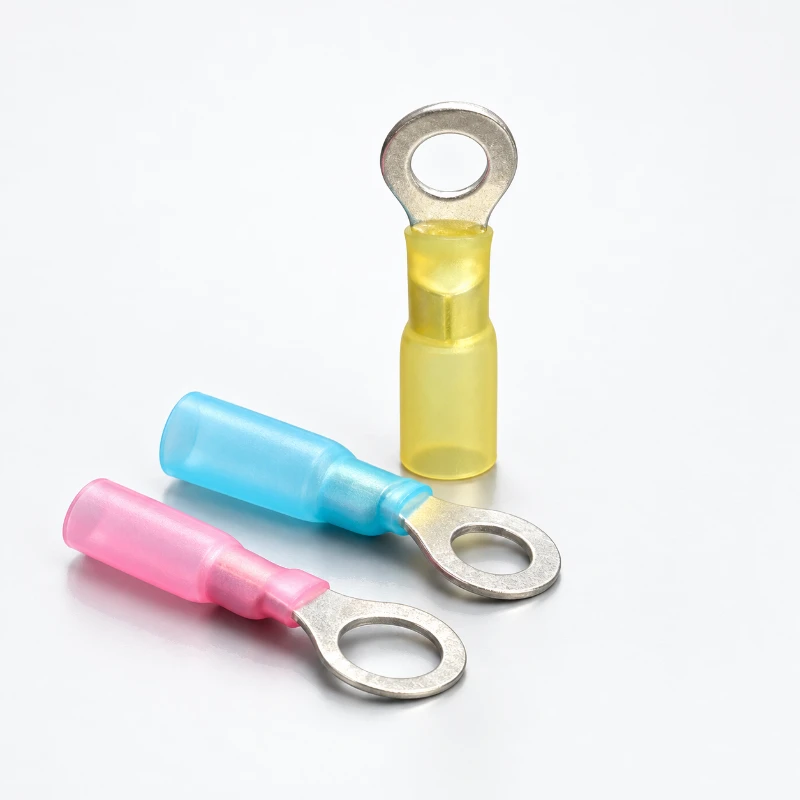

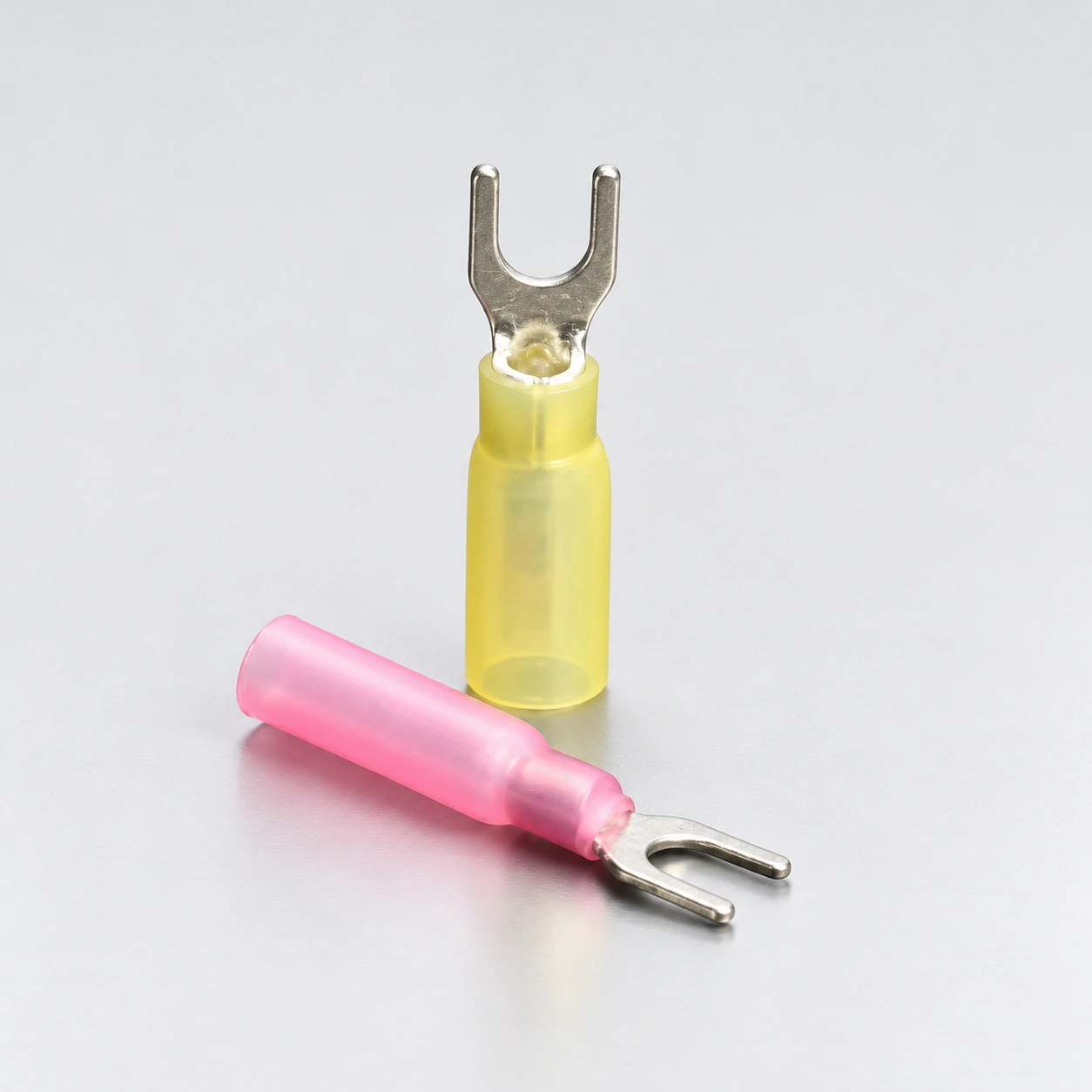

| Heat-shrink crimp terminals | Match wire size and contact dimensions, then follow the selected terminal’s crimp and heating instructions. | RHB · SHB · DTH · DBH |

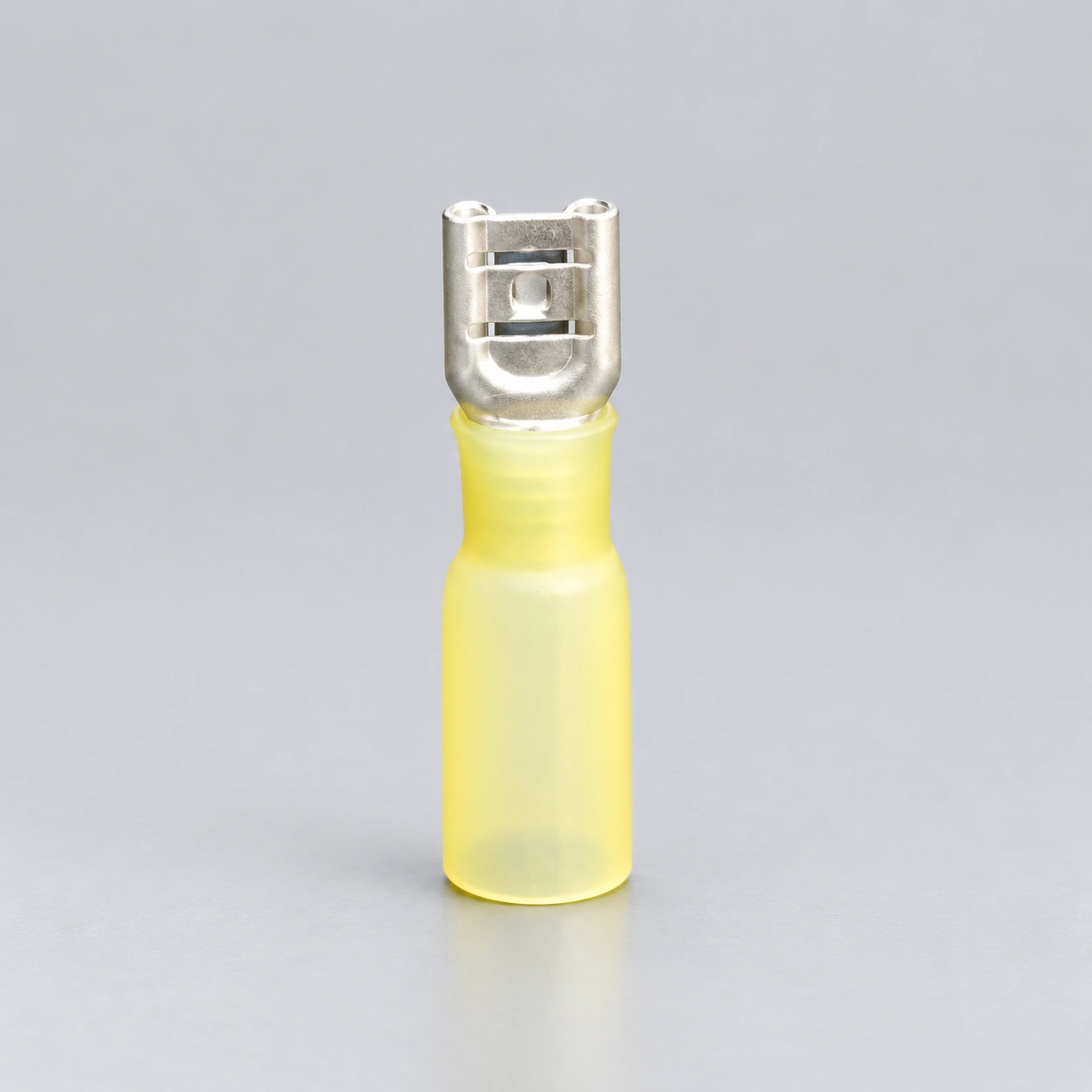

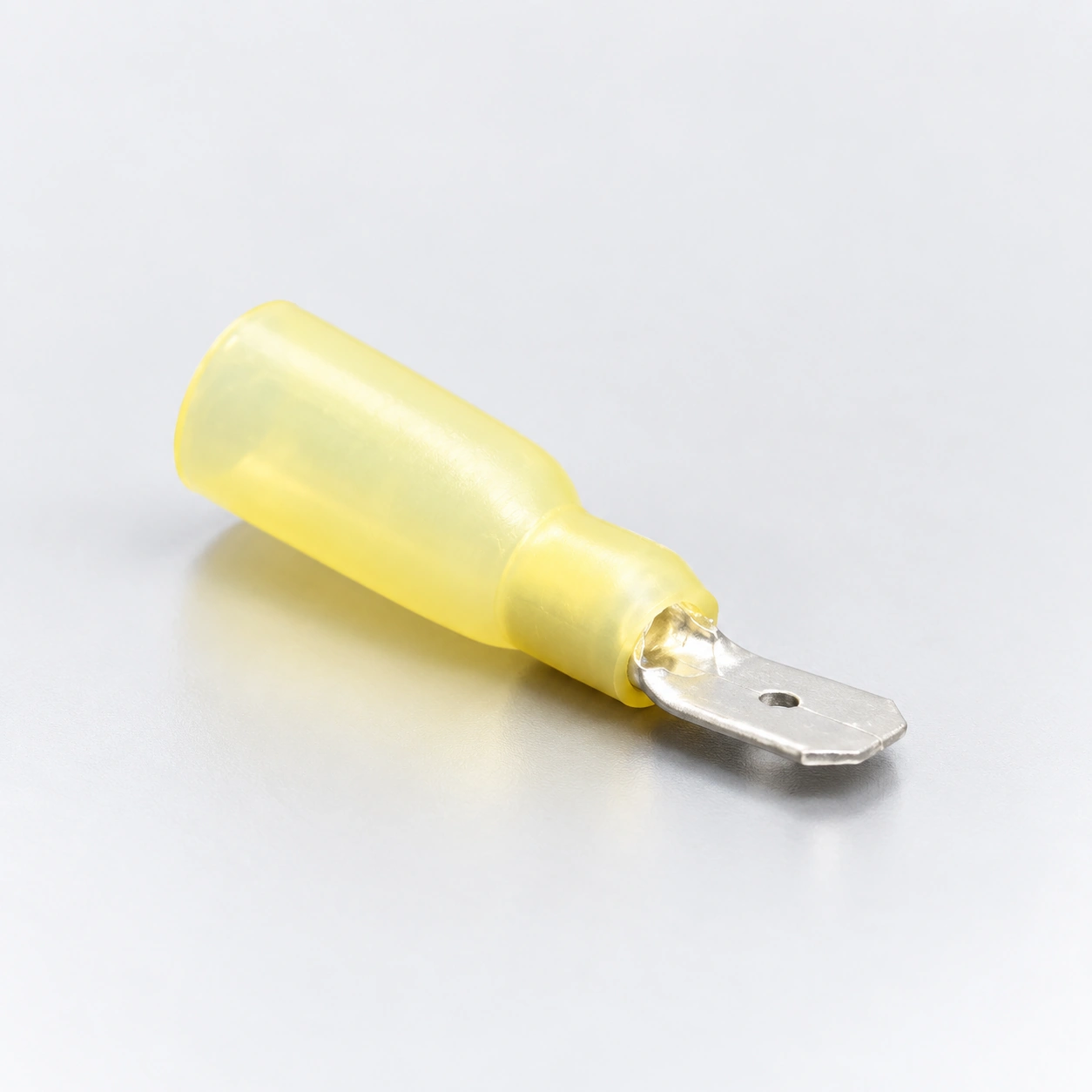

| Male and female contacts | Match mating contact dimensions and verify the insulation arrangement after assembly. | MDH · FDH |

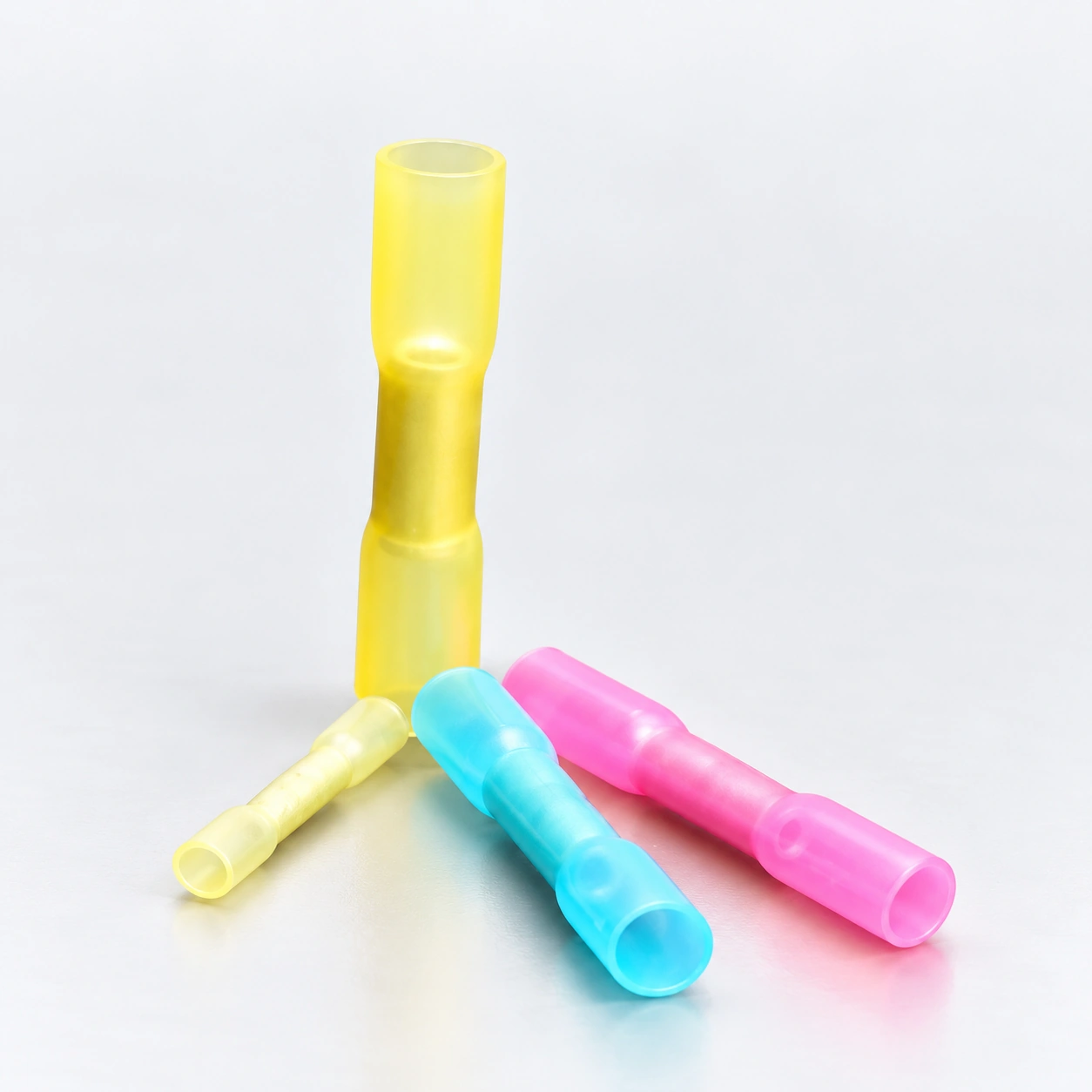

| Crimp butt connectors | Select the conductor range and follow the crimping and sleeve-recovery instructions. | BHT |

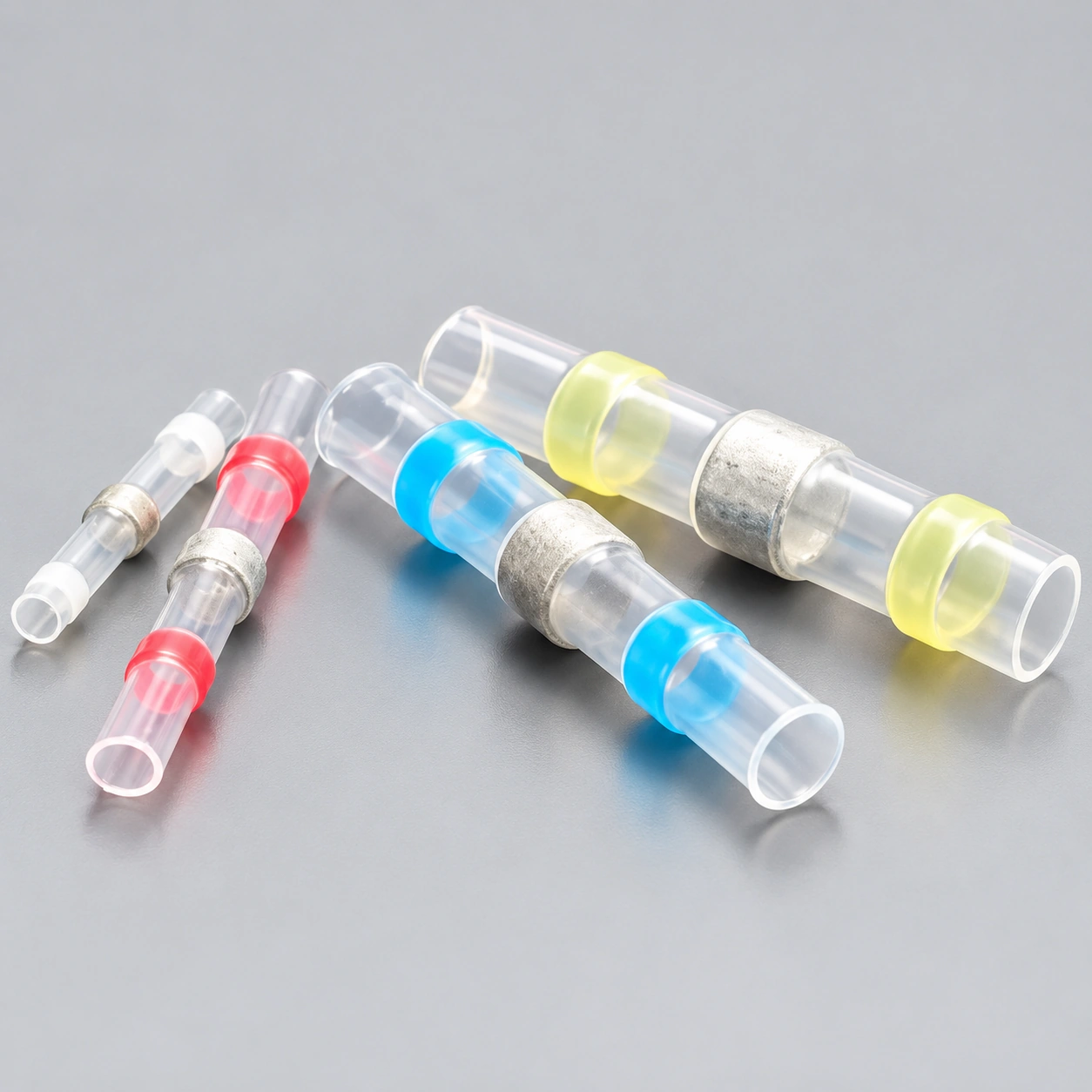

| Solder-seal wire splices | Use the specified heating procedure; do not treat a solder-seal splice as a crimp butt connector. | HXT |
Match the wire and the connection.
Use the selected product’s dimensional table and installation requirements to prepare your order.
Mating dimensions
Confirm stud diameter, tab width, pin size or mating connector dimensions as applicable.
Assembly method
Distinguish crimp-and-shrink products from solder-seal splices. Confirm the required tooling and heating procedure.
Operating conditions
Provide voltage, current, temperature and exposure requirements. Request model-specific ratings and supporting documentation.
Send your heat shrink terminals & splices
requirements.
Send your model list, conductor sizes, connection dimensions and quantities.
Prepare an enquiryPrepare a model-by-model order.
Agree the specification and required evidence before placing your order.
Explore manufacturingModel schedule
List terminal model numbers, wire sizes, mating dimensions and quantities.
Assembly requirements
Describe the wire construction and installation method, including tooling or sample requirements.
Documentation
Identify the drawings, material declarations or test evidence required for the selected models.
OEM & PACKING
Your specification.
Your packing plan.
Build your heat shrink terminals & splices order around the selected models, identification and supply requirements.
Model schedule
List terminal model numbers, wire sizes, mating dimensions and quantities.
Labels & identification
Provide part numbers, label artwork and any batch or traceability information required for the order.
Pack quantities
Specify quantities per model, individual packs, outer cartons and delivery destination.
Heat Shrink Terminals & Splices
buying questions.
Are all products in this family crimp terminals?
No. BHT is a heat-shrink butt connector, while HXT is a solder-seal wire splice. Select and install each series according to its own connection method.
Are the listed series interchangeable?
Not automatically. Match the complete model code, conductor range, contact geometry and assembly requirements before selecting an alternative.
What should I include in a quotation request?
Send your model list, conductor sizes, connection dimensions and quantities. Include the exact model quantities, delivery destination and required documentation.
Can you review custom labels and packaging?
Send your part numbers, label artwork, pack quantities and shipment requirements. Feasibility, sample requirements, minimum quantities and lead time are confirmed for the requested models.
