ACTT Air Conditioner Tube Ties
Tube ties for securing air-conditioner tubing or water pipes to a wall with a screw or nail.
- 2 listed configurations.
- Material: PE.
- Model-specific specifications shown in the table.
Overview
Tube ties for securing air-conditioner tubing or water pipes to a wall with a screw or nail.
Features
- Material: PE.
- 2 listed configurations for selection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | PE |
| Configurations | 2 |

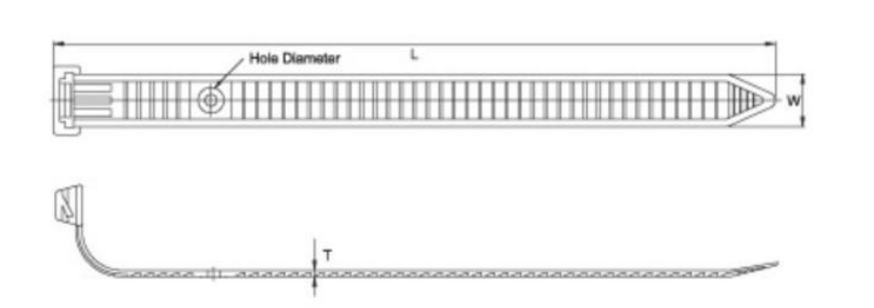

Dimension
Dimensions are in millimetres. Force values are in the units stated in each column and do not establish working-load ratings.
| Model | Length (mm) | Width (mm) | Max. bundle diameter (mm) | Hole diameter (mm) | Thickness (mm) | Min. loop strength (kgf) |
|---|---|---|---|---|---|---|
| ACTT250 | 235 | 20 | 73 | 4.5 | 2.4 | 20 |
| ACTT290 | 275 | 20 | 85 | 4.5 | 2.4 | 20 |
Selection Guide
Check the listed dimensions and configuration against the intended application. Material compatibility and exposure conditions must suit the installation.
Ordering Information
Provide the complete model or specification and quantity when requesting a quotation.
