DIN AUS Copper Cable Lugs
YOCL ELECTRIC DIN AUS copper cable lugs connect copper conductors to electrical equipment and instrument terminals. The series covers 16 models, AUS-6 through AUS-630, with model-specific barrel, palm and mounting-hole dimensions.
- Compare the mounting-hole Φ range and D, d, L and B measurements for each model.
- Select the lug geometry to fit the conductor, terminal and available space.
- Specify the exact AUS model and mounting-hole size when requesting a quotation.

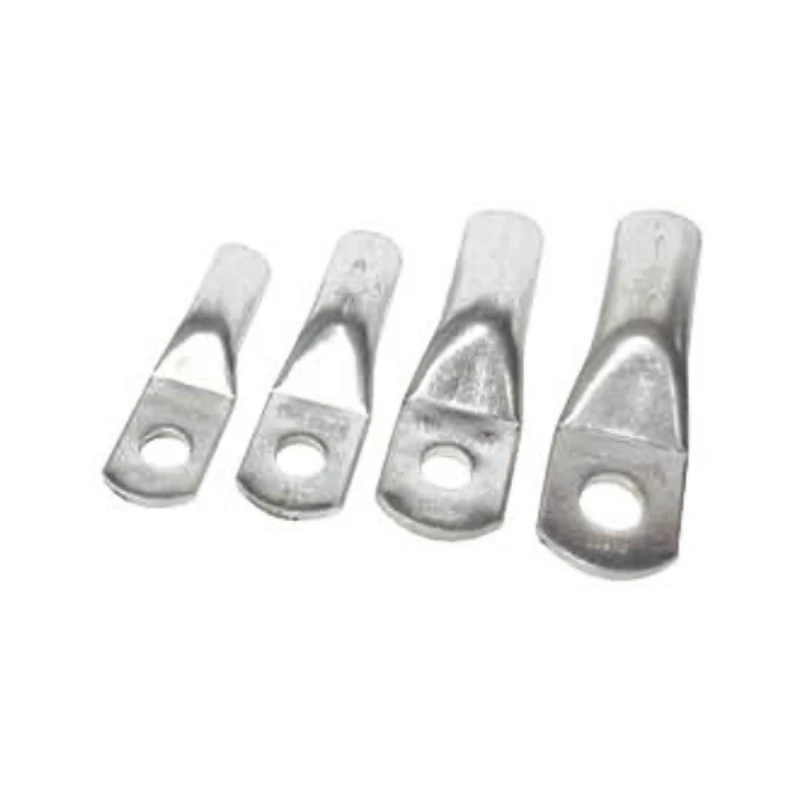

Overview
YOCL ELECTRIC DIN AUS copper cable lugs connect copper conductors to terminals on electrical equipment and instruments. Each lug has a tubular conductor barrel and a flat palm with a mounting hole. The series includes 16 AUS models, from AUS-6 to AUS-630, with different barrel and palm dimensions.
Features
- Copper construction: for copper-conductor terminations.
- Barrel and mounting palm: provides a conductor entry and a flat connection surface for the equipment terminal.
- Model-specific hole options: the listed Φ range shows the available mounting-hole sizes for each model.
- Dimension-led selection: D, d, L and B dimensions are provided for all 16 AUS models.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | DIN AUS |
| Model prefix | AUS |
| Material | Copper |
| Intended connection | Copper conductor to electrical equipment or instrument terminal |
| Listed models | 16 |
Select the model by conductor fit, mounting-hole size and installation space.
Dimension

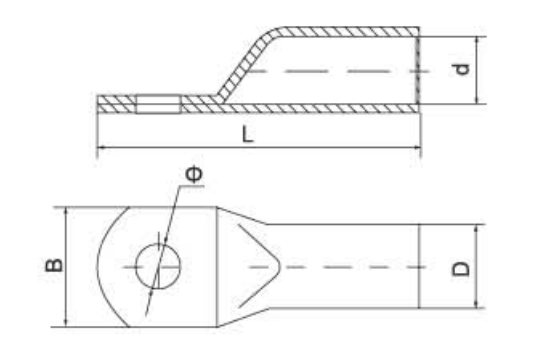

All dimensions are in millimeters. Φ denotes the mounting-hole diameter range; D, d, L and B follow the drawing labels. The range represents available hole sizes for the model, not an adjustable hole.
| Model | Mounting hole Φ range (mm) | D (mm) | d (mm) | L (mm) | B (mm) |
|---|---|---|---|---|---|
| AUS-6 | 6.4–8.4 | 6.5 | 5.5 | 37.5 | 10 |
| AUS-10 | 6.4–8.4 | 6.5 | 5.2 | 38 | 12 |
| AUS-16 | 6.4–8.4 | 8 | 6.2 | 48 | 14 |
| AUS-25 | 8.4–10.5 | 10.5 | 8 | 50.5 | 17 |
| AUS-35 | 8.4–10.5 | 12.5 | 9.6 | 52.5 | 18 |
| AUS-50 | 8.4–14.5 | 14.5 | 11.1 | 65 | 21 |
| AUS-70 | 8.4–14.5 | 16.5 | 12.8 | 71 | 24 |
| AUS-95 | 8.4–14.5 | 19 | 14.9 | 78 | 27 |
| AUS-120 | 10.5–16.5 | 20.5 | 16.2 | 85 | 30 |
| AUS-150 | 10.5–16.5 | 23.5 | 18.6 | 92 | 33 |
| AUS-185 | 10.5–18.5 | 26 | 20.7 | 98.5 | 36 |
| AUS-240 | 10.5–18.5 | 28 | 22.5 | 111 | 41 |
| AUS-300 | 10.5–18.5 | 30 | 23.8 | 119 | 46 |
| AUS-400 | 10.5–20.5 | 34 | 27.4 | 142 | 49 |
| AUS-500 | 12.5–22.5 | 38 | 31.2 | 150 | 58 |
| AUS-630 | 12.5–22.5 | 45 | 36.2 | 160 | 66 |
Selection Guide
Choose the AUS model whose barrel dimensions suit the copper conductor, then select the mounting-hole diameter required by the equipment terminal. Check overall length L and palm width B against the space available in the assembly.
Applications
For copper-conductor terminations on electrical equipment, instruments, distribution assemblies and control cabinets where the selected lug geometry fits the connection.
Ordering Information
Provide the AUS model, required mounting-hole diameter and quantity when requesting a quotation.
