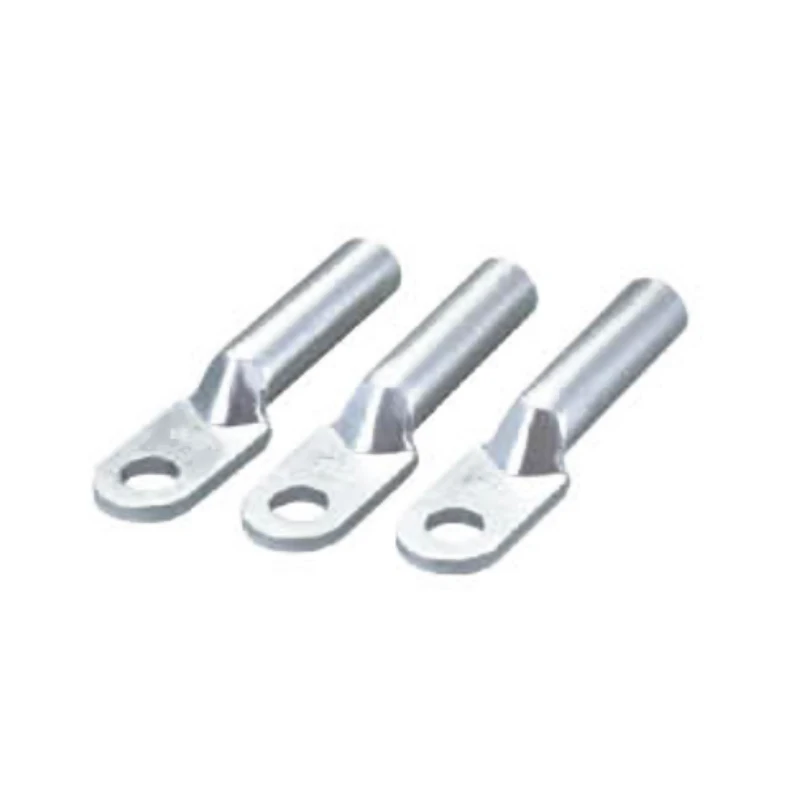

DL Aluminium Cable Lugs
YOCL ELECTRIC DL aluminium cable lugs connect aluminium conductors to terminals on electrical equipment. The series covers 15 models, DL-10 through DL-630, with model-specific mounting-hole, barrel and palm dimensions.
- Aluminium construction for aluminium-conductor terminations.
- Compare Φ, D, d, L, L1 and B for each model.
- Specify the DL model and quantity when requesting a quotation.
Overview
YOCL ELECTRIC DL aluminium cable lugs connect aluminium conductors to terminals on electrical equipment. Each lug has a tubular conductor barrel and a flat mounting palm. The series covers 15 models, from DL-10 to DL-630, with different mounting-hole, barrel and palm dimensions.
Features
- Aluminium construction: for aluminium-conductor terminations.
- Tubular barrel and flat palm: provide a conductor entry and mounting surface for an equipment terminal.
- Specified mounting-hole diameter: each DL model has a listed Φ dimension.
- Complete dimensional comparison: D, d, L, L1 and B are provided for all 15 models.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | DL |
| Model prefix | DL |
| Material | Aluminium |
| Intended connection | Aluminium conductor to electrical equipment terminal |
| Listed models | 15 |

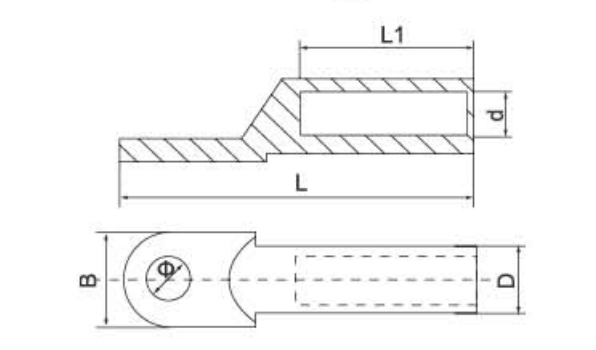

Dimension
All dimensions are in millimeters. Φ is the mounting-hole diameter; D, d, L, L1 and B follow the drawing labels.
| Model | Mounting hole Φ (mm) | D (mm) | d (mm) | L (mm) | L1 (mm) | B (mm) |
|---|---|---|---|---|---|---|
| DL-10 | 8.5 | 9 | 6 | 67 | 31 | 16 |
| DL-16 | 8.5 | 10 | 7 | 68 | 32 | 16 |
| DL-25 | 8.5 | 12 | 8 | 78 | 38 | 18 |
| DL-35 | 10.5 | 14 | 9 | 85 | 44 | 20 |
| DL-50 | 10.5 | 16 | 10 | 91 | 47 | 23 |
| DL-70 | 12.5 | 18 | 12 | 100 | 52 | 26 |
| DL-95 | 12.5 | 21 | 14 | 109 | 57 | 28 |
| DL-120 | 14.5 | 23 | 16 | 115 | 59 | 30 |
| DL-150 | 14.5 | 25 | 17 | 125 | 62 | 34 |
| DL-185 | 16.5 | 27 | 20 | 132 | 69 | 37 |
| DL-240 | 16.5 | 30 | 22 | 140 | 73 | 40 |
| DL-300 | 21 | 34 | 24 | 156 | 79 | 45 |
| DL-400 | 21 | 38 | 26 | 170 | 88 | 49 |
| DL-500 | 21 | 42 | 29 | 190 | 97 | 60 |
| DL-630 | 21 | 54 | 34 | 225 | 120 | 78 |
Selection Guide
Select the DL model whose barrel dimensions suit the aluminium conductor. Check Φ against the terminal stud and compare L, L1 and B with the available installation space.
Applications
For aluminium-conductor connections on electrical equipment in power distribution assemblies where the selected lug geometry fits the terminal.
Ordering Information
Provide the DL model and quantity when requesting a quotation.
