DT-2 Two-Hole Copper Cable Lugs

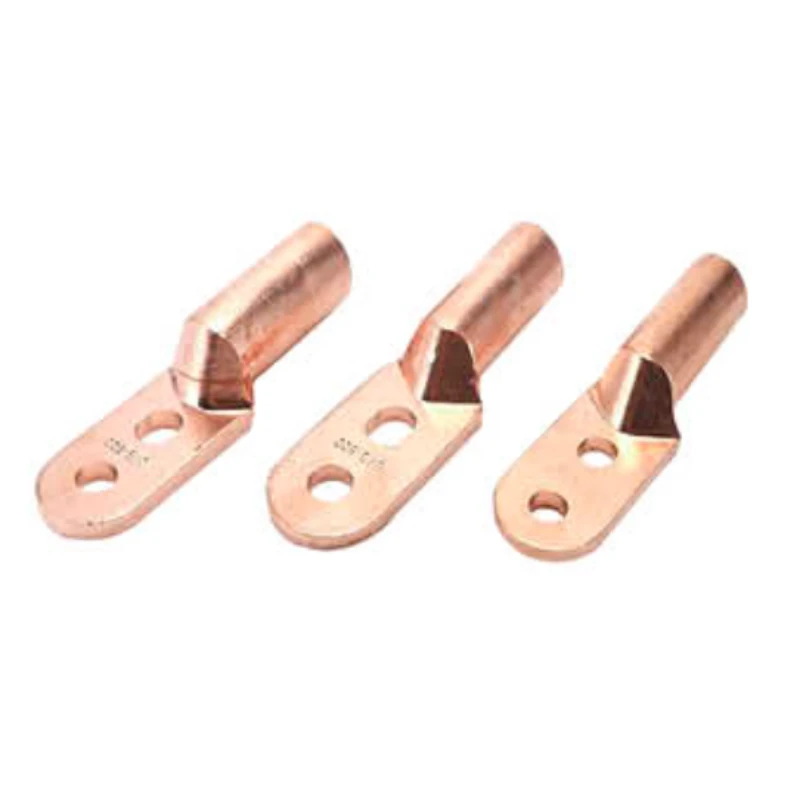

YOCL ELECTRIC DT-2 two-hole copper cable lugs connect a copper conductor to an equipment terminal with a two-hole mounting pattern. The series includes 13 models, DT-2-25 through DT-2-630, with model-specific barrel, palm and hole-spacing dimensions.
- One conductor barrel and two mounting holes on the palm.
- Compare Φ, D, d, L, L1, L2, L3 and B for each model.
- Specify the exact DT-2 model and quantity when requesting a quotation.
Overview
YOCL ELECTRIC DT-2 two-hole copper cable lugs connect copper conductors to terminals on electrical equipment. Each lug has one tubular conductor barrel and a flat palm with two mounting holes. The series covers 13 models, from DT-2-25 to DT-2-630, with different barrel dimensions, hole diameters and hole-center spacing.
Features
- Copper construction: for copper-conductor terminations.
- Two-hole mounting palm: provides two fixing points on a compatible equipment terminal.
- Single conductor barrel: the drawing shows one barrel for the copper conductor.
- Model-specific dimensions: Φ, D, d, L, L1, L2, L3 and B are listed for all 13 models.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | DT-2 |
| Material | Copper |
| Conductor barrels | 1 |
| Mounting holes | 2 |
| Intended connection | Copper conductor to electrical equipment terminal |
| Listed models | 13 |
Dimension

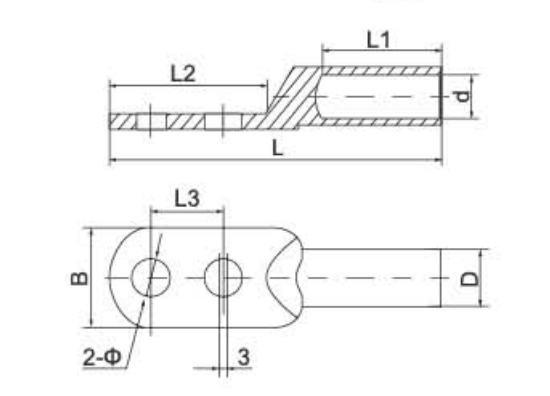

All dimensions are in millimeters. Φ denotes the diameter of each mounting hole, and L3 denotes the center-to-center spacing of the two holes. D, d, L, L1, L2 and B follow the drawing labels.
| Model | Hole Φ (mm) | D (mm) | d (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 spacing (mm) | B (mm) |
|---|---|---|---|---|---|---|---|---|
| DT-2-25 | 8.5 | 11 | 7.8 | 86 | 32 | 40 | 20 | 18 |
| DT-2-35 | 10.5 | 12 | 8.7 | 98 | 34 | 47 | 20 | 20 |
| DT-2-50 | 10.5 | 14 | 9.7 | 105 | 40 | 50 | 20 | 23 |
| DT-2-70 | 12.5 | 16 | 12 | 118 | 45 | 55 | 25 | 26 |
| DT-2-95 | 12.5 | 18 | 13.5 | 125 | 48 | 57 | 25 | 28 |
| DT-2-120 | 14.5 | 20 | 15.5 | 135 | 50 | 65 | 30 | 30 |
| DT-2-150 | 14.5 | 22 | 16.5 | 142 | 53 | 68 | 30 | 34 |
| DT-2-185 | 14.5 | 25 | 18.5 | 145 | 55 | 71 | 35 | 37 |
| DT-2-240 | 16.5 | 27 | 21 | 160 | 59 | 74 | 40 | 40 |
| DT-2-300 | 16.5 | 30 | 23 | 172 | 62 | 81 | 40 | 45 |
| DT-2-400 | 16.5 | 34 | 26 | 181 | 68 | 82 | 40 | 50 |
| DT-2-500 | 21 | 38 | 29.5 | 203 | 73 | 96 | 45 | 60 |
| DT-2-630 | 21 | 45 | 35 | 220 | 84 | 107 | 45 | 60 |
Selection Guide
Choose the DT-2 model whose barrel dimensions suit the copper conductor. Match both the hole diameter Φ and hole-center spacing L3 to the two-hole terminal pattern. Check L, L1, L2 and B against the available installation space.
Applications
For copper-conductor connections on compatible two-hole terminals in power distribution equipment and electrical assemblies.
Ordering Information
Provide the DT-2 model and quantity when requesting a quotation.
