DT Copper Cable Lugs

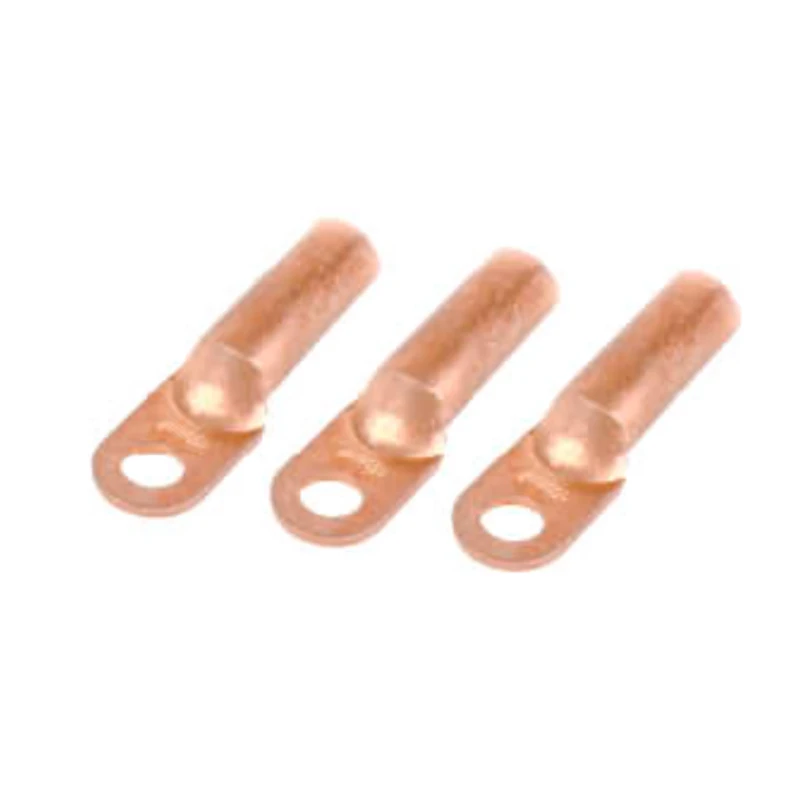

YOCL ELECTRIC DT copper cable lugs connect copper conductors to terminals on electrical equipment. The series covers 15 models, DT-10 through DT-630, with model-specific mounting-hole and barrel dimensions.
- Compare each model's Φ, D, d, L, L1 and B measurements.
- Select a lug that fits the copper conductor, terminal stud and available space.
- Specify the exact DT model and quantity when requesting a quotation.
Overview
YOCL ELECTRIC DT copper cable lugs connect copper conductors to terminals on electrical equipment. Each lug has a tubular conductor barrel and a flat mounting palm. The series includes 15 models, from DT-10 to DT-630, with model-specific mounting-hole and body dimensions.
Features
- Copper construction: for copper-conductor terminations.
- Tubular barrel and flat palm: provide a conductor entry and a mounting surface for an equipment terminal.
- Specified hole diameter: each DT model has a listed Φ mounting-hole dimension.
- Complete dimensional comparison: D, d, L, L1 and B are listed for all 15 models.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | DT |
| Model prefix | DT |
| Material | Copper |
| Intended connection | Copper conductor to electrical equipment terminal |
| Listed models | 15 |
Dimension

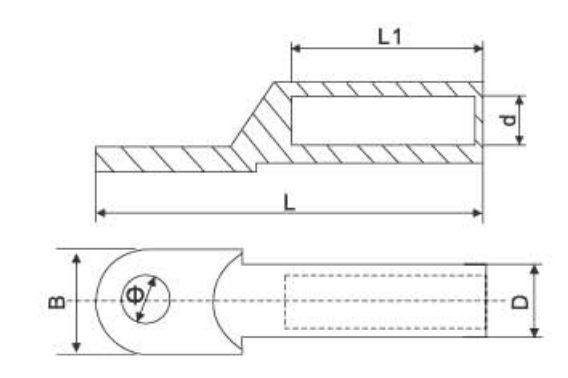

All dimensions are in millimeters. Φ is the mounting-hole diameter; D, d, L, L1 and B follow the drawing labels. Unlike a hole-size range, the table gives one Φ value for each listed DT model.
| Model | Mounting hole Φ (mm) | D (mm) | d (mm) | L (mm) | L1 (mm) | B (mm) |
|---|---|---|---|---|---|---|
| DT-10 | 8.5 | 9 | 6 | 62 | 33 | 16 |
| DT-16 | 8.5 | 10 | 6.5 | 68 | 36 | 16 |
| DT-25 | 8.5 | 11 | 7.5 | 72 | 38 | 18 |
| DT-35 | 10.5 | 12 | 8.5 | 76 | 41 | 20 |
| DT-50 | 10.5 | 14 | 10 | 84 | 46 | 23 |
| DT-70 | 12.5 | 16 | 11.5 | 95 | 49 | 26 |
| DT-95 | 12.5 | 18 | 13.5 | 102 | 53 | 28 |
| DT-120 | 14.5 | 20 | 15 | 109 | 56 | 30 |
| DT-150 | 14.5 | 22 | 17 | 117 | 60 | 34 |
| DT-185 | 16.5 | 24 | 19 | 124 | 62 | 37 |
| DT-240 | 16.5 | 27 | 21 | 131 | 67 | 40 |
| DT-300 | 21 | 30 | 23.5 | 141 | 70 | 45 |
| DT-400 | 21 | 34 | 26.5 | 155 | 75 | 49 |
| DT-500 | 21 | 38 | 29 | 180 | 77 | 55 |
| DT-630 | 21 | 45 | 35 | 210 | 84 | 59 |
Selection Guide
Select the DT model whose barrel dimensions suit the copper conductor. Check the specified Φ diameter against the terminal stud, then compare L, L1 and B with the available installation space. DT and DT(G) are separate series with different dimensions, so include the series name when specifying a product.
Applications
For copper-conductor connections on electrical equipment in power distribution systems and industrial assemblies where the selected lug geometry fits the terminal.
Ordering Information
Provide the DT model and quantity when requesting a quotation.
