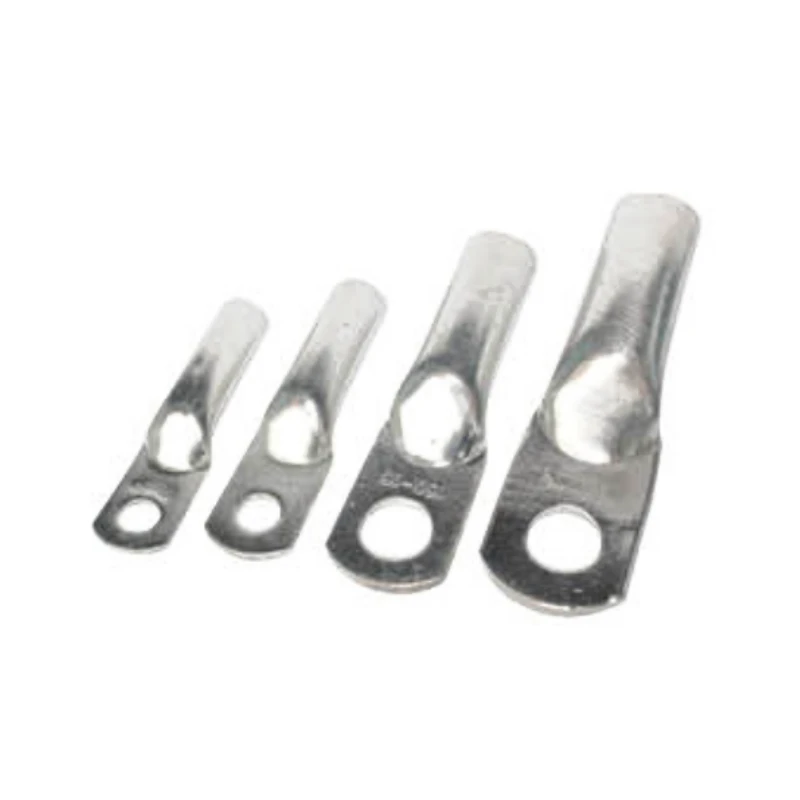

DT(G) Copper Cable Lugs
YOCL ELECTRIC DT(G) copper cable lugs connect copper conductors to electrical equipment terminals. The series includes 16 DTG models, from DTG-6 to DTG-630, with model-specific mounting-hole, barrel and palm dimensions.
- Compare the Φ mounting-hole range and D, d, L and B measurements for each model.
- Choose a lug that fits the conductor, equipment terminal and available installation space.
- Specify the DTG model and required mounting-hole diameter when requesting a quotation.
Overview
YOCL ELECTRIC DT(G) copper cable lugs connect copper conductors to terminals on electrical equipment. Each lug has a tubular conductor barrel and a flat mounting palm. The series includes 16 DTG models, from DTG-6 to DTG-630, with different barrel, palm and mounting-hole dimensions.
Features
- Copper construction: for copper-conductor terminations.
- Tubular barrel and mounting palm: provide a conductor entry and a flat connection surface for an equipment terminal.
- Model-specific hole options: the Φ range identifies available mounting-hole diameters for each model.
- Dimensional selection: D, d, L and B values are listed for all 16 DTG models.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | DT(G) |
| Model prefix | DTG |
| Material | Copper |
| Intended connection | Copper conductor to electrical equipment terminal |
| Listed models | 16 |
Dimension

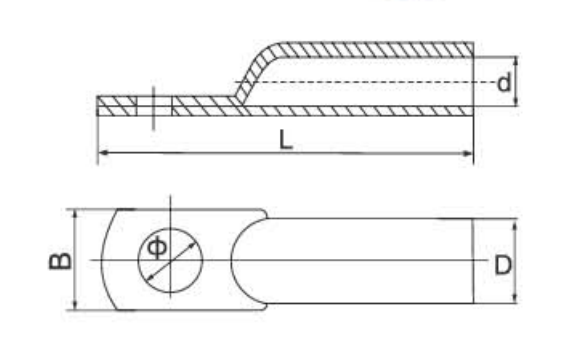

All dimensions are in millimeters. Φ is the range of available mounting-hole diameters; D, d, L and B follow the drawing labels. The Φ range indicates hole-size options for each model, not an adjustable hole.
| Model | Mounting hole Φ range (mm) | D (mm) | d (mm) | L (mm) | B (mm) |
|---|---|---|---|---|---|
| DTG-6 | 6.4–8.4 | 6.5 | 5.5 | 46 | 11 |
| DTG-10 | 6.4–10.5 | 8 | 7 | 49 | 12 |
| DTG-16 | 6.4–10.5 | 8 | 6.6 | 56 | 13 |
| DTG-25 | 6.4–12.5 | 9 | 7.2 | 61 | 14 |
| DTG-35 | 6.4–12.5 | 10.5 | 8.7 | 63 | 16 |
| DTG-50 | 8.4–12.5 | 12 | 10 | 71 | 18 |
| DTG-70 | 8.4–14.5 | 14.5 | 12.1 | 81 | 21 |
| DTG-95 | 8.4–16.5 | 16 | 13.2 | 84 | 24 |
| DTG-120 | 10.5–16.5 | 19 | 15.6 | 97 | 27 |
| DTG-150 | 10.5–16.5 | 20.5 | 16.9 | 101 | 30 |
| DTG-185 | 10.5–16.5 | 23.5 | 19.5 | 112 | 34 |
| DTG-240 | 10.5–16.5 | 26 | 21.4 | 118 | 38 |
| DTG-300 | 10.5–16.5 | 30 | 24.4 | 130 | 43 |
| DTG-400 | 10.5–20.5 | 34 | 28.2 | 150 | 48 |
| DTG-500 | 12.5–22.5 | 38 | 32 | 160 | 54 |
| DTG-630 | 12.5–22.5 | 45 | 37.8 | 170 | 64 |
Selection Guide
Choose the DTG model whose barrel dimensions suit the copper conductor, then select the mounting-hole size required by the equipment terminal. Check the overall length L and palm width B against the available installation space.
Applications
For copper-conductor connections on electrical equipment in power distribution assemblies and electrical control cabinets where the selected lug geometry fits the terminal.
Ordering Information
Provide the DTG model, required mounting-hole diameter and quantity when requesting a quotation.
