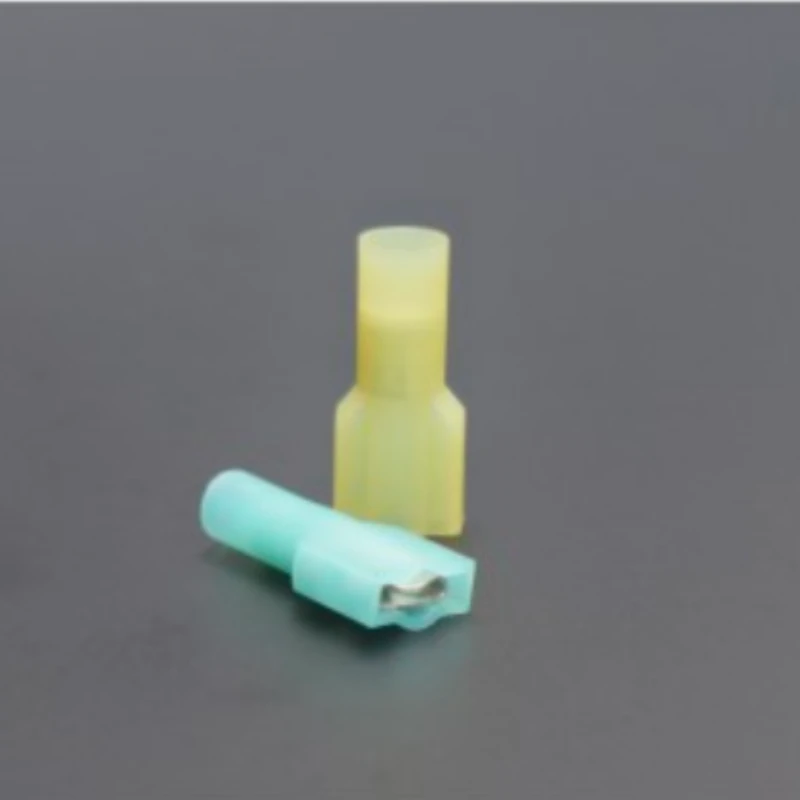

FDFNY Nylon Full-Insulating Female Terminals
FDFNY Nylon Full-Insulating Female Terminals are brass female receptacles with nylon insulation for compatible 0.8 × 6.35 mm flat-tab connections.
- Three listed models cover 0.5–1.5, 1.5–2.5 and 4–6 mm² conductor groups.
- Red, blue and yellow identify the catalog size groups.
- Compare W, F, L, B and D before selection.
Overview
FDFNY Nylon Full-Insulating Female Terminals are insulated brass female receptacles for compatible flat-tab connections. The catalog lists three conductor size groups with the same 0.8 × 6.35 mm plug specification and model-specific color identification.
Features
- Fully insulated body: nylon sleeve shown in the source catalog.
- Brass contact: terminal material identified in the source.
- Three conductor groups: red, blue and yellow variants are listed for different wire sizes.
Technical Specifications
| Parameter | Catalog specification |
|---|---|
| Product type | Full-insulating female flat-tab terminal |
| Series | FDFNY |
| Terminal material | Brass |
| Insulation | Nylon sleeve, labeled “Nylon (PP)” in source |
| Catalog temperature / voltage | 105 °C / 400 V |
| Listed models | 3 |
The temperature and voltage are catalog values; no certification or operating conditions are given.
Dimension

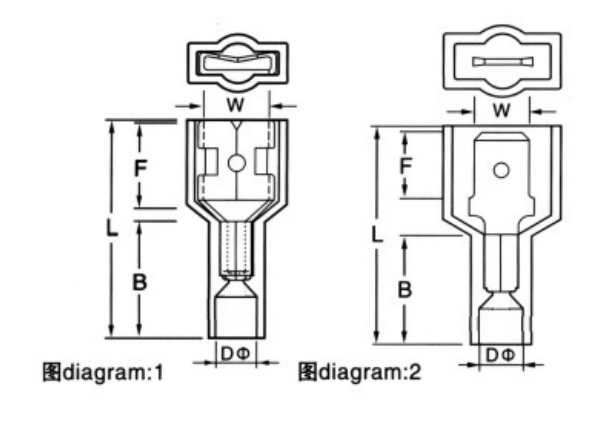

All dimensions are in millimeters. Plug specification gives tab thickness × width. AWG and conductor section are listed together as printed in the source.
| Model | Plug specification (mm) | W | F | L | B | D | AWG | Conductor section (mm²) | Color |
|---|---|---|---|---|---|---|---|---|---|
| FDFNY1.25-250 | 0.8 × 6.35 | 10.0 | 11.0 | 22.3 | 11.3 | 4.4 | 22–16 | 0.5–1.5 | Red |
| FDFNY2-250 | 0.8 × 6.35 | 10.0 | 11.0 | 22.3 | 11.3 | 4.4 | 16–14 | 1.5–2.5 | Blue |
| FDFNY5.5-250 | 0.8 × 6.35 | 10.0 | 11.0 | 22.3 | 11.3 | 4.4 | 12–10 | 4–6 | Yellow |
Selection Guide
Match the plug to the mating terminal and choose the model for the conductor section. Check W, F, L, B and D against the available space.
Ordering Information
Provide the full FDFNY model code and required quantity when requesting a quotation.
