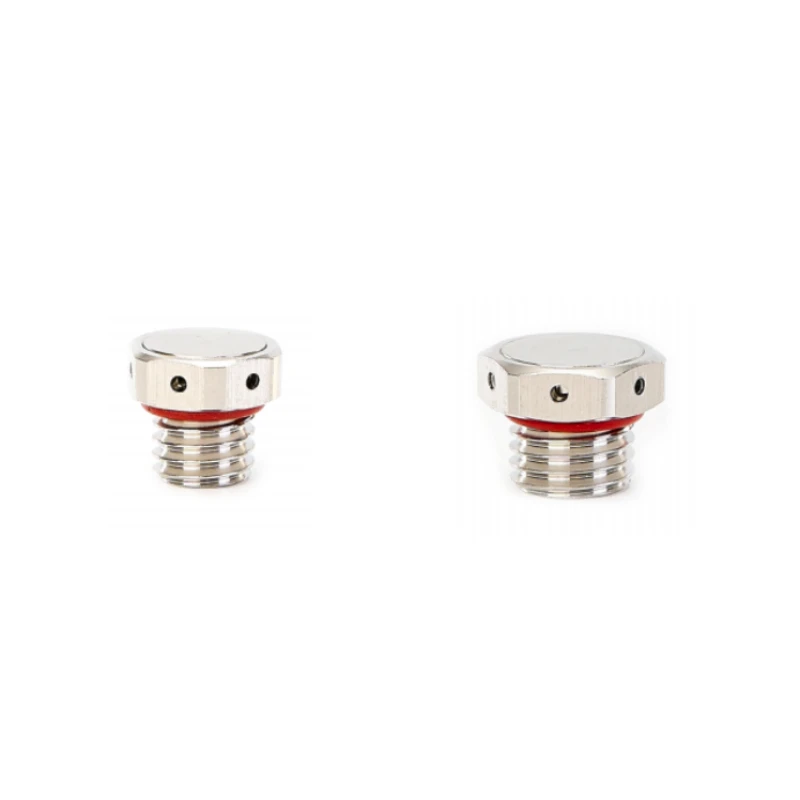

Flat Hexagonal Stainless Steel Vent Plugs
Flat hexagonal stainless steel vent plugs for enclosure openings, with metric thread specifications from M5×0.8 to M20×1.5.
- Natural stainless steel color.
- Catalogue protection level: IP68.
- Minimum airflow is listed at a 70 mbar test pressure.
- Select by thread specification, total length H and thread length GL.
Overview
Flat hexagonal stainless steel vent plugs for enclosure openings, with metric thread specifications from M5×0.8 to M20×1.5. The supplied catalogue lists minimum airflow values for each size, together with the total length, thread diameter, thread length and wrench dimension. All listed rows specify stainless steel in its natural color and IP68 protection.
Features
- Flat hexagonal form identified in the source catalogue.
- Model-specific airflow values referenced to 70 mbar.
- Natural stainless steel color.
- Different total and thread lengths allow selection by the listed mounting dimensions.
Technical Specifications
| Parameter | Catalogue specification |
|---|---|
| Material | Stainless steel; grade not specified |
| Color | Natural stainless steel color |
| Thread families | Metric |
| Airflow test pressure | 70 mbar |
| Protection level | IP68 (catalogue value; immersion depth and duration not stated) |
Dimension

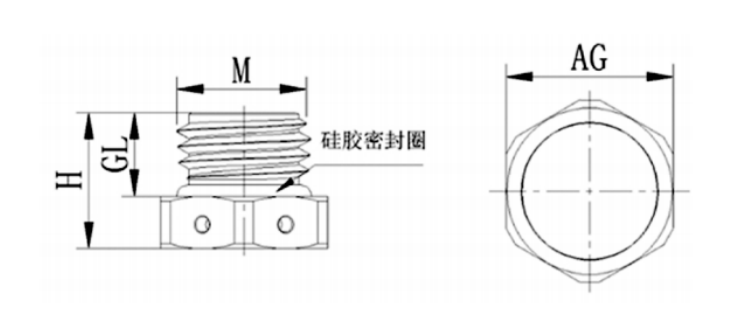

All dimensions below are in mm. H is total length, GL is thread length and AG is the wrench dimension labelled in the catalogue. The thread specification alone does not identify a unique configuration: repeated M12 threads are distinguished by H and GL.
| Thread specification | Minimum airflow (ml/min @ 70 mbar) | H | Thread Ø | GL | AG |
|---|---|---|---|---|---|
| M5×0.8 | ≥200 | 9.2 | 5 | 5 | 8 |
| M6×1 | ≥200 | 9.2 | 6 | 5 | 10 |
| M8×1.25 | ≥550 | 12 | 8 | 7 | 12 |
| M10×1.5 | ≥600 | 13 | 10 | 8 | 14 |
| M12×1.5 | ≥1200 | 13 | 12 | 8 | 16 |
| M12×1.5 | ≥1200 | 15 | 12 | 10 | 16 |
| M14×1.5 | ≥1200 | 15 | 14 | 10 | 19 |
| M16×1.5 | ≥2300 | 15 | 16 | 10 | 20 |
| M18×1.5 | ≥2300 | 15 | 18 | 10 | 22 |
| M20×1.5 | ≥2300 | 15 | 20 | 10 | 24 |
Selection Guide
Specify the product form, thread specification, H, GL and required airflow in an enquiry. For repeated M12 thread sizes, include both lengths to identify the intended configuration. Compare the full row when changing between the standard and flat hexagonal forms; their airflow and dimensions differ.
