GB Dry Transformer Insulators
GB Dry Transformer Insulators use a moulded DMC or SMC unsaturated polyester fibreglass resin body and threaded inserts.
- Four diameter groups; fifteen diameter/height sizes.
- Diameter: 40–70 mm; listed heights: 40–100 mm.
- Copper or iron inserts.
- Thread options vary by size.
- Red as illustrated.
Overview
YOCL ELECTRIC GB Dry Transformer Insulators use a DMC or SMC unsaturated polyester fibreglass resin body with threaded metal inserts. The GB series is described for dry transformers and has a ribbed body profile. Copper or iron insert options are listed.
Features
- Unsaturated polyester fibreglass resin body in DMC or SMC.
- Threaded metal inserts.
- Ribbed body profile for dry transformer insulation.
- Diameter, height and thread options listed together.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | GB |
| Insulating body | DMC or SMC unsaturated polyester fibreglass resin |
| Insert material | Copper or Iron |
| Colour | Red as illustrated |

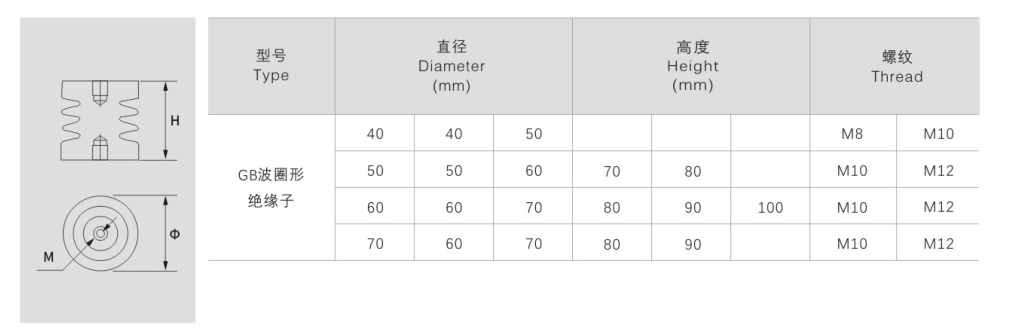

Dimension
| Body diameter (mm) | Listed height options (mm) | Listed thread options |
|---|---|---|
| 40 | 40, 50 | M8, M10 |
| 50 | 50, 60, 70, 80 | M10, M12 |
| 60 | 60, 70, 80, 90, 100 | M10, M12 |
| 70 | 60, 70, 80, 90 | M10, M12 |
The four diameter groups cover fifteen listed diameter/height sizes. Thread options are shown for each diameter group.
Model Designation
The supplied example GB-50×60 M12 identifies the series, body diameter, height and thread designation. Thread pitch and insert depth are not stated.
Selection Guide
Select the body diameter and a height listed in the same row, then choose one of that row’s thread options. Include the insert material in the order specification.
Ordering Information
For a quotation, specify the series, diameter, height, listed thread designation, quantity, insulating material and insert material. Provide the mounting requirements so the complete dimensions and thread details can be matched.
