HSS-102158PA Arrowhead Fixing Base
Space-saving arrowhead fixing base for cable ties, installed in pre-drilled or punched holes.
- Arrowhead mounting geometry.
- For restricted-access mounting positions.
- Accepts cable ties up to5.0 mm wide.
Overview
Space-saving arrowhead fixing base for cable ties, installed in pre-drilled or punched holes.
Features
- Arrowhead mounting geometry.
- For restricted-access mounting positions.
- Accepts cable ties up to5.0 mm wide.
Technical Specifications
| Parameter | Specification |
|---|---|
| Listed configurations | 1 |
| Models | HSS-102158PA |

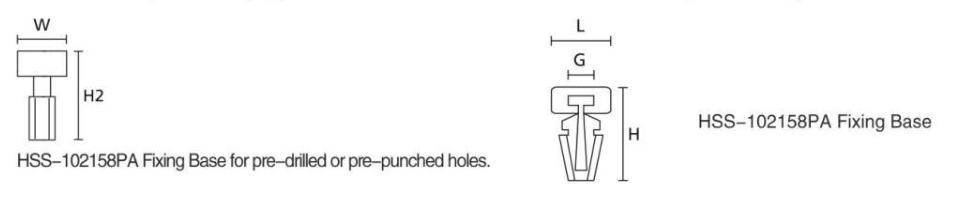

Dimension
Dimensions are in millimetres. Minimum loop strength, where listed, is a cable tie force value rather than mounting pull-out strength or a working-load rating.
| Model | Width W (mm) | Length L (mm) | Height H (mm) | Height H2 (mm) | Hole diameter (mm) | Panel thickness (mm) | Max. tie width (mm) | Material | Colour |
|---|---|---|---|---|---|---|---|---|---|
| HSS-102158PA | 10.2 | 15.8 | 4.6 | 4.6 | 6.35 | 3.3–3.4 | 5 | PA66 | White |
Selection Guide
Check mounting geometry, panel thickness and hole dimensions where listed. Use the exact material and colour configuration as well as the model code when ordering.
Ordering Information
Provide the complete model, configuration and required quantity when requesting a quotation.
