HSS-126 Lashing Cable Ties
Double-locking lashing cable ties in standard and releasable configurations for large cable bundles.
- 16 listed configurations.
- Material: PA66.
- Model-specific specifications shown in the table.
Overview
Double-locking lashing cable ties in standard and releasable configurations for large cable bundles.
Features
- Material: PA66.
- 16 listed configurations for selection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | PA66 |
| Configurations | 16 |

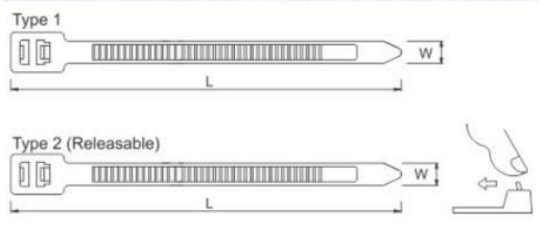

Dimension
Dimensions are in millimetres. Force values are in the units stated in each column and do not establish working-load ratings.
| Model | Type | Length (mm) | Width (mm) | Max. bundle diameter (mm) | Min. loop strength (kgf) | Pack quantity |
|---|---|---|---|---|---|---|
| HSS-240126 | Standard | 240 | 12.6 | 50 | 114 | 1000 |
| HSS-300126 | Standard | 300 | 12.6 | 76 | 114 | 1000 |
| HSS-415126 | Standard | 415 | 12.6 | 106 | 114 | 1000 |
| HSS-490126 | Standard | 490 | 12.6 | 120 | 114 | 1000 |
| HSS-509126 | Standard | 509 | 12.6 | 152 | 114 | 1000 |
| HSS-740126 | Standard | 740 | 12.6 | 204 | 114 | 1000 |
| HSS-890126 | Standard | 890 | 12.6 | 248 | 114 | 1000 |
| HSS-1040126 | Standard | 1040 | 12.6 | 295 | 114 | 1000 |
| HSS-240126RE | Releasable | 240 | 12.6 | 50 | 114 | 1000 |
| HSS-300126RE | Releasable | 300 | 12.6 | 76 | 114 | 1000 |
| HSS-415126RE | Releasable | 415 | 12.6 | 106 | 114 | 1000 |
| HSS-490126RE | Releasable | 490 | 12.6 | 120 | 114 | 1000 |
| HSS-509126RE | Releasable | 509 | 12.6 | 152 | 114 | 1000 |
| HSS-740126RE | Releasable | 740 | 12.6 | 204 | 114 | 1000 |
| HSS-890126RE | Releasable | 890 | 12.6 | 248 | 114 | 1000 |
| HSS-1040126RE | Releasable | 1040 | 12.6 | 295 | 114 | 1000 |
Selection Guide
Check the listed dimensions and configuration against the intended application. Material compatibility and exposure conditions must suit the installation.
Ordering Information
Provide the complete model or specification and quantity when requesting a quotation.
