HSS HRR/HRW Heat Stabilized Cable Ties
Heat-stabilized cable ties with internal serrations and a bent tail for threading. Select the exact model and required temperature grade.
- 13 listed configurations.
- Model-specific specifications shown in the table.
Overview
Heat-stabilized cable ties with internal serrations and a bent tail for threading. Select the exact model and required temperature grade.
Features
- Heat-stabilized series.
- 13 listed configurations for selection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Configurations | 13 |
| Listed temperature-grade options | +120, +150 and +180 °C; model-to-grade mapping not supplied |

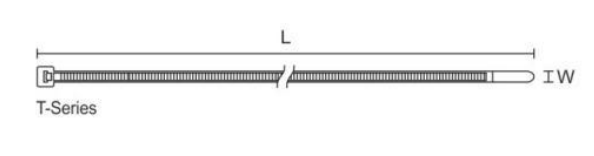

Dimension
Dimensions are in millimetres. Force values are in the units stated in each column and do not establish working-load ratings.
| Model | Length (mm) | Width (mm) | Max. bundle diameter (mm) | Min. loop strength (kgf) |
|---|---|---|---|---|
| HSS-80MM-HRR | 80 | 2.4 | 15 | 8 |
| HSS-100MM-HRR | 100 | 2.5 | 22 | 8.1 |
| HSS-120MM-HRR | 120 | 2.5 | 30 | 8.1 |
| HSS-140MM-HRR | 140 | 2.5 | 33 | 8.1 |
| HSS-150L-HRR | 150 | 3.6 | 35 | 18.2 |
| HSS-180L-HRR | 180 | 3.6 | 44 | 18.2 |
| HSS-300L-HRR | 300 | 3.6 | 76 | 18.2 |
| HSS-200ST-HRR | 200 | 4.8 | 50 | 22.2 |
| HSS-300ST-HRR | 300 | 4.8 | 76 | 22.2 |
| HSS-100M-HRW | 100 | 2.5 | 22 | 8.1 |
| HSS-150L-HRW | 150 | 3.6 | 35 | 18.2 |
| HSS-300L-HRW | 300 | 3.6 | 76 | 18.2 |
| HSS-200ST-HRW | 200 | 4.8 | 50 | 22.2 |
Selection Guide
Check the listed dimensions and configuration against the intended application. Material compatibility and exposure conditions must suit the installation.
Ordering Information
Provide the complete model or specification and quantity when requesting a quotation.
