HSS Movable Weld Stud Fixing Cable Tie
Low-profile one-piece fixing tie with lateral adjustment for automotive cable routing.
- 5–6 mm lateral adjustment.
- Low-profile, stackable design.
- Tool-free assembly described in source.
Overview
Low-profile one-piece fixing tie with lateral adjustment for automotive cable routing.
Features
- 5–6 mm lateral adjustment.
- Low-profile, stackable design.
- Tool-free assembly described in source.
Technical Specifications
| Parameter | Specification |
|---|---|
| Listed configurations | 1 |

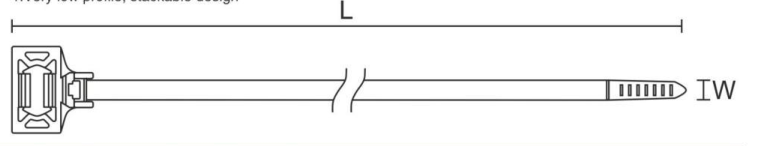

Dimension
Dimensions are in millimetres unless stated otherwise. Minimum loop strength is given in newtons and is not a mounting pull-out or working-load rating. Repeated model codes with different specifications are distinct listed configurations.
| Model | Width (mm) | Length (mm) | Max. bundle diameter (mm) | Min. loop strength (N) | Stud diameter (mm) | Material | Colour |
|---|---|---|---|---|---|---|---|
| HSS-46162 | 4.6 | 162.6 | 35 | 225 | 5 | PA66HS | Black |
Selection Guide
Choose the fixing structure for the mounting surface, then check bundle capacity, hole or stud diameter, panel thickness and material where listed. Do not substitute minimum loop strength for mounting retention strength.
Ordering Information
Provide the complete model and applicable dimensions, material and colour when requesting a quotation.
