HSS Twistable Edge Fixing Cable Ties
Pre-assembled two-piece fixing ties with a rotatable edge clip for routing bundles without drilled holes or adhesive mounting.
- Hand assembly.
- Mounting orientation can be adjusted by rotating the clip.
- Tie head can move after bundling.
Overview
Pre-assembled two-piece fixing ties with a rotatable edge clip for routing bundles without drilled holes or adhesive mounting.
Features
- Hand assembly.
- Mounting orientation can be adjusted by rotating the clip.
- Tie head can move after bundling.
Technical Specifications
| Parameter | Specification |
|---|---|
| Listed configurations | 3 |
| Models | HSS-35160PA; HSS-46202PA; HSS-46200PA |

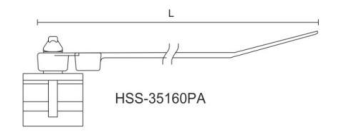

Dimension
Dimensions are in millimetres. Minimum loop strength, where listed, is a cable tie force value rather than mounting pull-out strength or a working-load rating.
| Model | Width (mm) | Length (mm) | Max. bundle diameter (mm) | Min. loop strength (N) | Panel edge thickness (mm) | Tie material | Foot material | Colour |
|---|---|---|---|---|---|---|---|---|
| HSS-35160PA | 3.5 | 160 | 32 | 135 | 1–2.5 | PA66HS | POM | Black |
| HSS-46202PA | 4.6 | 202 | 47 | 225 | 1–3 | PA66HS | PA66HIRHS | Black |
| HSS-46200PA | 4.6 | 200 | 47 | 225 | 1–3 | PA66HS | PA66HIRHS | Black |
Selection Guide
Check mounting geometry, panel thickness and hole dimensions where listed. Use the exact material and colour configuration as well as the model code when ordering.
Ordering Information
Provide the complete model, configuration and required quantity when requesting a quotation.
