HSS V-0 Cable Ties
White internally serrated cable ties using PA66V0 material for applications specifying V-0 material classification.
- 6 listed configurations.
- Material: PA66V0.
- Model-specific specifications shown in the table.
Overview
White internally serrated cable ties using PA66V0 material for applications specifying V-0 material classification.
Features
- Material: PA66V0.
- 6 listed configurations for selection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | PA66V0 |
| Configurations | 6 |
| Stated material flammability classification | UL 94 V-0 |

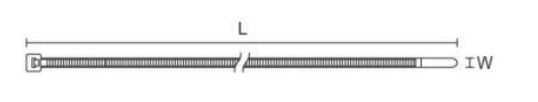

Dimension
Four length entries are omitted because the supplied values conflict with the corresponding bundle capacities. Dimensions are in millimetres. Force values are in the units stated in each column and do not establish working-load ratings.
| Model | Length (mm) | Width (mm) | Max. bundle diameter (mm) | Tensile strength (N) | Pack quantity |
|---|---|---|---|---|---|
| HSS-2510022V0 | 100 | 2.5 | 22 | 80 | 100 |
| HSS-2510555V0 | Not established | 2.5 | 55 | 80 | 100 |
| HSS-3515035V0 | 150 | 3.5 | 35 | 135 | 100 |
| HSS-4610050V0 | Not established | 4.6 | 50 | 225 | 100 |
| HSS-4610085V0 | Not established | 4.6 | 85 | 225 | 100 |
| HSS-76187100V0 | Not established | 7.6 | 100 | 535 | 100 |
Selection Guide
Check the listed dimensions and configuration against the intended application. Material compatibility and exposure conditions must suit the installation.
Ordering Information
Provide the complete model or specification and quantity when requesting a quotation.
