MG Nickel-Plated Brass Cable Glands
MG nickel-plated brass cable glands secure and seal cable entry points. Choose the model by thread type, cable outside diameter and mounting hole.
- Metric, PG, G (BSPP) and NPT thread options
- Nickel-plated brass parts with PA66 claws and EPDM sealing components
- IP68, 10 bar protection degree stated in the source catalogue
- Static operating range: β40 to +100 Β°C; dynamic: β20 to +80 Β°C
Overview
MG nickel-plated brass cable glands provide a sealed cable entry and secure cable retention for electrical enclosures and equipment. The series covers Metric, PG, G (BSPP) and NPT threads. Select a catalogue model by its thread designation and the outside diameter of the cable to be clamped.
The source catalogue identifies nickel-plated brass metal parts, PA66 nylon claws and EPDM rubber sealing components. It states IP68 protection at 10 bar and lists static and dynamic temperature ranges separately. Individual model dimensions are shown below; specifications for one model should not be applied to the entire series.
Features
- Multiple thread systems: Metric, PG, G (BSPP) and NPT models cover different threaded entries.
- Cable retention: Claw-and-seal construction grips a cable within the stated clamping range.
- Metal construction: The specified brass parts have a nickel-plated finish.
- Sealing materials: PA66 claws and EPDM rubber components are identified in the source catalogue.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | MG |
| Product type | Metal cable gland |
| Thread options | Metric, PG, G (BSPP), NPT; model dependent |
| Metal parts | Nickel-plated brass |
| Claw | PA66 nylon |
| Seal | EPDM rubber |
| Protection degree | IP68, 10 bar (source catalogue statement) |
| Static operating temperature | β40 to +100 Β°C; short exposure to +120 Β°C |
| Dynamic operating temperature | β20 to +80 Β°C; short exposure to +100 Β°C |
| Cable clamping range | Model dependent; see tables |
Dimension
All cable ranges below are shown as minimumβmaximum outside diameter in mm. The source prints some ranges in the reverse direction. Thread O.D., mounting-hole diameter and GL are in mm; spanner size is the source’s two-value notation. A dash means the source did not give that value. G and NPT threads are not interchangeable.
Metric thread models
| Catalogue code | Thread | Cable Γ (mm) | Thread O.D. (mm) | Mounting hole (mm) | GL (mm) | Spanner (mm) |
|---|---|---|---|---|---|---|
| VO-M12A-MG | M12Γ1.5 | 3β5.3 | 12 | 12β12.3 | 8 | 17/17 |
| VO-M12B-MG | M12Γ1.5 | 4.5β7.8 | 12 | 12β12.3 | 8 | 17/17 |
| VO-M16A-MG | M16Γ1.5 | 4β7 | 16 | 16β16.3 | 9 | 22/22 |
| VO-M16B-MG | M16Γ1.5 | 6β10 | 16 | 16β16.3 | 9 | 22/22 |
| VO-M20A-MG | M20Γ1.5 | 5β8.8 | 20 | 20β20.3 | 9.5 | 24/24 |
| VO-M20B-MG | M20Γ1.5 | 7β12 | 20 | 20β20.3 | 9.5 | 24/24 |
| VO-M20C-MG | M20Γ1.5 | 9β14 | 20 | 20β20.3 | 9.5 | 26/26 |
| VO-M25-MG | M25Γ1.5 | 12β16 | 25 | 25β25.4 | 12 | 32/32 |
| VO-M32A-MG | M32Γ1.5 | 16β22 | 32 | 32β32.4 | 12.5 | 41/41 |
| VO-M32B-MG | M32Γ1.5 | 18β25 | 32 | 32β32.4 | 12.5 | 41/41 |
| VO-M40A-MG | M40Γ1.5 | 21β25 | 40 | 40β40.4 | 15 | 50/50 |
| VO-M40B-MG | M40Γ1.5 | 24β30 | 40 | 40β40.4 | 15 | 50/50 |
| VO-M50A-MG | M50Γ1.5 | 26β32 | 50 | 50β50.4 | 15 | 60/60 |
| VO-M50B-MG | M50Γ1.5 | 31β41 | 50 | 50β50.4 | 15 | 60/60 |
| VO-M63A-MG | M63Γ1.5 | 40β46 | 63 | 63β63.4 | 15 | 73/73 |
| VO-M63B-MG | M63Γ1.5 | 44β51 | 63 | 63β63.4 | 15 | 73/73 |
| VO-M75A-MG | M75Γ1.5 | 50β56 | 75 | 75β75.6 | 18 | 85/88 |
| VO-M75B-MG | M75Γ1.5 | 56β66 | 75 | 75β75.6 | 18 | 85/88 |
| VO-M90A-MG | M90Γ1.5 | 58β68 | 90 | 90β91 | 20 | 102/106 |
| VO-M90B-MG | M90Γ1.5 | 66β77 | 90 | 90β91 | 20 | 102/106 |
| VO-M100A-MG | M100Γ1.5 | 58β68 | 100 | 100β101 | 25 | 116/120 |
| VO-M100B-MG | M100Γ1.5 | 66β77 | 100 | 100β101 | 25 | 116/120 |
PG thread models
| Catalogue code | Thread | Cable Γ (mm) | Thread O.D. (mm) | Mounting hole (mm) | GL (mm) | Spanner (mm) |
|---|---|---|---|---|---|---|
| VO-PG7A-MG | PG7 | 3β5.3 | 12.5 | 12.5β12.8 | 8 | 17/17 |
| VO-PG7B-MG | PG7 | 4.5β7.8 | 12.5 | 12.5β12.8 | 8 | 17/17 |
| VO-PG9A-MG | PG9 | 3β5.8 | 15.2 | 15.2β15.5 | 8 | 18/18 |
| VO-PG9B-MG | PG9 | 4.5β7.8 | 15.2 | 15.2β15.5 | 8 | 18/18 |
| VO-PG11A-MG | PG11 | 4β7 | 18.6 | 18.6β18.9 | 9 | 22/22 |
| VO-PG11B-MG | PG11 | 6β10 | 18.6 | 18.6β18.9 | 9 | 22/22 |
| VO-PG13.5A-MG | PG13.5 | 5β8.8 | 20.4 | 20.4β20.7 | 9.5 | 24/24 |
| VO-PG13.5B-MG | PG13.5 | 7β12 | 20.4 | 20.4β20.7 | 9.5 | 24/24 |
| VO-PG16A-MG | PG16 | 7β11 | 22.5 | 22.5β22.8 | 9.5 | 26/26 |
| VO-PG16B-MG | PG16 | 9β14 | 22.5 | 22.5β22.8 | 9.5 | 26/26 |
| VO-PG21A-MG | PG21 | 12β16 | 28.3 | 28.3β28.7 | 12 | 32/32 |
| VO-PG21B-MG | PG21 | 14β18 | 28.3 | 28.3β28.7 | 12 | 32/32 |
| VO-PG29A-MG | PG29 | 16β22 | 37 | 37β37.4 | 12.5 | 41/41 |
| VO-PG29B-MG | PG29 | 18β25 | 37 | 37β37.4 | 12.5 | 41/41 |
| VO-PG36A-MG | PG36 | 21β25 | 47 | 47β47.4 | 15 | 50/50 |
| VO-PG36B-MG | PG36 | 24β30 | 47 | 47β47.4 | 15 | 50/50 |
G (BSPP) thread models
| Catalogue code | Thread | Cable Γ (mm) | Thread O.D. (mm) | Mounting hole (mm) | GL (mm) | Spanner (mm) |
|---|---|---|---|---|---|---|
| VO-G1/4A-MG | G1/4 | 3β5.3 | 13.157 | 13.2β13.4 | 8 | 17/17 |
| VO-G1/4B-MG | G1/4 | 4.5β7.8 | 13.157 | 13.2β13.4 | 8 | 17/17 |
| VO-G3/8A-MG | G3/8 | 4β7 | 16.662 | 16.7β16.9 | 9 | 22/22 |
| VO-G3/8B-MG | G3/8 | 6β10 | 16.662 | 16.7β16.9 | 9 | 22/22 |
| VO-G1/2A-MG | G1/2 | 7β11 | 20.955 | 21β21.2 | 9.5 | 26/26 |
| VO-G1/2B-MG | G1/2 | 9β14 | 20.955 | 21β21.2 | 9.5 | 26/26 |
| VO-G3/4A-MG | G3/4 | 12β16 | 26.441 | 26.5β26.8 | 12 | 32/32 |
| VO-G3/4B-MG | G3/4 | 14β18 | 26.441 | 26.5β26.8 | 12 | 32/32 |
| VO-G1A-MG | G1 | 16β22 | 33.249 | 33.3β33.6 | 12.5 | 41/41 |
| VO-G1-MG | G1 | 18β25 | 33.249 | 33.3β33.6 | 12.5 | 41/41 |
| VO-G1 1/4A-MG | G1 1/4 | 21β25 | 41.91 | 42β42.3 | 15 | 50/50 |
| VO-G1 1/4B-MG | G1 1/4 | 24β30 | 41.91 | 42β42.3 | 15 | 50/50 |
| VO-G1 1/2A-MG | G1 1/2 | 26β32 | 47.803 | 48β48.4 | 15 | 60/60 |
| VO-G1 1/2B-MG | G1 1/2 | 31β41 | 47.803 | 48β48.4 | 15 | 60/60 |
| VO-G2A-MG | G2 | 40β46 | 59.614 | 60β60.4 | 15 | 73/73 |
| VO-G2B-MG | G2 | 44β51 | 59.614 | 60β60.4 | 15 | 73/73 |
| VO-G2 1/2A-MG | G2 1/2 | 50β56 | 75.184 | 75.2β75.6 | 18 | 85/88 |
| VO-G2 1/2B-MG | G2 1/2 | 56β66 | 75.184 | 75.2β75.6 | 18 | 85/88 |
NPT thread models
The catalogue does not provide mounting-hole diameters for these NPT entries.
| Catalogue code | Thread | Cable Γ (mm) | Thread O.D. (mm) | Mounting hole (mm) | GL (mm) | Spanner (mm) |
|---|---|---|---|---|---|---|
| VO-NPT3/8A-MG | NPT3/8 | 4β7 | 17.055 | β | 13 | 22 |
| VO-NPT3/8B-MG | NPT3/8 | 6β10 | 17.055 | β | 13 | 22 |
| VO-NPT1/2A-MG | NPT1/2 | 7β11 | 21.223 | β | 13 | 26 |
| VO-NPT1/2B-MG | NPT1/2 | 9β14 | 21.223 | β | 13 | 26 |
| VO-NPT3/4A-MG | NPT3/4 | 12β16 | 26.568 | β | 14 | 32 |
| VO-NPT3/4B-MG | NPT3/4 | 14β18 | 26.568 | β | 14 | 32 |
| VO-NPT1A-MG | NPT1 | 16β22 | 33.227 | β | 15 | 41 |
| VO-NPT1B-MG | NPT1 | 18β25 | 33.227 | β | 15 | 41 |
| VO-NPT1 1/4A-MG | NPT1 1/4 | 21β25 | 41.984 | β | 15 | 50 |
| VO-NPT1 1/4B-MG | NPT1 1/4 | 24β30 | 41.984 | β | 15 | 50 |
Selection Guide
Check the enclosure’s thread form and size first, then match the cable outside diameter to the model’s clamping range. Compare the mounting-hole specification, GL and spanner size with the available installation space. Specify the full catalogue code and quantity when requesting a quotation. A catalogue code in this table is a selection reference within this series page; it is not a separate online SKU.

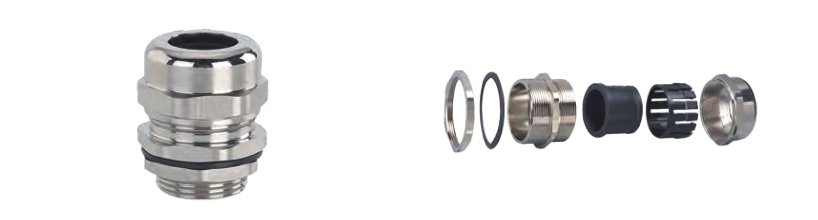

Dimension
