MJPT Series Pre-insulated Cable Sleeve
YOCL ELECTRIC MJPT Series Pre-insulated Cable Sleeve is for butt connection of same-size conductors in power distribution wiring. Its outer pre-insulated covering encloses the joint.
- 12 listed models, including extended-length variants marked “-L”.
- Model-specific color codes: blue, orange, red, yellow, black, white, grey, pink and purple.
- Compare D, D1, L and L1 dimensions in the complete model table.
Overview
YOCL ELECTRIC MJPT Series Pre-insulated Cable Sleeve is intended for butt connection of same-size conductors in power distribution wiring and electrical equipment. An outer pre-insulated covering encloses the connection. The series includes 12 listed models, including longer “-L” versions for selected sizes.
Features
- Pre-insulated construction: the outer covering surrounds the conductor joint.
- Butt-connection form: intended to join conductors of the same specification.
- Model-specific identification: each listed model has a color code and dimensions for selection.
- Extended versions: MJPT-54.6-L, MJPT-70-L and MJPT-95-L have distinct L and L1 dimensions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | MJPT |
| Product type | Pre-insulated cable sleeve |
| Connection | Butt connection of same-size conductors |
| Listed models | 12 |
| Listed color codes | Blue, orange, red, yellow, black, white, grey, pink and purple; see model table |
Dimension

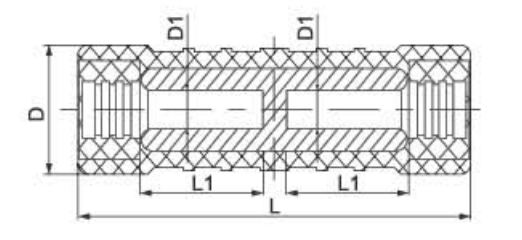

All dimensions are in millimeters. D, D1, L and L1 follow the labels in the dimension drawing. Color is the catalogue color code for each model.
| Model | Color code | D (mm) | D1 (mm) | L (mm) | L1 (mm) |
|---|---|---|---|---|---|
| MJPT-16 | Blue | 15 | 4.9 | 70 | 22 |
| MJPT-25 | Orange | 15 | 6.1 | 70 | 22 |
| MJPT-35 | Red | 20.5 | 7.5 | 100 | 35 |
| MJPT-50 | Yellow | 20.5 | 8.5 | 100 | 35 |
| MJPT-54.6 | Black | 20.5 | 9.6 | 100 | 35 |
| MJPT-54.6-L | Black | 20.5 | 9.6 | 170 | 67 |
| MJPT-70 | White | 20.5 | 9.9 | 100 | 35 |
| MJPT-70-L | White | 20.5 | 9.9 | 170 | 67 |
| MJPT-95 | Grey | 20.5 | 11.6 | 100 | 35 |
| MJPT-95-L | Grey | 20.5 | 11.6 | 137 | 67 |
| MJPT-120 | Pink | 20.5 | 13.5 | 137 | 53 |
| MJPT-150 | Purple | 20.5 | 14.8 | 137 | 53 |
Selection Guide
Select the model for the conductor specification, then compare its D1 dimension, overall length L and insertion-side dimension L1 with the required connection. Use the listed color code to distinguish models; the “-L” models have separate dimensions from their standard counterparts.
Applications
For same-size conductor butt connections in power distribution wiring and compatible electrical equipment.
Ordering Information
Provide the full MJPT model, including the “-L” suffix where applicable, and the required quantity when requesting a quotation.
