SC(JGA) Copper Cable Lugs
YOCL ELECTRIC SC(JGA) copper cable lugs connect copper conductors to electrical equipment terminals. The series table covers 16 JGA models with different mounting-hole ranges and body dimensions.
- Compare each model's Φ hole range and D, d, L and B measurements.
- The tubular barrel transitions to a flat mounting palm.
- Specify the exact JGA model and mounting-hole size when requesting a quote.
Overview

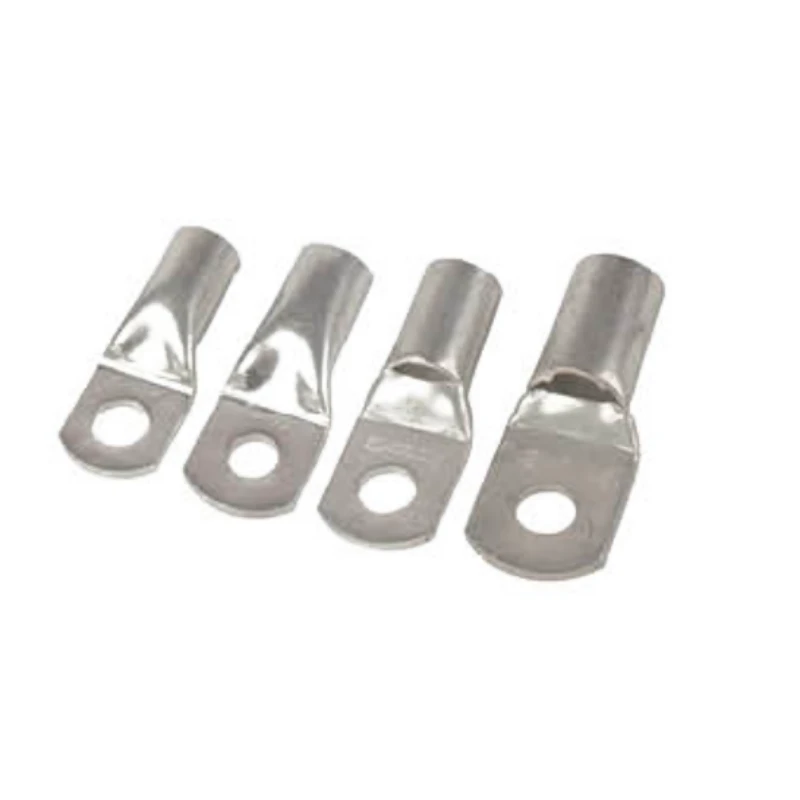

YOCL ELECTRIC SC(JGA) copper cable lugs are intended for connecting copper conductors to electrical equipment terminals. The tubular barrel transitions to a flat palm with a mounting hole. The series covers 16 JGA models, from JGA-6 to JGA-630.
Features
- Copper connecting terminal: intended for copper-conductor terminations.
- Barrel-to-palm form: combines a conductor entry barrel with a flat mounting face.
- Model-specific mounting holes: each JGA model has a listed Φ hole-diameter range.
- Dimension-led selection: D, d, L and B are provided for each listed size.
Technical Specifications
| Parameter | Specification |
|---|---|
| Listed series | SC(JGA) |
| Listed model prefix | JGA |
| Material | Copper |
| Intended connection | Copper conductor to electrical equipment terminal |
| Model count in this table | 16 |
The model suffixes identify the listed sizes; select the exact JGA model using its dimensions and mounting-hole requirement.
Dimension

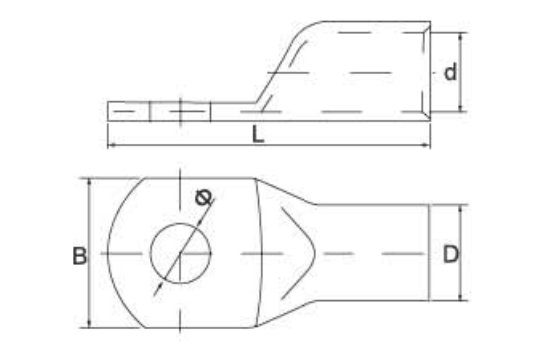

All dimensions are in millimeters. Φ denotes the mounting-hole diameter range; D, d, L and B follow the dimension labels. The range denotes available hole sizes for a model, not an adjustable hole.
| Model | Mounting hole Φ range (mm) | D (mm) | d (mm) | L (mm) | B (mm) |
|---|---|---|---|---|---|
| JGA-6 | 5.2–8.4 | 5.5 | 4.5 | 27 | 11 |
| JGA-10 | 6.4–8.4 | 6.5 | 5.5 | 30 | 12 |
| JGA-16 | 6.4–12.5 | 8 | 6.6 | 34 | 13 |
| JGA-25 | 6.4–12.5 | 9 | 7.2 | 37 | 14 |
| JGA-35 | 6.4–12.5 | 10.5 | 8.7 | 42 | 16 |
| JGA-50 | 8.4–14.5 | 12 | 10 | 47 | 19 |
| JGA-70 | 8.4–14.5 | 14.5 | 12.1 | 56 | 21 |
| JGA-95 | 8.4–16.5 | 16 | 13.2 | 60 | 24 |
| JGA-120 | 8.4–16.5 | 19 | 15.6 | 69 | 27 |
| JGA-150 | 10.5–16.5 | 20.5 | 16.9 | 74 | 30 |
| JGA-185 | 10.5–16.5 | 23.5 | 19.5 | 82 | 35 |
| JGA-240 | 10.5–16.5 | 26 | 21.4 | 94 | 38 |
| JGA-300 | 10.5–16.5 | 30 | 24.4 | 108 | 44 |
| JGA-400 | 10.5–18.5 | 34 | 28.2 | 116 | 50 |
| JGA-500 | 12.5–22.5 | 38 | 32 | 128 | 55 |
| JGA-630 | 12.5–22.5 | 45 | 37.8 | 140 | 66 |
Selection Guide
Check the chosen JGA model’s barrel dimensions against the copper conductor and the connection process, then choose the mounting-hole size required by the equipment terminal. Use L and B to verify the available installation space.
Applications
For copper-conductor connections in power-distribution equipment and other electrical assemblies where the selected JGA lug geometry fits the terminal.
Ordering Information
Provide the JGA model, required mounting-hole diameter and quantity when requesting a quotation.
