SC(JGB) Bell Mouth Copper Cable Lugs
YOCL ELECTRIC SC(JGB) bell mouth copper cable lugs connect copper conductors to electrical equipment terminals. The flared barrel entry helps guide conductor strands during insertion, while the flat palm provides a mounting-hole connection.
- Sixteen models span SC(JGB)-6 through SC(JGB)-630.
- Compare each model's mounting-hole Φ range and D, d, L and B dimensions.
- Specify the exact model and required mounting-hole size for a quotation.
Overview

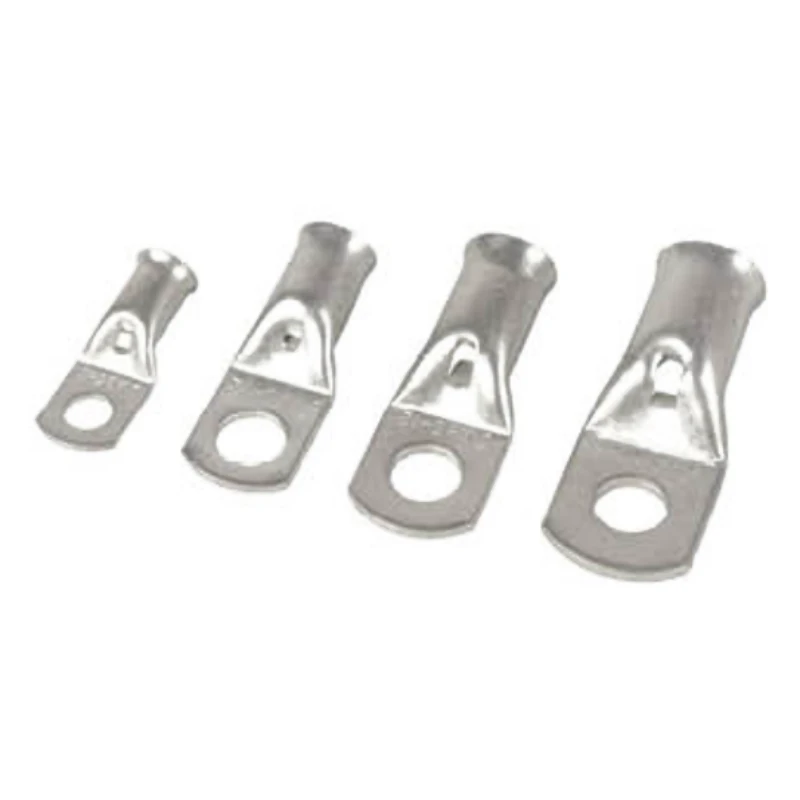

YOCL ELECTRIC SC(JGB) bell mouth copper cable lugs connect copper conductors to electrical equipment terminals. Their flared barrel opening helps guide conductors, including stranded copper conductors, into the lug. A flat palm with a mounting hole completes the terminal connection. The series includes 16 models from SC(JGB)-6 to SC(JGB)-630.
Features
- Bell mouth barrel entry: the flared opening helps guide conductor strands into the barrel.
- Copper construction: intended for copper-conductor connections.
- Flat mounting palm: provides a bolted connection point at the equipment terminal.
- Model-specific dimensions: mounting-hole Φ range and D, d, L and B are listed for each size.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | SC(JGB) |
| Material | Copper |
| Barrel entry | Flared bell mouth |
| Intended connection | Copper conductor to electrical equipment terminal |
| Listed models | 16 |
Select the exact model by conductor fit, mounting-hole size and available installation space. The model suffix alone is not a substitute for checking these dimensions.
Dimension

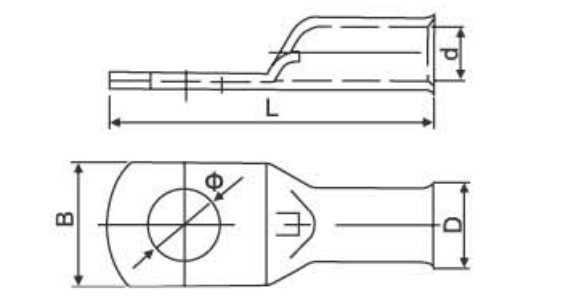

All dimensions are in millimeters. Φ denotes the mounting-hole diameter range; D, d, L and B follow the drawing labels. A range represents available hole sizes for the model, not an adjustable hole.
| Model | Mounting hole Φ range (mm) | D (mm) | d (mm) | L (mm) | B (mm) |
|---|---|---|---|---|---|
| SC(JGB)-6 | 6.4–8.4 | 5.5 | 4.5 | 23 | 10 |
| SC(JGB)-10 | 6.4–8.4 | 6.5 | 5.5 | 27 | 11 |
| SC(JGB)-16 | 6.4–12.5 | 8 | 6.6 | 33 | 12 |
| SC(JGB)-25 | 6.4–12.5 | 9 | 7.2 | 36 | 14 |
| SC(JGB)-35 | 6.4–12.5 | 10.5 | 8.7 | 42 | 16 |
| SC(JGB)-50 | 8.4–12.5 | 12 | 10 | 49 | 18 |
| SC(JGB)-70 | 8.4–12.5 | 14.5 | 12.1 | 55 | 21 |
| SC(JGB)-95 | 8.4–16.5 | 16 | 13.2 | 59 | 24 |
| SC(JGB)-120 | 10.5–16.5 | 19 | 15.6 | 67 | 29 |
| SC(JGB)-150 | 10.5–16.5 | 20.5 | 16.9 | 72 | 30 |
| SC(JGB)-185 | 10.5–16.5 | 23.5 | 19.5 | 78 | 34 |
| SC(JGB)-240 | 10.5–18.5 | 26 | 21.4 | 90 | 38 |
| SC(JGB)-300 | 10.5–18.5 | 30 | 24.4 | 100 | 42 |
| SC(JGB)-400 | 10.5–20.5 | 34 | 28.2 | 113 | 48 |
| SC(JGB)-500 | 12.5–22.5 | 38 | 32 | 126 | 54 |
| SC(JGB)-630 | 12.5–22.5 | 45 | 37.8 | 145 | 65 |
Selection Guide
Match the barrel dimensions to the copper conductor, then choose the mounting-hole size required by the equipment terminal. Compare overall length L and palm width B with the available installation space. The bell mouth entry is designed to help when inserting stranded conductors.
Applications
For copper-conductor terminations in power-distribution assemblies and industrial electrical equipment where the selected lug geometry fits the terminal.
Ordering Information
Provide the SC(JGB) model, required mounting-hole diameter and quantity when requesting a quotation.
