ST Stop Cable Ties
Stop cable ties for cable bundling, available in natural and black.
- 6 listed configurations.
- Material: PA66.
- Model-specific specifications shown in the table.
Overview
Stop cable ties for cable bundling, available in natural and black.
Features
- Material: PA66.
- 6 listed configurations for selection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | PA66 |
| Configurations | 6 |
| Operating temperature | −40 to +85 °C |
| Stated material flammability classification | UL 94 V-2 |

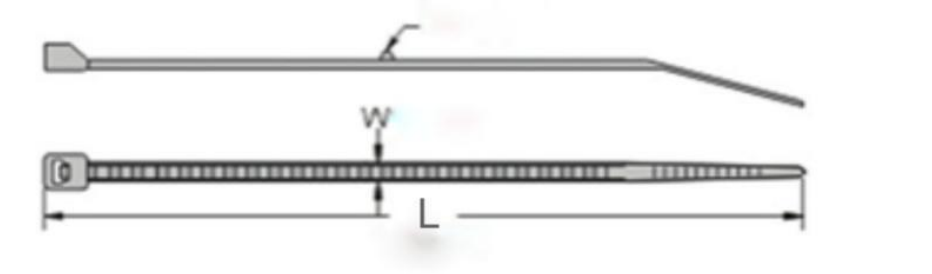

Dimension
Dimensions are in millimetres. Force values are in the units stated in each column and do not establish working-load ratings.
| Model | Width (mm) | Length (mm) | Thickness (mm) | Max. bundle diameter (mm) |
|---|---|---|---|---|
| ST18-100A | 2.5 | 100 | 1.1 | 22 |
| ST40-150A | 3.6 | 150 | 1.2 | 35 |
| ST40-180A | 3.6 | 180 | 1.2 | 44 |
| ST40-300A | 3.6 | 300 | 1.2 | 82 |
| ST18-600A | 2.4 | 600 | 1.5 | 175 |
| ST18-800A | 2.2 | 800 | 1.5 | 235 |
Selection Guide
Check the listed dimensions and configuration against the intended application. Material compatibility and exposure conditions must suit the installation.
Ordering Information
Provide the complete model or specification and quantity when requesting a quotation.
