SY Three-Core Cable Clamps
SY Three-Core Cable Clamps provide shaped components for cable clamping and mounting.
- 4 listed models.
- Three-core cable clamp design.
- Cable outer-diameter notation listed by model.
- L1–L4 dimensions and M mounting-hole label retained.
- Black as illustrated.
Overview
YOCL ELECTRIC SY Three-Core Cable Clamps provide shaped clamping components for cable mounting. The SY series is identified in the supplied catalogue as a three-core cable clamp range. Four models have listed cable outer-diameter ranges and model-specific L1–L4 dimensions.
Features
- Four SY three-core clamp models.
- Cable outer-diameter range listed for each model.
- Model-specific L1–L4 mounting dimensions.
- M mounting-hole label of 15.5 across the four models.
- Black as illustrated.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | SY |
| Function | Cable clamping and mounting |
| Model count | 4 |
| Colour | Black as illustrated |
Dimension
| Model | Applicable cable outer-diameter notation | L1 | L2 | L3 | L4 | M |
|---|---|---|---|---|---|---|
| SY27-38 | 3 × 27–38 | 125 | 180 | 75 | 75 | 15.5 |
| SY38-51 | 3 × 38–51 | 145 | 195 | 80 | 100 | 15.5 |
| SY51-69 | 3 × 51–69 | 170 | 220 | 85 | 130 | 15.5 |
| SY69-90 | 3 × 69–90 | 215 | 252 | 90 | 163 | 15.5 |
The supplied table does not state a dimensional unit. The figures above retain its numeric values and drawing labels without conversion.

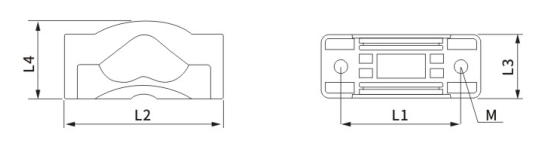

L1 identifies the hole centre spacing, L2 the body span, L3 the width in plan view, L4 the height and M the mounting hole label. The source range notation starts with 3 × and is retained without replacing it with a single overall bundle diameter.
Selection Guide
Select the SY model using the listed cable outer-diameter notation and then compare the mounting hole spacing and overall body dimensions with the installation layout.
Ordering Information
For a quotation, specify the full model, quantity, cable outer diameter and mounting layout. State the three-core cable arrangement to be supported.
