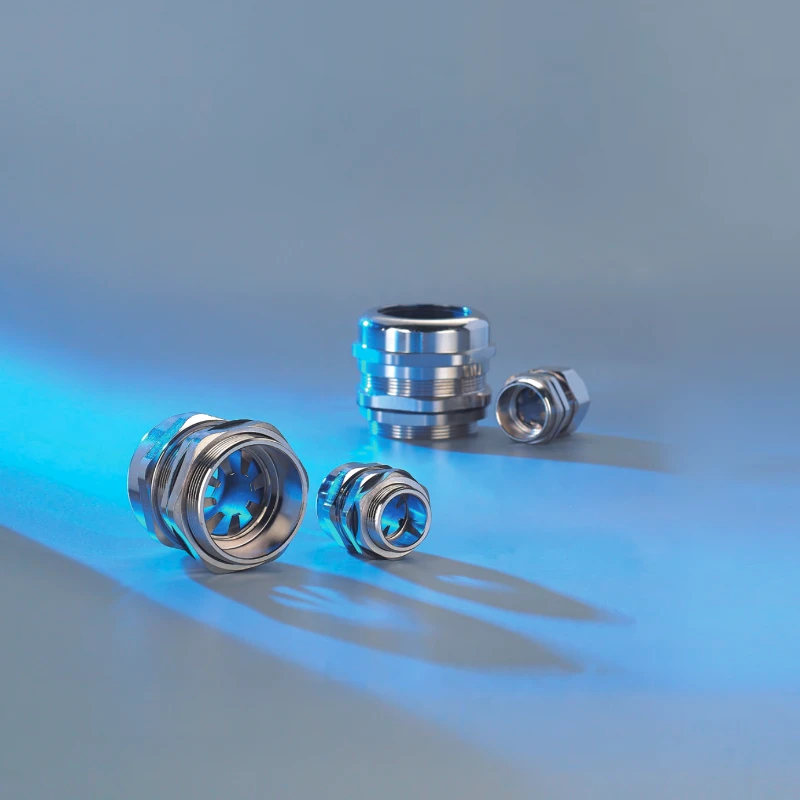

VO-E EMC Metal Cable Glands
VO-E EMC metal cable glands are offered in metric, PG, G/PF and NPT thread families. The four catalog tables list 67 models with cable range and installation dimensions.
- Metal components are listed as nickel-plated brass, SS304 or SS316L options; other specified components include PA66 and EPDM.
- Source-stated IP68 performance has no accompanying test report.
- Check the exact thread, cable range, mounting hole and GL before ordering.
Overview
VO-E EMC Metal Cable Glands provide cable entry and clamping for electrical equipment. The supplied catalog identifies metric, PG, G/PF and NPT thread options and lists 67 model codes. The EMC designation comes from the source; no shielding attenuation data is provided.
Features
- Four thread families: metric, PG, G/PF and NPT models are tabulated separately for selection.
- Cable clamping: each model lists a specific cable diameter range rather than one range for the whole series.
- Material options: the source lists nickel-plated brass, SS304 and SS316L for selected metal components, PA66 for another component and EPDM for sealing parts. It does not map the metal choices to individual model codes.
- Catalog-stated IP68: the source also prints โ10 bar,โ but no test method, duration or report is provided.
Technical Specifications
| Parameter | Catalog specification |
|---|---|
| Product type | EMC metal cable gland |
| Series | VO-E EMC |
| Listed models | 67 |
| Thread families | Metric, PG, G/PF and NPT |
| Cable diameter range | 3โ77 mm across listed models; check each model |
| Metal component options | Nickel-plated brass, SS304 or SS316L; option mapping unspecified |
| Other specified materials | PA66 and EPDM rubber |
| Protection degree | IP68 stated by source; test conditions not supplied |
| Static temperature | โ40 to +100 ยฐC; short-term up to +120 ยฐC |
| Dynamic temperature | โ20 to +80 ยฐC; short-term up to +100 ยฐC |
| Dimension units | mm |
No EMC attenuation value, installation torque, material-variant code or product test report is included in the supplied pages.

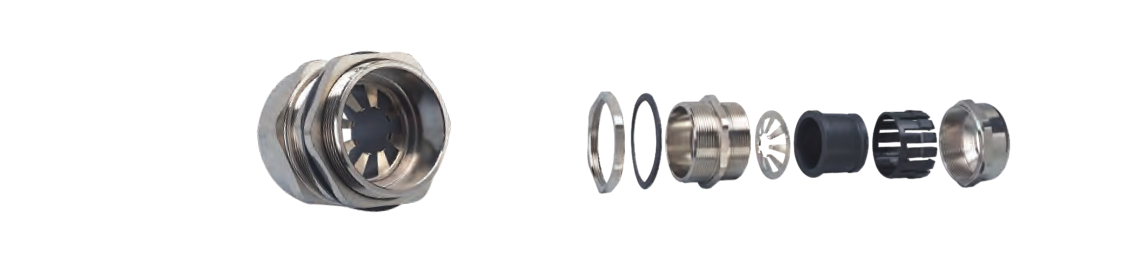

Dimension
The tables retain the source’s thread outside diameter, mounting-hole diameter, thread length GL and spanner size. A dash means the NPT table does not state a mounting-hole value. Cable ranges are displayed from minimum to maximum diameter.
Metric Thread Models
| Model | Thread | Cable diameter range (mm) | Thread OD (mm) | Mounting hole (mm) | GL (mm) | Spanner size (mm) |
|---|---|---|---|---|---|---|
| VO-E.M12A-EMC | M12ร1.5 | 3โ5.3 | 12 | 12โ12.3 | 8 | 17/17 |
| VO-E.M12B-EMC | M12ร1.5 | 4.5โ7.8 | 12 | 12โ12.3 | 8 | 17/17 |
| VO-E.M16A-EMC | M16ร1.5 | 4โ7 | 16 | 16โ16.3 | 9 | 22/22 |
| VO-E.M16B-EMC | M16ร1.5 | 6โ10 | 16 | 16โ16.3 | 9 | 22/22 |
| VO-E.M20A-EMC | M20ร1.5 | 5โ8.8 | 20 | 20โ20.3 | 9.5 | 24/24 |
| VO-E.M20B-EMC | M20ร1.5 | 7โ12 | 20 | 20โ20.3 | 9.5 | 24/24 |
| VO-E.M20C-EMC | M20ร1.5 | 9โ14 | 20 | 20โ20.3 | 9.5 | 26/26 |
| VO-E.M25A-EMC | M25ร1.5 | 12โ16 | 25 | 25โ25.4 | 12 | 32/32 |
| VO-E.M25B-EMC | M25ร1.5 | 14โ18 | 25 | 25โ25.4 | 12 | 32/32 |
| VO-E.M32A-EMC | M32ร1.5 | 16โ22 | 32 | 32โ32.4 | 12.5 | 41/41 |
| VO-E.M32B-EMC | M32ร1.5 | 18โ25 | 32 | 32โ32.4 | 12.5 | 41/41 |
| VO-E.M40A-EMC | M40ร1.5 | 21โ25 | 40 | 40โ40.4 | 15 | 50/50 |
| VO-E.M40B-EMC | M40ร1.5 | 24โ30 | 40 | 40โ40.4 | 15 | 50/50 |
| VO-E.M50A-EMC | M50ร1.5 | 26โ32 | 50 | 50โ50.4 | 15 | 60/60 |
| VO-E.M50B-EMC | M50ร1.5 | 31โ41 | 50 | 50โ50.4 | 15 | 60/60 |
| VO-E.M63A-EMC | M63ร1.5 | 40โ46 | 63 | 63โ63.4 | 15 | 73/73 |
| VO-E.M63B-EMC | M63ร1.5 | 44โ51 | 63 | 63โ63.4 | 15 | 73/73 |
| VO-E.M75A-EMC | M75ร1.5 | 50โ56 | 75 | 75โ75.6 | 15 | 85/85 |
| VO-E.M75B-EMC | M75ร1.5 | 56โ66 | 75 | 75โ75.6 | 15 | 85/85 |
| VO-E.M90A-EMC | M90ร1.5 | 58โ68 | 90 | 90โ91 | 20 | 102/102 |
| VO-E.M90B-EMC | M90ร1.5 | 66โ77 | 90 | 90โ91 | 20 | 102/102 |
| VO-E.M100A-EMC | M100ร1.5 | 58โ68 | 100 | 100โ101 | 25 | 116/116 |
| VO-E.M100B-EMC | M100ร1.5 | 66โ77 | 100 | 100โ101 | 25 | 116/116 |
PG Thread Models
| Model | Thread | Cable diameter range (mm) | Thread OD (mm) | Mounting hole (mm) | GL (mm) | Spanner size (mm) |
|---|---|---|---|---|---|---|
| VO-E.PG7A-EMC | PG7 | 3โ5.3 | 12.5 | 12.5โ12.8 | 8 | 17/17 |
| VO-E.PG7B-EMC | PG7 | 4.5โ7.8 | 12.5 | 12.5โ12.8 | 8 | 17/17 |
| VO-E.PG9A-EMC | PG9 | 3โ5.8 | 15.2 | 15.2โ15.5 | 8 | 18/18 |
| VO-E.PG9B-EMC | PG9 | 4.5โ7.8 | 15.2 | 15.2โ15.5 | 8 | 18/18 |
| VO-E.PG11A-EMC | PG11 | 4โ7 | 18.6 | 18.6โ18.9 | 9 | 22/22 |
| VO-E.PG11B-EMC | PG11 | 6โ10 | 18.6 | 18.6โ18.9 | 9 | 22/22 |
| VO-E.PG13.5A-EMC | PG13.5 | 5โ8.8 | 20.4 | 20.4โ20.7 | 9.5 | 24/24 |
| VO-E.PG13.5B-EMC | PG13.5 | 7โ12 | 20.4 | 20.4โ20.7 | 9.5 | 24/24 |
| VO-E.PG16A-EMC | PG16 | 7โ11 | 22.5 | 22.5โ22.8 | 9.5 | 26/26 |
| VO-E.PG16B-EMC | PG16 | 9โ14 | 22.5 | 22.5โ22.8 | 9.5 | 26/26 |
| VO-E.PG21A-EMC | PG21 | 12โ16 | 28.3 | 28.3โ28.7 | 12 | 32/32 |
| VO-E.PG21B-EMC | PG21 | 14โ18 | 28.3 | 28.3โ28.7 | 12 | 32/32 |
| VO-E.PG29A-EMC | PG29 | 16โ22 | 37 | 37โ37.4 | 12.5 | 41/41 |
| VO-E.PG29B-EMC | PG29 | 18โ25 | 37 | 37โ37.4 | 12.5 | 41/41 |
| VO-E.PG36A-EMC | PG36 | 21โ25 | 47 | 47โ47.4 | 15 | 50/50 |
| VO-E.PG36B-EMC | PG36 | 24โ30 | 47 | 47โ47.4 | 15 | 50/50 |
G/PF Thread Models
| Model | Thread | Cable diameter range (mm) | Thread OD (mm) | Mounting hole (mm) | GL (mm) | Spanner size (mm) |
|---|---|---|---|---|---|---|
| VO-E.G1/4A-EMC | G (PF) 1/4โณ | 3โ5.3 | 13.157 | 13.2โ13.4 | 8 | 17/17 |
| VO-E.G1/4B-EMC | G (PF) 1/4โณ | 4.5โ7.8 | 13.157 | 13.2โ13.4 | 8 | 17/17 |
| VO-E.G3/8A-EMC | G (PF) 3/8โณ | 4โ7 | 16.662 | 16.7โ16.9 | 9 | 22/22 |
| VO-E.G3/8B-EMC | G (PF) 3/8โณ | 6โ10 | 16.662 | 16.7โ16.9 | 9 | 22/22 |
| VO-E.G1/2A-EMC | G (PF) 1/2โณ | 7โ11 | 20.955 | 21โ21.2 | 9.5 | 26/26 |
| VO-E.G1/2B-EMC | G (PF) 1/2โณ | 9โ14 | 20.955 | 21โ21.2 | 9.5 | 26/26 |
| VO-E.G3/4A-EMC | G (PF) 3/4โณ | 12โ16 | 26.441 | 26.5โ26.8 | 12 | 32/32 |
| VO-E.G3/4B-EMC | G (PF) 3/4โณ | 14โ18 | 26.441 | 26.5โ26.8 | 12 | 32/32 |
| VO-E.G1A-EMC | G (PF) 1โณ | 16โ22 | 33.249 | 33.3โ33.6 | 12.5 | 41/41 |
| VO-E.G1B-EMC | G (PF) 1โณ | 18โ25 | 33.249 | 33.3โ33.6 | 12.5 | 41/41 |
| VO-E.G11/4A-EMC | G (PF) 1 1/4โณ | 21โ25 | 41.91 | 42โ42.3 | 15 | 50/50 |
| VO-E.G11/4B-EMC | G (PF) 1 1/4โณ | 24โ30 | 41.91 | 42โ42.3 | 15 | 50/50 |
| VO-E.G11/2A-EMC | G (PF) 1 1/2โณ | 26โ32 | 47.803 | 48โ48.4 | 15 | 60/60 |
| VO-E.G11/2B-EMC | G (PF) 1 1/2โณ | 31โ41 | 47.803 | 48โ48.4 | 15 | 60/60 |
| VO-E.G2A-EMC | G (PF) 2โณ | 40โ46 | 59.614 | 60โ60.4 | 15 | 73/73 |
| VO-E.G2B-EMC | G (PF) 2โณ | 44โ51 | 59.614 | 60โ60.4 | 15 | 73/73 |
| VO-E.G21/2A-EMC | G (PF) 2 1/2โณ | 50โ56 | 75.184 | 75.2โ75.6 | 18 | 85/88 |
| VO-E.G21/2B-EMC | G (PF) 2 1/2โณ | 56โ66 | 75.184 | 75.2โ75.6 | 18 | 85/88 |
NPT Thread Models
| Model | Thread | Cable diameter range (mm) | Thread OD (mm) | Mounting hole (mm) | GL (mm) | Spanner size (mm) |
|---|---|---|---|---|---|---|
| VO-E.NPT3/8A-EMC | NPT 3/8โณ | 4โ7 | 17.055 | โ | 13 | 22 |
| VO-E.NPT3/8B-EMC | NPT 3/8โณ | 6โ10 | 17.055 | โ | 13 | 22 |
| VO-E.NPT1/2A-EMC | NPT 1/2โณ | 7โ11 | 21.223 | โ | 13 | 26 |
| VO-E.NPT1/2B-EMC | NPT 1/2โณ | 9โ14 | 21.223 | โ | 13 | 26 |
| VO-E.NPT3/4A-EMC | NPT 3/4โณ | 12โ16 | 26.568 | โ | 14 | 32 |
| VO-E.NPT3/4B-EMC | NPT 3/4โณ | 14โ18 | 26.568 | โ | 14 | 32 |
| VO-E.NPT1A-EMC | NPT 1โณ | 16โ22 | 33.227 | โ | 15 | 41 |
| VO-E.NPT1B-EMC | NPT 1โณ | 18โ25 | 33.227 | โ | 15 | 41 |
| VO-E.NPT11/4A-EMC | NPT 1 1/4โณ | 21โ25 | 41.984 | โ | 15 | 50 |
| VO-E.NPT11/4B-EMC | NPT 1 1/4โณ | 24โ30 | 41.984 | โ | 15 | 50 |
Selection Guide
Select the exact VO-E EMC model by cable outside diameter and equipment thread family. Confirm the mating thread, mounting hole where specified, GL and spanner size. Request the chosen metal material explicitly because the model codes do not identify it.
