VO-M-LBK Double Bell-Shaped Metal Cable Glands
YOCL ELECTRIC VO-M-LBK Double Bell-Shaped Metal Cable Glands are listed in 40 metric-thread models from M12 to M100. The catalogue describes nickel-plated brass and stainless steel constructions, N230 NBR sealing material and PA6 nylon components.
- Distinct double bell-shaped metal body.
- Model-specific cable clamping ranges, mounting holes and thread lengths.
- IP68 protection grade stated for the screw-on assembly when correctly installed.
Overview
YOCL ELECTRIC VO-M-LBK Double Bell-Shaped Metal Cable Glands provide a threaded cable entry in the double bell-shaped design shown for this series. Forty metric-thread models cover M12 to M100, with model-specific cable ranges and installation dimensions.
Features
- Double bell-shaped body: distinguishes the LBK series from the internal/external thread NW series.
- Metric thread options: M12 to M100 sizes with the pitches shown in the model table.
- Material constructions described: nickel-plated brass, stainless steel 304 and stainless steel 316. Specify the required body material when inquiring.
- N230 NBR and PA6 nylon parts: sealing and polymer components described in the reference.
- IP68 protection grade: stated for the screw-on assembly within the specified cable range when correctly installed.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | VO-M-LBK |
| Product type | Double bell-shaped metal cable gland |
| Thread system | Metric |
| Body materials described | Nickel-plated brass; stainless steel 304 or 316 |
| Sealing and polymer materials | N230 NBR; PA6 nylon |
| Protection grade | IP68, stated for the screw-on assembly |
| Static temperature range | β40 to +100 Β°C; short-term to +120 Β°C |
| Dynamic temperature range | β20 to +80 Β°C; short-term to +100 Β°C |
| Listed models | 40 |

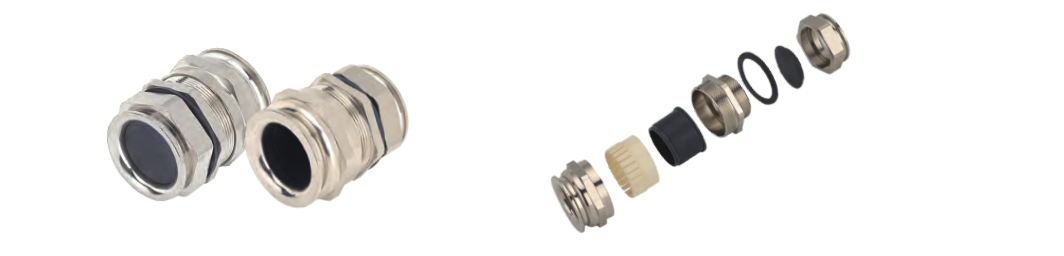

Dimension
All dimensions are in millimeters except the metric thread designation. Cable ranges are ordered from smaller to larger diameter; the source table prints the same endpoints in reverse order.
| Model | Metric thread | Cable Γ (mm) | Thread O.D. (mm) | Mounting hole Γ (mm) | Thread length GL (mm) | Spanner size (mm) |
|---|---|---|---|---|---|---|
| VO-M12-LBK | M12Γ1.5 | 3β6.5 | 12 | 12β12.2 | 7 | 14 |
| VO-M14-LBK | M14Γ1.5 | 4β8 | 14 | 14β14.2 | 7 | 17 |
| VO-M16-LBK | M16Γ1.5 | 4β8 | 16 | 16β16.2 | 8 | 18 |
| VO-M18-LBK | M18Γ1.5 | 5β10 | 18 | 18β18.2 | 8 | 20 |
| VO-M20-LBK | M20Γ1.5 | 6β12 | 20 | 20β20.2 | 8 | 22 |
| VO-M22-LBK | M22Γ1.5 | 10β14 | 22 | 22β22.2 | 8 | 24 |
| VO-M24-LBK | M24Γ1.5 | 10β14 | 24 | 24β24.2 | 9 | 24/27 |
| VO-M25A-LBK | M25Γ1.5 | 10β14 | 25 | 25β25.2 | 9 | 24/27 |
| VO-M25B-LBK | M25Γ1.5 | 8β16 | 25 | 25β25.2 | 9 | 27 |
| VO-M25C-LBK | M25Γ1.5 | 13β18 | 25 | 25β25.2 | 9 | 30/27 |
| VO-M27A-LBK | M27Γ1.5 | 13β18 | 27 | 27β27.2 | 9 | 30 |
| VO-M27B-LBK | M27Γ2 | 13β18 | 27 | 27β27.2 | 9 | 30 |
| VO-M28A-LBK | M28Γ1.5 | 13β18 | 28 | 28β28.2 | 9 | 30 |
| VO-M28B-LBK | M28Γ2 | 13β18 | 28 | 28β28.2 | 9 | 30 |
| VO-M30A-LBK | M30Γ1.5 | 13β18 | 30 | 30β30.2 | 9 | 30/32 |
| VO-M30B-LBK | M30Γ2 | 13β18 | 30 | 30β30.2 | 9 | 30/32 |
| VO-M32A-LBK | M32Γ1.5 | 15β22 | 32 | 32β32.2 | 10 | 35 |
| VO-M32B-LBK | M32Γ1.5 | 16β20 | 32 | 32β32.2 | 10 | 35 |
| VO-M32C-LBK | M32Γ2 | 15β22 | 32 | 32β32.2 | 10 | 35 |
| VO-M36A-LBK | M36Γ1.5 | 18β25 | 36 | 36β36.2 | 10 | 40 |
| VO-M36B-LBK | M36Γ2 | 18β25 | 36 | 36β36.2 | 10 | 40 |
| VO-M37A-LBK | M37Γ1.5 | 18β25 | 37 | 37β37.2 | 10 | 40 |
| VO-M37B-LBK | M37Γ2 | 18β25 | 37 | 37β37.2 | 10 | 40 |
| VO-M40A-LBK | M40Γ1.5 | 18β25 | 40 | 40β40.2 | 11 | 40/45 |
| VO-M40B-LBK | M40Γ2 | 18β25 | 40 | 40β40.2 | 11 | 40/45 |
| VO-M40C-LBK | M40Γ1.5 | 22β30 | 40 | 40β40.2 | 11 | 45 |
| VO-M40D-LBK | M40Γ2 | 22β30 | 40 | 40β40.2 | 11 | 45 |
| VO-M42A-LBK | M42Γ1.5 | 22β30 | 42 | 42β42.2 | 11 | 45 |
| VO-M42B-LBK | M42Γ2 | 22β30 | 42 | 42β42.2 | 11 | 45 |
| VO-M50A-LBK | M50Γ1.5 | 32β38 | 50 | 50β50.2 | 12 | 57/55 |
| VO-M50B-LBK | M50Γ2 | 32β38 | 50 | 50β50.2 | 12 | 57/55 |
| VO-M60A-LBK | M60Γ1.5 | 37β44 | 60 | 60β60.2 | 13 | 64 |
| VO-M60B-LBK | M60Γ2 | 37β44 | 60 | 60β60.2 | 13 | 64 |
| VO-M63A-LBK | M63Γ1.5 | 37β44 | 63 | 63β63.2 | 13 | 64/68 |
| VO-M63B-LBK | M63Γ2 | 37β44 | 63 | 63β63.2 | 13 | 64/68 |
| VO-M72-LBK | M72Γ2 | 42β52 | 72 | 72β72.2 | 15 | 78 |
| VO-M75-LBK | M75Γ2 | 42β52 | 75 | 75β75.2 | 15 | 78 |
| VO-M80-LBK | M80Γ2 | 50β62 | 80 | 80β80.2 | 18 | 86/88 |
| VO-M88-LBK | M88Γ2 | 60β70 | 88 | 88β88.2 | 18 | 98 |
| VO-M100-LBK | M100Γ2 | 70β80 | 100 | 100β100.2 | 20 | 110 |

Selection Guide
Choose the metric thread and mounting-hole size, then confirm that the cable outside diameter falls within the listed clamping range. Check the GL thread length and spanner size for the installation. Specify the required body material when ordering.
Ordering Information
Provide the full VO-M-LBK model, body material and required quantity when requesting a quotation.
