VO Metric Thread Waterproof Brass Cable Glands
VO Metric Thread Waterproof Brass Cable Glands use a nickel-plated brass body, PA clamping claws and NBR sealing insert and O-ring. The source catalog lists 59 model rows with cable clamping range, thread dimensions and spanner size.
- Metric thread options in the catalog's metric series.
- Catalog-stated IP68 at 10 bar when installed within the specified clamping range with the O-ring tightened.
- Static operating temperature: β40 to +100 Β°C; dynamic: β20 to +80 Β°C.
- Use the model table to match cable outside diameter, thread and mounting hole.
Overview
VO Metric Thread Waterproof Brass Cable Glands use a nickel-plated brass body, PA clamping claws and NBR sealing insert and O-ring. The source catalog lists 59 model rows with cable clamping range, thread dimensions and spanner size. Choose the gland by cable outside diameter and the mating enclosure thread or mounting hole. The catalog describes IP68 protection at 10 bar when the O-ring is tightened and the cable remains within the specified clamping range.
Features
- Nickel-plated brass body with metallic finish.
- PA clamping claws and NBR sealing insert and O-ring.
- Cable clamping ranges and mounting dimensions are listed by model.
Technical Specifications
| Parameter | Catalog specification |
|---|---|
| Thread family | Metric |
| Body | Nickel-plated brass |
| Clamping claws | Nylon PA |
| Sealing insert and O-ring | NBR |
| Catalog ingress protection | IP68 at 10 bar, conditional on specified clamping range and tightened O-ring |
| Static working temperature | β40 to +100 Β°C; short-term up to +120 Β°C |
| Dynamic working temperature | β20 to +80 Β°C; short-term up to +100 Β°C |

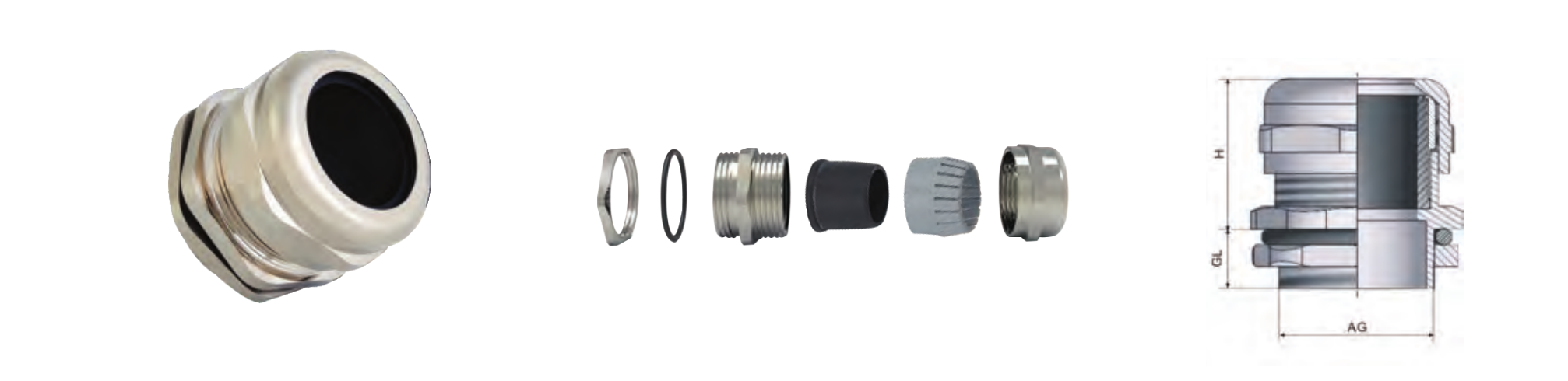

Dimension
Cable ranges are shown in ascending order (minimumβmaximum); the source table prints maximumβminimum. All dimensions are in millimeters except thread designations and threads per inch. GL is thread length and H is overall joint length.
| Model code | Thread | Cable OD range (mm) | Thread OD (mm) | Mounting hole (mm) | GL (mm) | H (mm) | Spanner (mm) |
|---|---|---|---|---|---|---|---|
| VO-M6-NP | M6Γ1 | 1β3.5 | 6 | 6β6.2 | 5 | 11 | 8 |
| VO-M8-NP | M8Γ1 | 2β5.5 | 8 | 8β8.2 | 5 | 16 | 12 |
| VO-M10-NP | M10Γ1 | 3β6.5 | 10 | 10β10.2 | 7 | 19 | 14 |
| VO-M12-NP | M12Γ1.5 | 3β6.5 | 12 | 12β12.2 | 7 | 19 | 14 |
| VO-M14-NP | M14Γ1.5 | 4β8 | 14 | 14β14.2 | 7 | 19 | 17 |
| VO-M16-NP | M16Γ1.5 | 4β8 | 16 | 16β16.2 | 8 | 20 | 18 |
| VO-M18-NP | M18Γ1.5 | 5β10 | 18 | 18β18.2 | 8 | 21 | 20 |
| VO-M20-NP | M20Γ1.5 | 6β12 | 20 | 20β20.2 | 8 | 22 | 22 |
| VO-M22-NP | M22Γ1.5 | 10β14 | 22 | 22β22.2 | 8 | 23 | 24 |
| VO-M24-NP | M24Γ1.5 | 10β14 | 24 | 24β24.2 | 9 | 25 | 24/27 |
| VO-M25A-NP | M25Γ1.5 | 10β14 | 25 | 25β25.2 | 9 | 25 | 24/27 |
| VO-M25B-NP | M25Γ1.5 | 8β16 | 25 | 25β25.2 | 9 | 27 | 27 |
| VO-M25C-NP | M25Γ1.5 | 13β18 | 25 | 25β25.2 | 9 | 27 | 30/27 |
| VO-M27A-NP | M27Γ1.5 | 13β18 | 27 | 27β27.2 | 9 | 27 | 30 |
| VO-M27B-NP | M27Γ2 | 13β18 | 27 | 27β27.2 | 9 | 27 | 30 |
| VO-M28A-NP | M28Γ1.5 | 13β18 | 28 | 28β28.2 | 9 | 27 | 30 |
| VO-M28B-NP | M28Γ2 | 13β18 | 28 | 28β28.2 | 9 | 27 | 30 |
| VO-M30A-NP | M30Γ1.5 | 13β18 | 30 | 30β30.2 | 9 | 29 | 30/32 |
| VO-M30B-NP | M30Γ2 | 13β18 | 30 | 30β30.2 | 9 | 29 | 30/32 |
| VO-M32A-NP | M32Γ1.5 | 15β22 | 32 | 32β32.2 | 10 | 29 | 35 |
| VO-M32B-NP | M32Γ1.5 | 16β20 | 32 | 32β32.2 | 10 | 29 | 35 |
| VO-M32C-NP | M32Γ2 | 15β22 | 32 | 32β32.2 | 10 | 29 | 35 |
| VO-M33A-NP | M33Γ1.5 | 15β22 | 33 | 33β33.2 | 10 | 29 | 35 |
| VO-M33B-NP | M33Γ2 | 15β22 | 33 | 33β33.2 | 10 | 29 | 35 |
| VO-M36A-NP | M36Γ1.5 | 18β25 | 36 | 36β36.2 | 10 | 31 | 40 |
| VO-M36B-NP | M36Γ2 | 18β25 | 36 | 36β36.2 | 10 | 31 | 40 |
| VO-M37A-NP | M37Γ1.5 | 18β25 | 37 | 37β37.2 | 10 | 31 | 40 |
| VO-M37B-NP | M37Γ2 | 18β25 | 37 | 37β37.2 | 10 | 31 | 40 |
| VO-M40A-NP | M40Γ1.5 | 18β25 | 40 | 40β40.2 | 11 | 31 | 40/45 |
| VO-M40B-NP | M40Γ2 | 18β25 | 40 | 40β40.2 | 11 | 31 | 40/45 |
| VO-M40C-NP | M40Γ1.5 | 22β30 | 40 | 40β40.2 | 11 | 35 | 45 |
| VO-M40D-NP | M40Γ2 | 22β30 | 40 | 40β40.2 | 11 | 35 | 45 |
| VO-M42A-NP | M42Γ1.5 | 22β30 | 42 | 42β42.2 | 11 | 35 | 45 |
| VO-M42B-NP | M42Γ2 | 22β30 | 42 | 42β42.2 | 11 | 35 | 45 |
| VO-M47A-NP | M47Γ1.5 | 25β33 | 47 | 47β47.2 | 11 | 37 | 50 |
| VO-M47B-NP | M47Γ2 | 25β33 | 47 | 47β47.2 | 11 | 37 | 50 |
| VO-M48A-NP | M48Γ1.5 | 25β33 | 48 | 48β48.2 | 11 | 37 | 50/52 |
| VO-M48B-NP | M48Γ2 | 25β33 | 48 | 48β48.2 | 11 | 37 | 50/52 |
| VO-M50A-NP | M50Γ1.5 | 32β38 | 50 | 50β50.2 | 12 | 37 | 57/55 |
| VO-M50B-NP | M50Γ2 | 32β38 | 50 | 50β50.2 | 12 | 37 | 57/55 |
| VO-M54A-NP | M54Γ1.5 | 32β38 | 54 | 54β54.2 | 12 | 38 | 57 |
| VO-M54B-NP | M54Γ2 | 32β38 | 54 | 54β54.2 | 12 | 38 | 57 |
| VO-M56A-NP | M56Γ1.5 | 32β38 | 56 | 56β56.2 | 12 | 38 | 57/59 |
| VO-M56B-NP | M56Γ2 | 32β38 | 56 | 56β56.2 | 12 | 38 | 57/59 |
| VO-M60A-NP | M60Γ1.5 | 37β44 | 60 | 60β60.2 | 13 | 38 | 64 |
| VO-M60B-NP | M60Γ2 | 37β44 | 60 | 60β60.2 | 13 | 38 | 64 |
| VO-M63A-NP | M63Γ1.5 | 37β44 | 63 | 63β63.2 | 13 | 38 | 64/68 |
| VO-M63B-NP | M63Γ2 | 37β44 | 63 | 63β63.2 | 13 | 38 | 64/68 |
| VO-M64A-NP | M64Γ1.5 | 37β44 | 64 | 64β64.2 | 13 | 38 | 64/68 |
| VO-M64B-NP | M64Γ2 | 37β44 | 64 | 64β64.2 | 13 | 38 | 64/68 |
| VO-M72-NP | M72Γ2 | 42β52 | 72 | 72β72.2 | 15 | 42 | 78 |
| VO-M75-NP | M75Γ2 | 45β55 | 75 | 75β75.2 | 15 | 42 | 78 |
| VO-M80-NP | M80Γ2 | 50β62 | 80 | 80β80.2 | 18 | 46 | 86/88 |
| VO-M88-NP | M88Γ2 | 60β70 | 88 | 88β88.2 | 18 | 46 | 98 |
| VO-M100-NP | M100Γ2 | 70β80 | 100 | 100β100.2 | 20 | 50 | 110 |
| VO-M110-NP | M110Γ2 | 80β90 | 110 | 110β110.2 | 20 | 57 | 120 |
| VO-M120-NP | M120Γ2 | 90β102 | 120 | 120β120.2 | 20 | 57 | 135 |
| VO-M125-NP | M125Γ2 | 98β108 | 125 | 125β125.2 | 24 | 65 | 135 |
| VO-M150-NP | M150Γ2 | 110β125 | 150 | 150β150.5 | 25 | 70 | 160 |
Selection Guide
Match the cable outside diameter to the clamping range, then verify the exact thread type, thread size and installation space. Specify the complete model code and quantity when requesting a quote.
