VO-TXM25 T-Type Mini Waterproof Connector
VO-TXM25 T-Type Mini Waterproof Connector offers t-shaped cable connection with screw terminal.
- 12 configurations by core count and cable outside diameter.
- Conductor cross-section: 0.5–2.5 mm².
- PA66 nylon housing with silicone O-ring.
- Catalog-rated 380 V / 25 A, IP68 and −40 to +105 °C temperature resistance.
Overview
The VO-TXM25 T-Type Mini Waterproof Connector provides a t-shaped cable connection with screw terminal, flame-retardant PA66 nylon housing and silicone O-ring. Choose the configuration by electrical core count, cable outside diameter and conductor cross-section.
Features
- Screw terminal with 0.5–2.5 mm² conductor cross-section range.
- 12 listed configurations for the available core counts and cable diameter ranges.
- PA66 housing with catalog-listed V-0 flame-retardant rating.
- Silicone O-ring and catalog-listed IP68 protection level.
Technical Specifications
| Parameter | Catalog specification |
|---|---|
| Construction | T-shaped |
| Connection type | Screw terminal |
| Housing material | Flame-retardant PA66 nylon |
| O-ring material | Silicone |
| Contact material | Nickel-plated 59-1 brass |
| Conductor cross-section | 0.5–2.5 mm² |
| Rated voltage / current | 380 V / 25 A |
| Catalog test / withstand voltage | 1500 V; test conditions not supplied |
| Catalog-listed protection level | IP68 |
| Temperature resistance | −40 to +105 °C |
| Storage | Room temperature |
| Flame-retardant rating | V-0, as listed |
| Quantity per bag | 5 pieces |
Configurations
Cable ranges refer to cable outside diameter. Carton weights are catalog values; carton quantities are not specified.
| Printed order code | Cores | Cable range (mm) | Piece weight (g) | Catalog carton weight (kg) |
|---|---|---|---|---|
| TXM25-31 | 2 | 5–8 | 63.8 | 24.3 |
| TXM25-32 | 2 | 9–12 | 62.6 | 23.9 |
| TXM25-33 | 2 | 10–14 | 61.4 | 23.5 |
| TXM25-34 | 3 | 5–8 | 65.8 | 25 |
| TXM25-31 | 3 | 9–12 | 64.6 | 24.6 |
| TXM25-32 | 3 | 10–14 | 63.4 | 24.2 |
| TXM25-33 | 4 | 5–8 | 67.8 | 25.8 |
| TXM25-34 | 4 | 9–12 | 66.6 | 25.3 |
| TXM25-31 | 4 | 10–14 | 65.2 | 24.8 |
| TXM25-32 | 5 | 5–8 | 69.8 | 26.5 |
| TXM25-33 | 5 | 9–12 | 68.6 | 26 |
| TXM25-34 | 5 | 10–14 | 67.4 | 25.6 |
Selection Guide
Specify the full product version, printed order code, core count, cable outside diameter and conductor cross-section in an inquiry. The catalog repeats order codes across configurations, so include both core count and cable range to identify the required configuration.

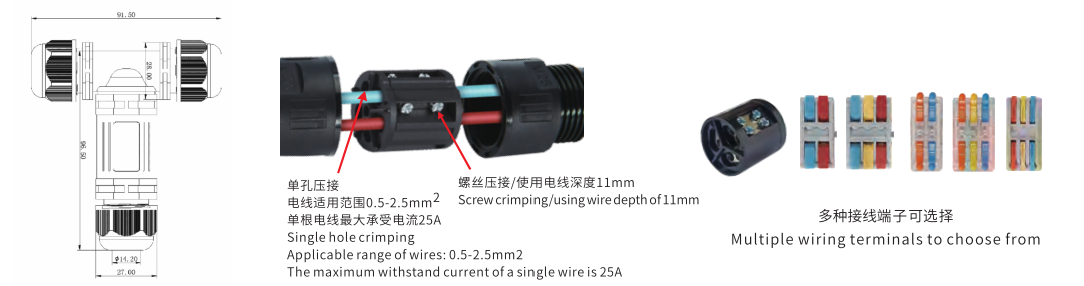

Dimension
