VO-ZXFTM25 Split Quick Insert Waterproof Connector
VO-ZXFTM25 Split Quick Insert Waterproof Connector offers inline cable connection with split quick-insert construction.
- 6 configurations by core count and cable outside diameter.
- Conductor cross-section: 0.5–2.5 mm².
- PA66 nylon housing with silicone O-ring.
- Catalog-rated 400 V / 25 A, IP68 and −40 to +105 °C temperature resistance.
Overview
The VO-ZXFTM25 Split Quick Insert Waterproof Connector provides a inline cable connection with split quick-insert construction, flame-retardant PA66 nylon housing and silicone O-ring. Choose the configuration by electrical core count, cable outside diameter and conductor cross-section.
Features
- Split quick-insert construction with 0.5–2.5 mm² conductor cross-section range.
- 6 listed configurations for the available core counts and cable diameter ranges.
- PA66 housing with catalog-listed V-0 flame-retardant rating.
- Silicone O-ring and catalog-listed IP68 protection level.
Technical Specifications
| Parameter | Catalog specification |
|---|---|
| Construction | Inline |
| Connection type | Split quick-insert construction |
| Housing material | Flame-retardant PA66 nylon |
| O-ring material | Silicone |
| Contact material | Nickel-plated Y2 copper with stainless steel |
| Conductor cross-section | 0.5–2.5 mm² |
| Rated voltage / current | 400 V / 25 A |
| Catalog test / withstand voltage | 2500 V; test conditions not supplied |
| Catalog-listed protection level | IP68 |
| Temperature resistance | −40 to +105 °C |
| Storage | Room temperature |
| Flame-retardant rating | V-0, as listed |
| Quantity per bag | 10 pieces |
Configurations
Cable ranges refer to cable outside diameter. Carton weights are catalog values; carton quantities are not specified.
| Printed order code | Cores | Cable range (mm) | Piece weight (g) | Catalog carton weight (kg) |
|---|---|---|---|---|
| FTM25-15 | 2 | 5–8 | 44.8 | 17.2 |
| FTM25-16 | 2 | 9–12 | 43.2 | 16.7 |
| FTM25-17 | 2 | 10–14 | 42.2 | 16.3 |
| FTM25-18 | 3 | 5–8 | 46.8 | 17.9 |
| FTM25-19 | 3 | 9–12 | 45.4 | 17.5 |
| FTM25-20 | 3 | 10–14 | 44.2 | 17 |
Selection Guide
Specify the full product version, printed order code, core count, cable outside diameter and conductor cross-section in an inquiry.

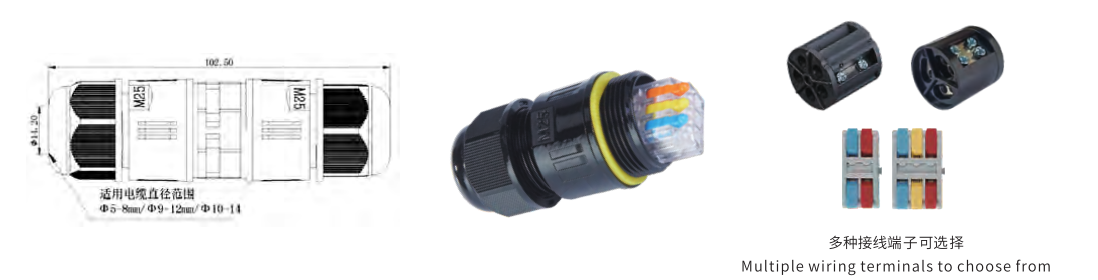

Dimension
