VO-ZXM20 Quick Insert Waterproof Connector
VO-ZXM20 Quick Insert Waterproof Connector provides an inline cable connection with quick insert construction.
- 2/3-core options across 4 order codes.
- Conductor cross-section: 0.5–2.5 mm².
- Flame-retardant PA66 housing and silicone O-ring.
- Catalog-rated 400 V / 25 A, IP68 and −40 to +105 °C temperature resistance.
- Select the order code to match both core count and cable outside diameter.
Overview
The VO-ZXM20 Quick Insert Waterproof Connector is an inline cable connector with quick insert construction, a flame-retardant PA66 nylon housing and silicone O-ring. The series lists 4 order codes with 2/3-core configurations. Select the cable diameter range and conductor cross-section together with the core count.
Features
- Quick insert connection with 0.5–2.5 mm² conductor cross-section range.
- Separate order codes for the listed core counts and cable diameter ranges.
- PA66 nylon housing with catalog-listed V-0 flame-retardant rating.
- Silicone O-ring and catalog-listed IP68 protection level.
Technical Specifications
| Parameter | Catalog specification |
|---|---|
| Series | VO-ZXM20 Quick Insert |
| Connection type | Quick insert |
| Housing material | Flame-retardant PA66 nylon |
| O-ring material | Silicone |
| Contact material | Nickel-plated Y2 phosphor copper with stainless steel |
| Conductor cross-section | 0.5–2.5 mm² |
| Rated voltage / current | 400 V / 25 A |
| Catalog-listed protection level | IP68 |
| Temperature resistance | −40 to +105 °C |
| Storage | Room temperature |
| Flame-retardant rating | V-0, as listed |
| Quantity per bag | 20 pieces |
| Catalog test voltage | 2500 V; test method and duration not supplied |
Order Codes
Cable ranges refer to cable outside diameter, in mm. Piece and carton weights are source catalog values; the carton quantity is not specified.
| Order code | Cores | Cable range (mm) | Piece weight (g) | Catalog carton weight (kg) |
|---|---|---|---|---|
| M20-01 | 2 | 5–8 | 26.4 | 14.3 |
| M20-02 | 2 | 9–12 | 25.6 | 14.8 |
| M20-03 | 3 | 5–8 | 27.2 | 15.7 |
| M20-05 | 3 | 9–12 | 26.8 | 15.4 |
Selection Guide
Specify the complete order code, core count, cable outside diameter and conductor cross-section in an inquiry. The quick-insert and mini versions have separate order-code ranges and conductor limits; use the version name as well as the code.

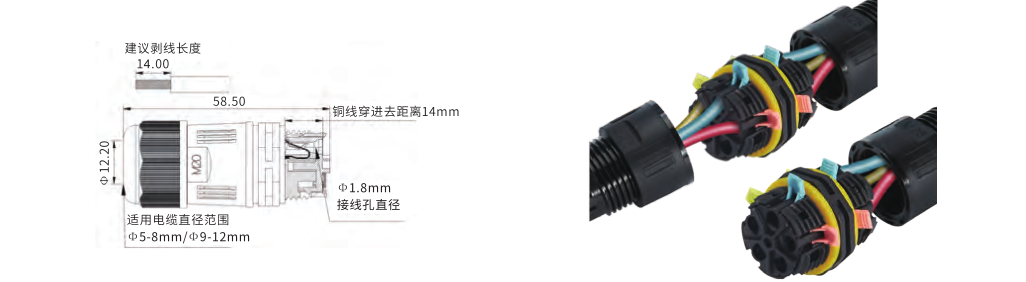

Dimension
