Waterproof Junction Box Series with PVC Entry Plugs
Waterproof Junction Box Series with PVC Entry Plugs offers 14 catalog size specifications with PS or ABS housing options.
- IP55 or IP65 protection, according to the selected size.
- Listed entry-hole diameters: 25, 27 or 36 mm.
- Entry-hole counts and packing quantities are provided by size.
- PVC entry plugs specified for this version.
Overview
The waterproof junction box series with pvc entry plugs provides enclosed space for cable junction arrangements. The catalog lists 14 size specifications with PS or ABS housing choices. Protection levels, entry-hole diameters and hole counts vary by size and are shown in the selection table.
Features
- PS or ABS housing options.
- Model-specific IP55 or IP65 protection levels.
- Listed cable-entry hole diameters and counts for each size.
- PVC entry plugs specified in the material list.
Technical Specifications
| Parameter | Catalog specification |
|---|---|
| Housing options | PS or ABS |
| Protection levels | IP55 or IP65, according to size |
| Entry-hole diameters | 25, 27 or 36 mm, according to size |
| Entry plug material | PVC |
Size and Entry Specifications
Size specifications are reproduced as printed, in mm. The two smallest round-box specifications have two values; no third dimension or L/W/H assignment is inferred. Entry-hole diameter is not a cable clamping range.
| Catalog size specification (mm) | Protection level | Entry-hole diameter (mm) | Entry-hole count | Packing quantity (pieces) |
|---|---|---|---|---|
| 50×50 | IP55 | 25 | 4 | 500 |
| 80×50 | IP55 | 25 | 4 | 200 |
| 80×80×50 | IP55 | 27 | 4 | 200 |
| 85×85×50 | IP55 | 27 | 7 | 200 |
| 100×100×70 | IP65 | 27 | 7 | 100 |
| 150×110×70 | IP65 | 27 | 10 | 60 |
| 150×150×70 | IP65 | 27 | 7 | 60 |
| 200×100×70 | IP65 | 27 | 8 | 50 |
| 200×155×80 | IP65 | 36 | 10 | 30 |
| 200×200×80 | IP65 | 36 | 12 | 30 |
| 255×200×80 | IP65 | 36 | 12 | 30 |
| 255×200×120 | IP65 | 36 | 12 | 30 |
| 300×250×120 | IP65 | 36 | 12 | 20 |
| 400×350×120 | IP65 | 36 | 16 | 5 |
Selection Guide
Specify the size, housing material and required cable-entry arrangement. Match the selected box protection level to the installation requirements. The catalog describes using existing entry positions or opening holes as required; suitable entry fittings and sealing details should be specified for the finished assembly. Internal terminals, electrical ratings and mounting cutouts are not specified in the supplied material.

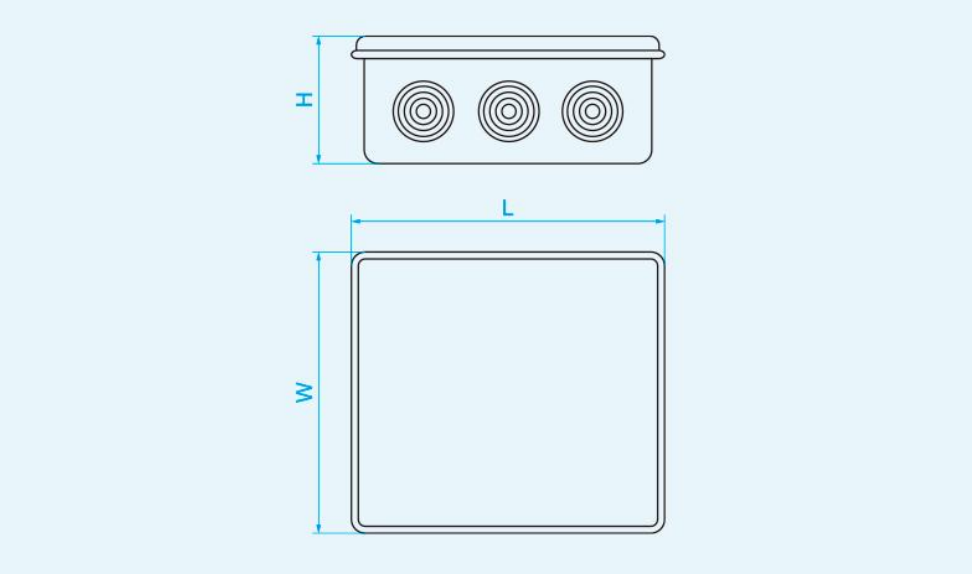

Dimension
